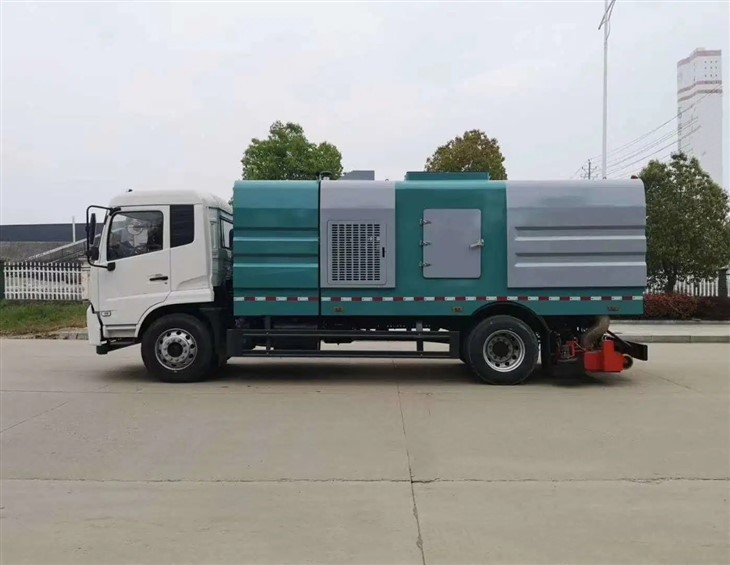

Model No.: 10 CBM Street Flushing Sweeping Truck.
Garbage Tanker: 8CBM + Water Tanker: 2CBM.
Overall Dimensions(LxWxH): 8,450×2,500×3,100mm.
Chassis Brand: Dongfeng.
Drive Type: 4×2.
Wheelbase: 4,700mm.
Engine Brand: Cummins.
Engine Power: 180HP.
Emission Standard: Euro IV.
Max.driving speed(km/h): 110.
Max. Operation ability(m2/h): 70,000.
Max. Sucking dimension(mm): 50.
Max. Working width(mm): 3,000.
 |
 |
 |
 |
Description
BRIEF
Road sweeper truck, also known as street sweeper trucks, sweeper vehicles, road cleaner trucks, street cleaner trucks, road sweeper machines, street sweeper machines, sweeping trucks, road cleaning vehicles, municipal sweeper trucks, pavement sweeper trucks, plays a vital role in today’s municipal service!
The Dongfeng 10 CBM street flushing sweeping truck, manufactured by CSCTRUCK, is a robust and efficient vehicle designed for urban sanitation and waste management. This specialized truck integrates various features to ensure thorough street cleaning and waste collection.
Equipped with an 8 CBM garbage tanker, the Dongfeng street sweeping truck has ample capacity to handle substantial volumes of waste. The additional 2 CBM water tanker enhances its street flushing capabilities, allowing for effective cleaning of roads and public spaces. The 4×2 drive type provides the necessary stability and maneuverability required for navigating through diverse urban environments.
Under the hood, the Dongfeng street sweeping truck boasts a Cummins engine with a model that delivers 180HP engine power. This powerful engine aligns with Euro IV emission standards, showcasing a commitment to environmental sustainability by reducing harmful emissions. With a maximum driving speed of 110 km/h, the truck can swiftly cover urban areas, optimizing its operational efficiency.
The Dongfeng street sweeping truck features an impressive maximum sweeping range of 70,000 m2/h, ensuring comprehensive coverage during cleaning operations. The 50mm maximum sucking dimension and 3,000mm maximum sweeping width further contribute to its ability to effectively capture and manage various types of debris and waste.
Overall, the Dongfeng 10 CBM street flushing sweeping truck is a reliable and high-performance solution for municipal sanitation and waste management. With its advanced features, powerful engine, and adherence to emission standards, it stands out as a versatile and environmentally conscious choice for keeping urban spaces clean and well-maintained.
FEATURES
1. Achieve thorough cleaning with full suction power, eliminating the need for brush replacement and ensuring easy maintenance without any dust residue.
2. Attain impeccable cleaning results, removing particles effectively ranging from tens of microns to common debris such as pebbles and leaves.
3. Features a highly efficient filtration system for enhanced performance.
4. Enhance cleaning efficiency and lower maintenance expenses: 1 vacuum cleaner provides labor efficiency equivalent to that of over 30 cleaners.
5. Ideal for various industrial settings including coal plants, power plants, cement plants, steel plants, and mining pavements.
SPECIFICATION
| Chassis | |||||
| Drive Model | 4X2, Left hand drive | ||||
| Vehicle Main Dimensions | Overall Dimensions(LxWxH)(mm) | 8,450×2,500×3,100 | |||
| Wheelbase(mm) | 4,700 | ||||
| Overhang (front/rear)(mm) | 1,015/1,815 | ||||
| Wheel track (front/rear)(mm) | 1,504/1,425 | ||||
| Approach/Departure angle(°) | 24/13 | ||||
| Weight in KGS | Curb Weight (kg) | 10,000 | |||
| Front/Rear axle loading(kg) | 4,500/9,000 | ||||
| Max. driving speed(km/h) | 110 | ||||
| Engine | Brand | Cummins | |||
| Horse Power(HP) | 180 | ||||
| Displacement (ml) | 6,700 | ||||
| Emission standard | Euro IV | ||||
| Gearbox | 5 forwarders & 1 reverse. | ||||
| Steering Gear | Power steering, hydraulic steering with power assistance. | ||||
| Brakes | Air brake. | ||||
| Tire | 9.00R20, 6 tires with 1 spare tire. | ||||
| Upper & Equipment | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(CBM) | 8.0 CBM | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(CBM) | 2.0 CBM | ||||
| Operation detail | Max. Operation ability(m2/h) | 70,000 | |||
| Max. Sucking dimension(mm) | 50 | ||||
| Auxiliary engine | Model | ISUZU Brand | |||
| Quantity(No.) | 1 | ||||
| Power(kW) | 68 | ||||
| Blower | Quantity(No.) | 1 | |||
| Brand | China famous brand | ||||
| Power(kW) | 18 | ||||
| Speed(r/min) | 2,900 | ||||
| Vacuum cleaner | Main Vacuum cleaner | Quantity(No.) | 1 | ||
| Width(mm) | 1,800 | ||||
| Side Vacuum cleaner | Quantity(No.) | 2 | |||
| Width(mm) | 600 | ||||
| Max. Working width(mm) | 3,000 | ||||
| Sucking Nozzle wheel | Quantity(No.) | 4 | |||
| Height | Adjustable | ||||
| Remarks |
Rear LED pilot lamp. Self-unloading box body. The color will be designed based on your requirements. |
||||
