●ZZ1167M5611W/L0WA-1 4×2 LHD Chassis
●8000L Water Tank Capacity
●2000L Foam Tank Capacity
●Water Pump Model: CB10/40
● Fire Monitor Model: PL32
●Fire Pump Flow Rate: 32L/s 0.8MPa
![]() |
![]() |
![]() |
Description
Company Brief Introduction:
Specializing in the research, development, and manufacturing of heavy trucks and related key parts, CSCTRUCK is one of the leading heavy-duty truck manufacturers in China. Our excellent reputation has been built through business conducted in over 20 countries around the world. Our comprehensive range of fire trucks includes Water Fire Trucks, Water and Foam Fire Trucks, Air Fire Trucks, Boom Fire Trucks, CAFS Fire Trucks, DCP Fire Trucks, Rescue Fire Trucks, and Tower Fire Trucks.
Our Advantages:
- The product is priced competitively in the market, as it is sold directly from the factory.
- The product comes with an in-time warranty of one year or 100,000km for on-road trucks such as tractor trucks and six months or 60,000km for off-road trucks such as dump trucks, covering the engine, gearbox, and axles. Warranty services are provided through our offices in Tanzania, Zambia, and the Philippines, and distributors are available worldwide.
- We have established more than 240 spare parts centers and service outlets in over 80 countries, with a professional after-sales team ready to resolve any issues within three to five working days. All necessary spare parts are also readily available.
- Our experienced sales and logistics teams are dedicated to providing excellent service. The sales team is always available to assist customers, and the logistics team collaborates with international shipping companies to ensure the safe and cost-effective delivery of trucks.

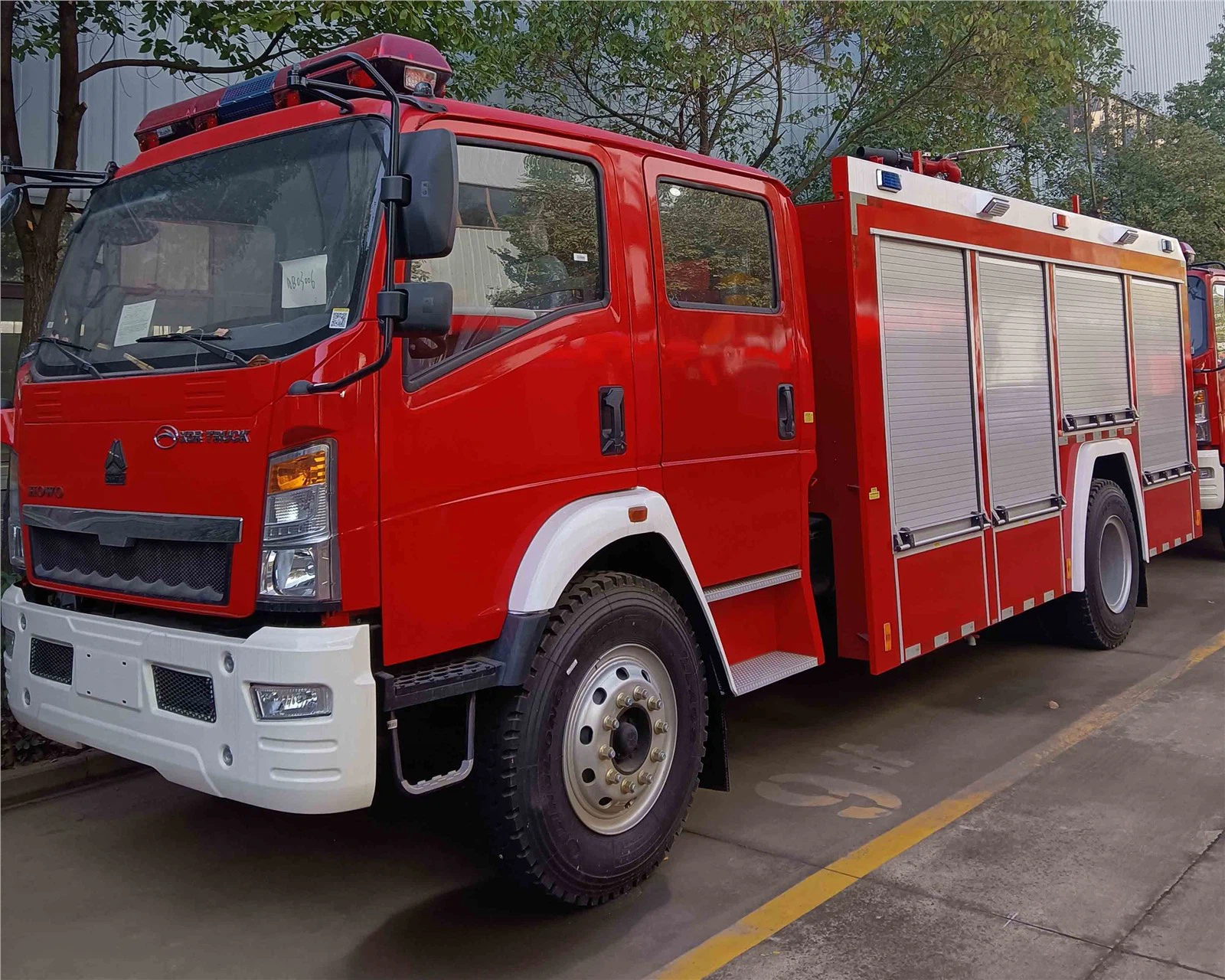

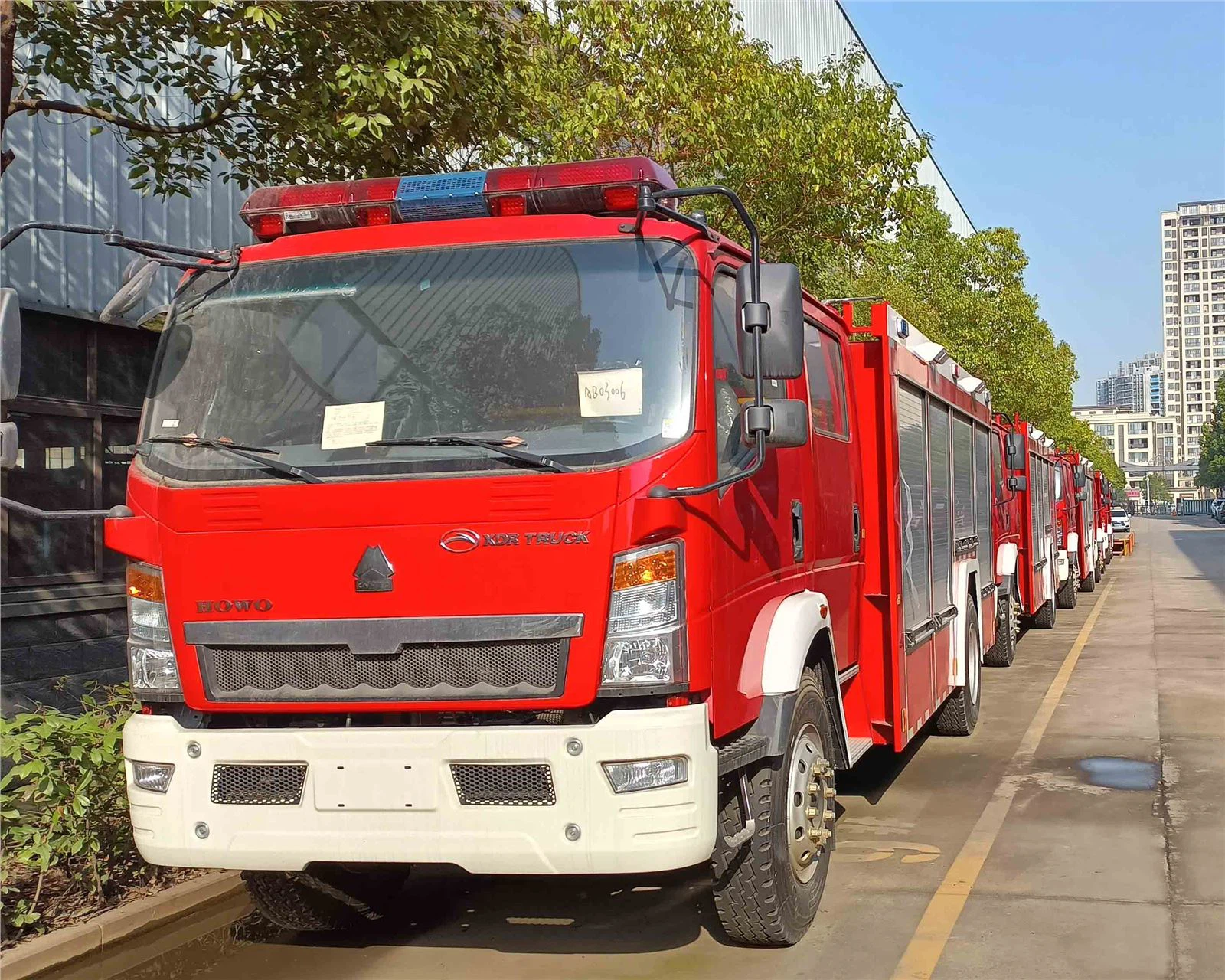

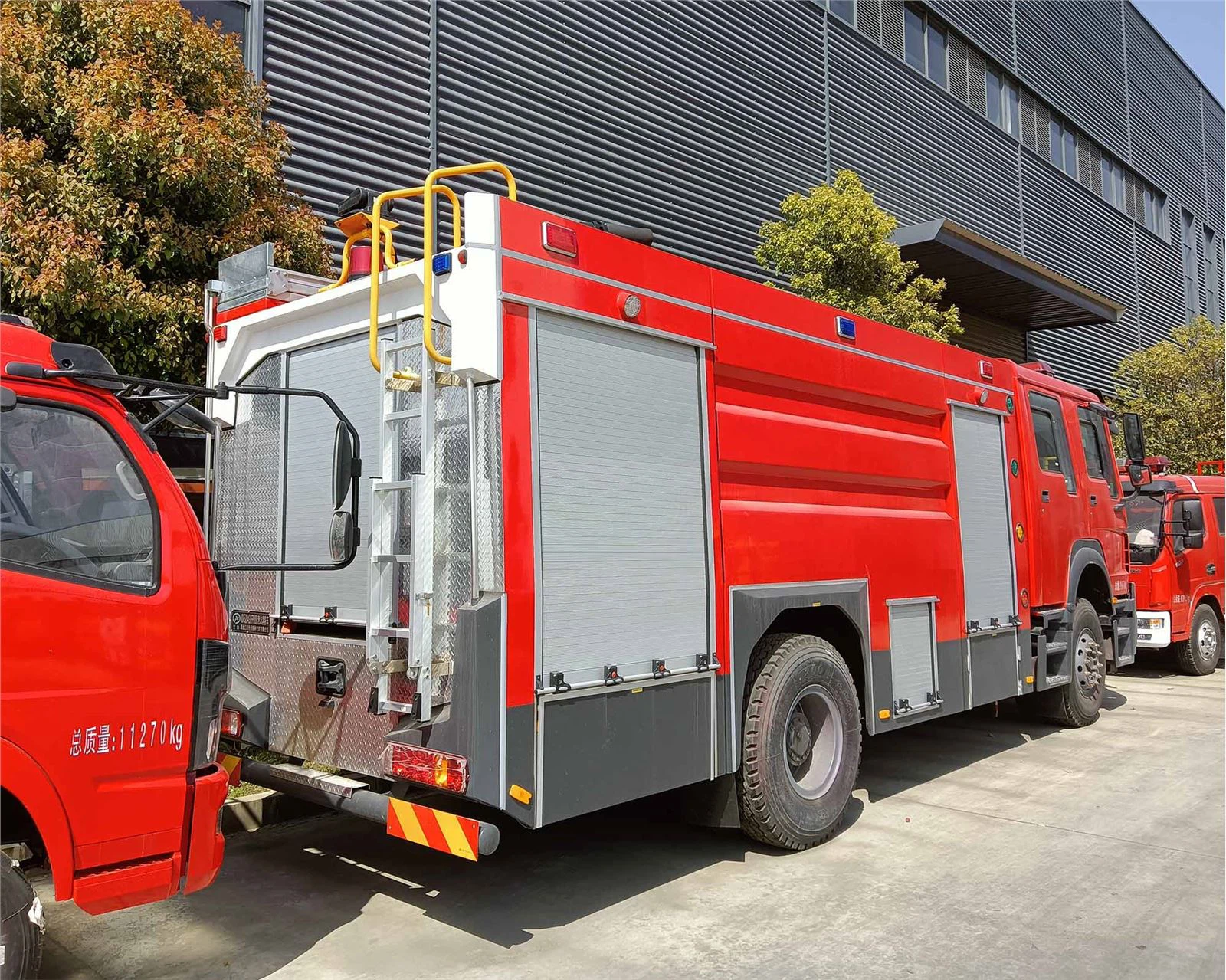

Photos of HOWO 4×2 10tons Water&Foam Fire Truck:
Truck Features:
- With a temperature range from -41C to +46C day and night, and the ability to operate at elevations up to 5000m high, the truck offers optional features such as an ABS system, concentrated lubricating system, hydraulic windlass, and more.
- The cab of HOWO features a domestically-developed horizontal stabilizer and a sturdy protector frame that prevents frontal impact, making it one of the safest domestic cabs on the market, according to experts.
- The truck’s performance is enhanced by its advanced components, including WD615.62 series Euro II turbine turbocharged inter-cooled diesel engines, 299hp power output, HW13710 transmission, and reinforced drive axle.
Specifications:
Chassis | ZZ1167M5611W/L0WA-1 | Cab | HW76 |
Dimension | 8990+2500+3075mm | Wheelbase | 5600mm |
Wheel track(Front/rear) | 2041/1830mm | Tare weight | 12010kg |
Payload | 22210kg | Front/rear axles loading capacity | 7000/16000kg |
Max driving speed | 90km/hr | Engine Brand | Sinotruck |
Engine model | WD615.62 | Engine type | 4-stroke direct injection 6 cylinder in-line |
Engine power | 290HP | Emission standard | Euro Ⅱ |
Gearbox | HW13710 | Clutch | HW70 |
Steering gear | ZF8198 | Fuel tank | 400L |
Tire | 295/80R22.5 | Water Pump Model | CB10/40 |
Fire Monitor Model | PL32 | Fire Pump Flow Rate | 40L/s @1.0MPa |
Fire Monitor Flow Rate | 32L/s 0.8MPa | Max. Fire Monitor Spraying Range | ≥50~55m |
Water Tank Volume | 8000L | Foam Tank Volume | 2000L |
CSCTRUCK—Professional manufacturers of Fire Truck:
60pcs Fire Trucks exported all over the world in last year

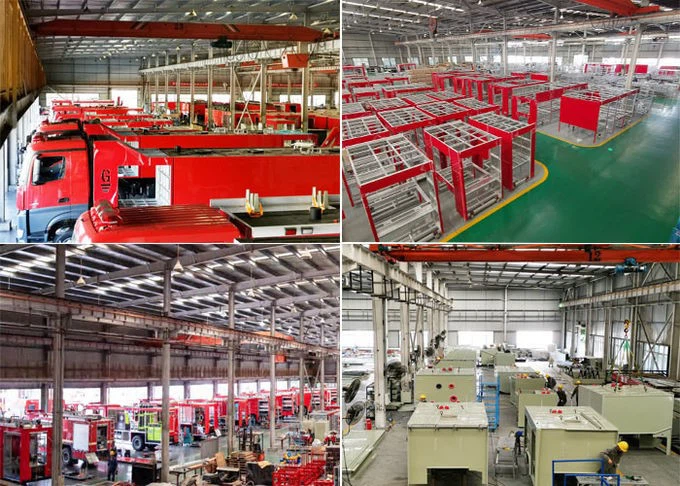

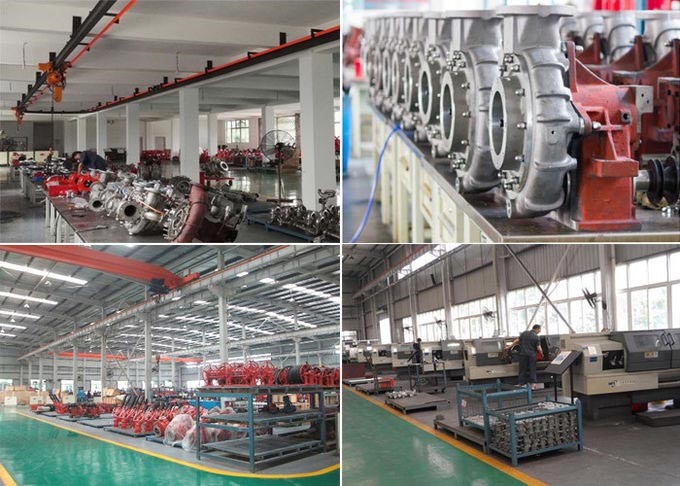

Production workshop:
Stainless steel-anti-corrosion:

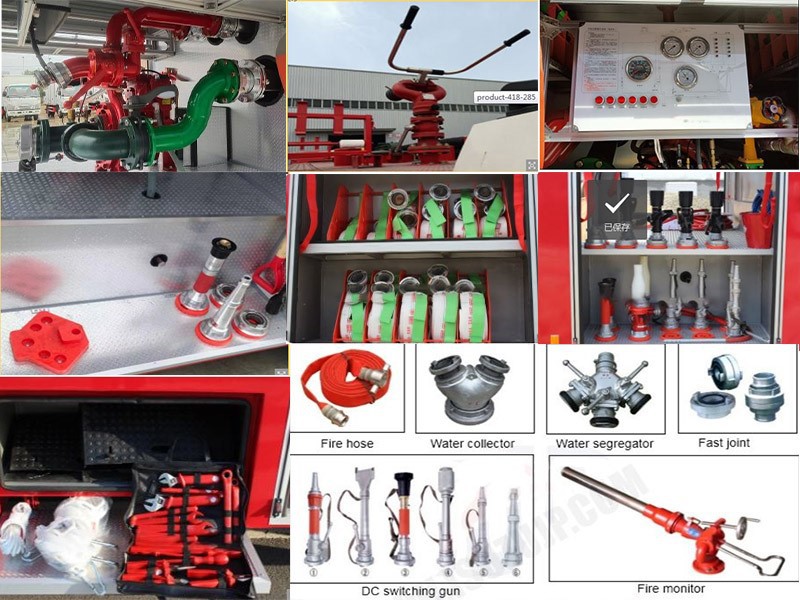

More Details of this Fire Truck:
