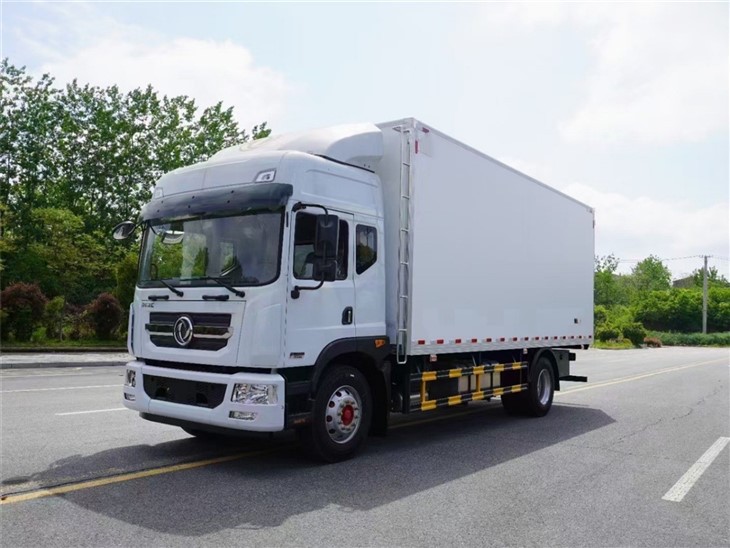

10 Ton Payload Refrigerated Truck 42 CBM

Model No.: 10 Ton Payload Refrigerated Truck 42 CBM.
Overall Dimensions(LxWxH): 9,105×2,600×3,910(mm).
Refrigeration Box Size(LxWxH): 6,800×2,420×2,500(mm).
Chassis Brand: Dongfeng D9.
Drive Type: 4×2.
Wheelbase: 5,300mm.
Engine Model: Dongfeng Cummins 220 HP/162KW/4,500ml.
Emission Standard: EURO VI.
Payload: 9,600kg.
Refrigeration Box Capacity: 42 CBM.
Box Configuration: 80mm thickness, polyurethane board, fiberglass panels, LED lighting, etc.
Refrigeration Range: -5°C to -15°C.
Refrigeration Unit: Optional domestic/imported.

BRIEF

The CSCTRUCK 10-ton payload 42 CBM refrigerated truck, built on the robust Dongfeng D9 chassis, is a pinnacle of modern transport engineering designed to meet the demanding requirements of the cold chain logistics industry. With a 4×2 drive type, this reefer truck ensures efficient and reliable transportation, easily navigating diverse terrains.

Powering the CSCTRUCK refrigerator truck is the formidable Dongfeng Cummins engine, boasting 220 HP (162KW) and a displacement of 4,500ml. This engine not only delivers substantial power but also adheres to the stringent EURO VI emission standard, ensuring compliance with the latest environmental regulations. The advanced emission control technology reduces the refrigerated truck‘s carbon footprint, making it an environmentally conscious choice for businesses.

The refrigerator truck‘s impressive 9,600kg payload capacity makes it well-suited for transporting substantial loads, while the 42 CBM refrigeration box capacity ensures ample space for goods that require temperature-controlled storage. The refrigeration system is designed to maintain a temperature range of -5°C to -15°C, providing the ideal environment for transporting perishable goods, pharmaceuticals, or any other temperature-sensitive cargo.

Versatility is a key feature of the CSCTRUCK refrigerated truck, with an optional refrigeration unit available to cater to specific requirements. This adaptability allows businesses to customize the refrigerator truck based on the unique needs of their cargo, providing a flexible solution for a variety of industries.

Overall, the CSCTRUCK 10-ton payload refrigerated truck combines cutting-edge technology, a powerful engine, and a thoughtfully designed refrigeration system to create a reliable and efficient vehicle for cold chain logistics. Whether transporting fresh produce, pharmaceuticals, or other temperature-sensitive goods, this reefer truck stands as a testament to innovation in the field of refrigerated transport.

FEATURES

1. Impressive Payload Capacity:
The CSCTRUCK boasts a substantial 10-ton payload capacity, making it well-suited for transporting large volumes of goods. This high payload capacity enhances efficiency and allows for the cost-effective movement of substantial cargo loads, contributing to the overall productivity of the refrigerated truck.

2. Efficient and Powerful Engine:
Powered by a robust Dongfeng Cummins engine with 220 HP/162KW/4,500ml, the CSCTRUCK refrigerator truck ensures reliable and powerful performance on the road. The engine’s design and specifications are optimized for efficiency, providing the necessary power to navigate various terrains while maintaining fuel efficiency.

3. Compliance with EURO VI Emission Standards:
The CSCTRUCK adheres to EURO VI emission standards, reflecting a commitment to environmental responsibility. Meeting these stringent emission standards signifies reduced environmental impact and compliance with the latest regulations, making it a suitable choice for businesses focused on sustainability.

4. Versatile Refrigeration Capabilities:
Featuring a spacious 42 CBM refrigeration box, the CSCTRUCK refrigerator truck is equipped to handle a diverse range of temperature-sensitive cargo. With a refrigeration range from -5°C to -15°C, it ensures that perishable goods remain fresh and intact during transportation. The optional refrigeration unit adds a layer of customization, allowing users to adapt the reefer truck to specific temperature control requirements.

5. Durable 4×2 Drive Type and Chassis:
Built on a sturdy Dongfeng D9 chassis and utilizing a 4×2 drive type, the CSCTRUCK offers a durable and reliable platform for transportation. The 4×2 drive type provides a balance between load capacity and maneuverability, making it suitable for a variety of applications. The robust chassis design ensures the truck can withstand the demands of heavy-duty usage, contributing to its longevity and overall cost-effectiveness.

SPECIFICATION
