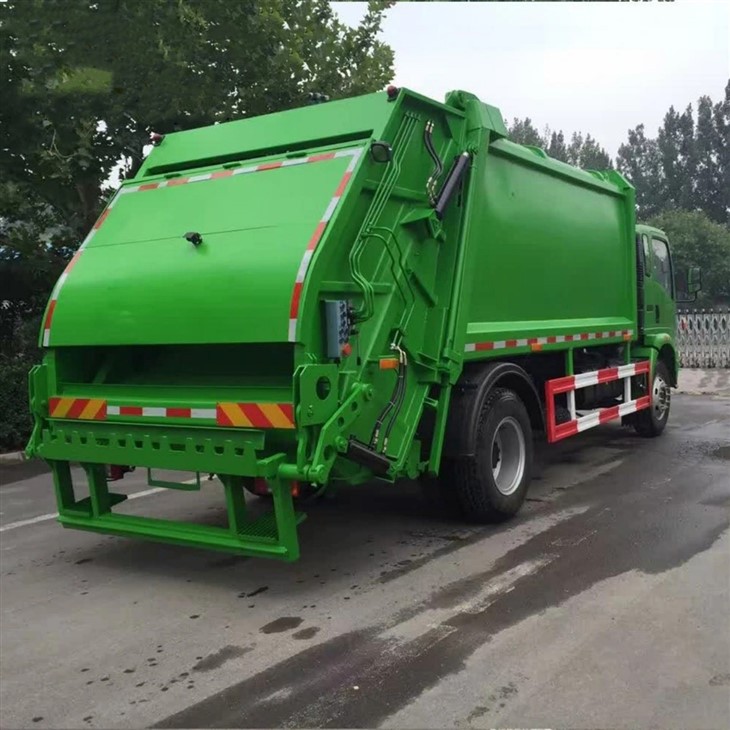

Model NO.: 12 CBM 4X2 Compactor Garbage Truck.
Overall dimension(L x W x H mm):8,865×2,500×3,290.
Drive Wheel: 4×2.
Engine: WD615.62, EuroIIemission standard.
Transmission: HW13710, 10 forward & 2 reverse.
 |
 |
 |
 |
Description
BRIEF
In the ever-expanding urban landscapes of today’s world, effective waste management is a paramount concern. Cities are generating more garbage than ever before, and efficient methods for collection and disposal are essential to maintaining cleanliness and hygiene. In this endeavor, the HOWO 12 CBM 4X2 compactor garbage truck emerges as a beacon of efficiency and functionality.
The Backbone of Waste Management:
The HOWO 12 CBM 4X2 compactor garbage truck is more than just a vehicle; it is the backbone of modern waste management systems. With a 12 cubic meter (CBM) capacity, it can handle substantial quantities of waste efficiently, making it an ideal choice for bustling urban environments.
Efficiency at its Core:
Efficiency is at the core of this marvel of engineering. Its 4X2 drive configuration ensures exceptional maneuverability, allowing it to navigate through narrow city streets and congested traffic with ease. The compactor mechanism is where the magic happens. It compresses the collected waste, reducing its volume and maximizing the truck’s capacity. This means fewer trips to the disposal site, reducing fuel consumption and emissions while saving time and money.
Durability and Reliability:
The HOWO 12 CBM 4X2 compactor garbage truck is built to last. Its robust construction can withstand the rigors of daily use in demanding urban environments. Designed with durability in mind, it requires minimal maintenance, ensuring it remains in service for the long haul.
Eco-Friendly Solution:
In an era where environmental concerns are paramount, this garbage truck is designed with eco-friendliness in mind. Its efficient compaction reduces the need for additional vehicles on the road, thereby decreasing carbon emissions and contributing to a cleaner and greener urban environment.
Enhancing Public Health:
Efficient waste management is not just about keeping the streets clean; it’s also about safeguarding public health. The HOWO 12 CBM 4X2 compactor garbage truck plays a crucial role in preventing the accumulation of waste that could lead to unsanitary conditions and the spread of diseases.
FEATURES
1. Capacity: The title “12 CBM” indicates that this garbage truck has a substantial compactor garbage capacity of 12 cubic meters. This feature is crucial for municipalities and waste management companies as it allows for efficient collection and transportation of large volumes of waste.
2. Drive Configuration: The “4X2” in the title signifies the drive configuration of the garbage truck. In this case, it is a 4×2 configuration, which means it has 4 wheels with 2 of them powered. This setup is commonly used for urban garbage collection, offering good maneuverability in tight city streets.
3. Compactor System: The term “Compactor” in the title implies that this garbage truck is equipped with a compactor system. This system compresses the collected waste, reducing its volume and allowing for more efficient storage and transport. Compactor garbage trucks are known for their cost-effectiveness and reduced environmental impact.
4. Application: This title doesn’t specify the exact application, but compactor garbage trucks like this one are typically used for municipal waste collection in urban and suburban areas. They are designed to handle a wide range of waste types, including household and commercial waste, making them versatile and suitable for various waste management scenarios.
5. Size and Capacity Ratio: The combination of a 12 cubic meter capacity and a 4X2 drive configuration indicates a balance between waste capacity and maneuverability. This suggests that the truck is designed for tasks that require both a decent storage capacity and the ability to navigate through congested city streets efficiently. This feature is particularly important for ensuring timely and effective waste collection services in urban environments.
SPECIFICATION
| ITEM | DESCRIPTION |
| Chassis | HOWO |
| Engine | Make: SINOTRUK Diesel: 4-stroke direct injection diesel engine Engine model: WD615.62, EuroIIemission standard 6-cylinder in-line with water cooling, turbo-charging and intercooling Maximum output: 266 hp(196KW) at 2,600 rpm Maximum torque:1100 Nm at 1,100-1,600 rpm Number of cylinders: 6 Displacement: 9.726 L Bore: 126mm Stroke: 130mm Compression ratio: 17.5:1 Specific fuel consumption: 198g/kWh Engine oil filling quantity: 19L Cooling system filling quantity(long-term filling): 40 L Thermostat with 71ºC opening begin Single-cylinder air compressor Rigid fan |
| Clutch | 430C Pull-type diaphragm spring clutch. Friction disk diameter: 430mm |
| Transmission | HW13710, 10 forward & 2 reverse. |
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange |
| Front Axle | HF7 |
| Rear Axle | MCY13 Central single reduction, full-floating axle shaft, steel plate press-welding axle housing. |
| Chassis | Frame: U-profile parallel ladder frame with section of 300×80×8 mm, all cold riveted cross members Front suspension: 9 semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspention:15 leaf semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers Aluminum fuel tank: 300 l capacity with locking fuel cap, fitted to the off side of the chassis |
| Steering | ZF8098, hydraulic steering with power assistance. |
| Brakes | Service brake: Dual circuit compressed air brake Parking brake (emergency brake): Spring energy, compressed air operating on rear wheels Auxiliary brake: Engine exhaust brake Option: ABS |
| Wheels & Tyres | Rims: 8.5-20,10 hole-steel Tires: 295/8,022.5 |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V,7.5Kw Alternator: 28 V, 1,500 W Batteries: 2×12 V,165Ah Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light |
| Dimensions in mm | Wheelbase: 4,600 Front-wheel track: 2,022 / 2,041 Rear wheel track: 1,850 Front overhang: 1,500 Rear overhang: 2,277 Approach angle(°): 23 Departure angle(°): 15 Overall dimension(L x W x H mm): 8,865×2,500×3,290 |
| Weight in kg | Deadweight: 8,840 Gross vehicle weight: 19,000 |
| Performance | Maximum driving speed(km/h): 90 Maximum grade ability(%): 39 Minimum ground clearance(mm): 298 Minimum turning circle(m): 18.6 Fuel consumption(1/100km): 26 |

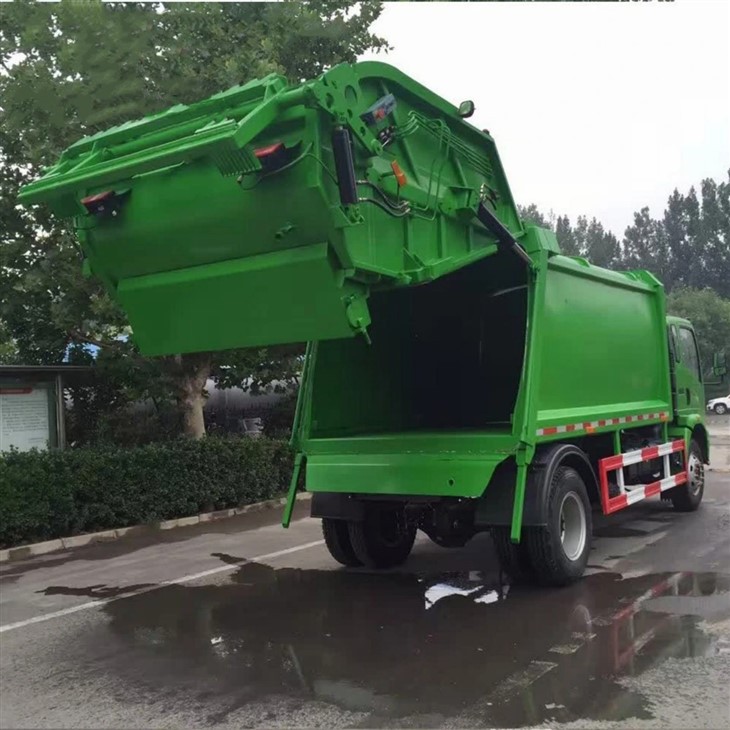

| Body | Volume of body(m3): 16 Volume of filler(m3): 2.0 Time of one filling cycle(s): ≤25 Lifting time of filler (s): 8-10 Time of discharge (s): ≤40 Pressure of fluid system (Mpa): 20 Front/rear sewage capacity (L): 250+150 Max compression force (kg): >25,000 |
