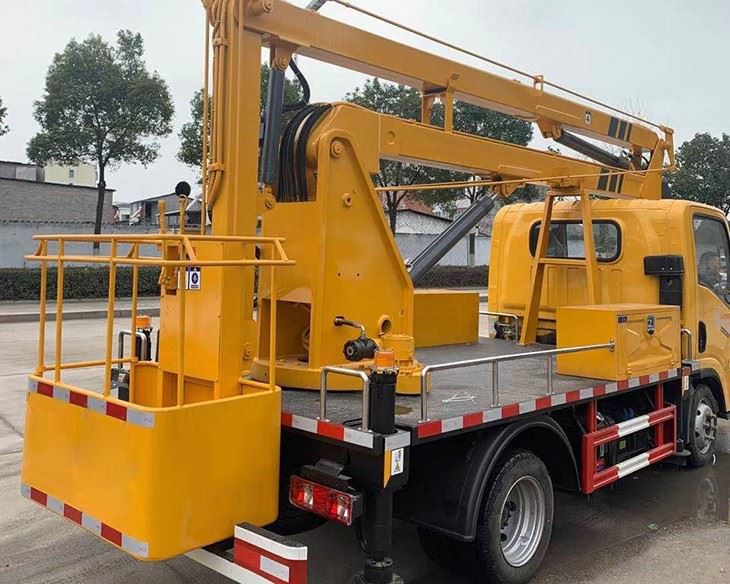

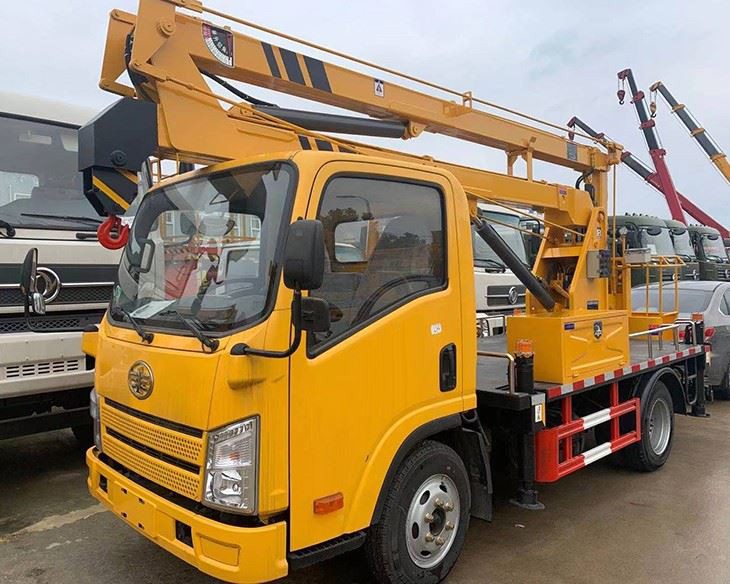

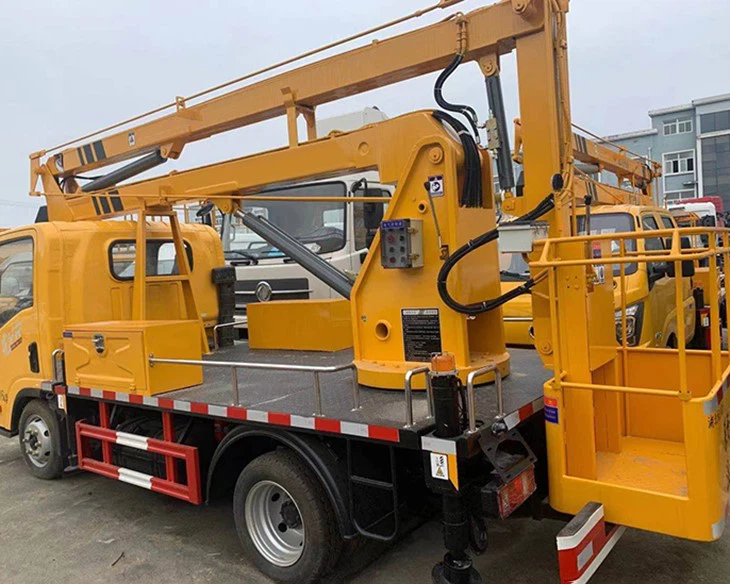

13m Articulated Sky Lift Truck

6m Max Working Reach
200kg Max Capacity Platform
Working Height Up To 13.5m

FAW HuVR 4X2 Truck Chassis
Quanchai 95hpDiesel Engine
5 Speed Manual Transmission

BRIEF

Articulated sky lift truck is specialized vehicles designed for high-altitude operations such as maintenance, installation, cleaning, photography, and various engineering repair operations. Articulated sky lift truck has extensive use in industries such as shipbuilding, chemical manufacturing, and electric power.

At CSCTRUCK, we are committed to providing safe, reliable, and high-quality articulated bucket truck for these operations. To meet this goal, we are introducing a new 13m articulated sky lift truck that offers a working height of up to 13.5m and a working reach of 6 meters. This articulated bucket truck is equipped with state-of-the-art technology to ensure efficient and safe operation at high altitudes.

Our articulated sky lift truck is ideal for tasks such as pruning, replacing street lamps, and other engineering repair operations that require working at great heights. With its versatile and flexible design, the articulated boom allows operators to reach difficult-to-access areas with ease, making it a valuable asset for any industry requiring high-altitude operations.

Overall, our 13m articulated sky lift truck is a reliable and efficient solution for any business requiring specialized high-altitude operation vehicles. With our focus on safety, quality, and reliability, we are committed to providing the best possible service for you.

FEATURES

STANDARD FEATURES:

1. The equipment includes a two-way hydraulic lock and a two-way balance valve.
2. A work platform is provided with an automatic mechanical leveling mechanism to ensure safety and reliability. This mechanism ensures that the platform remains level during operation.
3. The outrigger mechanism is equipped with a hydraulic supply for independent operation, which makes it suitable for uneven terrain.
4. The equipment has a full-rotation mechanism with a hydraulic drive, which allows for full-range rotation.
5. A two-position operation device is present, which enables independent operation from the turntable and platform, ensuring reliable safety performance.
6. The maximum extension angle of the forearm is 65°, making it possible to adjust to the best working position.

OPTIONAL FEATURES:

1. The equipment offers the option of choosing an appearance style.
2. An emergency pump can be installed to enhance safety.
3. A vehicle level meter can be installed to provide accurate level readings.
4. A hydraulic radiator can be added to the equipment for better heat dissipation.
5. An emergency stop/engine start & stop switch can be added to the equipment.
6. An electrical control system, including an electric control switch and throttle valve group, can be included.
7. Operating lights on the platform can be added to make night work safer.

SPECIFICATION
