BRIEF

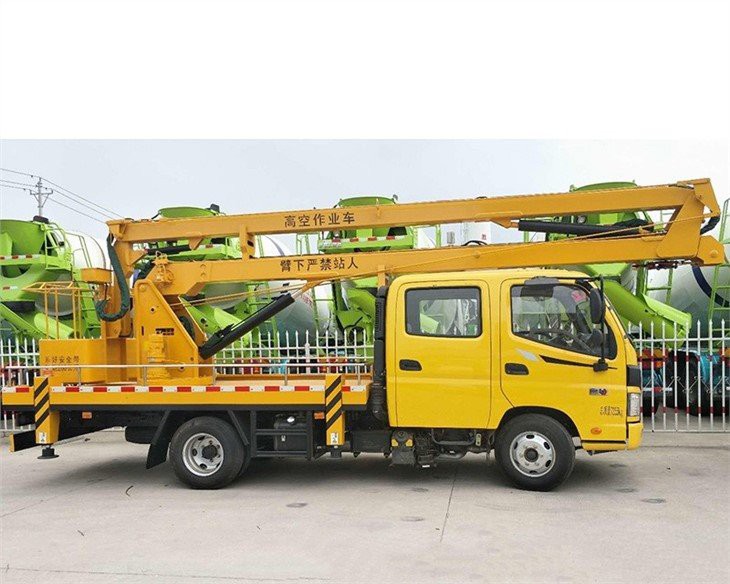

Model AUMARK-E33
FOTON 110hp Engine EURO III
Working height of bucket 12.3m
Work bucket 1150×650×1150mm
Overall Size 5965×1960×2225mm
 |
 |
 |
Description
Main operating technical parameters
Working height of bucket
12.3m
Maximum working range of working bucket
6m
Rated load of working bucket
200Kg
Rotation angle
±360° continuous
Working range at maximum working height of working bucket
3m
Working height when working bucket maximum working range
7.3m
Lifting time of working platform
80~130s
Swing speed
0～2 r/min
