●ZZ1257N4647B1 6×4 LHD Chassis
●15000L Water Tank Capacity
●3000L Foam Tank Capacity
●Water Pump Model: CB10/40
● Fire Monitor Model: PL32
●Fire Pump Flow Rate: 40L/s @1.0MPa
 |
 |
 |
 |
Description
Description:
Fire trucks, also referred to as Fire Rescue trucks, Fire Truck Ambulances, and Emergency Fire trucks, are specialized vehicles designed and manufactured to accommodate firefighters. These vehicles are equipped with a range of firefighting equipment, such as fire extinguishers, fire pumps, and fire monitors.
Their primary function is to transport firefighters to disaster scenes and provide them with the necessary tools to perform rescue and relief tasks.
Advantages:
1)Reliable SINOTRUK brand chassis, 6×4 drive mode.
2)SINOTRUCK engine, super-powerful, no overhaul within 100000km.
3)Huge capacity: the fire truck carries 15000L water and 3000L foam.
4)Long-time after-sales service.
5)High-quality fire pump&Long-range fire monitor
Technical Specification:
Chassis: ZZ1257N4647B1
Cab: HW76
Dimension: 9895+2500+2958/ mm
Wheelbase: 4600+1350mm
Wheel track(Front/rear): 2041/1830mm
Tare weight: 15730kg
Payload: 34030kg
Front/rear axles loading capacity: 9500kg/2x16000kg
Max driving speed: 90km/hr
Engine Brand: Sinotruck;
Engine model: WD615.69
Engine type:4-stroke direct injection 6 cylinder in-line;
Engine power: 336HP
Emission standard: Euro Ⅱ;
Gearbox: HW19710
Clutch: HW70
Steering gear: BOSCH, LHD
Fuel tank: 400L
Tire:12.00R20
Water Pump Model: CB10/40
Fire Monitor Model: PL32
Fire Pump Flow Rate: 40L/s @1.0MPa
Fire Monitor Flow Rate: 32L/S
Max. Fire Monitor Spraying Range: ≥50～55m
Water Tank Volume: 15000L
Foam Tank Volume: 3000L
CSCTRUCK—Professional manufacturers of Fire Truck:
60pcs Fire Trucks exported all over the world in last year
Production workshop：
Stainless steel-anti-corrosion：

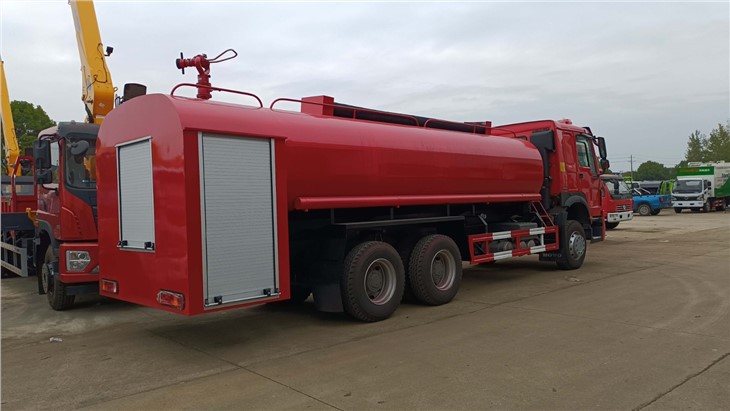

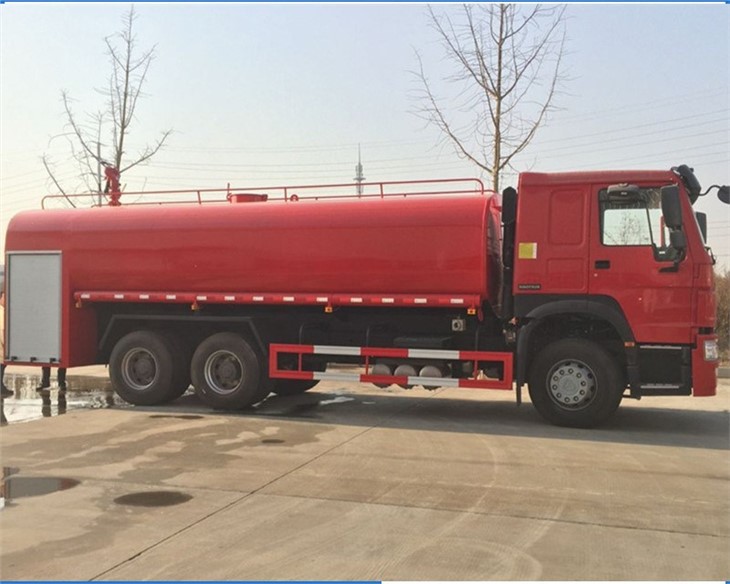

More Details of this Fire Truck:
