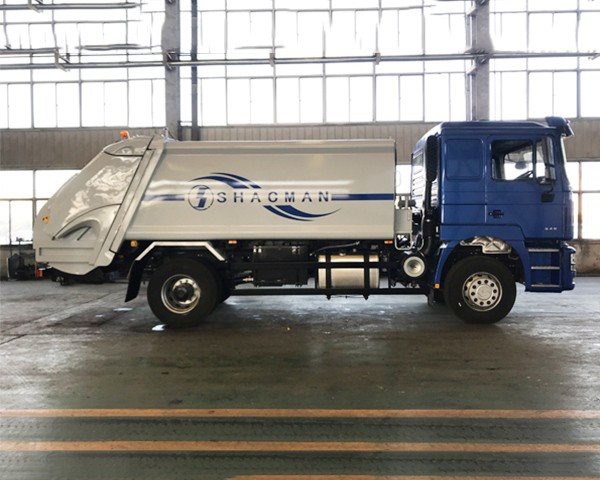

16CBM Rear Loaders Trash Lorry

Equipment 1 A/C
Equipment 2 air main seat
Equipment 3 Electric windows
Equipment 4 180Ah free maintenance battery
Equipment 5 radio with USB

1) General

Truck Model CSC5180ZYSD6 Driving Type  4*2, Left hand drive Capacity 15 m3/CBM Chassis Truck SHACMANH3000 Color Yellow/blue/white Overall Size(mm) 6945×2490×3300 GVW(kg) GVW≤20,000 Curb weight(kg) 9500 Wheelbase(mm) 4600 Oil Tank capacity 400L , made in aluminum material  Max. speed (km/h) 95 PTO with 2)Engine Make/Model : CUMMINS  ISME345 30,      Cylinder No.: 6 cylinders inline Max. Output Power: 254kW (345hp)@1900rpm Torque: 1710N.m @ 1000-1200rpm Type: Diesel, supercharged and intercooled(turbocharged),direct   injection, electronic control Compression Ratio : 16.2 : 1 Norm Euro III 3)Transmission Make/Model : FAST/FAST16JSD220T Gear Numbers: 16-forwards, 2-reverses,  Ratio 14.03, 11.64, 9.6, 7.97, 6.64, 5.51, 4.55, 3.78, 3.08, 2.56, 2.11,   1.75, 1.46, 1.21, 1, 0.83, R1: 13.42, R2: 11.13 Type: Manual Synchronizer : Yes Input power 380kw Input torque : 2200N.m 4) Clutch  Clutch Diameter Φ430 mm 5) Suspension Front Semi-elliptic leaf springs with shock absorbers Rear Semi-elliptic leaf springs 6) Front Axle Type Steering axle Number 1(one) Rated Axle Loading 7500kg Make HANDE (MAN technology) Spring center distance  850-880 mm Toe-in 8″± 2″ King-pin inclination angle 5° King-pin caster angle 0° Camber angle 1° Brake size:(drum brake) Φ410*160 Brake chamber(in) 20″, 24″(diaphragm brake chamber) Brake torque 31500N.m Axle weight 460kg 7)Rear Axle Type double reduction driven axle Number 2 (two) Rated Axle Loading 2*13000kg Make HANDE (MAN technology) Track  1800/1860mm Spring center distance 960/1040mm Section size  150*130*16mm Input/output flange Φ180(serration) Max. input torque F.R.axle:25560  23540  19620    17170  14220  12260    10300 R.R.axle:18110  16680    13730  11770  9320      8290     7360 Gear ratio 4.42 , 4.80 , 5.73    ,6.72  ,7.49  ,8.40 , 9.49 Brake size:(drum brake) Φ410*220mm Brake chamber(in) 20″/24″ Axle weight F.R.axle:870kg   R.R.axle:780kg 8) Brake  Running brake Dual circuit compressed air brake Parking brake Rear wheel spring power brake Assistant brake Exhaust braking  JACOB 9)Tire Size 315/80R22.5 Brand DOUBLEHAPPINESS or equivalent Load index 154/151；156/151 Rating 3750/3450；4000/3450kg Max. Pressure 830/830；850/850Kpa Ply layers 18/20 SPEED GRADE M/L Type Tubeless Number 6+1pcs spare tire with spare tire carrier For road Suitable for expressways, ordinary highways and urban highways. 10) Cabin assembly  Model/Make H3000/SHACMAN Type Standard cab, One sleeping bed, four-point suspension, Equipment 1 A/C Equipment 2 air main seat Equipment 3 Electric windows Equipment 4 180Ah free maintenance battery,  Equipment 5 radio with USB 11) Garbage Compactor Body   Structure Garbage container volume  15CBM Hopper material Q345steel plate Tensile strength:375-460Mpa Yield Strength:235 Mpa Elongation≤26mm Remark:S235JR,tensile   strength:360-510 Mpa Yield   Strength:235Mpa,Elongation 24mm Thickness of Box floor 5 mm Thickness of  Container walls 4 mm Thickness of Top of the   Container 4 mm Compression ratio: up to 1/5 Feeding cycle time ≤25s Unloading cycle time ≤45s PLC brand CAN Hydraulic cylinder control way Manual mechanical control and Electrical auto control Unloading cylinder 1set Control push shovel’s push off and retraction Lifting cylinder 2sets Control recompression’s lifting and down Up & down cylinder 2sets Control slider’s moving up and down Scraper cylinder 2sets Control scraper’s retraction and strengthen Hopper cylinder 2ets control hopper’s open and close Safety valve Equipped on tailgate to prevent sudden fall during maintenance
