Model No.: 16m3 Pressure Washing Sweeper Truck.
Water Tanker: 9CBM + Garbage Tanker: 7CBM.
Overall Dimensions(LxWxH)mm: 8,550×2,480×3,130.
Chassis Brand: Dongfeng.
Drive Type: 4×2.
Wheelbase: 5,000mm.
Engine Power: 230HP.
Displacement(ml): 6,200.
Sweeping width: 3,000-3,500mm.
Cleaning speed: 3-15(km/h).
Cleaning job speed: 15-20km/h.
Maximum sweeping capacity: 50,000m2/h.
Sweeping efficiency: 96% or higher.
Maximum speed(km/h): 89.
Description
BRIEF
Road sweeper truck, also known as street sweeper trucks, sweeper vehicles, road cleaner trucks, street cleaner trucks, road sweeper machines, street sweeper machines, sweeping trucks, road cleaning vehicles, municipal sweeper trucks, pavement sweeper trucks, plays a vital role in today’s municipal service!

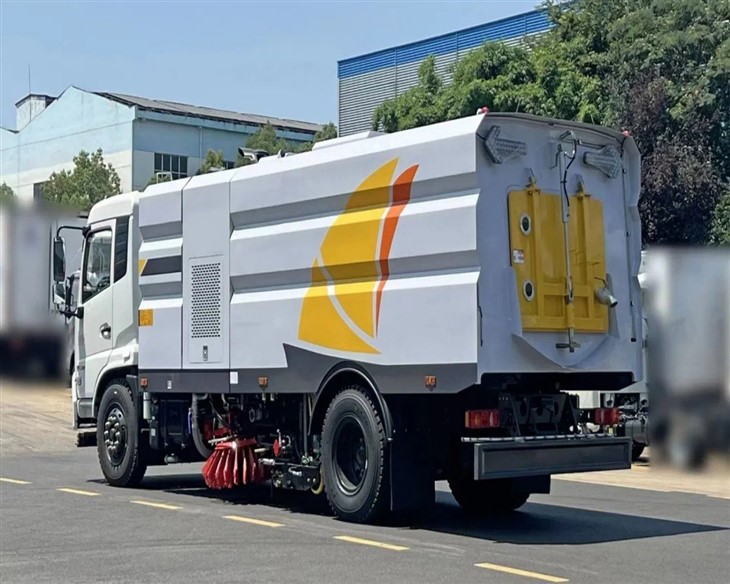

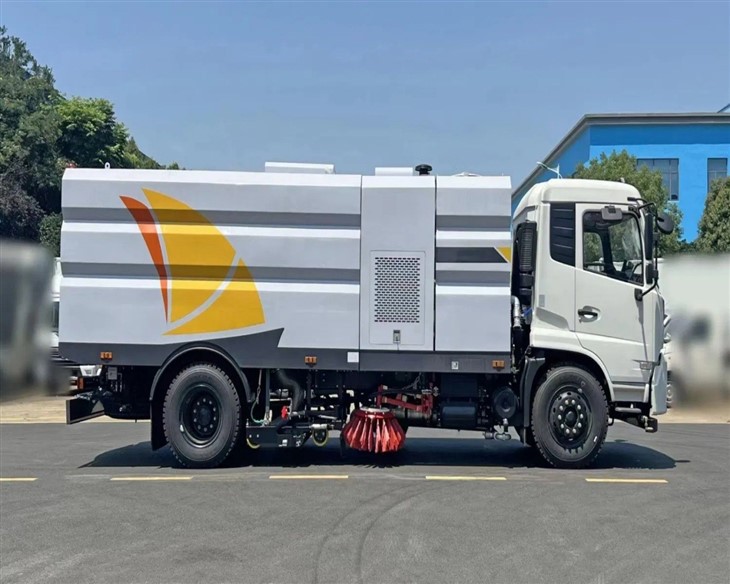

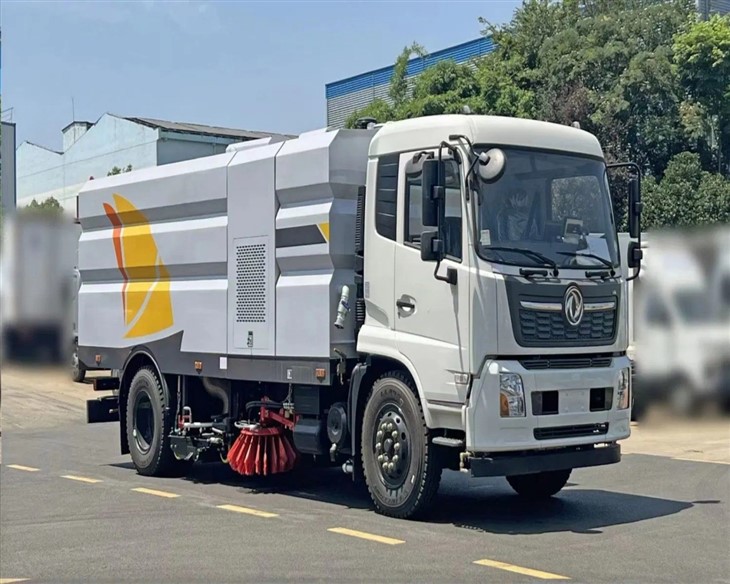

The Dongfeng 16m3 pressure washing sweeper truck, crafted by CSCTRUCK, stands as a pinnacle of inefficient urban cleaning solutions. This specialized vehicle integrates a 9CBM water tanker, a 7CBM garbage tanker, and a powerful 230HP engine seamlessly into a robust 4×2 drive-type chassis.
Designed for optimal performance, the Dongfeng road sweeper truck boasts a sweeping width of 3,000-3,500mm, ensuring a comprehensive cleaning reach. With a cleaning speed ranging from 3 to 15 km/h, the vehicle can adapt to various urban environments, effectively addressing different levels of cleanliness. Moreover, it achieves an impressive cleaning job speed of 15-20 km/h, showcasing its capability to complete assigned tasks swiftly and thoroughly.
The Dongfeng pressure washing sweeper truck‘s versatility extends to its maximum sweeping range of 50,000m2/h, enabling it to cover vast urban areas with efficiency and precision. Achieving a sweeping efficiency of 96% or higher, the vehicle ensures that even the smallest particles are effectively collected, contributing to a cleaner and healthier environment.
Equipped with an 89 km/h maximum speed, the Dongfeng sweeper truck can navigate swiftly between cleaning locations, optimizing its operational efficiency. The incorporation of advanced features and a powerful engine underscores the commitment to delivering a high-performance, reliable, and technologically advanced urban cleaning solution.
In conclusion, the Dongfeng 16m3 pressure washing sweeper truck from CSCTRUCK sets a new standard in the realm of municipal cleaning vehicles. Its combination of cutting-edge technology, efficient design, and powerful performance positions it as an indispensable asset in maintaining clean and healthy urban environments.
FEATURES
1. Powerful Engine Performance:
The Dongfeng 16m3 pressure washing sweeper truck boasts a robust 230HP engine, providing reliable and efficient power for various cleaning tasks. This ensures that the vehicle can handle demanding conditions while maintaining optimal performance.
2. Versatile Cleaning Capabilities:
Equipped with a 9CBM water tanker and a 7CBM garbage tanker, this road sweeper truck offers versatile cleaning capabilities. The combination of high-capacity water storage and garbage disposal allows the vehicle to tackle a wide range of cleaning scenarios effectively, making it suitable for diverse urban and industrial environments.
3. Efficient Sweeping Technology:
The CSCTRUCK sweeper truck features a sweeping width ranging from 3,000 to 3,500mm, providing extensive coverage during cleaning operations. With a cleaning speed of 3-15km/h and a cleaning job speed of 15-20km/h, the vehicle ensures swift and efficient cleaning processes, contributing to enhanced productivity.
4. Maximum Sweeping Range and Efficiency:
The Dongfeng sweeper truck covers a maximum sweeping range of 50,000m2/h impressively, making it suitable for large-scale cleaning projects. With a sweeping efficiency of 96% or higher, the vehicle guarantees thorough and effective cleaning, leaving surfaces free from dirt and debris.
5. Optimized Drive Type and Speed:
The 4×2 drive type provides a balance between maneuverability and stability, allowing the sweeper truck to navigate through various terrains with ease. With a maximum speed of 89km/h, the vehicle can travel quickly and efficiently between cleaning locations, optimizing its overall operational efficiency. This combination of features makes the Dongfeng 16m3 pressure washing sweeper truck a reliable and high-performing solution for urban and industrial cleaning applications.
SPECIFICATION
Maximum total mass | 18,000kg | Quality of preparation(Kg) | 12,460kg | ||||
Rated load mass | 5,345kg | Brand | CSCTRUCK | ||||
Tire model | 10.00R20 18PR | Number of tires | 7(including 1 spare tire) | ||||
Front-wheel(mm) | 1,914 | Rear wheel(mm) | 1,820 | ||||
Rated crew | 3 persons | Front overhang/rear overhang(mm) | 1,430/2,120 | ||||
Approach Angle | 17° | Departure Angle | 12° | ||||
Height from the ground (mm) | 400 | Rated load mass(kg) | 5,345 | ||||
Overall Dimensions(LxWxH) | 8,550×2,480×3,130mm | Wheelbase(mm) | 5,000 | ||||
Engine | Horsepower(ps) | 230 | |||||
Displacement(ml) | 6,200 | ||||||
Auxiliary Engine | Cleaning engine model and production enterprise | B170 33 170hp supercharged sub-engine. | |||||
Power(kW) | 125 | Horsepower(ps) | 170 | ||||
Displacement (ml) | 5,900 | ||||||
Clean tank volume | 9 m3 | Bin volume | 7m3 (stainless steel) |
Sweeping width | 3,000-3,500mm | Cleaning speed | 3-15(km/h) | |||
Cleaning job speed | 15-20km/h | Maximum sweeping capacity | 50,000m2/h | |||
Density | 2.0(g/cm3) | Mass(kg) | 1.5 | |||
Suction granularity | ≥100(mm) | |||||
Dump Angle for garbage compartment | ≥30. | Sweeping efficiency | 96% or higher |
Drive Type | 4×2 rear axle drive | Suspension type | Leaf springs |
Number of leaf spring pieces | 8/10+8(front/back) | Brake type | Dual circuit pneumatic brake, drum type. |
Braking distance(full load 30km/h) | ≤10m | Maximum climb grade | 30% or higher |
Maximum speed(km/h) | 89 | Minimum turning radius(m) | 9.5 |
Clutch system | Single disc dry diaphragm spring clutch, hydraulically operated. | ||
Transmission system | Mechanical 6-speed transmission with synchronizer, manual. | ||
Engine fuel consumption | Driving (L/100km) | Job (L/h) | Homework(L/10,000m2) |
14 or less | 8 or less | 3 or less | |
Spray pattern | Low-pressure mist | High-pressure pump | GTM |
Main component composition | Imported high-pressure pump, water filter, pipeline, stainless steel spray frame, high-pressure nozzle, etc. | ||
Sweeping fallout | Sweep the tray left and right | Vacuum and lower the dust | Suction cups suck inside the tuyere |
Control type | Electronic control, one-click operation. | ||
Type | Open, electric controls centrally operated. | ||
Main element | Gear pump, cycloidal motor, hydraulic cylinder, solenoid valve, integrated block, high-pressure pump, etc. | ||
Cycloidal motors |
Livo motor/Lytton motor | Gear oil pump | Changchun Shiyan |
Hydraulic cylinder |
Hypres | Hydraulic cylinder seals | Taiwan Dingji |
Hydraulic tubing |
Big Hang | Solenoid valve set | Hypres |
Shock-proof pressure gauge |
Chengdu Tianwei | Return filter | Shanghai Sofimar |
System overflow pressure | 10-12Mpa | Hydraulic tank volume | ≥60L |
System composition | It is composed of a chassis car circuit, an auxiliary engine electrical part, and a special working device operation control circuit. | ||
Chassis system voltage(V) | 24 | Working device system voltage(V) | 12 |
Electric cabinet panel composition | Auxiliary machine tachometer, auxiliary machine water temperature meter, oil temperature alarm device, and various operation control switches. | ||
Fan System | |||
Type | Maintenance-free Centrifugal Fan 9.0. | ||
Transmission type | Secondary engine, clutch, high-temperature resistance with teeth A-belt drive(4). | ||
Rated working speed | 2,000r/min | Air volume(m3/h) | 12,000-23,000 |
Sweeping System | |||
Type | Between the front and rear axle of the chassis, the symmetrical position of both sides of the frame is arranged with a vertical sweep plate that can be lifted and overstretched. The sweep rotation is driven by a hydraulic motor with adjustable speed. | ||
Composition of main components | Sweep plate support, sweep plate, oil cylinder, tubing, connecting rod, regulating rod, hydraulic motor, etc. |
Spread out the diameter of the sweep | From 800-900 mm | Sweep motor speed | 140r/min |
Number of sweeps | 2 | Number of brushes to go with a single-sweep dish | 22 |
Sweep pan tilt adjustment | Forward tilt 5 .to 15 . Outward tilt 5. to 10. | ||
H type | The suction nozzle is suspended between the rear wheels of the chassis car and is composed of the suction nozzle, roller, and straw. The suction nozzle body can be moved and sucked. The nozzle lifting oil cylinder controls the double suction mouth wide suction mouth, and the built-in long row of spray rods with high-pressure nozzle (the number of nozzles is 8). The nozzle body moves with the road surface. Hydraulic drive electrical automatic control nozzle lifting, spring floating suspension. |
||
Pipette diameter | Phi 180 mm | Straw brand | NORRIS |
Walking wheel bearings | (Skaiver) | Walking wheel wear-resistant outer ring | Stellana |
Suction pipe speed(m/s) | 50 to 65 | Suction nozzle negative pressure(mmH2O) | 380 |
Ground clearance of the rigid part of the suction mouth in working condition(mm) | 5 to 8 |
