17M Articulated Bucket Truck With Water Jetting Tank

√ Germany imported Hydraulic control valves
√ Electro-hydraulic proportional control system
√ Continuous speed regulation
√ Superior operational performance
√ Two Control Levers at the Turntable and Basket
√ Engine Start/Sop from Basket

Description

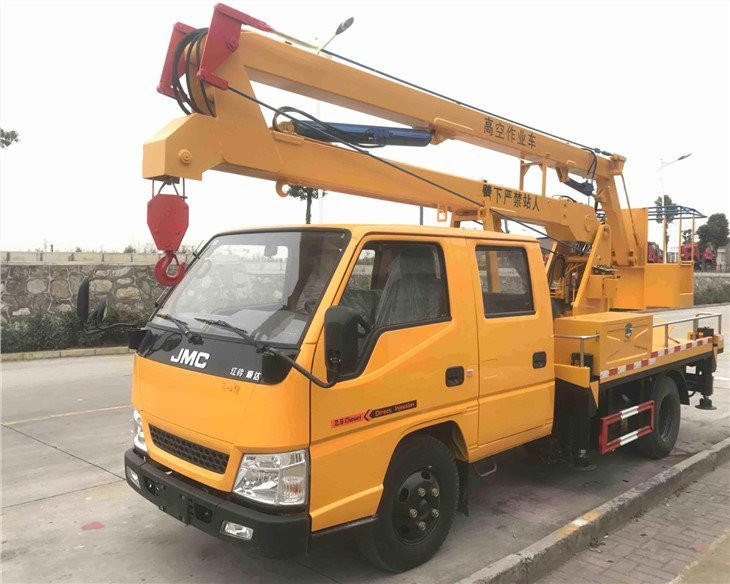

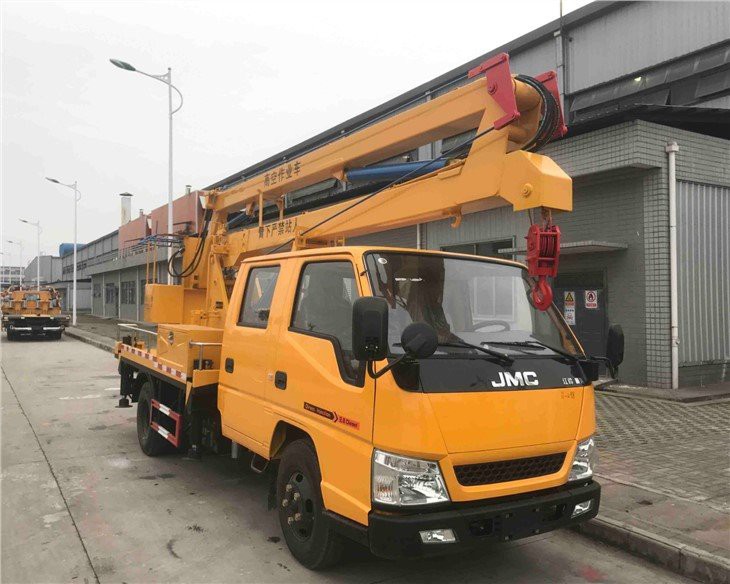

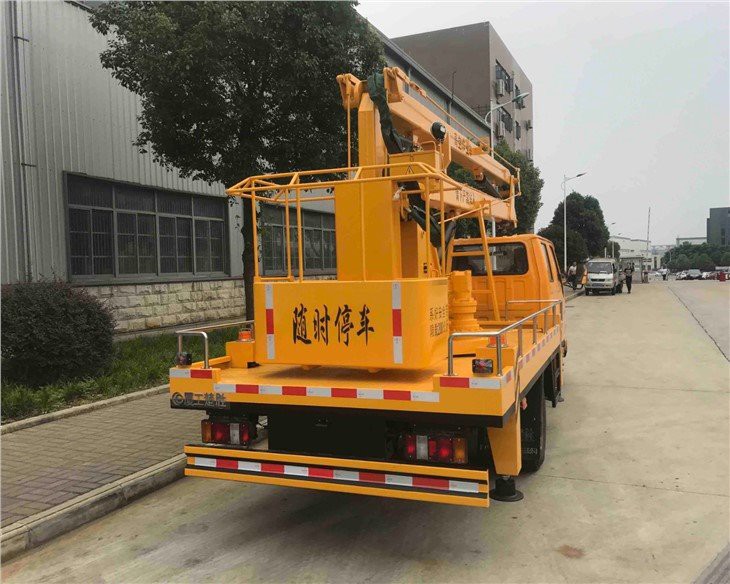

17M Articulated Bucket Truck with Water Jetting Tank

BRIEF

•Articulated Type Bucket Truck

•Maximum Lifting Height 17M

•Stainless Steel Water Tank Capacity 1000liters

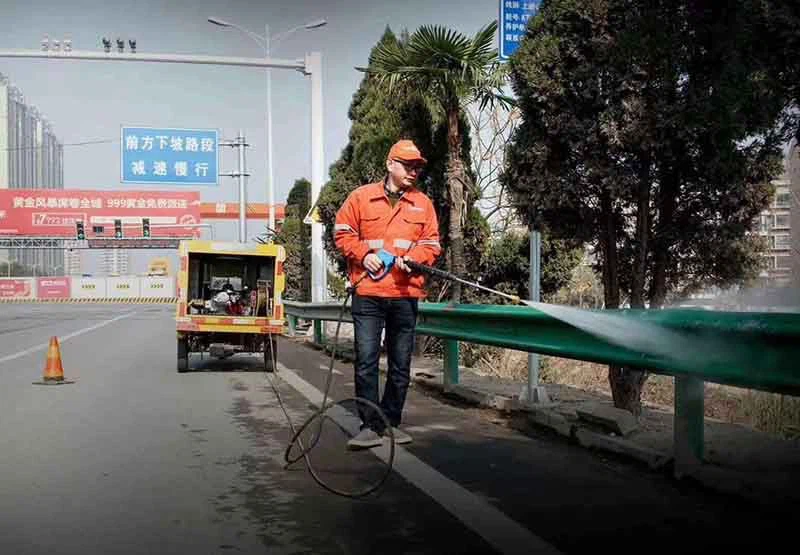

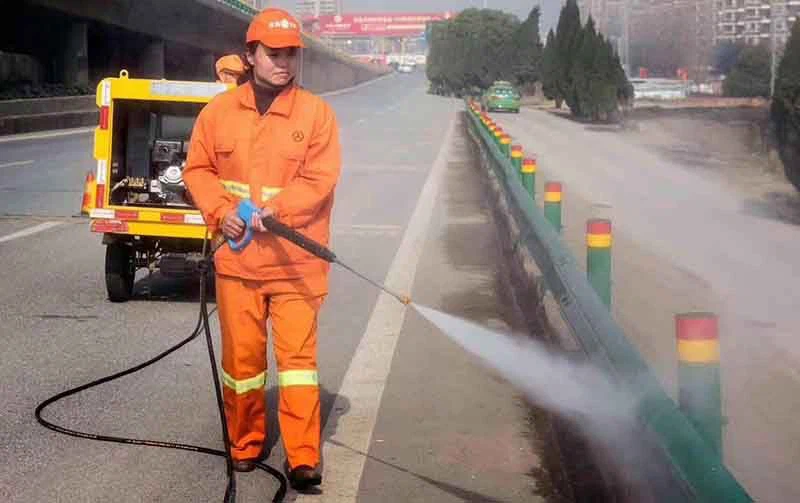

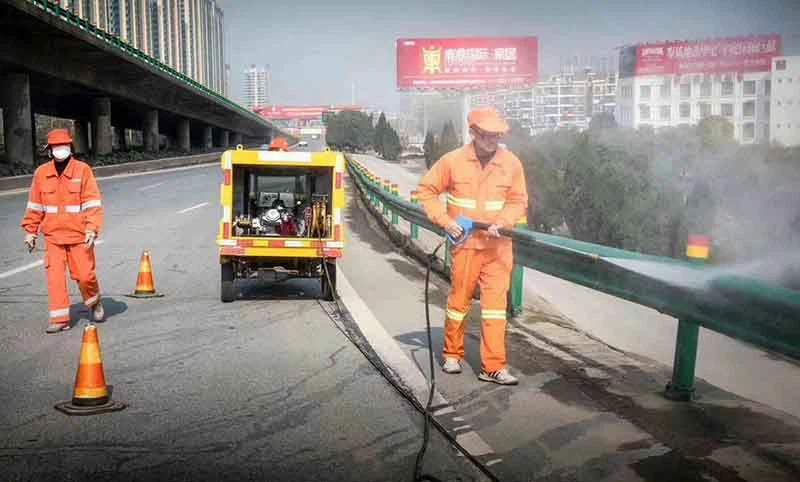

•Standard Water Jetting Gun

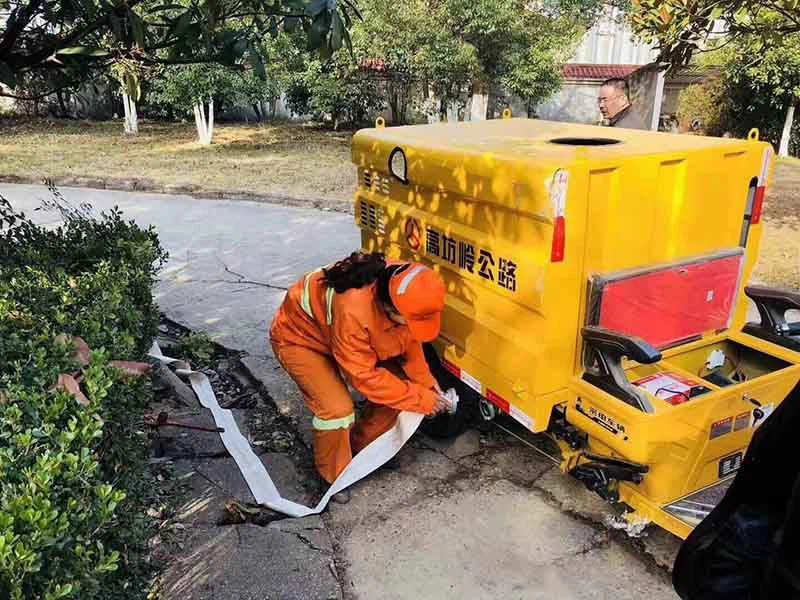

•High Pressure Water Hose 50Meters

•Hose Reel

Stainless Steel Water Tank with Water Jetting System

FEATURES

√ Germany imported Hydraulic control valves

√ Electro-hydraulic proportional control system

√ Continuous speed regulation

√ Superior operational performance

√ Two Control Levers at the Turntable and Basket

√ Engine Start/Sop from Basket

√ Holding Valves in each cylinder

√ Pressure Relief Valve

√ Built-in combined mechanism leveling ensures bucket safety

√ Independent adjustable out-trigger

√ Upper Boom Tie Down

√ Interlocking leg protection ensure the safety operation

√ Out-trigger not extended, lock boom rotation only boom rise, ensuring safety and increasing efficiency

√ Manual emergent pump

√ Electronic timer sits to accumulate operating time for timely maintenance

See also 32 M Ladder Lift Truck

SPECIFICATIONS

Working Height	17.3 m
Max. Side Reach	8.9 m
Basket Capacity	200 kg
Boom Rotation	±360° continuous
Side Reach at Max. Working Height	2.7 m
Working Height at Max. Side Reach	9.6 m
Lower Boom Lifting Capacity	2000 kg
Upper boom travel	9.3 m
Overall Size	777020002995 mm
Chassis Truck Make	JMC 4*2
GVW	6835kg
Tare Weight	6510kg
Wheelbase	3360mm
Tire Size	7.00R16LT 10PR, 6 nos +1 spare tire
Transmission	JC528T8/ 5 speed forward 1 speed reverse
Transmission Make	JMC, Manual
Chassis Engine	JX493ZLQ4
Engine Power	109hp
Cabin Passenger	3
