DOLLICAR D6 120 4×2 model
Telescopic Type
Working Height: 17.4 m
Non-insulated Lifting Boom
For Sign, Light & Traffic, Telecommunications industry
 |
 |
 |
 |
Description

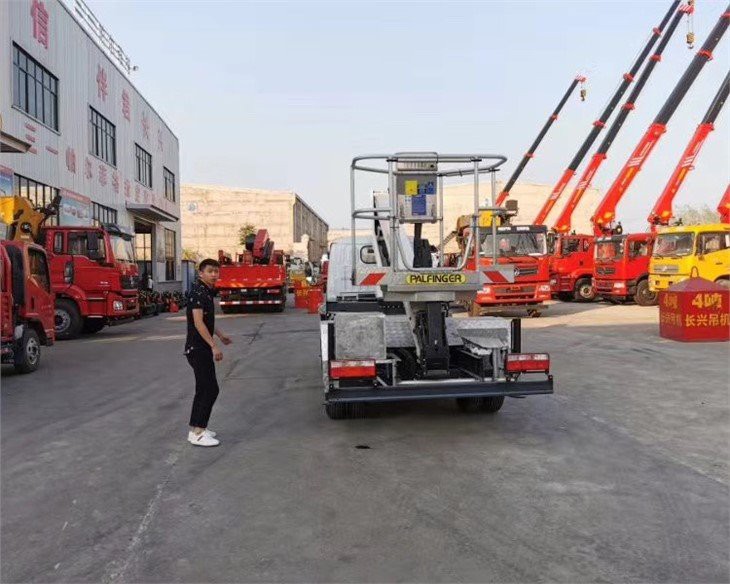

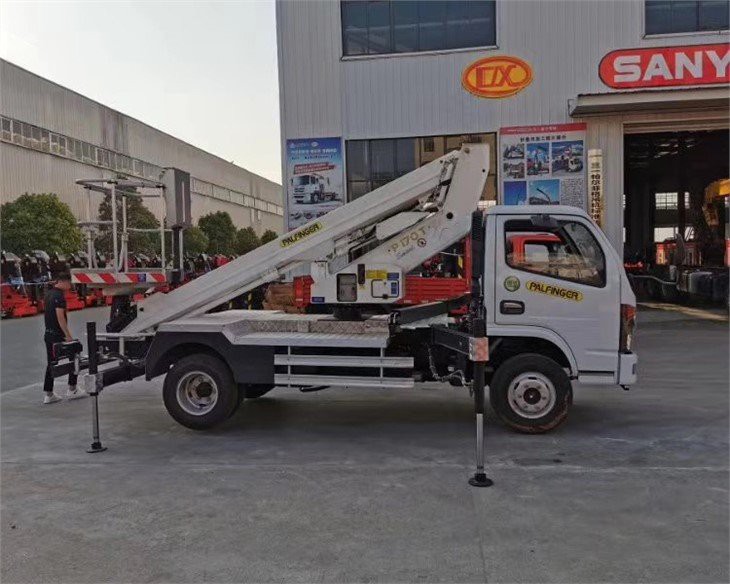

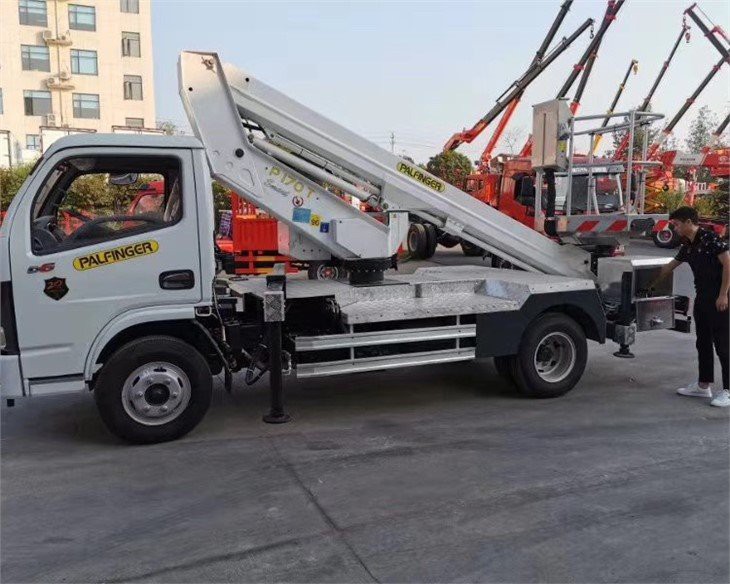

17M Telescopic Boom Lift Truck
BRIEF
DOLLICAR D6 120 4×2 model
Telescopic Type
Working Height: 17.4 m
Non-insulated Lifting Boom
For Sign, Light & Traffic, Telecommunications industry
WORLD-CLASS TELESCOPIC AERIAL LIFTS
The HOWO L3W 160 4×2 model series telescopic bucket trucks is extremely versatile, and designed to be the highest quality, safest and most reliable companion vehicle to any lineman working in the telecom, utility, power distribution, tree care and sign & light industries. It provides customers a multitude of options with an aerial that has a working height of 34 feet. The L3W is a telescopic aerial mounted on a HOWO truck designed for the ease of use with access to powerful options. Standard features include a gear box that has an extended shaft for manual rotation, adjustable wear pads, upper controls at the platform and lower controls accessible from the ground. Optional equipment can be added to tailor the unit to the customer needs and may include hydraulic platform leveling, electric tool circuit, oversize bucket, pedestal riser and many more. This model is a solution provider to customers that need reach and height to accomplish a job.
SPECIFICATIONS
|
S. No |
Description |
Tender Requirements and Product Specifications |
|
1 |
Working Height |
57′ /17.4m |
|
2 |
Working Side Reach |
51’/ 15.5m |
|
3 |
Platform Capacity |
500 lbs / 227 kg |
|
4 |
Platform Size |
30×54in/76×137cbm |
|
5 |
Platform Type |
EZR |
|
6 |
Lifting Capacity (Main Winch) |
5,900 lbs /2676kg |
|
7 |
Jib Winch |
N/A |
|
8 |
Powered Boom Sections |
3 |
|
9 |
Overall Height |
11’8″ /3.5m |
|
10 |
Unit Weight (Bare) |
12,000 lbs /5443kg |
|
11 |
Outrigger Spread Main |
18′ /5.5m |
|
12 |
Outrigger Spread Auxiliary |
N/A |
|
13 |
Front Axle Gross Weight Rating |
10,000lbs/4536kg |
|
14 |
Minimum Vehicle GVWR |
25999 lbs/11793kg |
Product Overview
|
S. No |
Description |
Product Specifications |
|
1 |
Working Height |
35.92′ /10.67m |
|
2 |
Height to Bottom of Platform |
30.92’/ 9.14m |
|
3 |
Horizontal Reach |
16.58’/ 4.88m |
|
4 |
Stowed Travel Height |
10.83’/ 3.05m |
|
5 |
Platform Capacity |
440 lbs (199.58kg) |
|
6 |
Insulated or Non-insulated |
Non-insulated |
|
7 |
Material Handling |
No |
Hydraulic System
|
S. No |
Description |
Product Specifications |
|
1 |
Working Height |
Electric /Hydraulic |
|
2 |
Operating Pressure |
2250 opsi/ 185.19kg/cm |
|
3 |
Flow Rate |
2gpm/ 7.57lpm |
|
4 |
Filtration |
0-micron return/100 mesh suction |
|
5 |
System Type |
Open Center |
|
6 |
Power Source |
Belt Drive, DC drive, or Generator |
Boom
|
S. No |
Description |
Product Specifications |
|
1 |
Inner/Outer Boom Articulation |
-25 to +80 |
|
2 |
Inner Boom Extension |
92 inch (2.34m) |
|
3 |
Boom Rotation |
360 Non- Continuous |
Vehicle Requirements
|
S. No |
Description |
DOLLICAR D6 4×2 |
|
1 |
GVWR |
6000kg |
|
2 |
Cab to Axle (Minimum) |
3800mm |
