18 CBM Sewer Cleaning Truck

Tank Capacity 18 CMB
Engine 257 Kw
Curb Weight 13000 Kg
GVW 25000 Kg
Wheel Base 4350+1350mm

Tank Capacity 18 CMB

Engine 257 Kw

Curb Weight 13000 Kg

GVW 25000 Kg

Wheel Base 4350+1350mm

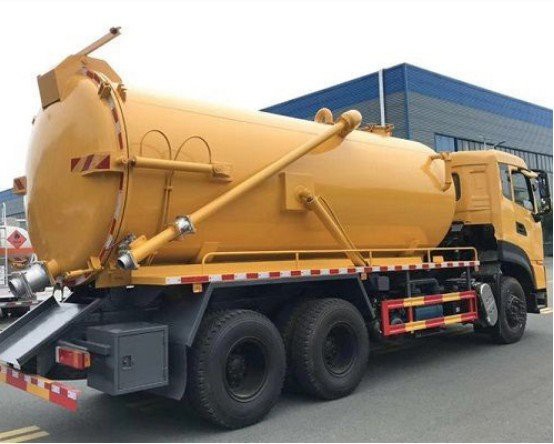

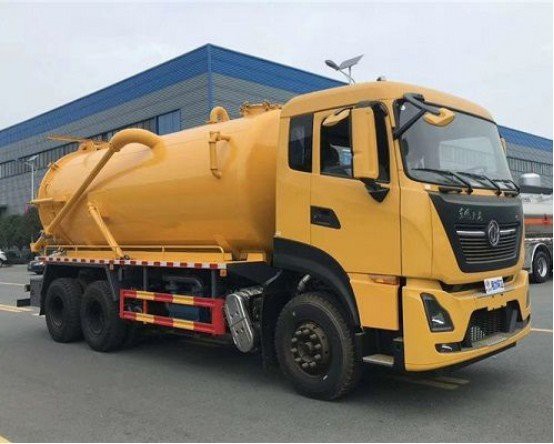

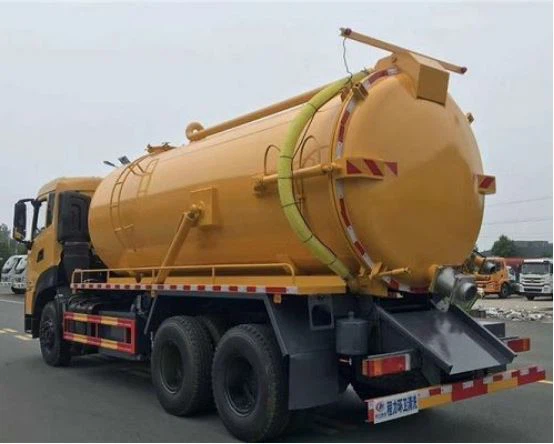

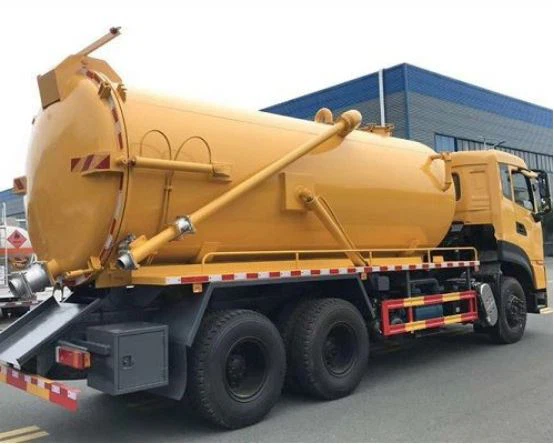

18 CBM Sewer Cleaning Truck

Introduction: Sewer Cleaning Truck adopts domestic technology-leading special sewage suction pump, with large suction force and long suction distance; the tank body is formed at one time and will never be deformed; self-priming and self-discharging. The back cover can be opened in the dump tank body impurities and cleaning. The sewer cleaning truck has high suction efficiency, quick and easy discharge operation, and long service life; it is suitable for suction, shipment, and discharge of septic tank manure, silt, gravel, bricks and other large objects in sanitation departments, which has substances with low water content.

The chassis configuration of 18 CBM sewer cleaning truck: original new cab high-end chassis (environmental protection, exempt from tax, can be exempted from vehicle purchase tax), DDi75E350-60, 350 horsepower, 9-speed gearbox, D310 Row half VL cab, 5.5T front axle, double 10T rear axle, 11.00 steel tire, 300 double-layer girder, airbag seat.

The tank body configuration: tank volume is 18 cubic meters, made of high-quality national standard carbon steel plate of WISCO, advanced rotational molding process once formed, with high-strength corrosion resistance, tank thickness 6mm, head 8mm, with a viewing window; install a high-power vacuum sewage pump, with large suction force, long suction distance, and self-priming and self-draining; with hydraulic lifting and self-unloading function. It is easy to dump all kinds of dirt and sludge clean. The back door of tank body is automatically opened hydraulically, which is convenient for cleaning the sediment in the tank; an anti-overflow device is installed to prevent sewage from being sucked back into the vacuum pump system; a float level controller are optional for installation, with an electronic alarm device; the rear of the tank has an artesian port 1, with optional hand washing device beside the tank; with water vapor separator, oil vapor separator, four-way valve. It has the characteristics of large tonnage, high efficiency and wider use. (Vertical suction lift: ≥10 m, working pressure: 9500Pa, theoretical pumping speed: 150L/S, power: ≤20kw, inlet and exhaust diameter: 60mm, time to fill the tank: <10 min, time to fill the tank: <6min. The sewage suction truck adopts high-power vacuum pump, one-time die-casting head, thickened pressure-resistant tank body, and double-top hydraulic system, which is a more powerful model than the fecal suction truck.)

The standard configuration of 18 CBM sewer cleaning truck: the special part of the sewage suction truck consists of a power take-off, a transmission shaft, a vacuum sewage suction pump, a pressure tank, a hydraulic part, a pipe network system, a vacuum pressure gauge, a fecal window, and hand washing. It is equipped with high-power vacuum sewage suction pump and high-quality hydraulic system. The head of the tank body is die-casted at one time, the back door of the tank body can be opened, and the double top is self-unloading. The dirt in the tank can be dumped directly through the back cover. The tank body is made of high-quality carbon steel of WISCO, with a thickness of 6mm above 5 square meters, with a hand-washing device, with a thickened sewage observation tube, equipped with Yifeng/Weiye vacuum pump, water and oil separator, anti-overflow valve, and 8 meters of manure and sewage suction pipe 1, the sewage suction truck has a hydraulic lift function, and the rear door is hydraulically opened and closed.

Features of Sewer Cleaning Truck:

1. The tank structure is oval or oblong, made of national standard Q235 WISCO carbon steel plate, with strong pressure resistance, corrosion resistance, durability, and test reports can be provided at any time.

2. All the dirty tanks adopt mechanical automatic welding and submerged arc welding, and the welding seam of the tank body is smooth and smooth.

3. After the dirty tank is formed, an anti-rust primer will be applied, which can prolong the service life of the tank.

4. Use vacuum sewage suction pump or water circulation vacuum pump.

5. The one-way valve is made of pure copper inside and stainless steel outside. Compared with the traditional one-way valve, it has smaller volume and high durability. The main function of the one-way valve is to pressurize the tank, so as to achieve the effect of sewage suction, which is suitable for water circulation pumps.

6.The multi-way valve of Sino-foreign joint venture is adopted, which is small in size, large in diameter, balanced in force, and wear-resistant and durable in the piston inside the multi-way valve. 7. The tank body is lifted, and the back cover is opened hydraulically, which is convenient and easy for maintenance.
