18m Articulated Bucket Lift Truck

Model NO.: 18m Articulated Bucket Lift Truck
Fuel: Diesel
Drive Wheel: 4×2
Bucket Loading: 200kg
Slewing Speed: 75r/Min
Drive: LHD
Transmission Type: Manual
Chassis: Aumark
Engine Make & Model: Chaochai engine

Description

BRIEF

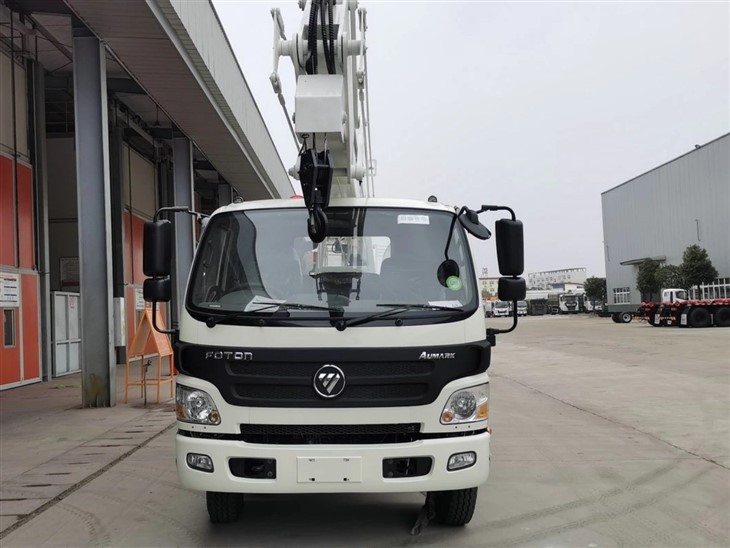

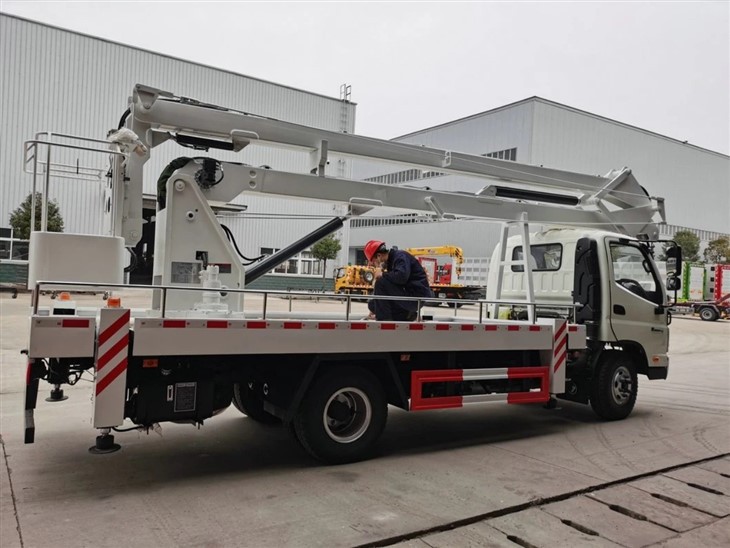

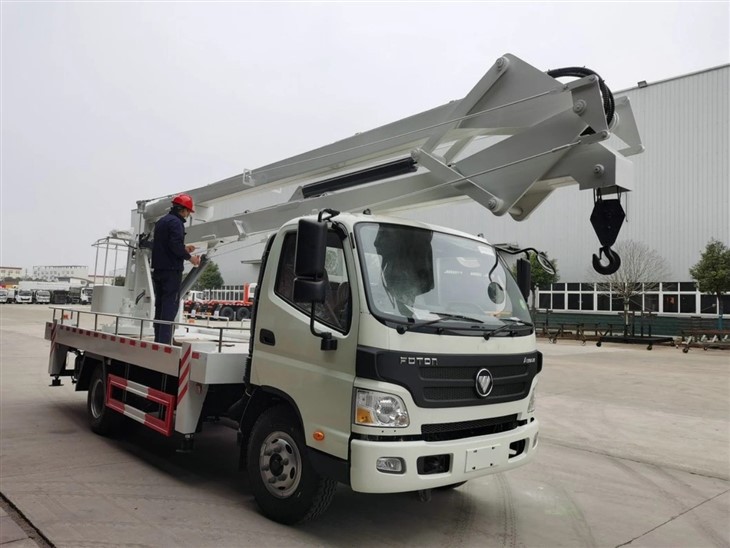

The AUMARK 18m articulated bucket lift truck is a remarkable feat of engineering, designed to provide reliable and versatile access to high areas. Developed by Foton, a renowned global manufacturer of commercial vehicles, this innovative equipment boasts a range of features that set it apart from traditional aerial work platforms.

One of the standout features of the Foton AUMARK 18m articulated bucket lift truck is its articulated boom design. The truck’s articulated boom offers unparalleled flexibility, allowing operators to easily access difficult-to-reach places. This feature is particularly beneficial in urban settings, where obstacles and tight spaces often hinder traditional straight boom lifts. The articulation capability ensures that tasks in the construction, maintenance, telecommunications, and utility sectors are efficiently completed, saving time and resources.

Safety is paramount when working at heights, and the Foton AUMARK 18m articulated bucket lift truck excels in this aspect. Equipped with advanced safety features, including stable outriggers and platform controls, operators can work confidently and securely at any elevation. The intuitive control system ensures precise maneuverability, reducing the risk of accidents and ensuring maximum safety for personnel on the platform.

See also  28m Ladder Lift Mounted On JMC Truck

Another remarkable feature of the Foton AUMARK 18m articulated bucket lift truck is its robust construction. Built with high-quality materials and engineered to withstand the toughest working conditions, this bucket lift truck offers exceptional durability and reliability. Its sturdy design extends the lifespan of the equipment, providing businesses with a cost-effective solution that stands the test of time.

Furthermore, the Foton AUMARK 18m articulated bucket lift truck is designed with operator comfort in mind. The spacious and ergonomic platform allows operators to work for extended periods without fatigue, enhancing overall productivity on the job site.



FEATURES



1. Introducing the Foton AUMARK 18m articulated bucket lift truck, designed for optimal performance.
2. Reach new heights with a working range of 12 to 18 meters.
3. The chassis is available in various brands, allowing for easy comparison and selection.
4. Customization is our forte; we can tailor the truck to match your specific requirements.



SPECIFICATION



ITEM



SPECIFICATIONS AND TYPES

General

Truck Brand

CSCTRUCK

Chassis Brand

Foton

Approx. Dimension

8200*2320*3120 mm

GVW./Kerb Wt.

6495 /6300 kg

Cab

Cab Capacity

3 person seat

Air Conditioner

Air Conditioner is optional

Chassis

Drive Type

4X2, LHD, or RHD

Fuel Type

Diesel

Engine Make & Model

Chaochai engine

Power

120 Ps / 88 KW

Displacement

3856ml

Emission Standard

Euro II or EURO III or Euro IV

Wheelbase/No.of axle

3800 mm / 2

Tyre Specification

7.50-16,7.50R16,8.25-16,8.25R16

Tyre Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Automotive metallic paint

Superstructure

Max working height

14-16 M

Working cage

200kg capacity

Beam

Hydraulic control

Slewing

360 continuous rotation

Equipment

Four hydraulic outriggers are equipped, stable, and reliable.

Dual control system both in the working cage and on the deck.

Safety device: relief valve, balance valve, double-way hydraulic lock, motor emergency system.

Insulated aerial platform, hoist hook with cables optional.
Crane hook capacity: 1000 kg.

See also  18m Bucket Type Bridge Inspection Unit
