20.7m Mobile Bridge Inspection Unit

20.7m Horizontal Underbridge Reach
2.9m Sidewalk Clearance
4.9m Fence Clearance
FAW J6L 8X4 Truck Chassis
Dachai 320hp Diesel Engine
FAW 10 Speed Manual Transmission

BRIEF

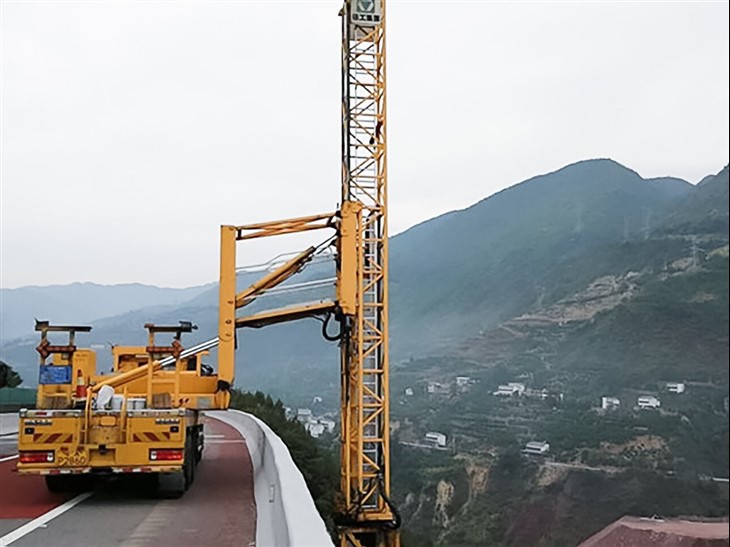

The Long-reaching Bridge Inspection Unit is a highly specialized telescopic bucket truck designed to cater to the inspection, maintenance, and repair requirements of medium and large-sized bridges. This mobile bridge inspection unit boasts a horizontal reach of 20.7m and is equipped with a four-bar linkage lifting device that enhances its operational parameters significantly when compared to traditional turntable structures, all while maintaining the same level of stability and weight requirements.

The technical parameters, configuration, safety performance, and reliable indicators of this telescopic bucket truck meet international standards, positioning it as a leading product in the market. It is mounted on the latest FAW truck chassis, which not only adds to its sophisticated appearance but also provides high cost-effectiveness.

Whether you require bridge inspections, maintenance, or repair, this telescopic bucket truck is an ideal solution that guarantees reliability and efficiency while adhering to the highest safety standards. The telescopic bucket truck‘s specialized design ensures that it can easily navigate through complex structures and reach difficult-to-access areas, making it a versatile option for any bridge inspection or maintenance task.

Moreover, the Long-reaching Bridge Inspection Unit is equipped with state-of-the-art safety features that ensure optimal protection for the operators while working at heights. This includes an anti-collision system, a fall arrest system, and emergency stop buttons, all of which comply with international safety standards.

Overall, the Long-reaching Bridge Inspection Unit is an innovative solution that meets the ever-evolving demands of bridge inspection and maintenance. The telescopic bucket truck’s advanced technology, high safety standards, and cost-effectiveness make it a preferred choice for bridge maintenance contractors, ensuring that they can carry out their tasks efficiently while minimizing risks to personnel and equipment.

FEATURES

STANDARD FEATURES:

• The system boasts an advanced control mechanism.
• Equipped with four-point rigid support technology.
• Constructed with aerospace aluminum alloy truss arm.
• The core components are designed to be lightweight.
• The turntable is adjustable and has a two-way leveling system.
• Has a powerful inspection platform capacity of up to 800 kg.
• Integrates mechanical, electrical, hydraulic, and communication systems.
• Ability to operate in, around, through, and over all obstructions, including high guardrails, wide sidewalks, cables/trusses, and deep girders for close-up bridge inspections.
• The hydraulic self-propelled moving function allows the vehicle to operate without impacting traffic during the inspection process.
• Can move forward at low speed without retracting, improving the range and operational efficiency for bridge inspection teams.

OPTIONAL FEATURES:

• Option to add a logo.
• Equipped with a toolbox.
• Features a video monitoring system.
• Comes with LED work lights.
• Includes a spray water tank.
• Option to add a generator with an electrical outlet in the platform.

SPECIFICATION
