•20-23m lifting height
•Boom BS700 high tensile steel
•Aluminum bucket&toolbox
•JMC truck chassis
•Size 5995x2050x2900mm

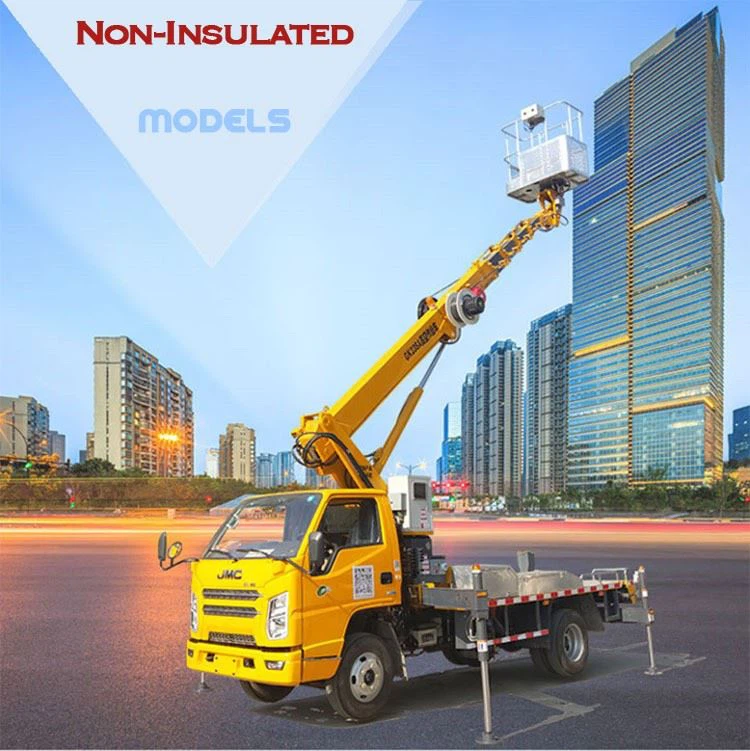

•Non-Insulated
 |
 |
 |
 |
Description

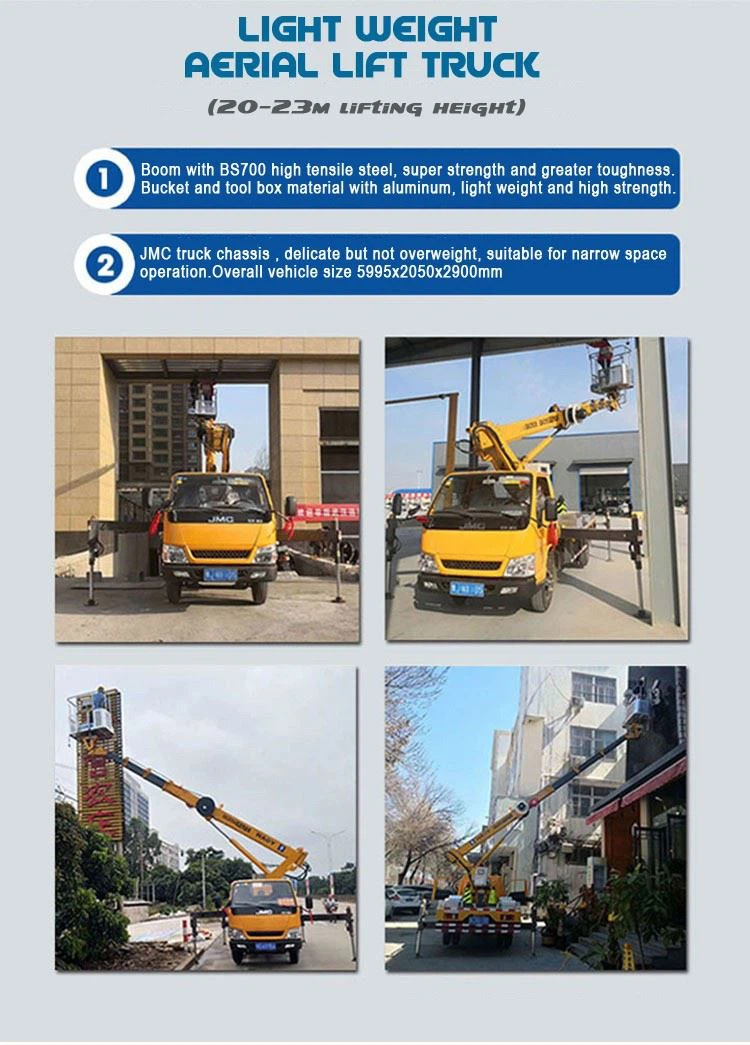

LIGHTWEIGHT AERIAL LIFT TRUCK
(20-23m lifting height)
⓵ Boom BS700 high tensile steel, super strength and great toughness. Bucket and tool box material with aluminum, light weight and high strength.
⓶ JMC truck chassis , delicate but not overweight, suitable for narrow space working.
Overall size 5995x2050x2900mm

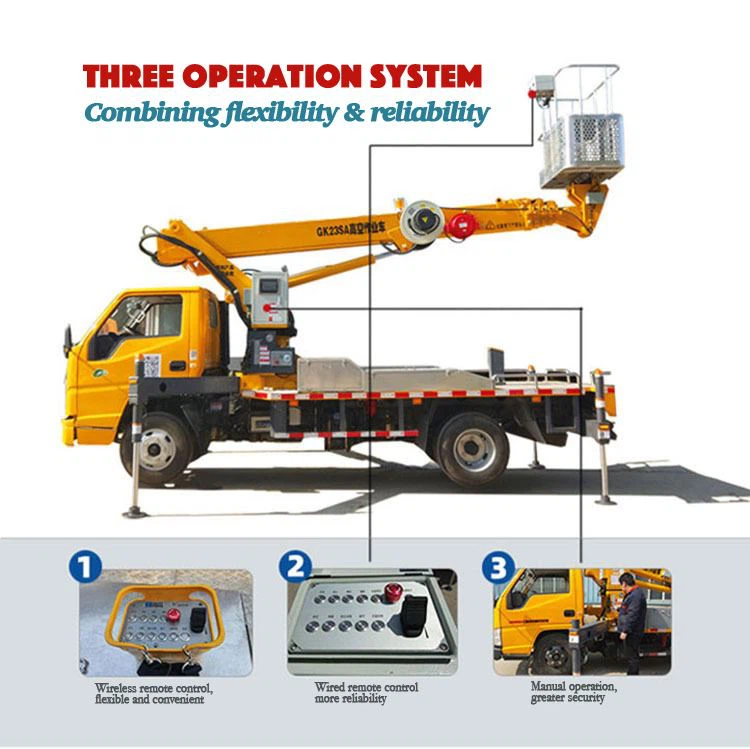

THREE OPERATION SYSTEM
Combining flexibility and reliability
Wireless remote control, flexible and convenient
Wired remote control more reliability
Manual operation, greater security

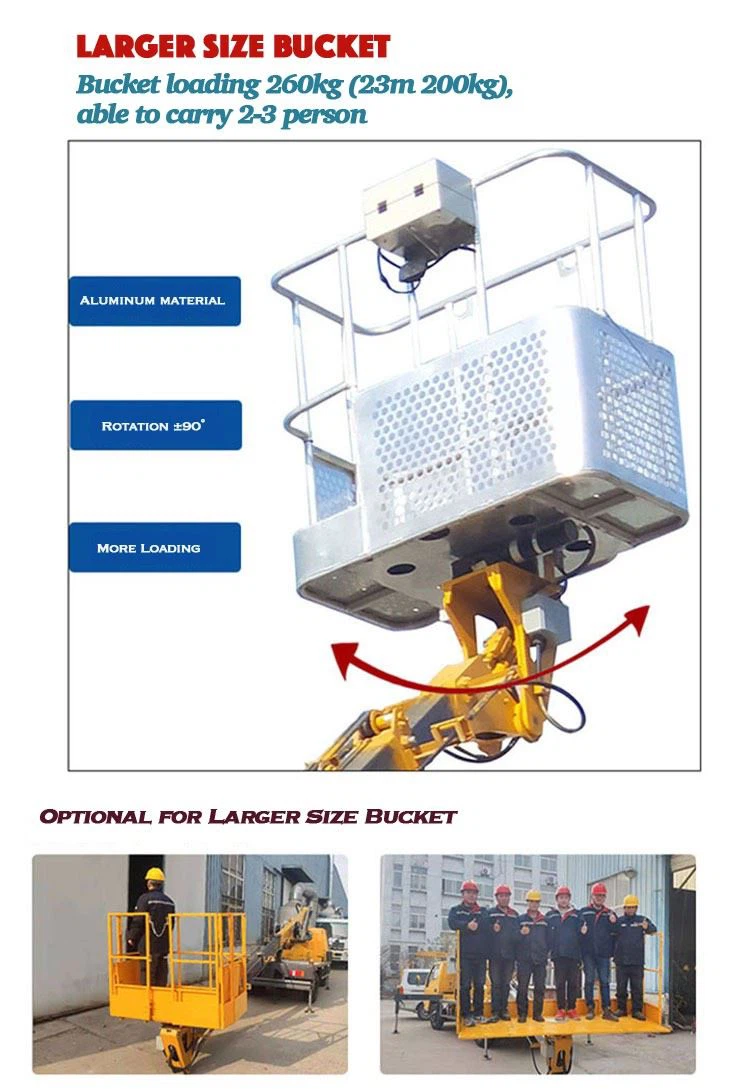

Oversize working bucket
Bucket loading 260kg (23m 200kg), able to carry 2-3 person
Aluminum material
Rotation ±90˚
More Loading Weight
Optional for Larger Size Bucket

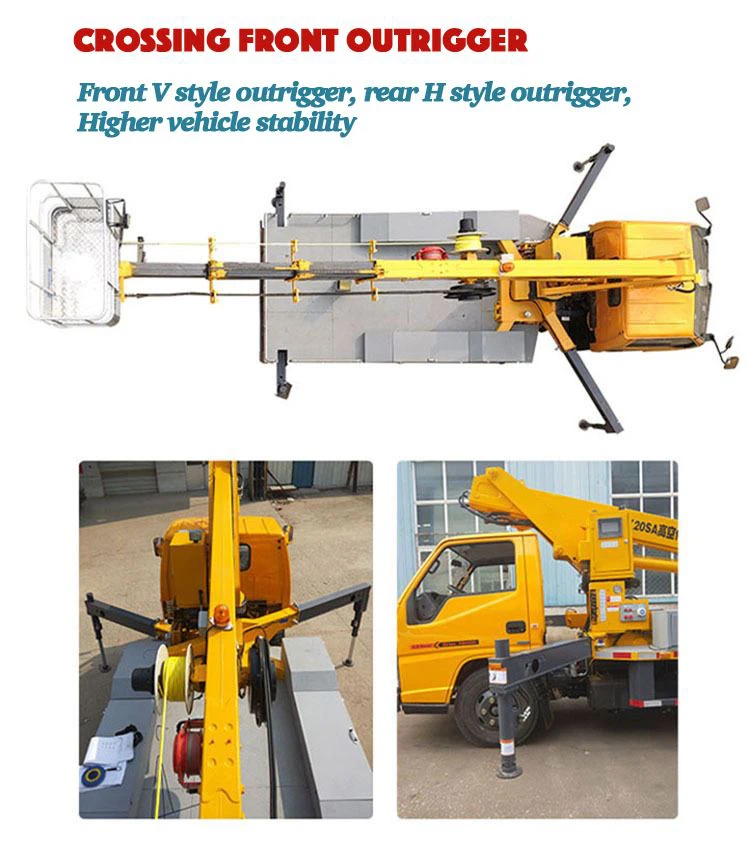

Crossing Front Outrigger
Front V style outrigger, rear H style outrigger, Higher vehicle stability

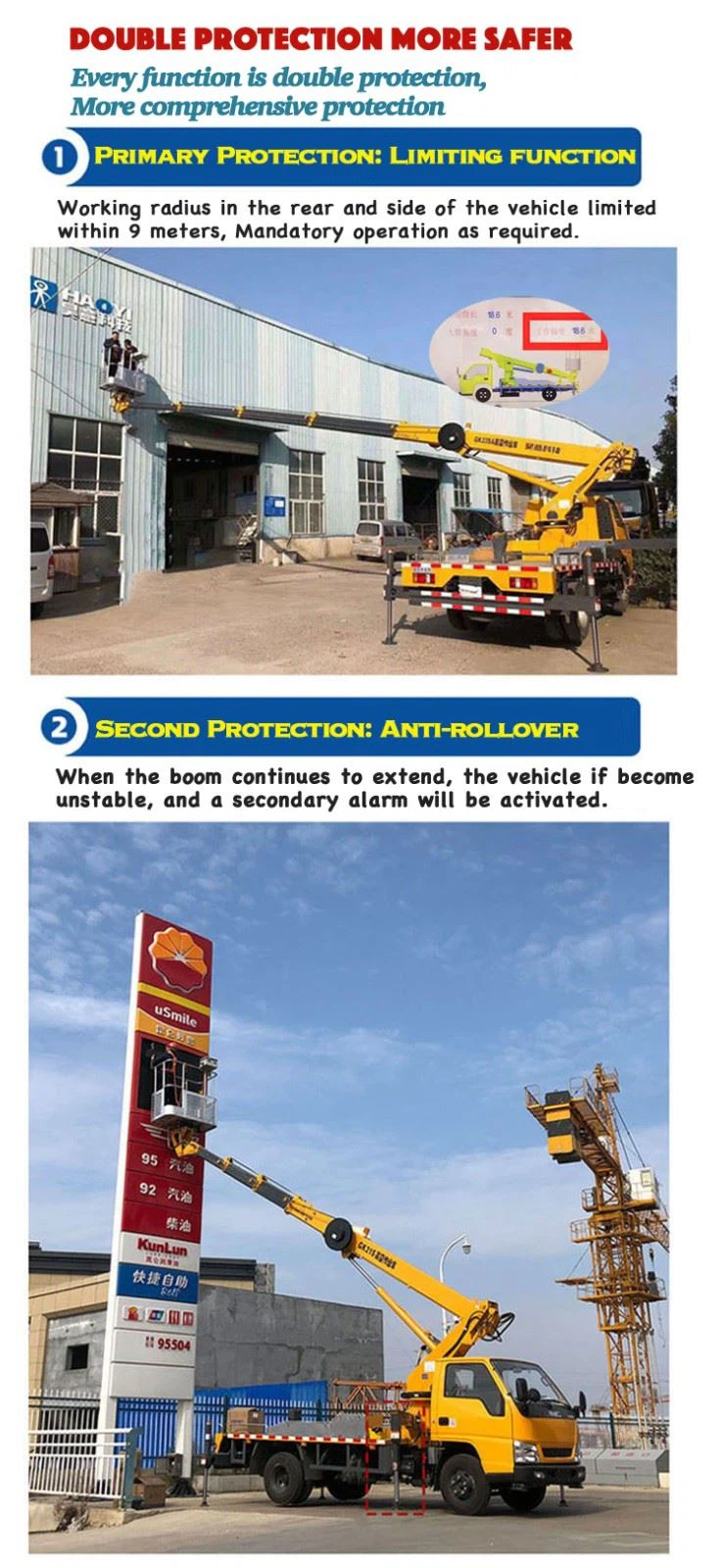

Double protection more safer
Every function is double protection, More comprehensive protection
⓵ Primary Protection: Limiting function
Working radius in the rear and side of the vehicle limited within 9 meters, Mandatory operation as required.
⓶ Second Protection: Vehicle Anti-rollover protection function
When the boom continues to extend, the vehicle if become unstable, and a secondary alarm will be activated.

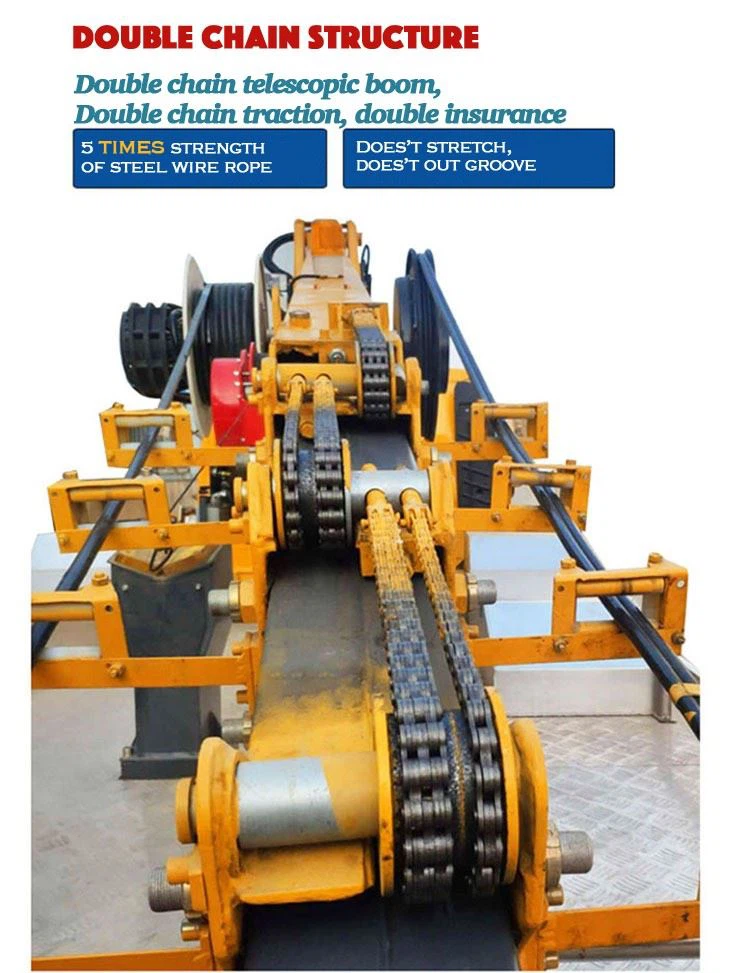

Double Chain Structure
Double chain telescopic boom, Double chain traction, double insurance
5 times the strength of steel wire rope , Does not stretch, does not fall off the groove
