The capacity of Lifting: 20T

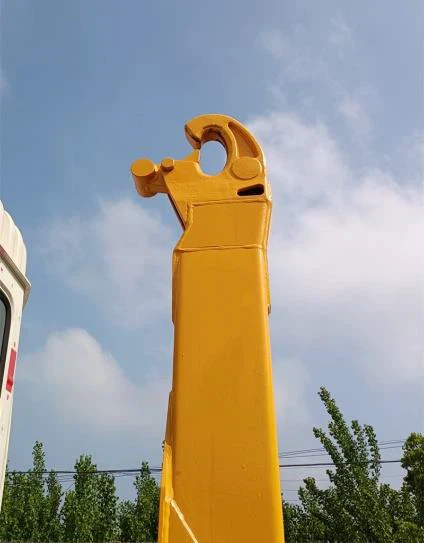

Form of Hook Boom: Telescopic Hook Boom
Height of Hook:1570mm Container
Size: 5600x2300x1500mm
Kurb Weight of Upper Body: 2350kg
 |
 |
 |
 |
Description
PRODUCT DESCRIPTION

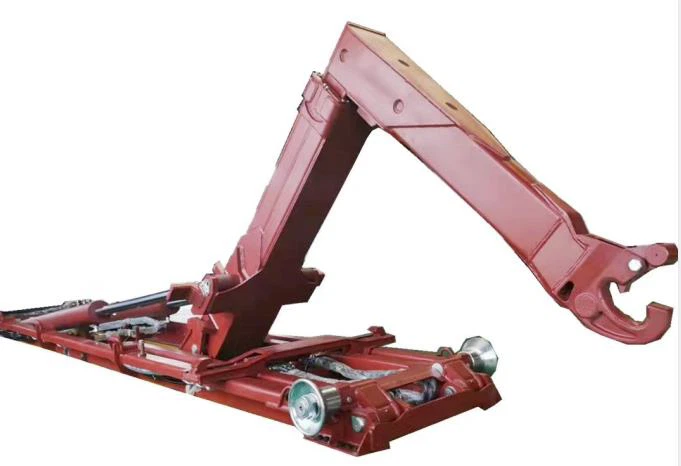

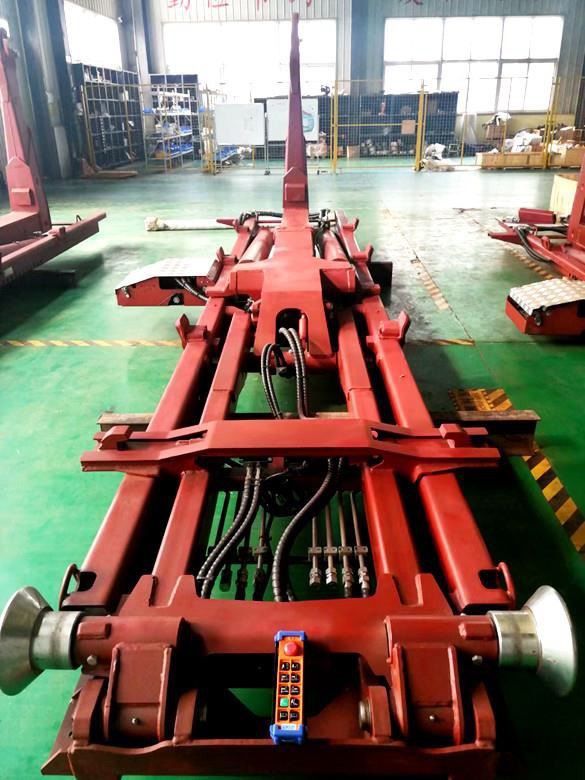

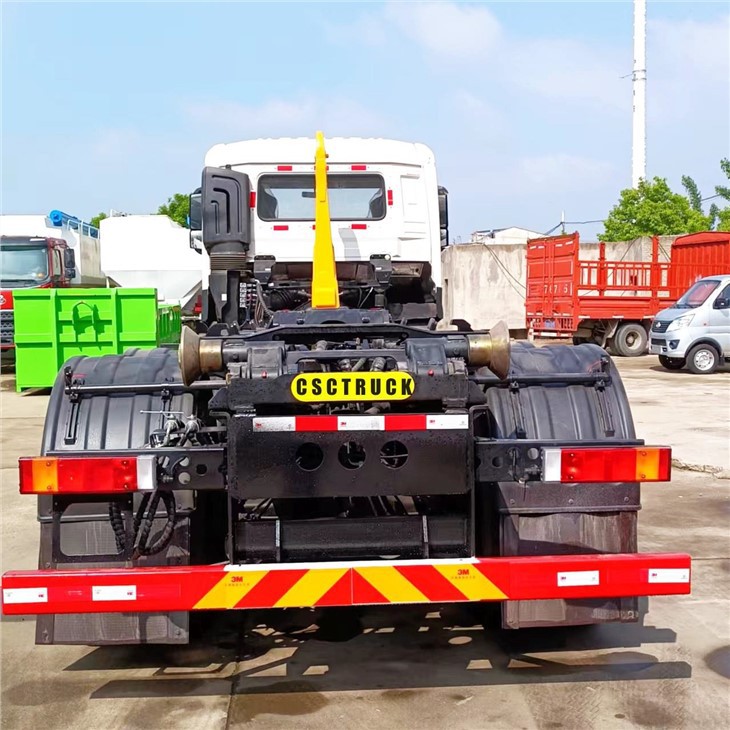

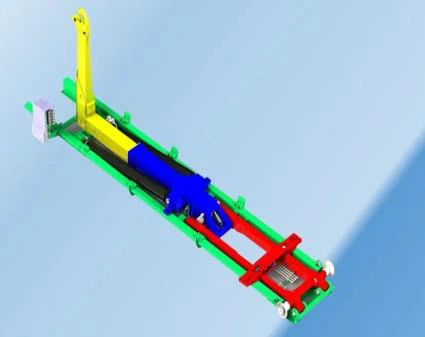

By merging the benefits of Chinese and PALFINGER products, the CSCTRUCK hook loader truck utilizes European PALFINGER technology to enhance its performance. It boasts a perfect geometric structure and mechanical properties, thanks to its finite element computer design. It is lightweight, which maximizes payload capacity and ensures safety, reliability, and ease of operation. The design takes into account the support and locking of the upper structure, hook locking, sequence of operation, and safety considerations, resulting in a well-designed and reasonable hook loader truck.
ADVANTAGES
- The key parts are made of steel castings, which have been standardized and produced after design.
- Welded from high-strength steel; Lightweight design, optimized structure, high-strength materials, higher load-to-weight ratio. (Under the premise of the same reliability), the material strength of key parts is extremely high (yield strength ≥ 460MPa)

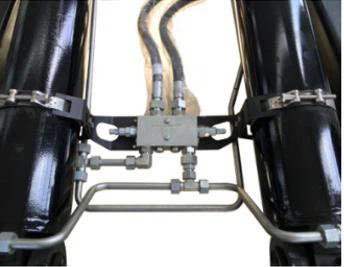

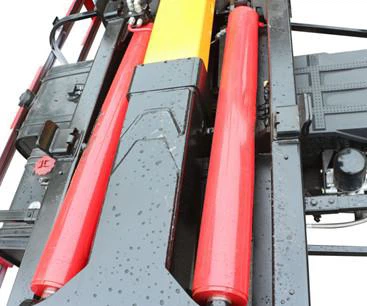

- CSCTRUCK cylinder’s technology, the cylinders have smooth motion, strong bearing capacity, and good sealing, and all cylinders are equipped with load-holding valves for high safety; load holding valves installed on cylinder for safety

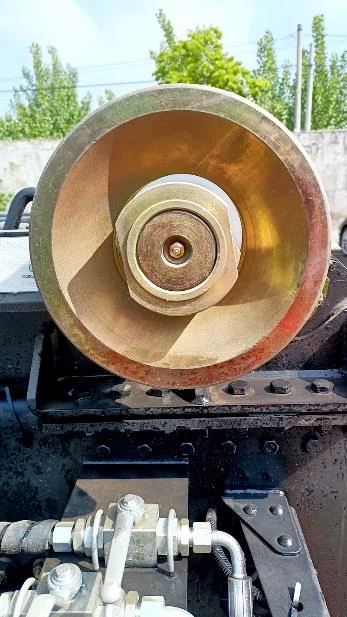

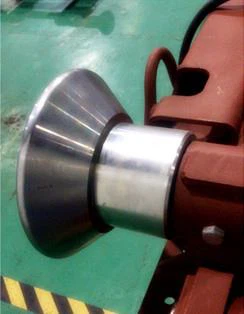

- The roller is galvanized to prevent rust; grease nozzles are installed on the roller shaft

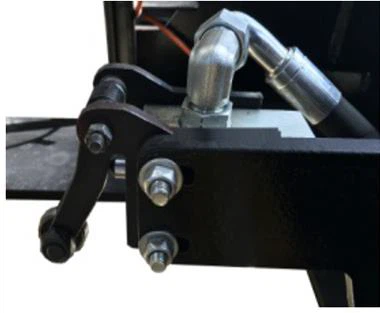

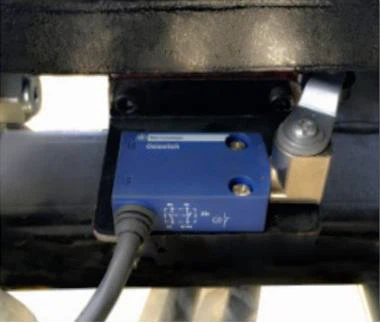

- Equipped with a limit switch valve to prevent the container from rising when it is not horizontal, the hook boom is telescopic and is not fully retracted; the locking alarm of the container installed

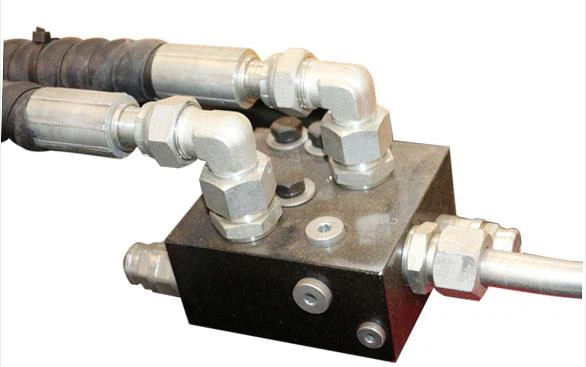

- Standard load holding valve with high safety.
- The load-holding valve of the hook loader Truck adopts the bypass damping oil circuit to realize the hydraulic damping and slow drop of the swing arm so that the falling of the container is more stable.
