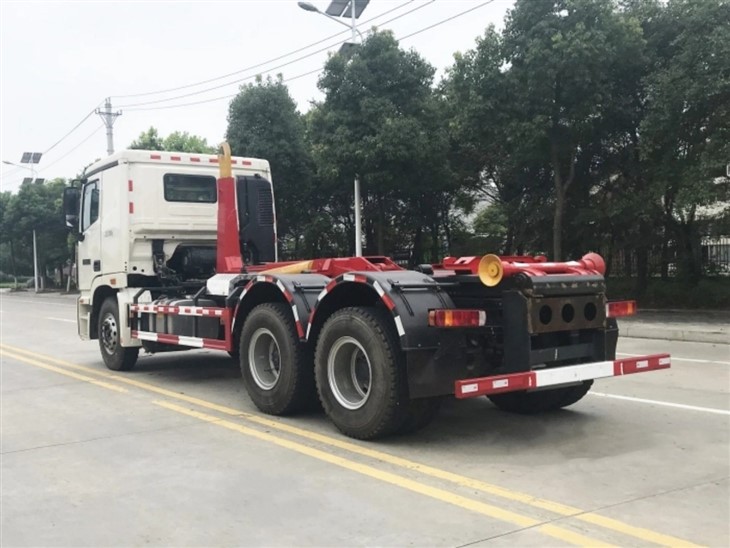

Model NO.: 20ton Foton Auman Heavy Duty Roll-off Garbage Truck.
Overall dimensions(L x W x H)mm: 8,450×2,550×3,150
Wheelbase (mm): 4,400+1,350
Engine Model: WP10.320E22
Emission standard: Europe 3
Payload: 20ton
Drive Wheel: 6×4
Garbage Container Volume: 20m³
Engine Power: 320HP
Operation Way: Automated Operation
 |
 |
 |
 |
Description
BRIEF
The Hook Lift Garbage Truck, also recognized as the Roll-off Garbage Truck or detachable container garbage truck, stands as an exceptionally efficient marvel within the realm of waste management. Engineered with precision, this specialized vehicle is primed to carry out the task of gathering and transporting refuse from both residential and commercial locales.
Distinguished by its hydraulic hook lift system, the Hook Lift Garbage Truck provides an expedient and time-saving solution for the disposal of waste materials. This innovative system facilitates the effortless loading and unloading of waste containers, effectively curtailing the need for strenuous manual labor, all while elevating overall productivity levels. Furthermore, its sturdy construction and potent engine empower the Hook Lift Garbage Truck to confidently bear the burden of substantial waste loads. Designed to endure the daily grind, it remains unwavering in performance, regardless of the capriciousness of weather conditions. Undoubtedly, the Hook Lift Garbage Truck holds a pivotal role in the preservation of cleanliness and hygiene within our communities.
Within this technological marvel lies a hydraulic system meticulously crafted for optimal efficiency. This system, inclusive of oil cylinders, pumps, and valve systems, boasts a bespoke design courtesy of our company. It proudly features pump and valve components crafted by internationally renowned manufacturers, ensuring ideal synergy and cost-effectiveness. Our oil cylinders, sourced from esteemed domestic factories, have been equipped with imported seals to guarantee unwavering performance and unfaltering quality.
FEATURES
1. Safety Protection Characteristics:
1) The primary cylinder includes a 2-way unloading valve that effectively reduces system pressure at the end of each stroke, safeguarding the entire hydraulic system and ensuring the durability of the lifting arm.
2) The lift system is equipped with a balancing device, ensuring stability whether it’s under no load or heavy load conditions.
3) 2-way overload protection is integrated into the hydraulic system and branch oil circuits. It adjusts the rated pressure dynamically according to the actual working conditions, effectively preventing system overload or misuse of the vehicle, including instances where the vehicle is stationary.
4) The hydraulic system features an oil explosion-proof locking device to mitigate safety risks associated with tubing explosions, ensuring the safety of both personnel and the vehicle.
5) The lifting arm is outfitted with hydraulic and mechanical box locking devices to ensure secure transportation and safe usage.
2. Interlock Protection Characteristics:
1) The interlock protection system is designed to prevent misuse due to hydraulic or mechanical failures, eliminating potential security risks and extending the vehicle’s operational lifespan.
2) The hook lift system is constructed from high-strength steel, subjected to local special treatments, offering robust load-bearing capacity and resistance to deformation.
3) A multi-step polishing and treatment process is employed to ensure the hook lift system‘s appearance and color meet the required standards. Additionally, hook arm assemblies undergo specialized bench and heavy load testing to guarantee their quality and lifespan.
3. Advantages of Hook Lift/Roll-Off/Detachable Container Garbage Truck:
The efficient waste collection capabilities of the Hook Lift Garbage Truck significantly contribute to environmental well-being and public health.
4. Chassis Options for Hook Lift Garbage Truck: DFAC, FAW, SINOTRUCK HOWO, BEIBEN, SHACMAN, JAC, JMC, ISUZU, and more.
5. Hook Lift Loading Capacity Options: You can choose from a range of loading capacities, including 1.5 tons, 5 tons, 8 tons, 10 tons, 12 tons, 16 tons, 20 tons, and 25 tons to suit your specific needs.
SPECIFICATION
| ITEM | DESCRIPTION | |
| Cabin | One and a half cab.With A/C | |
| Vehicle Dimensions | Overall dimensions (L x W x H) (mm) |
8,450×2,550×3,150 |
| Wheelbase (mm) | 4,400+1,350 | |
| Wheel track (front/rear) (mm) | 2,010/1,830 | |
| Truck weight (KGS) | Tare weight | 11,350 |
| Recommend payload | 15,000-20,000 | |
| Front axle load capacity | 7,000 | |
| Rear axle load capacity | 18,000 | |
| Max. driving speed(km/h) | 102 | |
| Engine | Manufacture | Weichai Engine |
| Model | WP10.320E22 | |
| Type | Straight 6-cylinder in line, Turbocharge with inter-cooling, diesel engine | |
| Displacement(L) Engine power(hp) |
Engine displacement: 9.726L Power: 320HP |
|
| Emission standard | Europe 3 | |
| Gearbox | Manual operation, 9 forward gear, 1 reverse gear | |
| Steering | Hydraulic steering with power assistance | |
| Tire | 11.00R20, 10+1 pcs (including one spare tire) | |
| Garbage container effective volume(CBM) | About 12-20 cubic meter |
| The Hooking Capacity(T) | 20 |
| The Hook arm material | Q40, Q50 high-strength steel |
| System pressure(Mpa) | 26 |
| Control voltage(V) | 24 |
| The hook arm self weighs (kg) | 2,300 |
| Extension of hook arm(mm) | 800-900, or other specifications based on a different model |
| Hydraulic Oil pump displacement(Min/L) | 60, made in China or import pump |
| Hydraulic oil tank capacity(L) | 110L or more |
| Loading/unloading cycle time(S) | 45S or less |
| The hook center height(mm) | 1,570 or other specifications based on a different model |
| Distance from hook center to rear roller(mm) | 4,630 or other specifications based on a different model |
| Width of guild rail(mm) | 1,060 or other specifications based on a different model |
| Hydraulic oil pump | Hefei pump in China, or import pump |
