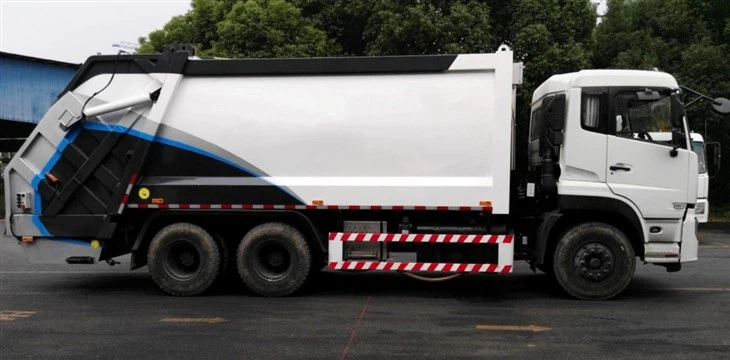

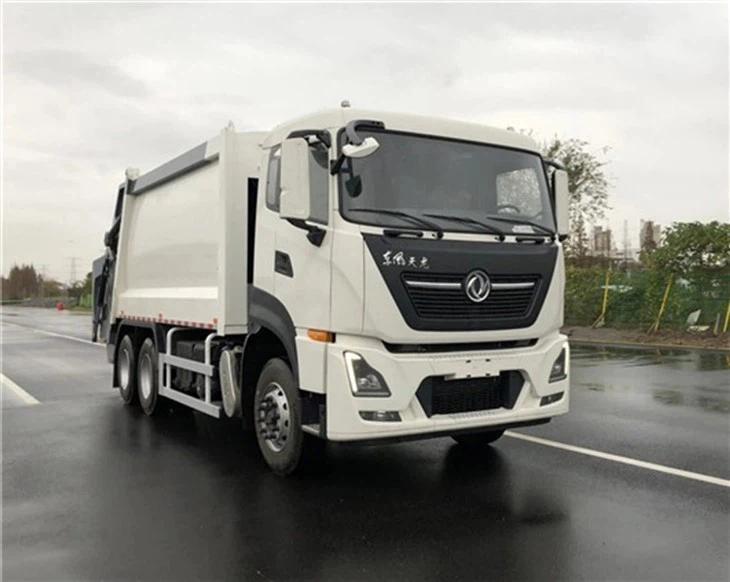

21 CBM Rear Loader Garbage Truck

Model No.: 21 CBM Rear Loader Garbage Truck
Overall Dimensions(L×W×H): 10,150, 10,330×2,520×3,540mm
Chassis Brand: Dongfeng
Drive Wheel: 6X4
Wheelbase: 4,350+1,350mm

BRIEF

The 21 CBM Rear Loader Garbage Truck serves a unique and vital purpose in the efficient management of municipal waste and other compactable refuse materials. Designed with precision, these trucks incorporate an electric hydraulic control system alongside a cutting-edge crushing and densification mechanism. This combination results in a remarkable compression ratio, while also providing a substantial load capacity to handle the task at hand.

One of the standout features of these garbage trucks is their commitment to maintaining a hermetically sealed environment during waste collection and transportation. This critical aspect ensures that there is no opportunity for secondary pollution to occur during the entire process. This dedication to environmental stewardship not only safeguards the surrounding communities but also aligns with sustainable waste management practices.

The 21 CBM Rear Loader Garbage Truck‘s electric hydraulic control system enables seamless and precise operation, allowing waste collection teams to efficiently manage their tasks. Its advanced crushing and densification mechanism plays a pivotal role in reducing the volume of waste, making the most of the available space within the truck.

Furthermore, the high compression ratio achieved by these trucks contributes to fewer trips needed to transport the same amount of waste, reducing fuel consumption and overall operational costs. This is not only economically advantageous but also environmentally friendly.

In conclusion, the 21 CBM Rear Loader Garbage Truck is a specialized and eco-conscious solution for the collection and transportation of municipal and compactable waste materials. Its innovative features, such as the electric hydraulic control system and advanced compression mechanism, ensure efficient and environmentally responsible waste management practices. By maintaining a hermetic seal and prioritizing a high compression ratio, these trucks contribute to cleaner, more sustainable communities while optimizing operational efficiency.

FEATURES

1. The operation is straightforward and user-friendly: Various controls and operations are managed through the control switch (button), which sends instructions to the microcomputer. The microcomputer receives these instructions, enabling the execution of actions through the electromagnetic valve and multi-way hydraulic control valve. It continuously monitors and analyzes feedback information to ensure safe and reliable operation. Moreover, it can adjust the engine’s output power to match the requirements. Therefore, operators only need to press a button to complete tasks with ease.
2. The compartment boasts ample capacity, lightweight construction, and a substantial loading capacity: With a generous 21-cubic meter capacity and a tank body constructed from durable steel, the designed loading weight is 13 tons, with the actual maximum garbage loading capacity reaching 15 to 16 tons.
3. Swift operation times: The loading cycle takes only 18 to 22 seconds, garbage discharge is accomplished in 25 seconds, and the loader lifting process is completed in just 12 seconds.
4. Hydraulic seals designed for extreme cold: The hydraulic seals are engineered to function seamlessly in low-temperature environments, even as low as -40ºC.
5. Environmentally-friendly sealed structure to prevent secondary pollution: Featuring a unique Japanese seal groove design and employing imported sealed profiles, this vehicle achieves complete sealing during transportation, preventing materials, garbage, and sewage from spilling and causing secondary pollution. Additionally, the vehicle is equipped with an effective sealed sewage tank that allows for regular discharge.
6. High pressure and top-quality hydraulic components: This vehicle can generate a crushing force of up to 24,000 Kg. It utilizes imported hydraulic valves, seals, and joints to address the issue of domestic hydraulic parts being prone to leakage over time.
7. Human-centered, safe, and convenient design: This vehicle incorporates excellent models from abroad with a focus on user-friendliness. To ensure safety and prevent misoperations, it features emergency stop switches, self-locking devices, locking mechanisms, and a reverse mechanism in two separate locations.
8. Dependable fastener connections: The upper structure is securely fastened to the chassis using high-strength materials and fasteners, ensuring a firm and reliable connection without any risk of loosening, detachment, or noise.
9. High-strength, weather-resistant steel plates, and high-tension alloy steel are used to construct the garbage tank body, loader, and loading mechanism. They are meticulously assembled and welded using Japanese molds and clamps. Furthermore, all metal components undergo a specialized anti-corrosion treatment, ensuring exceptional corrosion resistance.

10. It can be equipped with or without a garbage container turnover system, offering flexibility to suit specific requirements.

SPECIFICATION
