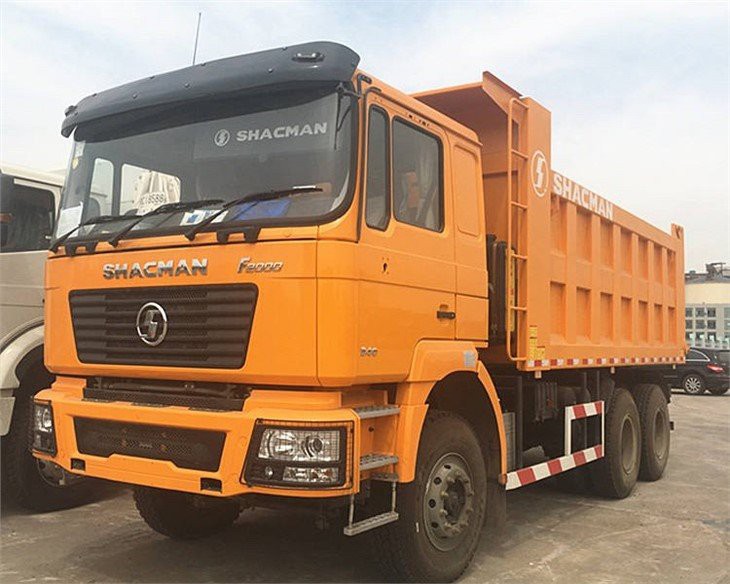

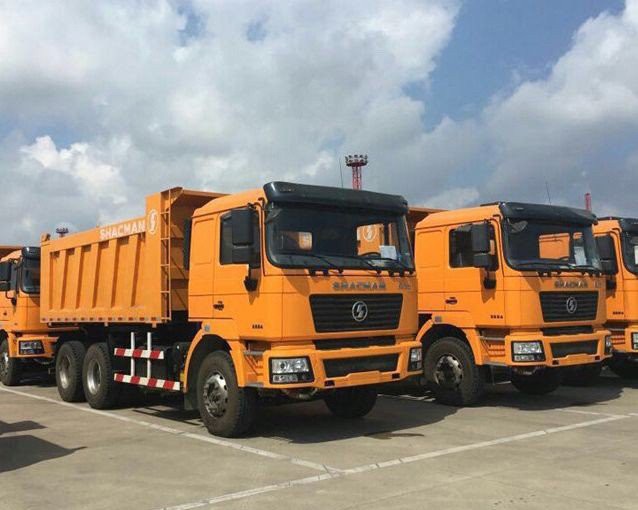

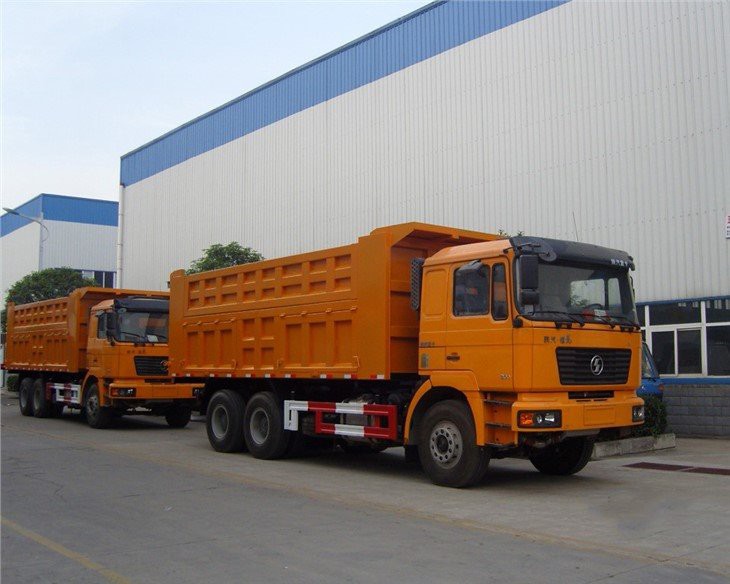

22CBM SHACMAN 25Ton Dump Truck
OVERVIEW
The dump truck designed suitable for waste and construction applications. CSCTRUCK dump truck lift range gives you the choice, strength and proven reliability. Manufactured to the highest quality standards. Available in three drive modes 4×2,6×4 and 8×4. Discharged by means of one heavy duty hydraulic cylinders and fitted with chains. Top canvas cover for optional.
FEATURES
● Dump trucks body is being lifted from the front by telescopic type cylinder.
● HYVA hydraulically system is recommended .
● HYVA 145, 169,191 series with HYVA oil tank.
●Hydraulic power is supplied by the transfer of energy from PTO to the pump.
● PTO is controlled from the dumpers cab.
● The oil tank has normally 70 ltr capacity.
● All pipes used in the installation are suitable with DIN NORMS.
● The system is controlled from the driver cab.
TECHNICAL SPECIFICATION
|
Model |
CSC5250ZWSX |
|
Function |
Used For Life Garbage Transport and Dumping |
|
Dump Body Capacity |
6,000×2,350×1,600mm/22CBM |
|
Dump Body Shape |
Dump body is not easy to warp and deform & gap between doors is even |
|
Dump Body Material/Thickness |
High-Quality Steel / Side: 6mm / Bottom: 8mm |
|
Hydraulic Cylinder |
Front-located Cylinder |
|
Chassis |
SHACMAN |
|
Engine |
WP10.380E22/Weichai/380HP/Euro2 |
|
Transmission |
10JS/FAST/10+1reverse gear |
|
Cabin |
Single cabin, with A/C |
|
Overall Size |
8,250×2,550×3,200mm(app.) |
|
Gross Vehicle Weight |
24,500kg(app.) |
|
Vehicle Weight |
9,500kg(app.) |
|
Wheelbase |
1800+3150mm |
|
Max Speed |
85km/h |
|
Battery |
24V |
|
Tires |
12.00R20/10+1spare tire |
|
Steering |
Power assist steering |
|
Axles |
9500kg/16000kg |
