BRIEF INTRODUCTION

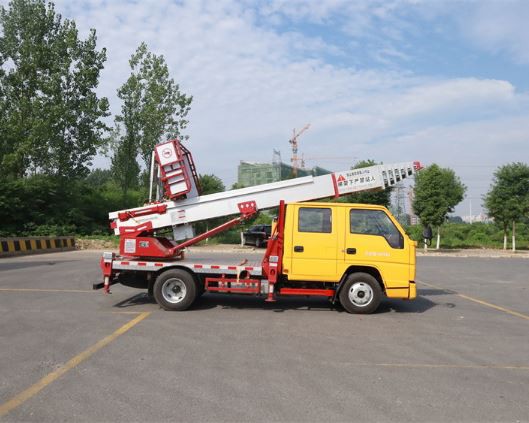

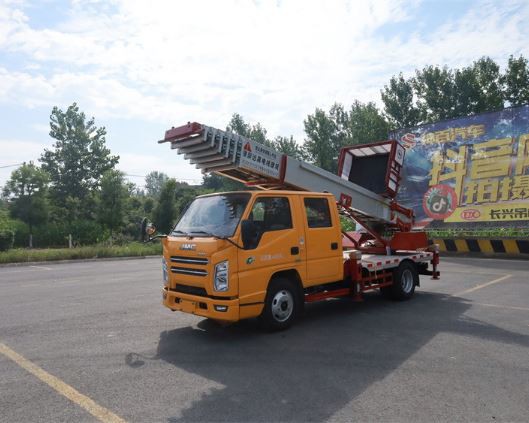

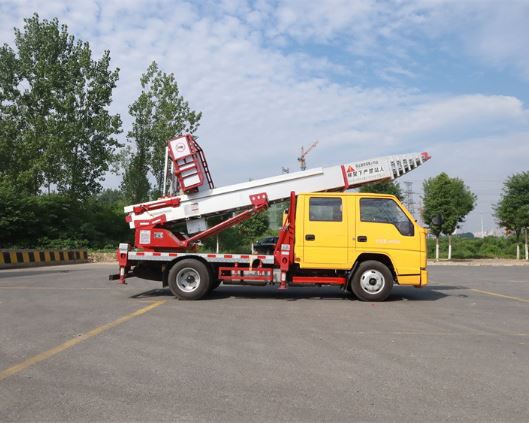

• Chassis Maker JMC 4×2 Truck Chassis
• Engine JX493 Diesel ,115hp, EURO 5 Emission regulation
• Bucket (carriage box) Size 2400x1300x450(mm)
• Hydraulic LADDER LIFT TYPE
• 7 Staged Boom
Description
Safety
Vehicle Leveling Device
Equipped with a vehicle state level meter, which can detect the inclination state of the vehicle in both horizontal and vertical directions
Top /Bottom Interlock
Used for interlocking on and off the truck to prevent the danger of mis operation (converter)
Boom Elevator Limit Alarm Device
The ladder boom is extended to 32 meters, and the automatic limit pressure relief sound alarm prompts
Gear Brake
In the case of accidental breakage of the wire rope, it is stuck on the arm gap and acts as a buffer
Plunger Brake
In the case of accidental breakage of the wire rope, it is inserted into the beam of the ladder, and it can brake left and right within a short distance (the plug-in brake is an invention patent by CSCTRUCK)
GALLERY
