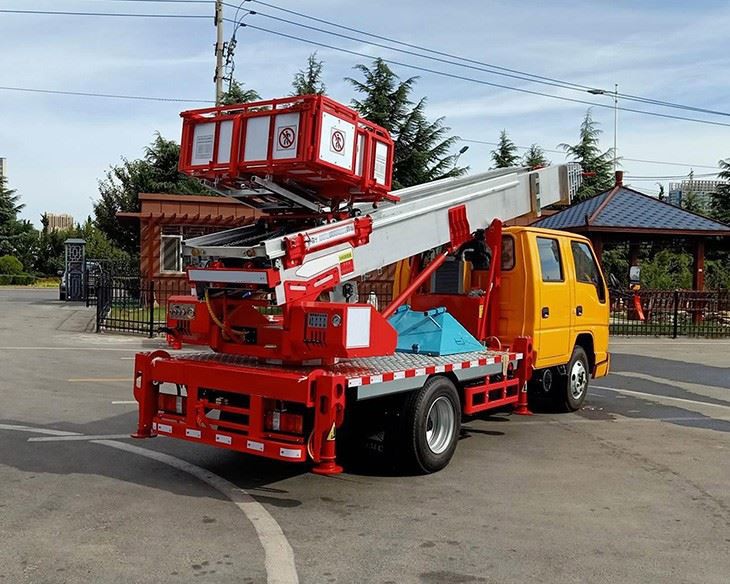

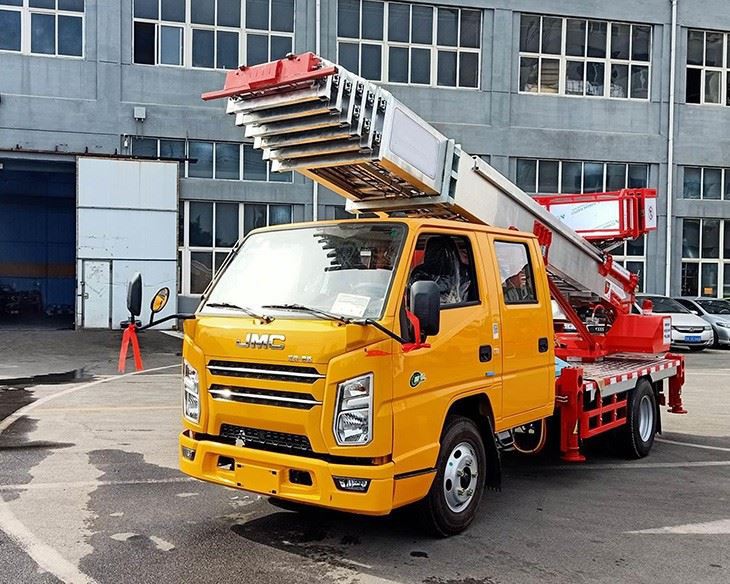

32m JMC Ladder Lift Truck

12m Max Working Reach
400kg Max Platform Capacity
32m Max Working Height
JMC Shunda 4X2 Truck Chassis
JMC JX4D30B6H 116hp Diesel Engine
JMC 5MTI280Y 5 Speed Manual Transmission

BRIEF

The aerial ladder truck, also known as the ladder lift truck, high-altitude transport vehicle, aerial work vehicle, or aerial ladder moving truck, serves various purposes including project leasing, curtain wall construction, roof waterproofing, solar panel installation, advertising, power maintenance, air conditioning installation, moving company services, cement and sand handling, ship maintenance, road and bridge repair, and more. Our JMC ladder lift bucket truck boasts a 32-meter height capacity, equivalent to an 11-story building, and is constructed with high-strength special aluminum mounted on a JMC truck. It has a material handling capacity of 400 kg.

FEATURES

Our product comes with a range of standard features, including:

• A cab travel recording system
• An anti-slip base plate floor
• A Vehicle Level State Tester
• A hydraulically operated PTO
• A hydraulically operated turntable
• A console with one-button ignition and flameout
• Electric operation from the working platform and remote control within a 100-meter range on the ground
• A forum with an automatic leveling system and lower bottom design
• The platform runs up and down using rubber wheels with hydraulic assistance
• A platform travel memory function that allows the operator to push a button to reach a designated position, suitable for multiple round-trip operations at the same height, with the lifting speed adjusted freely
• Imported main hydraulic motors, brakes, hydraulic locks, multi-way valves, balance valve groups, and reducers
• Double luffing cylinders for the ladder boom, with synchronous expansion and retraction, ensuring stable arm lifting and turning
• A radiator with automatic and manual modes that starts cooling automatically when the temperature reaches 35 degrees
• An emergency brake that includes a gear brake and plunger brake
• Night security lights on the ladder boom for increased safety during nighttime operations
• An automatic interlocking device for getting on and off the vehicle
• A ladder limit position alarm device including sound and light alarms, automatic pressure relief, and ladder angle prompts when the mechanical limit is operated.

Optional Features:

• Hopper
