4000kg Dry Powder Fire Truck

Chassis Model: ZZ5207TXFV471GF5
;
Drive mode: 4X2
;
Wheelbase: 4700mm
;
The maximum speed: 101km/h
;
Engine mode: MC07H.35-60
;
Rated power: 257KW
;
Net power:254KW
;
GVW of this chassis: 20100kg
;

Description

4000kg Dry Powder Fire Truck

( HOWO 4X2; 2×2000 Kg dry powder )

●Application:

Dry powder fire trucks come equipped with a dry powder fire extinguishing tanks, dry powder injection devices, fire pumps, and other firefighting equipment. They are the ideal solution for situations where water could be harmful or ineffective, such as near electrical fires or chemical substances. The HOWO 4000kg dry powder fire truck is specifically designed to extinguish fires with powder instead of water or foam, making it highly effective in combating large-scale chemical pipeline fires. This type of fire truck is commonly used by petrochemical enterprises as a regular fire engine due to its impressive firefighting capabilities.

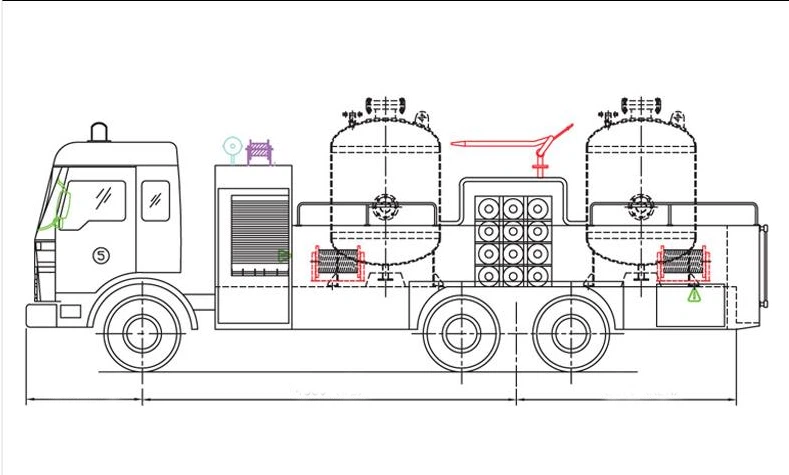

Structure of dry powder fire truck

●Advantages:

The SINOTRUK branded chassis of this vehicle boasts exceptional professionalism, a sturdy frame, and a remarkable loading capacity.
The double-row cab is original and comes with a convenient cab turnover feature, making engine maintenance a breeze.
With its superior power, high speed, and user-friendly design, this vehicle is easy to operate.
CSCTRUCK has over two decades of experience manufacturing fire trucks for countries worldwide.

●Specifications

1）Basic parameters

Overall dimension	8630x2540X3680mm	Maximum GVW	19450kg
Powder Capacity	2*2000kg	The Max speed	95km/h
Dry powder Cannon output	30kg/s≦E≦35kg/s	Range of the Cannon	≧35m
Approach angle/departure angle	19°/11º

2）Chassis

Model	ZZ5207TXFV471GF5	Drive mode	4×2
Wheelbase	4700mm	Max. speed	101km/h
Engine mode	MC07H.35-60	Rating power	257KW
Net power	254kw

3)Cabin

Double row cabin with 4 doors.
Seats	2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats.

4)Dry powder system

a. Dry powder cannon
Material	Q345r, Q345b	Fire extinguishing dry powder loading	2*2
Designed pressure	1.7MPa	Working Pressure	1.4MPa
b.nitrogen cylinders
Capacity	70L	Pressure	15MPa
quantity	12 pcs
c. Dry powder monitor
Model	PF5-15/30	.quantity	2
working pressure	0.5-1.5MPa	Dry powder Cannon output	30kg/s≦E≦35kg/s
Range of the Cannon	≧35m
d. Dry powder gun
Quantity	2	Output	＞2.5kg/s
Range	＞12m
e. Hose reels
Length	30m	Quantity	2

5)control method：

The intake and discharge of powder tanks are regulated by pneumatic valves, with the option of adding pneumatic valves to the standard manual valves. CSCTRUCK provides this feature for added convenience and flexibility.

6)Electric system:

a. The cabin of the vehicle is equipped with a long-row warning light and siren, with the controller conveniently located for the driver’s use.

b. Strobe Light: Mounted on both sides of the compartment.

c. External Lighting: LED lights are mounted on both sides of the compartment.

d. Roof Lighting: 1.6m long row of luxury red warning LED lights

e. Side Indicator Light: Inline yellow warning light is mounted on the side of the compartment and pedals.

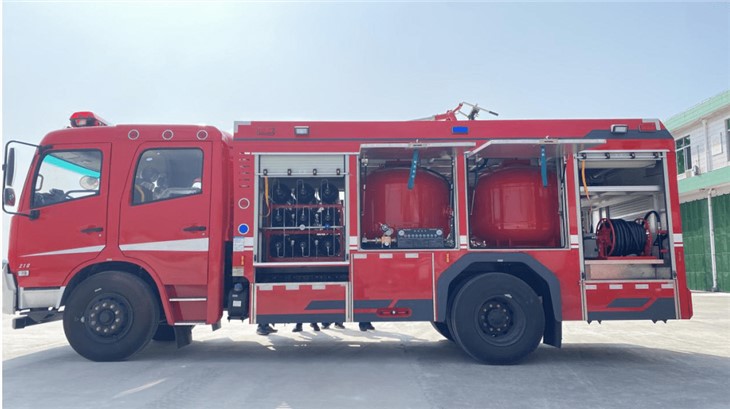

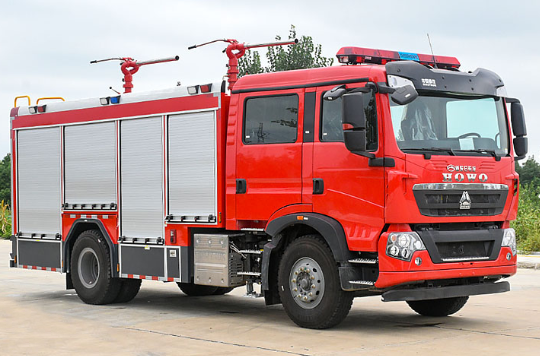

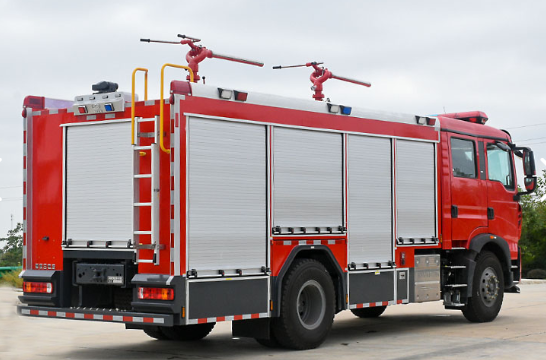

Photos for your reference:
