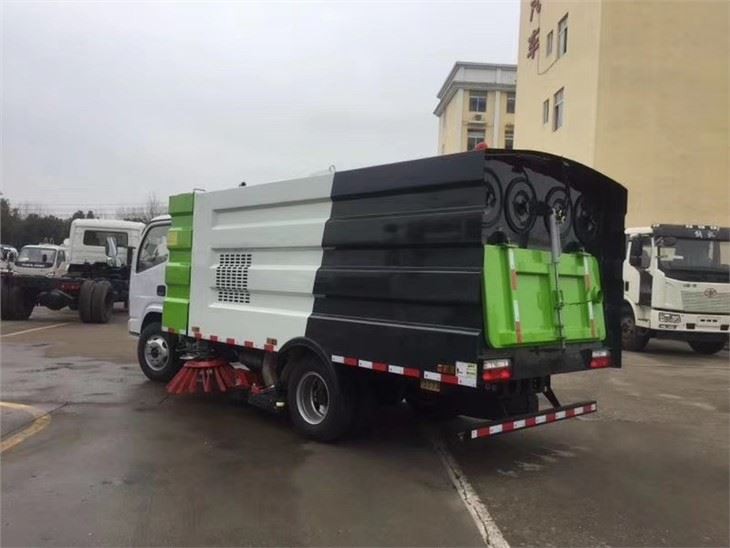

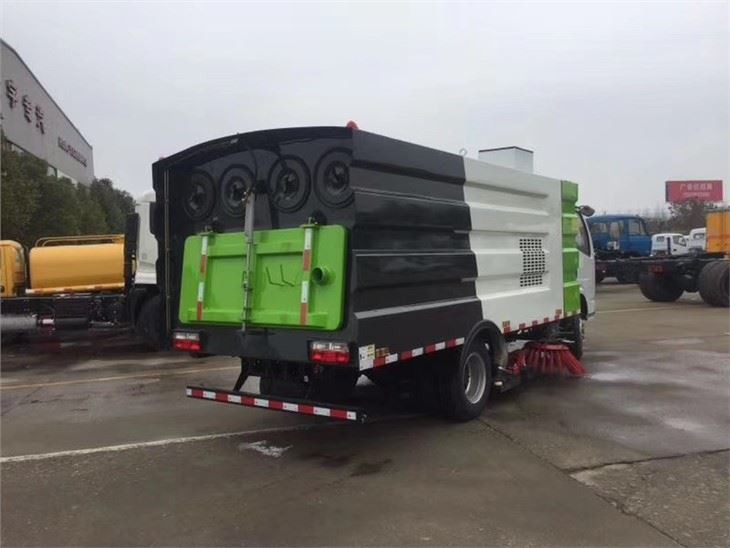

Model Number: CSC5071TSL6
Garbage Container: 4.2m3
Water Tank Capacity: 1.2 m3
Sweeping Efficiency: ≥95%
Sucking Width: 2.8-3.0 m
 |
 |
 |
Description
Features
4 central sweep brushes, 3-speed regulation; auxiliary engine; powerful motor; Schneider control switch; solenoid valve group made in Taiwan; maintenance-free self-separating clutch; maintenance-free fan; stainless steel water tank; stainless steel garbage tank; LED arrow tail lights; manual pump emergency system; brush arm rotating mechanism uses high-tech wear-resistant engineering spacer, no need to feed grease; precision cold-formed seamless hydraulic oil pipe.
|
Truck mode |
CSC5071TSL6 |
|
|
Sweeping performance |
Sweeping Efficiency |
≥95% |
|
Max. Sucking Dust Diameter |
120 mm |
|
|
Sucking Width |
2.8-3.0 m |
|
|
Max. Sweeping Capacity |
60000 m2/h |
|
|
Extensive Length of disc brush |
≥400 mm |
|
|
|
driving speed while sweeping |
3-20 km/h |
|
Water tank |
Water Tank Capacity |
1.2 m³ |
|
garbage container |
Garbage Container Capacity |
4.2 m³ |
|
titling angle of the garbage container |
≥46° |
|
|
titling angle of discharge door |
≥85° |
|
|
hydraulic system |
Mold |
electrical control |
|
main components |
Gear pump, hydraulic motor, hydraulic cylinder, and electromagnetic valve |
|
|
pressure |
16 MPa |
|
|
capacity of the hydraulic oil |
60 L |
|
|
Temperature of the oil |
60 ˚C |
|
|
Electrical System |
Mold |
DC12 V |
|
Voltage |
12 V |
|
|
Battery |
12V |
|
|
Spraying system |
main components |
Electrical pump, water filter, nozzles |
|
Disc Brushes |
type |
4 disc brushes, driven by hydraulic motor，front right brush could be controlled separately, it has the function of avoiding and reset |
|
diameter of the brush |
850 mm |
|
|
sweeping titling angle |
Front：4-6 degree side ：4-7 degree |
|
|
suction device |
type |
Single Suction Mouth，hydraulic control |
|
diameter |
200 mm |
|
Spare parts
|
Ref. |
Part name |
Quantity |
|
1 |
Bristles |
88 |
|
2 |
seal strip for fan |
1 |
|
3 |
seal strip for back door |
1 |
