50000Liters tank capacity
High-quality mild steel tank material
1-9 compartments of tank optional
13/16tons mechanical/air suspension optional
12pcs 12R22.5 tires
Transporting liquid flammables gasoline, diesel
 |
 |
 |
 |
Description
BRIEF:

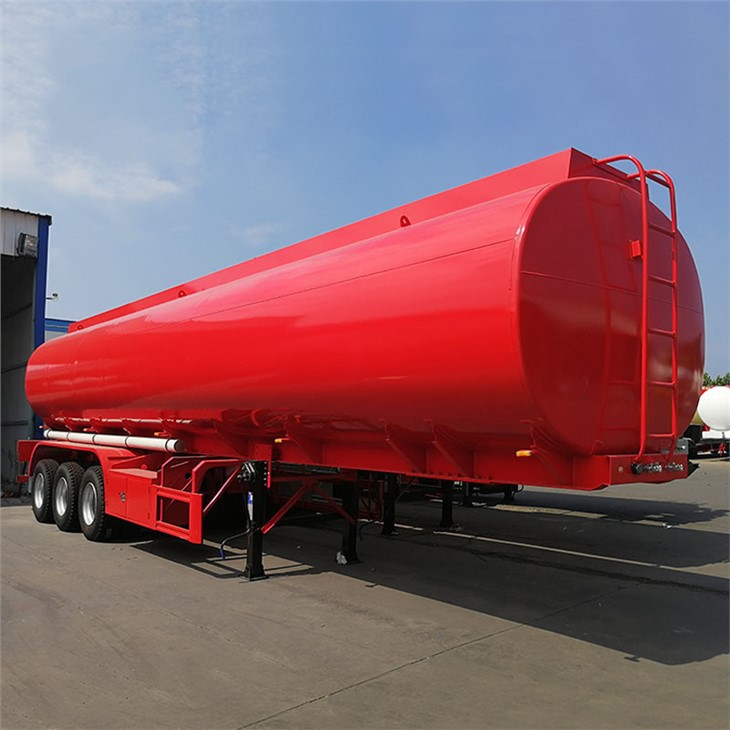

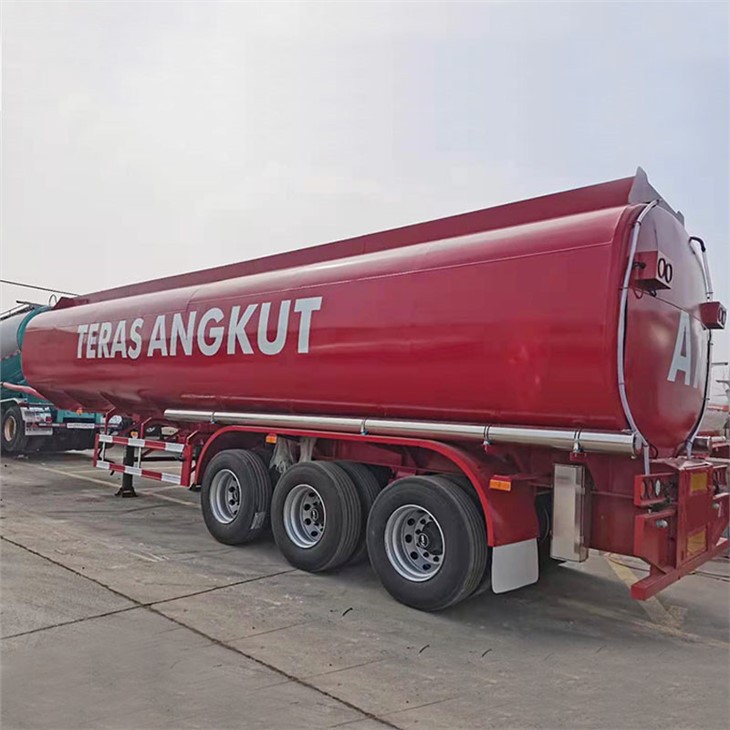

50000 Liters Fuel Tanker Semi Trailer is a secure, economical, and flexible way to transport oil, fuel, diesel, or other hazardous materials. Here are some features of the trailer:
More economical:
Compared to fuel trucks, it has improved transportation efficiency. The transportation cost is reduced, and fuel consumption is saved.
Safer:
The tank undergoes a high-pressure gas leak test and has a strong metal frame, stable center of gravity, and safe and stable vehicle transportation.
Various pumps optional:
A choice of centrifugal pumps, gear pumps, and stainless steel pumps, which have the characteristics of a large flow rate and fast suction speed.
More equipment optional:
Single-counter and double-counter flow meters can be selected. Tax-controlled computer fuel dispensers can be installed with automatic telescopic return reels, and refueling guns. Edible oil can be measured with an edible oil computer meter.
Hot-rolled structural steel:
The chassis is assembled and welded with welded steel longitudinal beams and cross-members. The finished chassis has proper rigidity and strength.
Advanced technology:
Major parts and components of the fuel tank trailer are processed by advanced equipment. Longitudinal beams are finished by automatic tracking submerged arc welding machine. All sub-assemblies are shot-blasted to improve paint adhesiveness and painted before assembling.
SPECIFICATIONS
|
Model |
CSC9502GYYA |
|
Capacity of Tank |
50000Liters + 3%~5% |
|
Compartment of Tank |
5compartments |
|
Hauling for |
Liquid flammables(gasolines, diesel), Density 0.76 |
|
Overall Dimension |
95000~13000x2500x3900mm(final size based on exact drawing) |
|
Material of Tank |
Mild steel Q235 |
|
Dished End of Tank |
Mild steel Q235,6mm thickness, all single heads dished and flanged |
|
Material and Thickness of Shell of Tank |
Mild steel Q235,5mm thickness |
|
Material and Thickness of Compartment of Tank |
Mild steel Q235,4mm thickness |
|
Material and Thickness of Anti-wave Baffle |
Mild steel Q235,4mm thickness |
|
Main Beam |
Standard heavy-duty frame welded on the bottom of the tank |
|
Roll-over Coaming |
Full-length roll-over coaming for anti-fall projection on both sides of top of the tank |
|
Hydrostatic Test |
Pressure testing, hydrostatic @ 35kpa(5psi) each compartment of tank |
|
Painting |
All steel sandblasted and epoxy zinc phosphate primer and polyurethane finish painting(anti-corrosion) painted, with the client’s logo. |
|
Manhole Cover of Tank |
5 sets diameter 500mm anti-explosion safety manhole cover with breather valve |
|
Discharge Valve |
5 sets 3” ball valve for discharging, lockable box for discharge valve |
|
Bottom Valve(Emergency Valve) |
5 sets pneumatically controlled emergency valves, valve fitted with valve operator |
|
Hose and Hose Tray |
2pcs hose trays to fit 3” 6m hose |
|
Water Drain Pipe |
The water drain rubber pipe from the top of the tank provided |
|
Kingpin |
50# or 90# kingpin, 12mm thick mild steel plate fabrication |
|
Landing Gear |
1 set 28tons landing gear with two-speed manual operation type |
|
Axle |
3 sets of 13tons FUWA brand axles, with ABS |
|
Suspension |
Mechanical Reinforced Multi-Leaf Spring. Suspension frame Mild steel fabricated for heavy-duty usage, plate spring upset. Air Suspension optional |
|
Brake System |
Dual line air brake system comprising of contact type coupling, brake chamber, emergency valve, and air reservoir |
|
Tires |
12R22.5, 12pcs+1spare |
|
Rims |
9.0*22.5 steel tubeless rims 12pcs |
|
Access Ladder |
A detachable steel ladder mounted at the rear of the tank |
|
Catwalk |
Anti-skid catwalk fitted with steel grating |
|
Safety Handrail |
Manual-operated collapsible handrail fixed on top of the tank |
|
Side Guard |
Steel side guards were provided on both sides of the tank |
|
Tool Box |
1set lockable toolbox |
|
Mudguard |
The whole piece of steel plates |
|
Rear Bumper |
Steel bumper with light assembly and number plates |
|
Fire Extinguisher |
2pcs 8kg dry powder fire extinguisher |
|
Anti-static System |
Earthing strip installed at the rear of the tank, 1pc grounding bounding reel |
|
Light and Wiring |
Standard front, side, and rear of the tank |
|
24v, 7 wires ISO socket |
|
|
Brake light, reverse light, direction indicator, LEF tail lamp |
|
|
8pcs side marker lamp |
|
|
Reflective Tapes and Sticker |
CSCTRUCK standard |
