Description
Description:

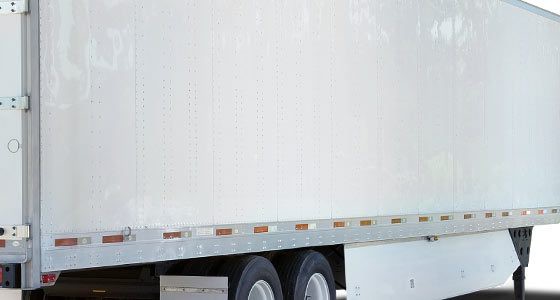

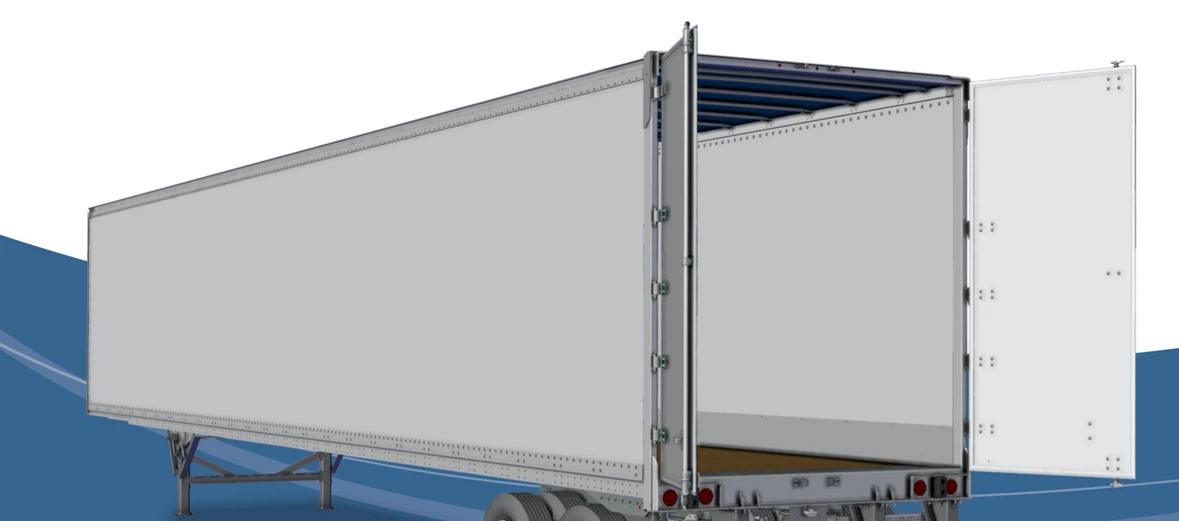

The CSCTRUCK 53′ Cargo Dry Van Box is built using robust composite plate sidewall and steel logistic slotted stiffeners, which makes the sidewall material lightweight without compromising its strength.
To ensure easy repair, the CSCTRUCK Dry Van Box features a composite sidewall design that allows for quick and straightforward replacement of individual side panels without the need to remove the stiffeners. This design reduces downtime and increases utilization.
|
◉ General |
||
|
Length |
Exterior 53′ (16.154 m) |
Interior 52′ 6”(16.003 m) |
|
Width |
Exterior 53′ (16.155 m) |
Interior 52′ 6”(16.004 m) |
|
Height |
Exterior 53′ (16.156 m) |
Interior 52′ 6”(16.005 m) |
|
Capacity |
68000 GVWR |
4095 cu. Ft. of interior |
BODY CONSTRUCTION
- Side Wall
The side wall is fabricated from a 0.31″ Composite panel fill with polyurethane foam with prepainted white, high tensile aluminum outer and inner sheet
- Front Wall
0.31″ Composite panel fill with polyurethane foam with prepainted white, high tensile aluminum outer and inner sheet
- Floor
0.25″ plywood installed between the troughs and bottom rails for leak protection
- Side Posts
Side stiffeners Logistics in Galvanized steel, anti-snag, on 24″ center.
- Front Posts
6 hi-tensile, hat-shaped, posts with Galvanized steel.
- Corner Posts
Front: Extruded aluminum Upper: Die-cast aluminum
- Door Frame
Made of stainless steel, reinforced with corner pieces at the top with 2 polyurethane caps.
- Interior Lining
Snag-Free interior lining galvanized interior lining is squeeze riveted with fully recessed fasteners to the outer skin and side posts. Front in 0.05 aluminum sheet.
