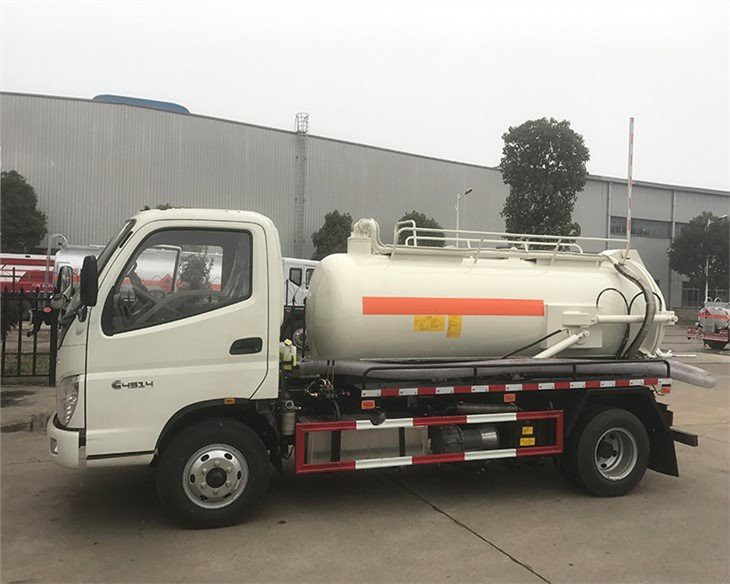

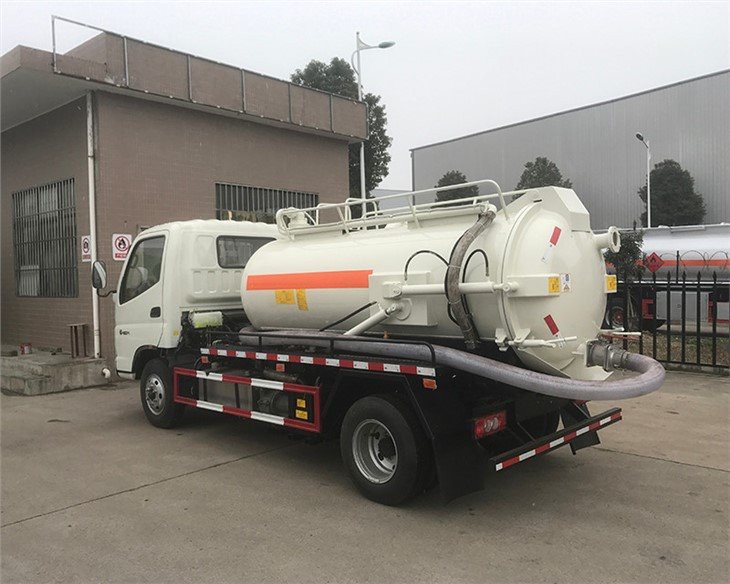

Vacuum Tank Capacity 5CBM
Model AUMARK-C33
Cummins 141hp Engine
Truck Size 5875×2030×2230mm
Wheelbase 3360 mm
EURO III Emission norm
 |
 |
 |
 |
Description
Tank
volume
4m3
Dimensions
Sectional shape: perfect circle
Tank material and thickness
Part of the tank material、thickness：Q235B carbon steel, 5mm
Head material and thickness: Q235B carbon steel, 5mm
Wave breaker
Quantity: 1
Material thickness: Q235B carbon steel, thickness 4mm

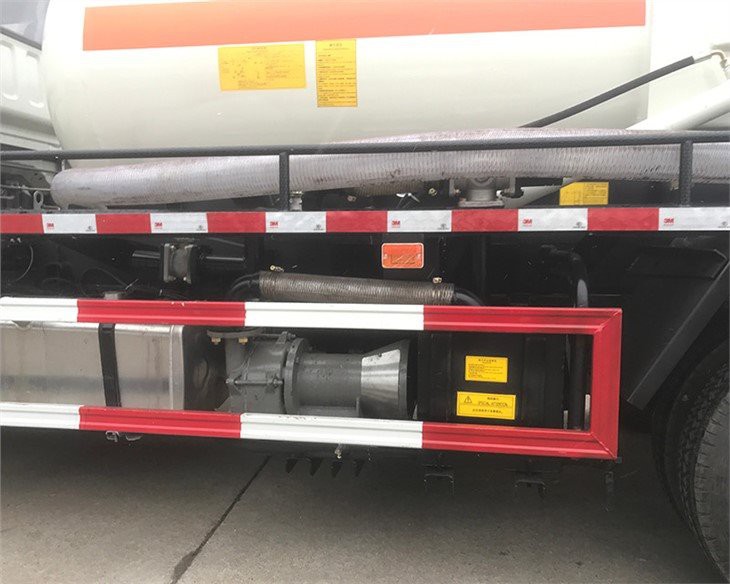

Sewage suction pump
Quantity: 1
Brand: Yifeng SK-6
Rotation speed of sewage suction pump: 1450r/min
Pumping speed of sewage suction pump: 100L/S
Absolute working pressure: 7000Pa (93%)
Pump quality: 60kg
Power: 11KW
Depth of dirt absorption
7m
Full time
≤5min
power takeoff
Quantity: 1
Lifting cylinder
Quantity: 2
Lifting cylinder: 63*35*650mm, 16MPa
Sealing cylinder with head
Quantity: 2
Multi-way valve
Quantity: 1 Two-way valve
Specification: DN20 Control method: manual
Hydraulic oil pump
Quantity: 1
Material: aluminum alloy
Flow: #63
Vacuum pressure gauge
Quantity: 1
Material: Stainless steel
Pressure: -0.1-0Mpa
Hydraulic tubing material
Rubber steel wire hose
Anti-overflow device
Quantity: 1
Material thickness: stainless steel
Liquid level alarm
Quantity: 1 Material: SUS304
Suction port
Specification: DN100, aluminum alloy
Control method: manual
Length of suction pipe: 6 meters
Sewage suction pipe length: 6 m
Discharge port
1 self-draining port at the head and tail
Gravity head tail port 1
Specification: DN150, aluminum alloy
Control method: manual
Stained window
Quantity: 1
Material: organic glass
Thickness: 6mm
Climb the ladder
Welded non-slip ladder on the driver side of the tank
Top guard
Protective handrails are installed on both sides of the tank top
Anti-skid plate installed on the top of the tank
Top of the tank mounting cleat
Material of tank foot auxiliary beam
Q345 manganese steel
