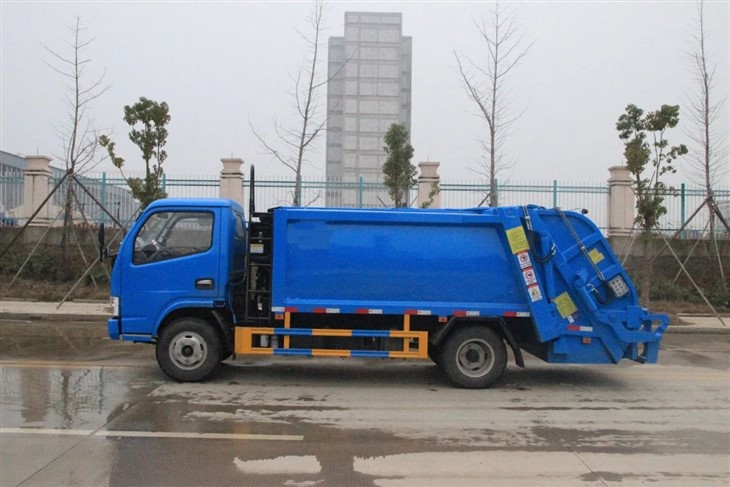

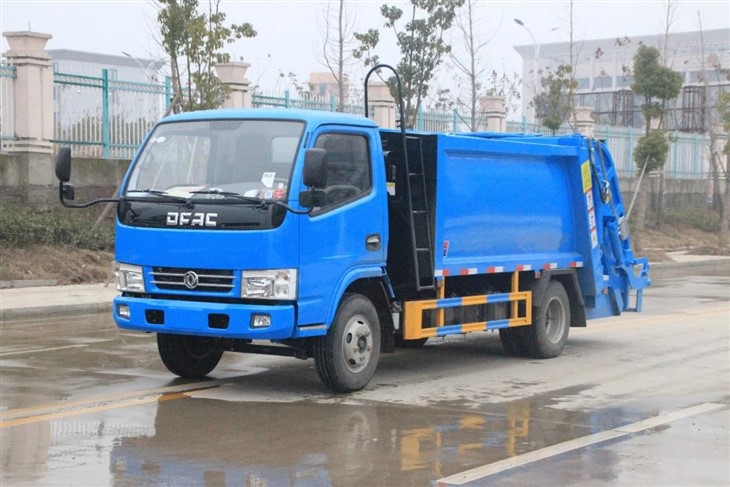

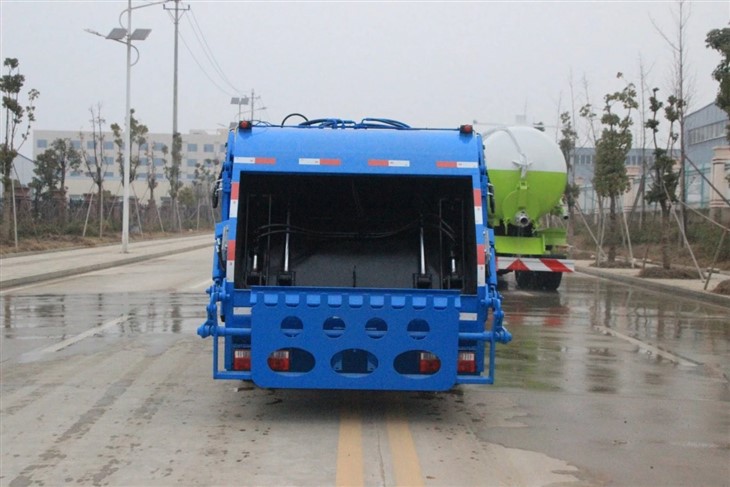

Model NO.: 6 CBM Rear Loader Compactor Garbage Truck
Overall Dimension: 6,220×2,050×2,570 mm
Wheel Base: 3,308 mm
Engine horsepower: 102HP, EURO II
Gear Box: 5 Forward Gear, 1 Reverse Gear
 |
 |
 |
 |
Description
BRIEF
The 6 CBM rear loader compactor garbage truck plays a pivotal role in transforming the urban landscape, erasing the unsightly blemishes effectively caused by refuse while eradicating the hazards of secondary pollution simultaneously.
Its remarkable feature lies in its seamless, user-friendly, and fully automated operation. Equipped with a sophisticated computer control system, this innovative vehicle manages the intricate processes of loading and unloading effortlessly, all at the push of a button. Gone are the days of labor-intensive sanitation work; now, a single operator can oversee the entire operation efficiently.
This streamlined approach not only lightens the load on sanitation workers but also drastically enhances the overall working environment. The once arduous and unpleasant task of waste collection is now simplified to a degree where it can be managed by a solitary individual, leading to a significant boost in morale and efficiency within the sanitation workforce.
Additionally, the garbage compactor truck boasts a dual-operation system that blends computerized precision harmoniously with manual control. This synergy greatly amplifies the utility of the vehicle. Whether under the meticulous supervision of the computer control system or the skilled guidance of a human operator, this truck adapts seamlessly to meet the diverse demands of waste management.
In conclusion, the garbage compactor truck is a transformative force, not only in terms of aesthetics but also in promoting environmental well-being. Its cutting-edge technology, easy fully automatic operation, and dual-operation capabilities make it a valuable asset for cities striving to maintain cleanliness while reducing the environmental impact of waste disposal.
FEATURES
1. The garbage compactor truck transforms the city’s unsightly appearance while effectively eradicating secondary pollution.
2. It offers effortless, fully automatic operation through a computer-controlled system for loading and unloading tasks.
3. Streamlining sanitation work, enables single-person operation, significantly enhancing the working conditions.
4. With its dual operation system, which includes computer control and manual operation, it maximizes the vehicle’s utilization rate.
SPECIFICATION
| Overall Dimension | 6,220×2,050×2,570 mm | Gross Vehicle Weight | 7,360 kg | ||
| Curb Weight | 5,400 kg | Loading Weight | 1,830 kg | ||
| Wheel Base | 3,308 mm | Front / Rear Axle | 5,000 kg / 10,000kg | ||
| Cabin | Left-Hand Driving, 2 Passengers Allowed, with Air Conditioner, Radio. | ||||
| Engine | |||||
| Engine horsepower | 102HP, EURO II. | ||||
| Max Driving Speed | 90 km/h. | ||||
| Gear Box | 5 Forward Gear, 1 Reverse Gear. | ||||
| Tire | 7.00R16 (6 pieces with one spare). | ||||
| Garbage Bin | Capacity | 6CBM | |||
| Material | 4mm Carbon Steel for Garbage Bin Body. | ||||
| Design | Whole unit with Leakage Proof Design. | ||||
| Ways of Loading | Rear Loading with optional Bucket Lifting System. | ||||
| Garbage Compact Ratio | 1/3 – 1/4 | ||||
| Control System | One control Panel on the back, One Control system in the back of the Cabin. | ||||
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system, and operating system. | ||||
| 2. Automatic loading, compressing, and discharging, all handled by 1 person. | |||||
| 3. Sewage water collection tank to avoid any pollution during handling. | |||||
| 4. Large Pressure, Good Leakage Proof, Convenient Operation, Dependable Security. | |||||
| 5. Electrical Control Panel for compacting system. | |||||
| 6. Cycling time<14~18s. | |||||
| Remarks | 1. Color is optional. | ||||
| 2. Customized LOGO painting as per customer request. | |||||
