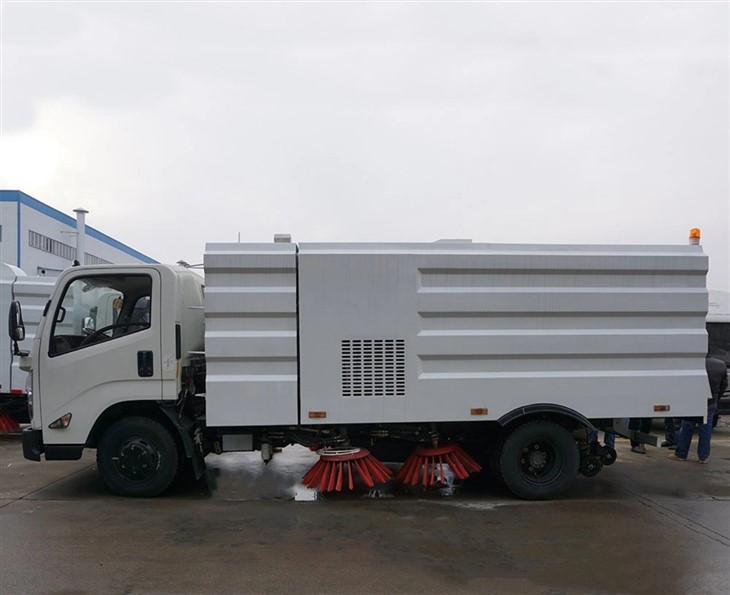

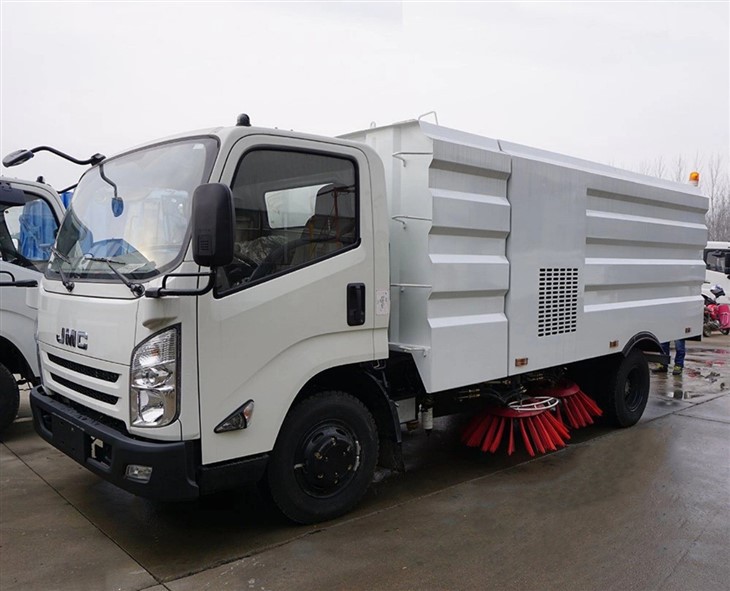

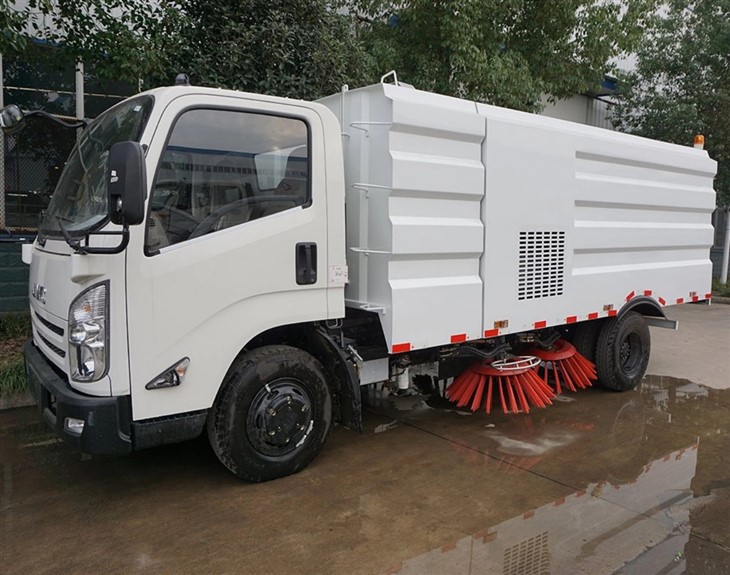

Model No.: 6 CBM Small Road Cleaner Truck.
Garbage tank capacity: 4 CBM + Water tank volume: 1.5 CBM.
Overall Dimensions(LxWxH): 6,900×2,200×2,670mm.
Chassis Brand: JMC.
Drive Type: 4×2.
Wheelbase(mm): 4,175.
Engine Model: 4HK1-TCG40.
Max output power/rotate speed(hp/rpm): 190/2,600.
Max torque/rotate speed(N.m/rpm): 510/1,600.
Cleaning efficiency: ≥95%.
Suction sweep width(mm): 2.8-3.2.
Maximum cleaning capacity(m2/h): 60,000.
Working speed(km/h): 3-20.
Discharge door opening angle: ≥45º.
 |
 |
 |
 |
Description
BRIEF
The JMC 6 CBM small road cleaner truck, manufactured by CSCTRUCK, boasts a garbage tank capacity of 4 CBM and a water tank volume of 1.5 CBM. This road sweeper truck is extensively employed for the tasks of brushing, suctioning, and transporting various particles such as dust, mud, soil, sand, stone chips, and gravel from the surfaces of city roads and surrounding areas.
Comprising essential components, the road-sweeping vehicle is meticulously constructed to fulfill its multifunctional roles. The key elements include the chassis, auxiliary generator, water tank, garbage tank, sweeping brushes, suction dish, hydraulic system, electronic system, and more. These components work in tandem to ensure efficient and thorough cleaning operations.
The chassis forms the robust foundation of the road cleaner truck, providing stability and support for the entire system. The auxiliary generator serves as a vital power source, facilitating the operation of various functions. The water tank, with a volume of 1.5 CBM, plays a crucial role in suppressing dust and aiding in the sweeping process. Simultaneously, the 4 CBM garbage tank is designed to accommodate the collected debris.
Specially equipped with sweeping brushes and a suction dish, the road sweeper collects and transports particles effectively from the ground. The hydraulic system ensures the smooth functioning of the sweeping and suction mechanisms, enhancing the overall performance of the vehicle.
Moreover, the electronic system contributes to the automation and control of different functions, optimizing the efficiency of the road cleaner truck. In conclusion, the JMC 6 CBM small road cleaner truck by CSCTRUCK stands as a versatile and reliable solution for maintaining the cleanliness of city roads and surrounding areas, providing a comprehensive approach to road cleaning with its advanced features and components.
FEATURES
1. Optimize Maintenance: Enjoy cost savings and extended service life by utilizing the complimentary maintenance fan in our road sweeper truck.
2. Corrosion Resistance and Easy Care: Enhance durability with stainless steel water and garbage tanks, providing superior anti-corrosion properties and effortless maintenance.
3. Durable Components: Experience longevity with wear-resistant sweeper brushes and an oil-free rotating mechanism, ensuring reliability over time.
4. Premium Quality Parts: Benefit from renowned brands, including an Italian motor, Schneider control switch, and Taiwanese multifold solenoid valve, ensuring top-notch performance in every aspect.
SPECIFICATION
| Truck Specification | ||
| Truck model | 6 CBM Small Road Cleaner Truck | |
| Driving Type | 4×2 | |
| Max Speed (km/h) | 99 | |
| Overall dimension(LxWxH)(mm) | 6,900X2,200X2,670 | |
| GVW( kg) | 10,055 | |
| Mass in working order ( kg) | 7,180 | |
| Wheelbase(mm) | 4,175 | |
| F/R track base (mm) | 1,680/1,650 | |
| F/R overhang (mm) | 1,010/1,615 | |
| Approach/Departure Angle | 21/19 | |
| Tire | 8.25-20 (6+1) | |
| Clutch | Single-plate dry diaphragm spring clutch. | |
| Steering | Hydraulic steering with power assistance. | |
| Gearbox | MLD 6-speed gearbox. | |
| Bridge | Front axle | 4T |
| Rear axle | 7T | |
| Engine | Model | 4HK1-TCG40 |
| Fuel Type | Diesel fuel | |
| Type | Water-cooled four-stroke, direct injection, turbocharged. | |
| Exhaust(ml) | 5,193 | |
| Max output power/rotate speed (hp/rpm ) | 190/2,600 | |
| Max torque/rotate speed(N.m/rpm) | 510/1,600 | |
| Braking system | Service Brake | Oil brake |
| Park Brake | Spring energy | |
| Auxiliary brake | Engine exhaust brake | |
| Electric system | 24v | |
| Upper-Body specification | ||
| Vice generator | ||
| Model | B140 Cummins engine | |
| Rated power (kW) | 103 | |
| Suction sweep operation | ||
| Cleaning efficiency | ≥95% | |
| The maximum diameter of the suction body(mm) | 120 | |
| Suction sweep width(mm) | 2.8-3.2 | |
| Maximum cleaning capacity (m2/h) | 60,000 | |
| Butterfly dish brush overhang dimension(mm) | ≥400 | |
| Working speed (km/h) | 3-20 | |
| Water tank body | ||
| Rated capacity (m3) | 1.0-1.5 | |
| Garbage tank body | ||
| Rated capacity(m3) | 3.5-4 | |
| Discharge door opening angle | ≥45º | |
| Hydraulic system | ||
| Model | Open, electrical control | |
| The main element | Gear pumps, hydraulic motors, hydraulic cylinders, solenoid valves. | |
| Pressure (Mpa) | 16 | |
| Hydraulic oil tank capacity (l) | 60 | |
| Hydraulic oil temperature (ºC) | 60 | |
| Electrical system | ||
| Model | DC24V | |
| Voltage | 24V | |
| Battery | 24V(2 set 12 v battery series connection ) | |
| Sprinkle system | ||
| The main elements | Electric diaphragm pump, water filters, nozzles, etc. | |
| Sweeper disk device | ||
| Model | Center 4 sweeper disks, controlled by a hydraulic motor, front right can be independently controlled with avoidance and reset function. | |
| Diameter (mm) | 850 | |
| Angel | Forward 4-6º roll 4-7º | |
| Sucker device | ||
| Model | Single suction port, hydraulically controlled, spring suspension. | |
| Diameter (mm) | 200 | |
