Model No.: 6 Wheelers 15,000 Liters Trash Truck.
Overall Dimensions(LxWxH): 8,600×2,500×3,300mm.
Chassis Brand: Dongfeng.
Drive Type: 4×2.
Wheelbase: 4,700mm.
Engine Model: B190 33.
Exhaust(ml): 5,900.
Max output power/rotate speed(HP/rpm): 190.
Loading Circulation Time(s): 12-30.
Rubbish Discharging Time(s): <=30.
Max Speed(km/h): 90.
Garbage Tank Capacity(L): 15,000.
Garbage Tank Material: Carbon steel.
 |
 |
 |
 |
Description
BRIEF

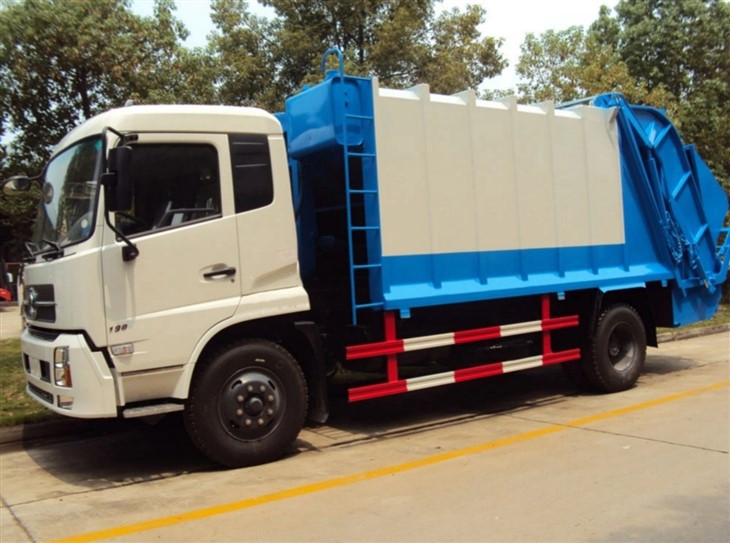

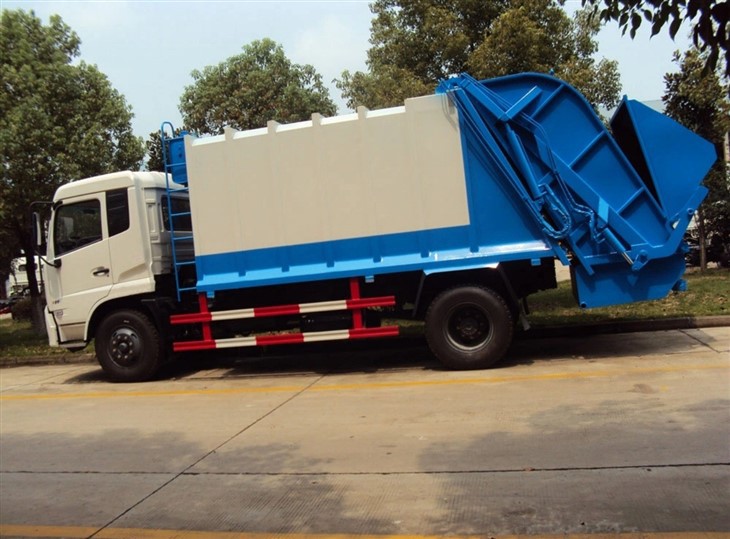

The 6-wheelers 15000-liter trash truck manufactured by CSCTRUCK is a robust and efficient solution for waste management needs. Built on a Dongfeng chassis with a 4×2 drive type, this trash truck boasts reliability and maneuverability, making it ideal for navigating urban streets and collecting waste efficiently.
Powering this impressive machine is the B190 33 engine model, delivering a maximum output power of 190HP at a rotation speed that ensures optimal performance in demanding environments. With this level of power, the truck can handle heavy loads and challenging terrains with ease.
One of the standout features of this trash truck is its quick loading circulation time, ranging from 12 to 30 seconds. This rapid loading capability minimizes downtime during waste collection, improving overall efficiency and productivity. Additionally, its maximum driving speed of 90km/h enables swift transportation between collection points, reducing transit times and enhancing operational efficiency.
Equipped with a spacious 15,000-liter garbage tank capacity, this truck can accommodate large volumes of waste, making it suitable for both residential and commercial waste collection needs. The tank is constructed from durable carbon steel, ensuring longevity and resistance to corrosion, even when handling corrosive waste materials.
In addition to its functional design and performance capabilities, this trash truck prioritizes safety and environmental sustainability. It incorporates features such as advanced braking systems and safety protocols to ensure the well-being of both operators and pedestrians. Furthermore, its efficient waste collection process contributes to the overall cleanliness and sanitation of urban areas, promoting a healthier environment for communities.
Overall, the 6-wheelers 15000-liter trash truck from CSCTRUCK represents a reliable, high-performance solution for waste management operations. With its powerful engine, quick loading time, ample capacity, and durable construction, it is well-equipped to meet the demands of modern waste collection needs while prioritizing safety and environmental responsibility.
FEATURES
1. Robust Capacity: The 6-wheelers trash truck manufactured by CSCTRUCK boasts an impressive 15,000 liters garbage tank capacity, providing ample space for efficient waste collection and disposal operations.
2. Reliable Dongfeng Chassis: Built on a Dongfeng chassis, renowned for its durability and reliability, this truck ensures stability and endurance even when traversing challenging terrains or navigating through urban environments.
3. Efficient Performance: Equipped with a B190 33 engine model, capable of delivering 190 horsepower at an optimum rotation speed, this trash truck ensures efficient performance, allowing swift collection and transportation of waste materials.
4. Quick Loading Circulation: With a loading circulation time ranging from 12 to 30 seconds, this truck facilitates rapid waste collection processes, enhancing operational efficiency and reducing downtime.
5. Enhanced Speed and Safety: Featuring a 4×2 drive type and a maximum driving speed of 90 km/h, this vehicle enables swift transportation of collected waste while maintaining safety standards. The carbon steel garbage tank material ensures durability and resilience, contributing to long-term performance and reliability.
SPECIFICATION
| Truck Specification | |||
| Truck model | 6 Wheelers 15000 Liters Trash Truck | ||
| Cab | Dongfeng standard cab without A/C. | ||
| Driving Type | 4×2 Left-hand driving. | ||
| Max Speed (km/h) | 90 | ||
| Overall dimension(LxWxH)(mm) | 8,600×2,500×3,300 | ||
| GVW(kg) | 16,000 | ||
| Mass in working order(kg) | 9,800 | ||
| Tank Capacity(L) | 15,000L | ||
| Wheelbase(mm) | 4,700 | ||
| F/R track base(mm) | 1,910/1,800 | ||
| F/R overhang(mm) | 1,430/2,420 | ||
| Approach/Departure Angle | 20/18(°) | ||
| Tire | 10.00R20 | ||
| Clutch | Single-plate dry diaphragm spring clutch. | ||
| Steering | Hydraulic steering with power assistance. | ||
| Gearbox | 6 speed | ||
| Bridge | Front axle | 6,000 | |
| Rear axle | 10,000 | ||
| Engine | Model | B190 33 | |
| Fuel Type | Diesel fuel | ||
| Type | Water-cooled 4-stroke, direct injection, turbocharged. | ||
| Exhaust(ml) | 5,900 | ||
| Max output power/rotate speed (hp /rpm ) | 190 | ||
| Braking System | Full air | ||
| Electric System | 24v | ||
| Upper-body Specification | |||
| Loading Circulation Time (s) | 12-30 | ||
| Rubbish Discharging Time(s) | <=30 | ||
| Oil Pressure(Mpa/kg) | 19.6/200 | ||
| Compressed Proportion | 1:3/1:2 | ||
| Equipment | Equipped with a hermetic dustbin, hydraulic system, and operating system. Automatic compress and uninstall, sewage can be collected by the dump tank. Pressure is large, leakproofness is good, operation is convenient and security is dependable. |
||
| Power of movement | Hydraulic Pump | ||
| Material of box | Carbon Steel | ||
