Model No.: 6 Wheelers 6CBM Industrial Sweeper Truck.
Garbage tanker: 4 CBM + Water tanker: 1.5 CBM.
Overall Dimensions(LxWxH): 6,300×2,050×2,540mm.
Chassis Brand: JMC.
Drive Type: 4×2.
Wheelbase: 3,308mm.
Max. driving speed(km/h): 90.
Engine Model: Chaochai Diesel Engine, 4 Cylinders.
Engine Displacement(ml): 3856 ml/cc.
Engine Power(kW)/Horsepower(HP): 84kW/115HP.
Emission Standard: Euro 3.
Auxiliary engine: ISUZU Engine 77HP.
Engine Power(kW): 57kW.
Sweeping Brush: 4 Pcs.
Max sweeping width: 2.7-2.8m.
 |
 |
 |
 |
Description
BRIEF

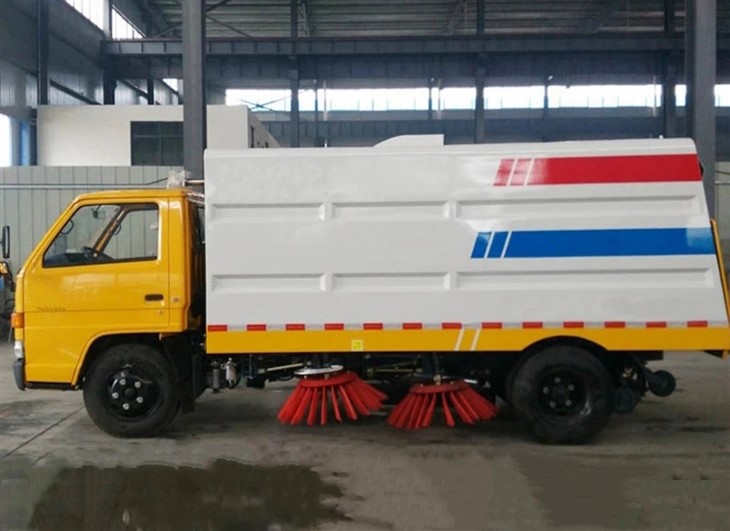

JMC 6 wheelers 6CBM industrial sweeper truck produced by CSCTRUCK-Best Selection for road cleaning, featuring a 4 CBM garbage tank and a 1.5 CBM water tank.
Equipped with a DN100 suction hose and a 2-wheeled suction pan, the garbage tank ensures efficient waste collection. The water tank, boasting a water filter and level gauge, enhances the cleaning process.
Powering the entire system is an auxiliary ISUZU engine generating 77HP. This robust engine serves as the backbone, ensuring seamless operation. The innovative wind suction system plays a pivotal role in garbage removal, sucking up debris efficiently to maintain a pristine environment. This cutting-edge technology sets our road-sweeping solution apart. The sweeping system is comprised of 2 brushes on each side, delivering comprehensive coverage and thorough cleaning. This configuration ensures that debris and dirt are effectively swept away, leaving the road immaculate. The DN100 suction hose, paired with the 2-wheeled suction pan, facilitates easy and swift garbage collection. This combination of features is designed to optimize the efficiency of waste management during road cleaning operations.
The water tank is equipped with a water filter and level gauge, adding a layer of sophistication to the cleaning process. The inclusion of these elements ensures that the water used in the cleaning operation is filtered and accurately monitored, contributing to an environmentally conscious and resource-efficient solution.
To drive this advanced system, an auxiliary ISUZU engine with a power output of 77HP is employed. This powerful engine guarantees a reliable and consistent power supply, ensuring that the entire road-sweeping apparatus functions seamlessly.
Embrace the pinnacle of road cleaning technology with our comprehensive solution, featuring advanced components like the wind suction system, dual-sided Sweeping System, and a powerful auxiliary ISUZU engine, making it the best choice for maintaining clean and debris-free roads.
FEATURES
1. Achieving thorough cleaning with full suction power, eliminating the need for brush replacement, and ensuring easy maintenance with minimal dust accumulation.
2. Attaining impeccable cleaning results, removing particles effectively ranging from tens of microns to everyday debris like pebbles and leaves.
3. Featuring a highly efficient filtration system.
4. Enhancing cleaning productivity and cutting down on maintenance expenses: The efficiency of a single vacuum cleaner equals the labor output of over 30 cleaners.
5. Ideal for diverse applications including coal plants, power plants, cement plants, steel plants, and mining sites, among others.
SPECIFICATION
| ITEM | DESCRIPTION | ||
| Condition | New condition/Right-hand drive/4×2. | ||
| Chassis | Brand | JMC | |
| Curb weight(kg) | 2,300kg | ||
| Wheelbase(mm) | 3,308 mm | ||
| Overall Dimensions(LxWxH)(mm) | 6,300 X 2,050 X 2,540 mm | ||
| Overhang (front/rear)(mm) | 1,032/1,868 | ||
| Wheel track (front/rear) (mm) | 1,506/1,404 | ||
| Approach/Departure angle(°) | 19/12 | ||
| Axle Load(kg) | 2,000/4,000 | ||
| Max. driving speed(km/h) | 90 km/h | ||
| Tire | Specifications | 6pcs with one spare tire | |
| Number | 7.00R16 | ||
| Clutch | Reinforced diaphragm clutch | ||
| Gearbox | Manual type, 6 Forwards & 1 Reverse | ||
| Cabin | Left-Hand Driving, 2 Passenger Allowed, with A/C | ||
| Engine | Model | Chaochai Diesel Engine, 4 Cylinders | |
| Displacement(ml) | 3,856 ml/cc | ||
| Power(kW)/Horsepower(HP) | 84 kW/115 HP | ||
| Emission standard | Euro 3 | ||
| Brakes | Service brake: Dual circuit compressed air brake Parking brake: (Emergency brake): Spring energy, compressed air operating on rear wheels. Auxiliary brake: Engine exhaust valve brake. |
||
| Steering Gear | Power steering, hydraulic steering with power assistance. | ||
| Sweeping System | |||
| Tank | Garbage tank | Tank material | Stainless steel 304 |
| Tank volume(CBM) | 4 CBM | ||
| Water tank | Tank material | Stainless steel 304 | |
| Tank volume(CBM) | 1.5 CBM | ||
| Auxiliary engine | Model | ISUZU Engine 77HP | |
| Power(kW) | 57 kW | ||
| Brush | Quantity(pcs) | 4 pcs | |
| Working area(m) | 2.7-2.8 m | ||
| Remarks | 1, With water sprayer bar. 2, Rear vacuum cleaner. 3, Blower. 4, Rear LED pilot lamp. 5, Self unloading box body. 6, The color will be designed based on your requirements. |
||
