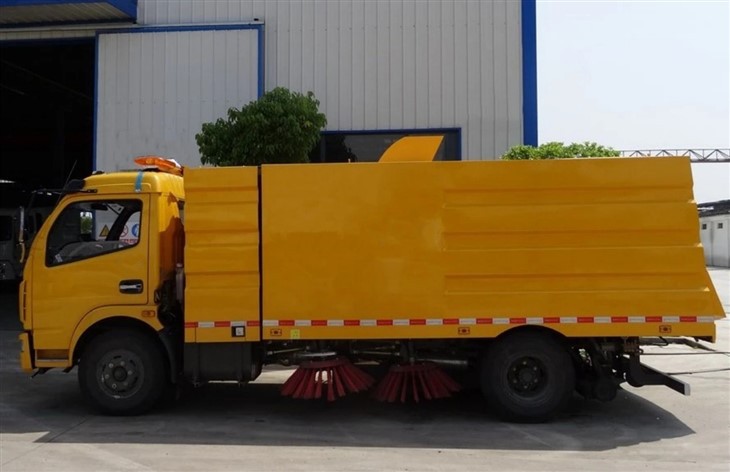

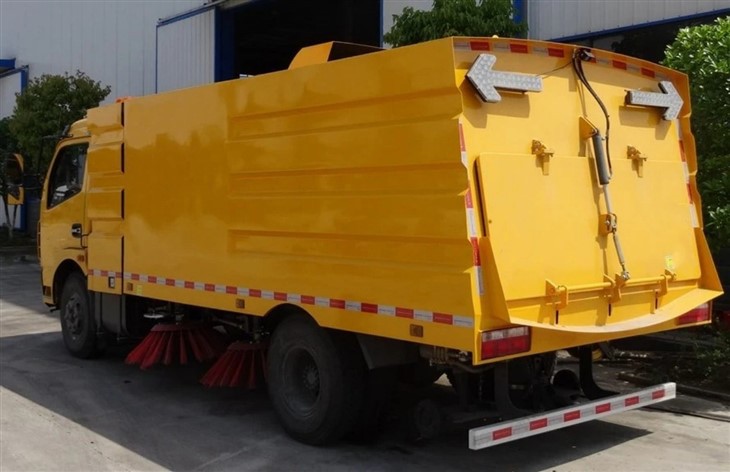

Model No.: 6 Wheelers 8 CBM Road Sweeper.
Garbage Tank Volume: 6CBM + Water Tank Volume: 2CBM.
Overall Dimensions(LxWxH): 6,700×2,200×2,750mm.
Chassis Brand: Dongfeng.
Drive Type: 4×2.
Wheelbase: 3,800mm.
Engine Displacement: 2,771ml.
Engine Power(kW)/Horsepower(HP): 95kW/130HP.
Emission Standard: Euro III.
Sweeper Diameter(mm): 900.
Working area(m): 2.7-3.0.
Cleaning capacity: 40,000m2/h.
 |
 |
 |
 |
Description
BRIEF
Road sweeper truck, also known as street sweeper trucks, sweeper vehicles, road cleaner trucks, street cleaner trucks, road sweeper machines, street sweeper machines, sweeping trucks, road cleaning vehicles, municipal sweeper trucks, pavement sweeper trucks, plays a vital role in today’s municipal service!
The Dongfeng 6-wheelers produced by CSCTRUCK offer a comprehensive solution for urban sanitation needs, encompassing 3 key functionalities: Road sweeping, garbage collection, and water transportation. With its robust design and versatile capabilities, this vehicle series is an indispensable asset for municipalities and sanitation departments worldwide.
Firstly, the 8 CBM road sweeper component stands out for its efficiency in keeping streets clean and debris-free. Equipped with a 2.7-3.0m working area and a powerful 95kW/130HP engine, it ensures thorough cleaning of roads and public spaces. Operating at a Euro III emission standard, it maintains environmental sustainability while boasting a remarkable 40,000m²/h cleaning capacity, making it ideal for large-scale urban areas.
Secondly, the 6 CBM garbage tanker is engineered to easily handle waste management tasks. Featuring a 4×2 drive type and the same 95kW/130HP engine power, it offers reliability and performance in collecting and transporting garbage efficiently. Its Euro III emission standard ensures compliance with environmental regulations, while its substantial capacity makes it suitable for residential and commercial waste collection needs.
Lastly, the 2 CBM water tanker adds another dimension to the vehicle’s utility, providing a means for water transportation essential for various municipal operations. Whether for dust suppression, street cleaning, or landscaping purposes, this tanker delivers water with precision and efficiency. With its compact size and robust construction, it navigates urban environments with ease, contributing to the maintenance of public spaces and infrastructure.
Overall, the Dongfeng 6-wheelers combine functionality, performance, and sustainability to address the diverse challenges of urban sanitation. With their 4×2 drive type, 95kW/130HP engine power, Euro III emission standard, and ample working area, these vehicles offer a reliable solution for maintaining cleanliness and hygiene in cities, ensuring a healthier and more livable environment for residents.
FEATURES
1. Achieve thorough suction cleaning without the hassle of brush replacement; Simple maintenance ensures a dust-free environment.
2. Achieve impeccable cleaning results, removing dust particles effortlessly as small as tens of microns, along with larger debris like pebbles and leaves.
3. Equipped with an effective filtration system for optimal performance.
4. Enhance cleaning productivity while minimizing costs: A single vacuum cleaner can match the efficiency of over 30 manual cleaners.
5. Ideal for various industrial settings including coal plants, power plants, cement plants, steel plants, mining sites, and more.
SPECIFICATION
| Technical Parameters | Condition | New condition/Left-hand drive/4×2 | |||||
| Overall Dimension(LxWxH)(mm) | 6,700×2,200×2,750 | ||||||
| Gross Vehicle Weight(Kg) | 6,995 | ||||||
| Loading Weight(Kg) | 1,900 | ||||||
| Curb weight(kg) | 4,965 | ||||||
| Chassis | Brand | Dongfeng | |||||
| Model | / | ||||||
| Wheelbase(mm) | 3,800 mm | ||||||
| Overhang (front/rear) (mm) | 1,015/1,815 mm | ||||||
| Wheel track (front/rear) (mm) | 1,504/1,425 mm | ||||||
| Approach/Departure angle(°) | 24/16° | ||||||
| Axle Load(kg) | 2,500/5,000 kg | ||||||
| Max. driving speed(km/h) | 90 km/h | ||||||
| Clutch | Reinforced diaphragm clutch. | ||||||
| Brakes | Oil brake. | ||||||
| Steering Gear | Power steering, hydraulic steering with power assistance. | ||||||
| Tire | Quantity(pcs) | 6 PCs with one spare tire. | |||||
| Specifications | 7.50R16 | ||||||
| Gearbox | Manual type, 6 Forwards & 1 Reverse. | ||||||
| Cab | Single-row seat. With air conditioner. | ||||||
| Engine | Model | / | |||||
| Displacement(ml) | 2,771ml | ||||||
| Power(kW)/Horsepower(HP) | 95kW/130HP | ||||||
| Cylinder quantity(pcs) | 4 pcs | ||||||
| Diámetro x carrera(mm) | φ93×102mm | ||||||
| Emission standard | Euro III | ||||||
| Upper Structure | |||||||
| Tank | Garbage tank | Tank material | Stainless steel | ||||
| Tank volume(CBM) | 6 CBM | ||||||
| Water tank | Tank material | Stainless steel | |||||
| Tank volume(CBM) | 2 CBM | ||||||
| Auxiliary engine | Model | ISUZU | |||||
| Power(kW)/Horsepower(HP) | 55kW/75HP | ||||||
| Fuel type | Diesel | ||||||
| Sweeping System | Type | 4 brushes are installed between the front and rear axle, driven by a Gerotor motor. Left and right brushes are controlled to lift up and down separately. Rear brushes and suction nozzle are integrated and controlled for up and down. | |||||
| Sweeper Diameter(mm) | 900mm | ||||||
| Working area(m) | 2.7-3.0m. | ||||||
| Sweeper rotation speed(r/min) | 80r/min. | ||||||
| Cleaning capacity | 40,000m2/h. | ||||||
| Sweeper angle Adjustment |
Forerake 4°-6°and extroversion 2°-4°. | ||||||
| Remarks | 1. Rear LED pilot lamp. 2. Self unloading box body. 3. Rear vacuum cleaner. 4. The tank color is optional. |
||||||
