Model No.: CSCAFT011.
10,000L Water Tank & 1,000L Foam Tank.
Overall Dimensions(LxWxH): 9,500×2,500×3,990mm.
Chassis Brand: MAN TGS 33.510.
Drive Type: 6X6.
Wheelbase: 4,500+1,350mm.
Full Load Weight: 27,500kgs.
Max. Speed: 100km/h.
Engine Model: D2676LF98.
Rated Power: 375/1,800(kW/rpm).
Fire Pump Flow Rate: 100L/s@10bar.
Suction Height: 7m.
Fire Monitor Flow Rate: 100L/s@10bar.
Shoot Range: Water≥90m, Foam≥85m.
Tank Material: PP composite material.
 |
 |
 |
 |
Description
BRIEF

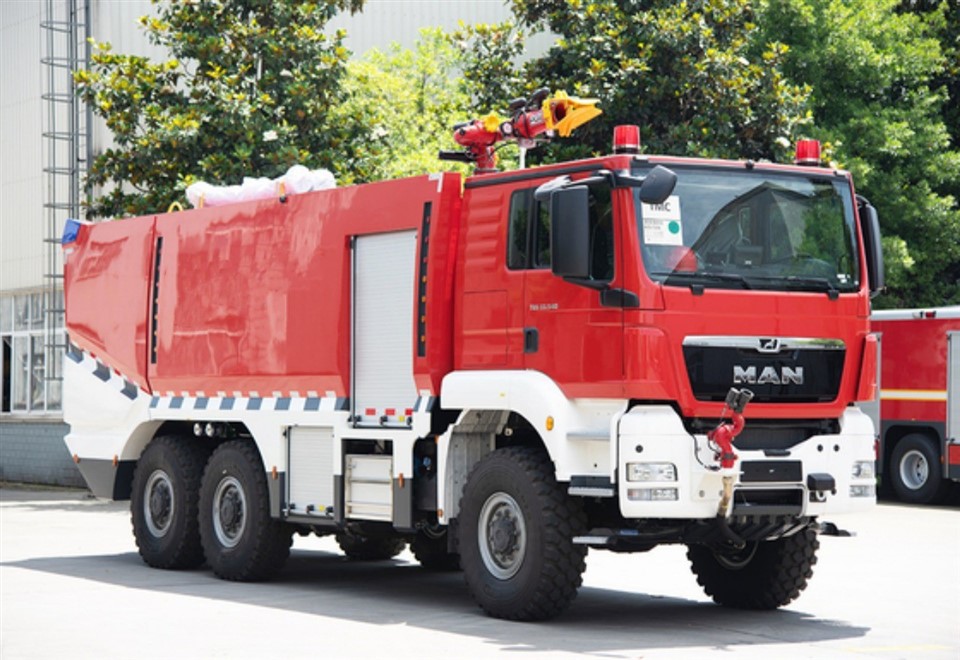

The 6WD 11000 liters MAN ARFF fire truck produced by CSCTRUCK is a highly specialized vehicle designed for airport firefighting operations. Built on the robust MAN TGS 33.510 chassis, it features a 6×6 drive configuration, providing excellent off-road mobility and stability in challenging terrain. The truck boasts a 27,500 kg full loading weight and a maximum driving speed of 100 km/h, ensuring swift emergency response times.
The 6WD 11000-liter MAN ARFF fire truck has a 10,000-liter water tank and a 1,000-liter foam tank, offering a substantial firefighting capacity. The water and foam are delivered through an efficient 100L/s@10bar fire pump, which ensures a powerful and steady supply of extinguishing agents. The fire monitor, with a flow rate of 100L/s@10bar, delivers high-pressure streams of water or foam, with a shooting range of up to 90 meters for water and 85 meters for foam, allowing operators to tackle fires from a safe distance.
Powering the vehicle is the MAN D2676LF98 engine, which provides a rated power of 375kW at 1,800rpm, delivering ample performance for the truck’s weight and operational requirements. The engine ensures that the fire truck can meet the demands of high-intensity firefighting operations while maintaining reliability and efficiency.
The water and foam tanks are made from durable PP composite materials, offering excellent resistance to corrosion and wear, thereby enhancing the longevity of the vehicle. With a suction height of 7 meters, the 6WD 11000 liters MAN ARFF fire truck can draft water from ponds, lakes, or other sources, making it versatile in various firefighting scenarios. This combination of powerful performance, ample firefighting capacity, and advanced materials makes the CSCTRUCK MAN ARFF fire truck an exceptional tool for airport rescue and firefighting operations.
FEATURES
1. High Capacity and Versatility: The truck is equipped with an 11,000-liter water tank and a 1,000-liter foam tank, allowing it to tackle a variety of fire scenarios with sufficient water and foam resources.
2. Powerful and Efficient Engine: Powered by a D2676LF98 engine with a rated output of 375 kW at 1,800 rpm, providing robust performance, and ensuring the vehicle can handle demanding environments while maintaining high power.
3. Exceptional Firefighting Performance: The truck features a 100 L/s fire pump with a flow rate of 100L/s at 10 bar. It is equipped with a fire monitor capable of delivering the same flow rate at the same pressure, with impressive shooting ranges (water ≥ 90m, foam ≥ 85m), allowing it to quickly and effectively suppress fires from a safe distance.
4. Superior Maneuverability and Traction: The 6×6 drive type ensures enhanced traction, making it suitable for navigating difficult terrain, especially in rugged or off-road environments. The truck’s maximum driving speed of 100 km/h provides fast response times.
5. Durable and Lightweight Construction: The PP composite material tank provides a strong and lightweight solution, ensuring the vehicle remains efficient and durable while carrying a significant load of water and foam. Additionally, the vehicle has a full loading weight of 27,500 kg, which balances strength and stability for safe operation under various conditions.
SPECIFICATION
The Whole Fire Truck’s Parameters
| No. | Main Items | Technical Parameters |
| 1.1 | Model No. | CSCAFT011 |
| 1.2 | Overall Dimensions(LxWxH) |
9,500×2,500×3,990mm |
| 1.3 | Full Load Weight | 27,500kgs |
| 1.4 | Number of the Crew | 2 (include driver) |
| 1.5 | Max. Speed | 100km/h |
| 1.6 | Capacity | 10,000L Water & 1,000L Foam. PP composite material liquid tank. |
| 1.7 | Fire pump flow rate | 100L/s@10bar |

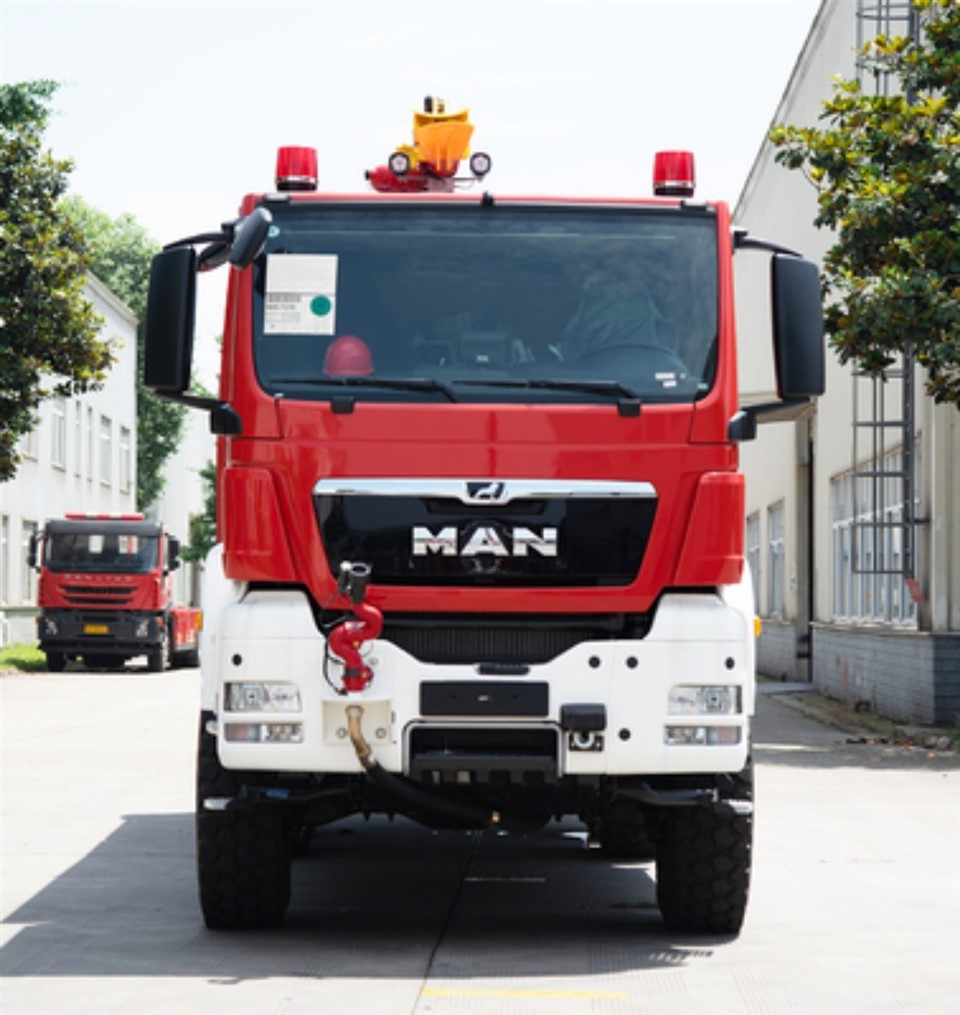

| 1.8 | Fire monitor | Front-mounted monitor 20L/s, roof-mounted monitor 100L/s. |
| 1.9 | Painting | Fire Red |
2. Chassis
Manufacturer: Germany MAN
Model: MAN TGS 33.510
Drive Type: 6×6
Wheelbase: 4,500mm+1,350mm
Engine model: D2676LF98
Engine type: 6-cylinder, 24-valve, in-line turbocharged, intercooled electronically controlled diesel engine.
Rated power: 375/1,800(kW/rpm)
Gearbox form: Automated manual transmission, 12 forward gears + 2 reverse gears.
Fuel tank capacity: 300L aluminum fuel tank
Braking system: EBS electronically controlled braking system, ABS anti-lock braking system.
3. Superstructure / Upper Body
| No. | Main Items | Technical Parameters |
| 3.1 | Cabin | |
| 3.1.1 | Structure | Single row cabin with 2 doors. |
| 3.1.2 | Seats | 2 seats with 3-point safety belt. |
| 3.2 | Standardized Sub-frame | |
| 3.2.1 | Material | High-strength rectangular tube made of special steel. |
| 3.2.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats. |
| 3.3 | Compartment | |
| 3.3.1 | Material | High-strength aluminum alloy profiles. |

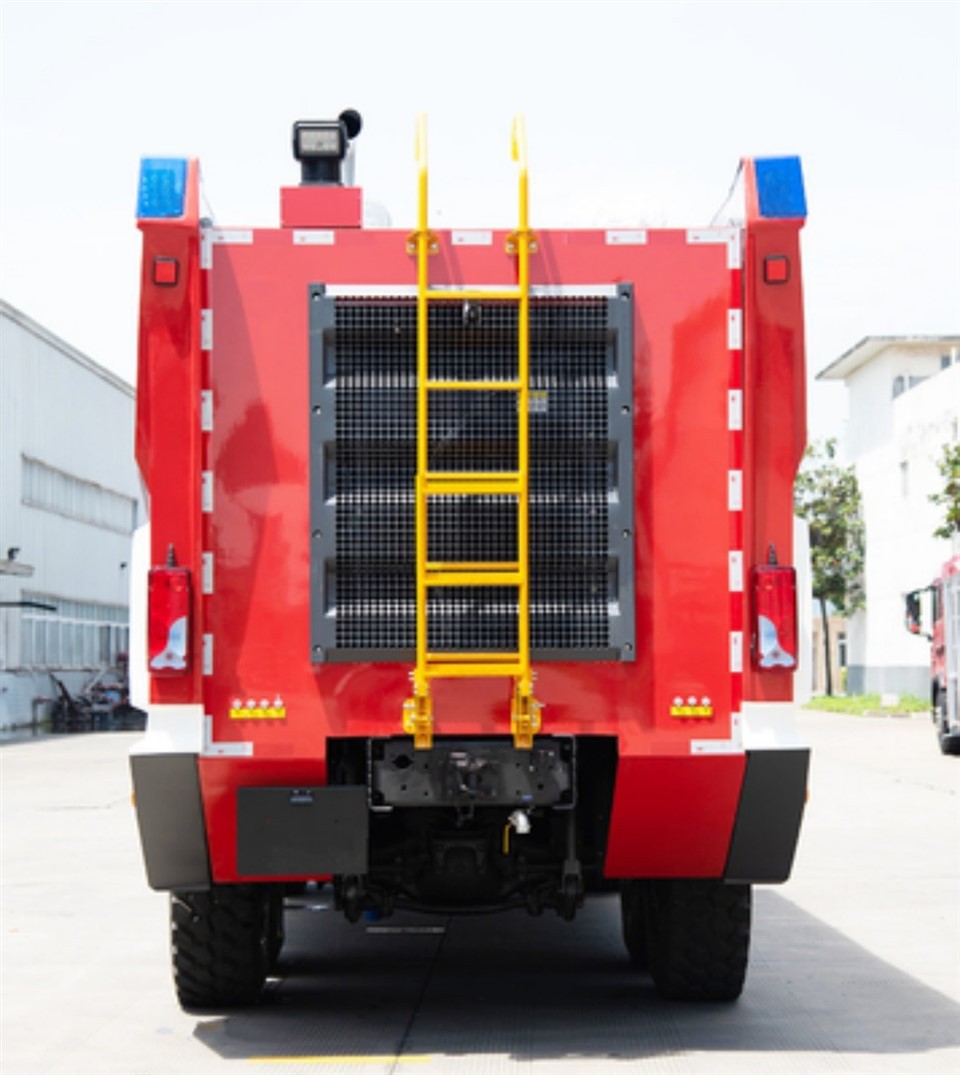

| 3.3.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear. |
| 3.4 | Roller Shutter Door | |
| 3.4.1 | Material | Aluminum alloy profiles with anodized surface. |
| 3.4.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a 2-point fixed seat, an LED light, and sensors. |
| 4.4 | Superstructure Electric Appliance | |
| 4.4.1 | Warning Light and Siren | Long-row warning lights and sirens are mounted above the cabin. The controller is installed in the driver’s cabin. |
| 4.4.2 | Strobe Light | Mounted on both sides of the compartment. |
| 4.4.3 | External Lighting | LED lights are mounted on both sides of the compartment. |
| 4.4.4 | Roof Lighting | LED lights are mounted on the inside of the roof. |
| 4.4.5 | Side Indicator Light | The inline yellow warning light is mounted on the side of the compartment and the pedals. |
5. Fire Extinguishing System
5.1 Fire Pump
Flow Rate: 100L/s@10bar
Vacuum Pump: Integrated design with water pump
Priming Manner: Automatic
Suction Height: 7m
Priming Time: ≤100s
Location: Rear-mounted
5.2 Fire Monitor
Flow Rate: 100L/s@10bar
Shoot Range: Water≥90m, Foam≥85m
Location: On the top of the tank
Control Manner: Electric remote control
Horizontal Rotation Angle 0°~350°
Pitch Rotation Angle: -15°~70°
5.3 Liquid Tank
Capacity: Water 10,000L, Foam 1,000L.
Material: PP composite material and Never Rust.
Structure: 2 Tank Manholes; 2 Overflow Devices/Pressure Relief Devices; 2 Liquid Level Indicators; 1 Foam tank Drain Outlets with Valves; 1 Water tank Drain Outlets with Valves.
5.4 Control Panel
It adopts advanced CANBUS 2.0 bus control technology and is equipped with a pump room operation control panel and a handheld wireless operation terminal, which can realize functions such as 1-click water dispensing, stable flow and pressure, and automatic adjustment of foam ratio.
