Model No.: CSCAFT014.
Tank Volume: 12000L Water, 1500L Foam, 250kg Dry Powder.
Overall Dimensions(LxWxH): 11,700×3,000×3,850mm.
Chassis Brand: Fresia F800.
Drive Type: 6×6.
Wheelbase: 4,800+1,400mm.
Engine Type: V8.
Rated power: 566(kW/rpm).
Full Load Weight: 39,000kgs.
Max. Speed: 115km/h.
Fire Pump Flow Rate: 100L/s@10bar.
Suction Height: 7m.
Fire Monitor Flow Rate: 80L/s@10bar.
Shoot Range: Water≥80m, Foam≥75m.
Tank Material: PP composite material.
 |
 |
 |
 |
Description
BRIEF

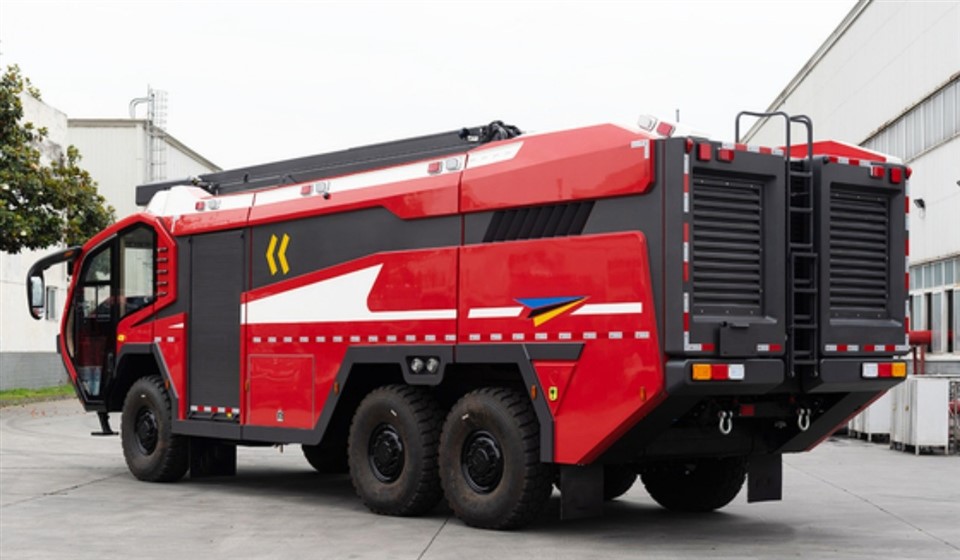

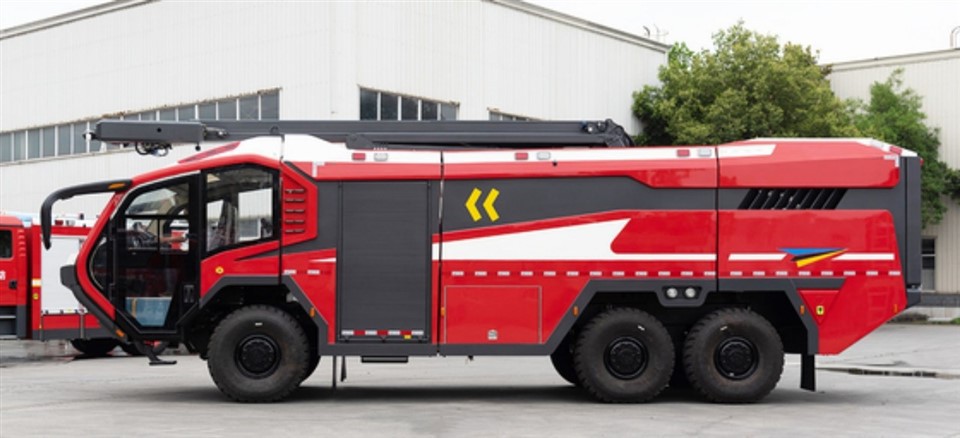

The CSCTRUCK 6×6 ARFF (Aircraft Rescue and Firefighting) fire truck is a high-performance vehicle designed to meet the demanding needs of airport emergency response. Built on a robust Fresia F800 chassis with a 6×6 drive configuration, this truck is powered by a V8 engine delivering an impressive 566 kW of power, enabling a maximum speed of 115 km/h. It has a full loading weight of 39,000 kg, ensuring stability and durability during high-stress operations.
This ARFF vehicle boasts a large firefighting capacity, featuring a 14,000-liter tank composed of 12,000 liters of water, 1,500 liters of foam, and a 250 kg dry powder tank. The tank is constructed from PP composite material, offering corrosion resistance and longevity. Its advanced firefighting systems include a fire pump with a flow rate of 100 liters per second at 10 bar, capable of a suction height of up to 7 meters.
The fire monitor delivers an output of 80 liters per second at 10 bar, achieving a water shooting range of 80 meters and a foam range of 75 meters, ensuring effective suppression of large-scale fires.
The fire truck‘s design prioritizes rapid response and efficient operation, making it ideal for combating aircraft and large-structure fires. Combining powerful performance, advanced firefighting capabilities, and robust construction, the CSCTRUCK 6×6 ARFF fire truck is a reliable solution for airport safety and emergency preparedness.
FEATURES
1. High-Capacity Tank and Multi-Agent System:
12,000 liters of water capacity.
1,500 liters of foam and 250 kg of dry powder for versatile firefighting.
2. Robust Performance:
Equipped with a V8 engine delivering 566 kW power, enabling a maximum speed of 115 km/h.
Supported by the Fresia F800 chassis with 6×6 drive, ensuring superior off-road capability.
3. Efficient Firefighting Equipment:
A fire pump with 100 L/s flow at 10 bar pressure and a suction height of 7 meters.
A fire monitor with a flow rate of 80 L/s at 10 bar, achieving shooting ranges of ≥80 meters for water and ≥75 meters for foam.
4. Heavy-Duty Design:
Built for 39,000 kg full loading weight, ensuring durability and stability during operation.
Tanks are made from PP composite material for lightweight and corrosion resistance.
5. Advanced Firefighting Capability:
Designed to handle large-scale emergencies with rapid and effective deployment on airfields and rugged terrains.
SPECIFICATION
| No. | Main Items | Technical Parameters |
| 1.1 | Model | CSCAFT014 |
| 1.2 | Overall Dimensions(LxWxH) | 11,700×3,000×3,850mm |
| 1.3 | Full Load Weight | 39,000kgs |
| 1.4 | Number of the Crew | 5 (include driver) |
| 1.5 | Max. Speed | 115km/h |
| 1.6 | Capacity | Front-mounted monitor 20L/s, roof-mounted monitor 80L/s. |
| 1.7 | Fire pump flow rate | 100L/s@10bar |
| 1.8 | Fire monitor | Front-mounted monitor 20L/s, roof-mounted monitor 80L/s. |
| 1.9 | Painting | Fire Red |
2. Chassis
Manufacturer: Italy Fresia
Model: Fresia F800
Drive Type: 6×6
Wheelbase: 4,800mm+1,400mm
Rated power: 566(kW/rpm)
Engine type: V8
3. Superstructure / Upper Body
| No. | Main Items | Technical Parameters |
| 3.1 | Cabin | |
| 3.1.1 | Structure | Single row cabin with 2 doors. |
| 3.1.2 | Seats | 5 seats with a 3-point safety belt. |
| 3.2 | Standardized Sub-frame | |
| 3.2.1 | Material | High-strength rectangular tube made of special steel. |
| 3.2.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats. |
| 3.3 | Compartment | |
| 3.3.1 | Material | High-strength aluminum alloy profiles. |
| 3.3.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear. |
| 3.4 | Roller Shutter Door | |
| 3.4.1 | Material | Aluminum alloy profiles with anodized surface. |
| 3.4.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, an LED light, and sensors. |
| 4.4 | Superstructure Electric Appliance | |
| 4.4.1 | Warning Light and Siren | Long-row warning lights and sirens are mounted above the cabin. The controller is installed in the driver’s cabin. |
| 4.4.2 | Strobe Light | Mounted on both sides of the compartment. |
| 4.4.3 | External Lighting | LED lights are mounted on both sides of the compartment. |
| 4.4.4 | Roof Lighting | LED lights are mounted on the inside of the roof. |
| 4.4.5 | Side Indicator Light | The inline yellow warning light is mounted on the side of the compartment and pedals. |
5. Fire Extinguishing System
5.1 Fire Pump
Flow Rate: 100L/s@10bar
Priming Manner: Automatic
Suction Height: 7m
Priming Time: ≤80s
Location: mid-mounted
5.2 Fire Monitor
Flow Rate: 80L/s@10bar
Shoot Range: Water ≥ 80 m, Foam ≥ 75m
Location: Top of boom
Control Manner: Electric remote control
Horizontal Rotation Angle 0°~330°
Pitch Rotation Angle: -15°~60°
5.3 Liquid Tank
Capacity: 12,000L water, 1,500L foam
Material: PP composite material and Never Rust.
Structure: 2 Tank Manholes; 2 Overflow Devices/Pressure Relief Devices; 2 Liquid Level Indicators; 1 Foam tank Drain Outlet with Valves; 1 Water tank Drain Outlet with Valves.
5.4 Dry powder system
Dry powder volume: 250kg
5.5 Control Panel
It adopts advanced CANBUS 2.0 bus control technology and is equipped with a pump room operation control panel and a handheld wireless operation terminal, which can realize functions such as one-click water dispensing, stable flow and pressure, and automatic adjustment of foam ratio.
