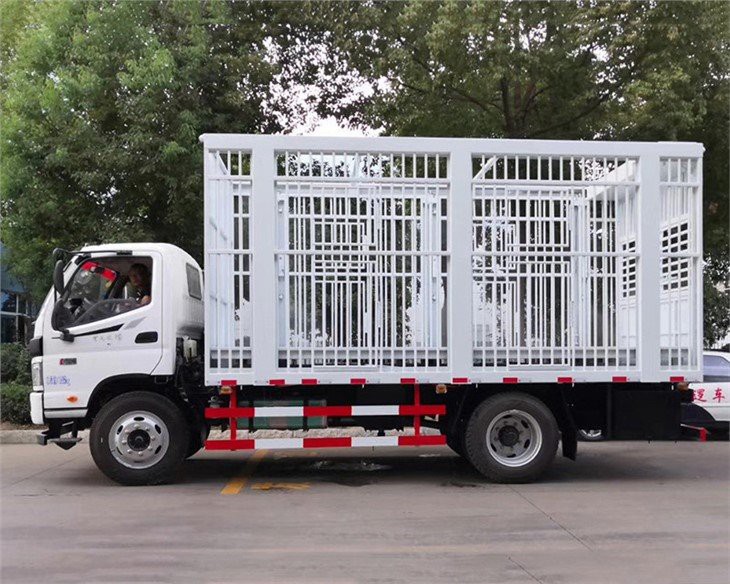

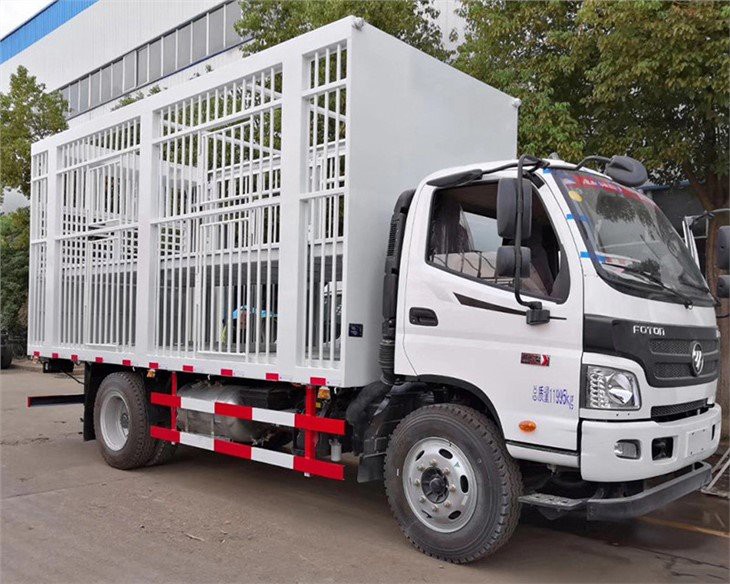

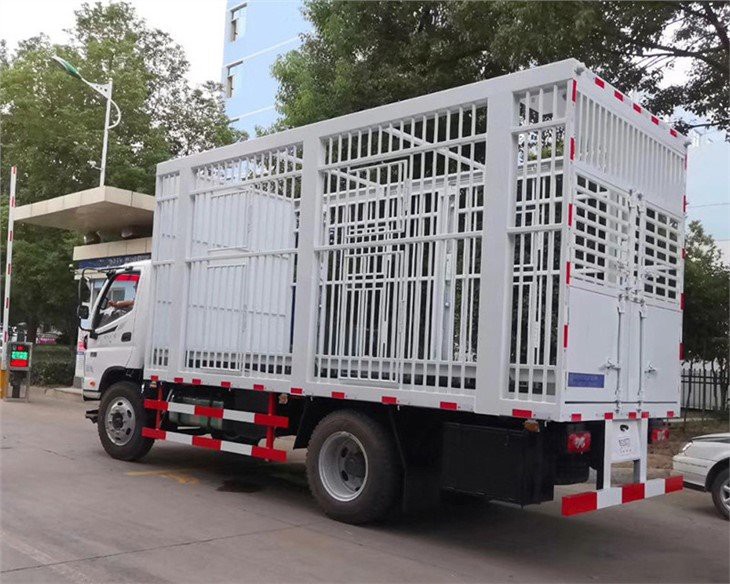

Model No.: 7 Ton Box Cage Truck
Engine: Cummins, 141horsepower
Dimensions: 6,725×2,100×2,280mm(LxWxH)
Wheelbase: 3,800mm
Emission Standard: EURO III
Box Dimensions: 4,500×2,100×2,100mm(LxWxH)
 |
 |
 |
 |
Description
BRIEF
The 7-ton box cage truck manufactured by CSCTRUCK combines robust construction with efficient performance, catering to various transportation needs. Built on a sturdy Foton chassis, its 4×2 drive type ensures optimal maneuverability and stability on diverse terrains. Under the hood, it boasts a reliable Cummins 141hp F3.8s3141 engine, adhering to EURO III emission standards for eco-friendliness.
With a rated power of 105kW/rpm and a maximum torque of 450N.m/rpm, this truck delivers impressive power and acceleration while maintaining fuel efficiency. Its engine is designed to handle heavy loads and long journeys with ease, making it suitable for both urban and long-distance transportation tasks.
The 7-ton box cage truck offers ample space, measuring 4,500×2,100×2,100mm(LxWxH), providing versatility for transporting various goods securely. Whether it’s perishable items, construction materials, or general freight, this truck offers the capacity and reliability required for efficient logistics operations.
Overall, the 7-ton box cage truck by CSCTRUCK stands out as a dependable solution for businesses seeking a balance between performance, durability, and cargo capacity in their fleet operations.
FEATURES
1. Robust Construction: The 7-ton box cage truck by CSCTRUCK boasts a sturdy build, designed to endure the demands of various cargo transportation tasks. The robust construction ensures durability and reliability even in challenging environments.
2. Efficient Engine: Powered by a Cummins 141hp F3.8s3141 engine model, this truck delivers efficient performance. With 141 horsepower, it provides ample power to tackle diverse terrain and load requirements, ensuring smooth and reliable operation.
3. Compliance with Emission Standards: Meeting EURO III emission standards, this truck prioritizes environmental sustainability. Its adherence to emission regulations reflects a commitment to reducing environmental impact, making it a responsible choice for businesses seeking eco-friendly transportation solutions.
4. Optimized Drive Type: Featuring a 4×2 drive type, this truck offers a balance between maneuverability and load capacity. The 4×2 configuration enhances agility, making it suitable for navigating through urban areas and tight spaces while maintaining sufficient hauling capabilities.
5. Spacious Cargo Capacity: With a cargo van size of 4,500×2,100×2,100mm (LxWxH), this truck provides ample space to accommodate various types of cargo. Whether transporting goods or equipment, its spacious cargo area ensures efficient utilization of storage space, facilitating smooth logistics operations.
SPECIFICATION
|
Vehicle Model |
7 Ton Box Cage Truck | |
|
Cabin |
Single row/W1995/right rudder |
|
|
Whole vehicle’s main dimensions |
Overall dimensions(LxWxH)mm |
6,725×2,100×2,280 |
|
Wheelbase(mm) |
3,800 |
|
|
Weight data |
Curb weight(kg) |
3,305 |
|
Gross vehicle weight(kg) |
6,500 |
|
|
Persons in cab |
3 |
|
|
The whole vehicle’s main performance |
Max. speed(km/h) |
95 |
|
ENGINE |
Model |
F3.8s3141 |
|
Emissions standards |
EuroⅢ |
|
|
Displacement(L) |
3.76 |
|
|
Rated Power(kW/rpm) |
105 |
|
|
Max torque(N.m/rpm) |
450 |
|
|
Gearbox |
Model |
6TS55 |
|
Front axle |
Type/Mainreducetion ratio |
2.5T |
|
Rear axle |
Type/Mainreducetion ratio |
6.0T/4.875 |
|
Suspension |
Front suspension/Leaf spring number |
9 |
|
Rear suspension/Leaf spring number |
11+7 |
|
|
Brake system |
Service brake |
Drum pneumatic braking |
|
Parking brake |
Brake gas brake |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Wheels and tire size |
6+1(8.25R16) |
|
|
Tops requirements |
Cargo van size |
Inner size(LxWxH): 4,500×2,100×2,100mm |
|
Structure requirements |
1. The height of the box plate: 400mm; 2. Base 2, Edge 1.2; 3. Cargo box electrophoresis; 4. Off the back door. |
|
|
The technological requirements |
Welding |
1. All welding parts should be cleaned of oil, rust, and other dirt before welding. 2. The height of the weld shall not be lower than the thickness of the base metal, and the welding strength shall not be lower than the strength of the base metal. 3. The welding shall be firm and reliable, and the weld shall be full, smooth, uniform, and smooth. There shall be no weld defects such as false welding, welding leakage, welding nodus, or pores. |
|
Riveting |
Riveting should be firm and reliable, rivets arranged neatly, rivet head should not allowed to have cracks, deflection, incomplete phenomenon, rivet head, and parts surface must be closed, not loose, leakage, water leakage. |
|
|
Bolt connection |
The screw connection should be firm and reliable, the tightening torque should meet the requirements of JB/T6040, and the exposed length of the bolt should be 2~3 buttons. |
|
|
Adhesive |
All joints are sealed with polyurethane sealant. The glue is uniform and continuous, and no glue residue is allowed to fall off. |
|
|
Paint |
The total thickness of the outer surface paint film is ≥45μm, the light color is uniform, and there is no obvious flow mark and exposed bottom. |
