8-Ton Max Load Capacity Deck
8-Ton Max Lifting Rating XCMG Crane
8-Ton Max Rating Wheellift
6-Ton Capacity Planetary Winch

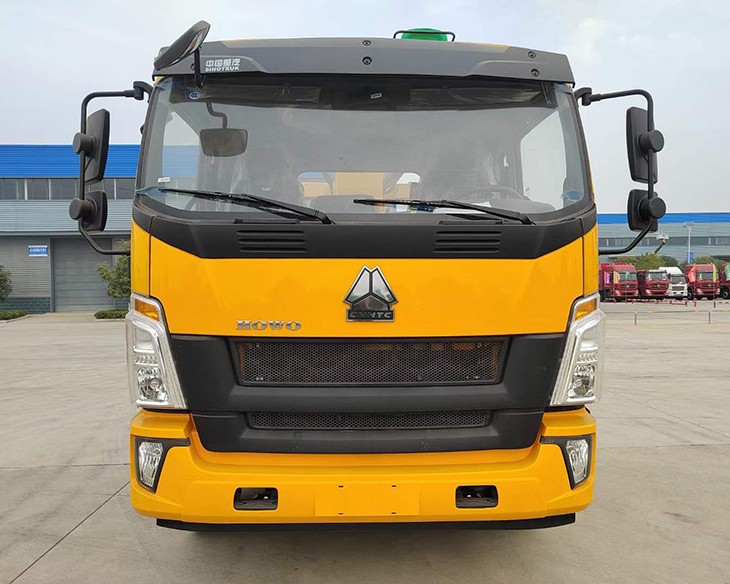

Sinotruk HOWO G5X Truck Chassis
Sinotruk MC07.27-60 270hp Diesel Engine
Sinotruk HW95508STCL 8 Speed Manual Transmission
 |
 |
 |
 |
Description
BRIEF

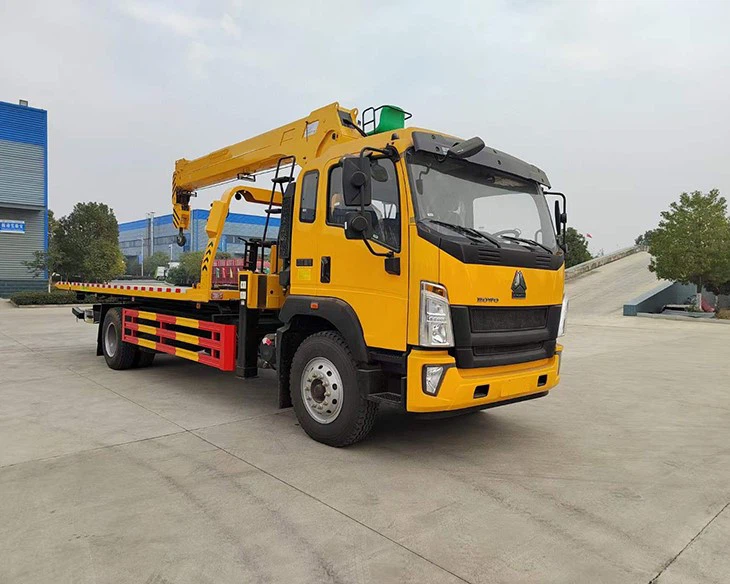

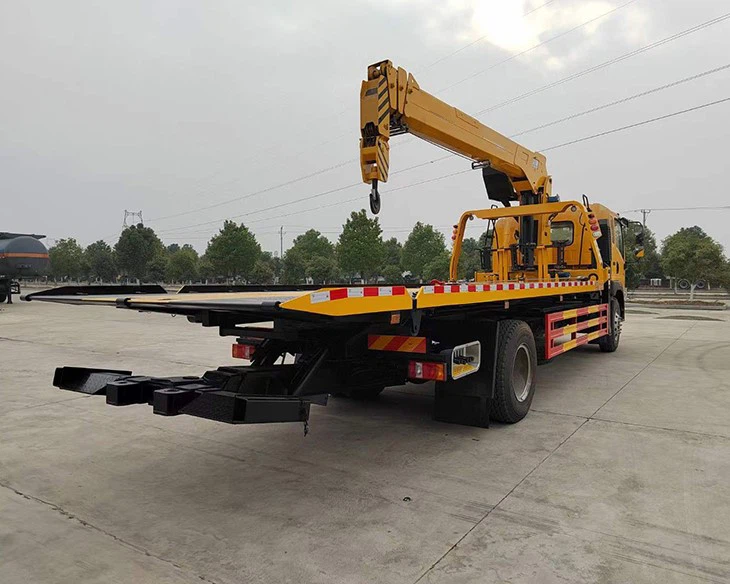

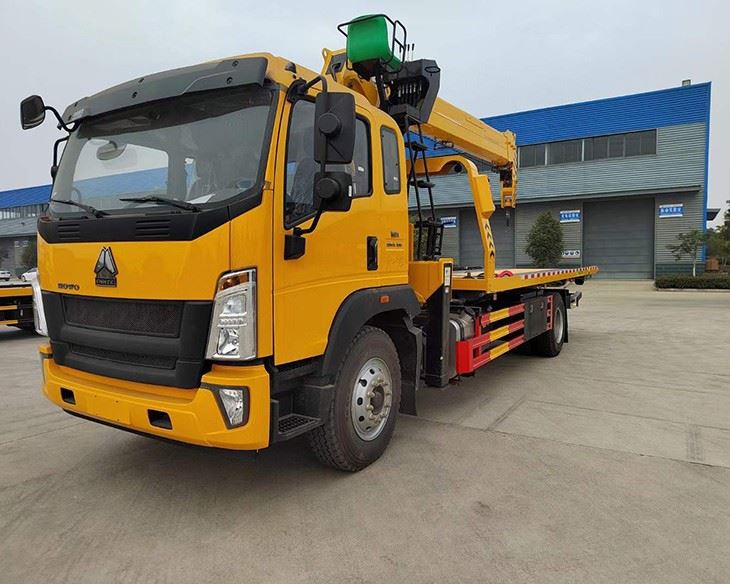

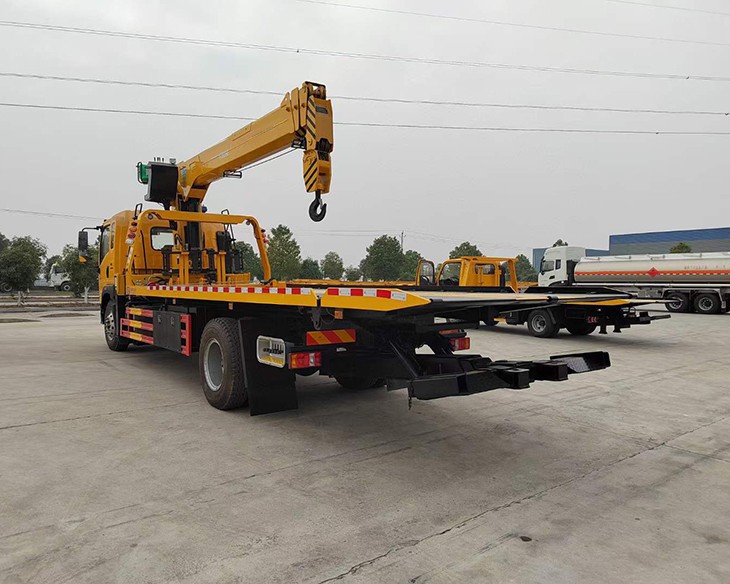

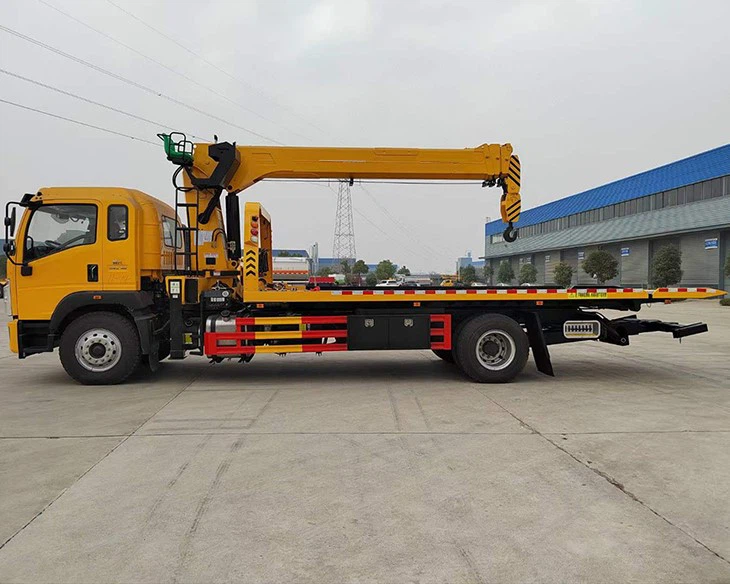

The flatbed tow truck mounted crane and mounted on a SINOTRUK HOWO G5X Second-Class Chassis offer additional capabilities beyond those of a standard flatbed tow truck. With a capacity of 8 tons, this tow truck mounted crane is ideal for lifting and carrying cars off the road or overturned wrecks with safety and ease. It is not only an efficient towing and carrying machine but also serves as a hoisting machine that can meet your special needs for rescuing and recovering in the event of car accidents, breakdowns, or traffic regulation violations.
The CSCTRUCK crane provides additional lifting capacity, making it possible to hoist heavier vehicles and debris. This tow truck mounted crane is an all-purpose vehicle that can serve multiple purposes, including recovering vehicles that have gone off the road, or those that have been involved in accidents or traffic incidents. Its versatility and capacity make it an essential tool for towing companies, recovery teams, and emergency services.
In conclusion, the tow truck mounted crane is a valuable addition to any towing or recovery fleet, providing the additional capabilities necessary to handle challenging situations and recover vehicles and debris safely and efficiently.
FEATURES
Standard Features:
Equipped with an 8mm tread deck.
Coming with both front and rear hydraulic flip boards.
Using a Haizhanli oil cylinder.
Operating using a Hefei Wany hydraulic pump.
Featuring an Italy-made Hyde hydraulic valve.
Utilizing a Suizhou Jiashan power take-off.
Optional Features:
Optional hard fifth wheel plate and hard drawbar, along with counterweight.
Optional 80KN winch.
Optional Turkey Heller imported valve.
An optional long row of engineering LED warning lights, available in both strobe and normal modes.
SPECIFICATION
|
Model |
TTR08ZZ270L6 |
|
Chassis |
Sinotruk HOWO G5X 4X2Drive LHD; Sinotruk MC07.27-60 270hp diesel engine; Sinotruk HW95508STCL 8 speed manual transmission |
|
Cabin |
Sleeper cab; Rated nr. of passengers: 2 |
|
Overall Size |
10550×2550×2875mm (L×W×H) |
|
Wheelbase |
5600mm |
|
Wheel Tread |
Front 1940,1980mm; Rear 1800,1860mm |
|
Front/Rear Overhang |
1330/3450mm |
|
Gross Vehicle Weight |
18000kg |
|
Tare Weight |
9800kg |
|
Front/Rear Axle Rating |
6500/11500kg |
|
Approach/Departure Angle |
19/9,19/10,19/11° |
|
Engine |
Sinotruk MC07.27-60, diesel engine; 6 cylinders in-line, 6.87L; Class level VI emission |
|
Engine Output Power/Speed |
199kW(270hp)/2200rpm |
|
Engine Output Torque/Speed |
1060N·m/1200~1800rpm |
|
Max Speed |
95km/Hour |
|
Transmission |
Sinotruk HW95508STCL MT; Forward, 8 speed/Reverse, 2 speed |
|
Tires |
10.00R20 18PR, 275/80R22.5 18PR, 295/80R22.5 18PR, 295/60R22.5 18PR; 6+1 spare tire |
|
Truck Accessories |
1nos of toolbox |
|
Deck: |
|
|
Deck Size (Inside) |
7950mmX2420mm (L×W) |
|
Max Load Rating |
8000kg |
|
Vehicle Towing |
Two cars |
|
Length of Flip Board |
800mm |
|
Deck Work Distance (Working Motion) |
4600mm |
|
Deck Height Above Ground (Ground Clearance) |
1400mm |
|
Deck Min Tilt Angle |
9.5° |
|
Crane: |
|
|
Make/Model |
XCMG SQS200 |
|
Max Lifting Moment |
20T.M. |
|
Max Lifting Capacity |
8000kg |
|
Max Boom Length |
12.797m |
|
Rotation Angle |
360°full rotation |
|
Max Oil Flow of Hydraulic System |
55L/min |
|
Max Pressure of Hydraulic System |
25MPa |
|
Oil Tank Capacity |
200L |
|
Recommend Power |
45kw |
|
Span of Outrigger |
2318mm~5908mm |
|
Wheel Lift: |
|
|
Rated Capacity Fully Retracted |
8000kg |
|
Rated Capacity Fully Extended |
3000kg |
|
Rear Towing Distance |
3450mm |
|
Effective Length of Arm |
2430mm |
|
Telescopic Travel |
2000mm |
|
Positive Tilt Angle |
7° |
|
Negative Tilt Angle |
-9.5° |
|
Winch: |
|
|
Winch Qty |
1pcs |
|
Winch Type: |
Planetary |
|
Winch Power Mode |
Hydraulic |
|
Winch Capacity Each |
60kN |
|
Winch Diameter |
φ110mm |
|
Winch Cable Diameter |
φ11mm |
|
Winch Cable Length |
2500mm |
|
Min Line Speed |
5m/min |
|
Hydraulic System |
Haizhanli oil cylinder, Hefei Wany hydraulic pump, Italy Hyde hydraulic valve, Suizhou Jiashan power take-off |
|
Towing Accessories: |
|
|
Strap |
8nos |
|
Slide-In L-Arms |
1set |
|
Frame Forks |
2set |
|
Fork Receiver |
1set |
|
Chain Hook |
1nos |
|
Auxiliary Wheel |
2nos |
