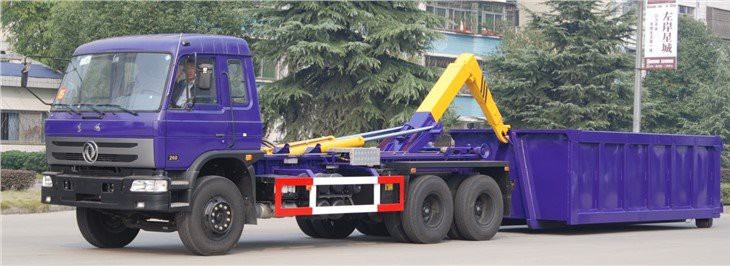

TANDEM AXLE HOOK TRUCK/ with standard
HOOK LOADER TRUCK STRUCTURE
CRITICAL PARTS
HOOK LOADER MECHANISM
PARAMETERS
 |
 |
 |
Description
☆ Container: The container is consisting with box body, roller, rear door and locking mechanism it is the main body for loading cargo and goods. The box material with 16Mn alloy steel, inside structure as a trumpet – shaped. The roller installed under the container box, support the box sliding on the ground, the box is fully closed structure, rear door frame imbedding with gasket and after water test avoid water leakage. The rear lockable door would choose optional hydraulic control which could operated in the cabin.
 |

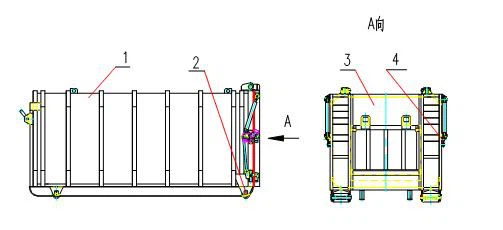

1.Box 2.Roller 3.Rear door 4.Rear door locks Size: 4000*2300*700 |

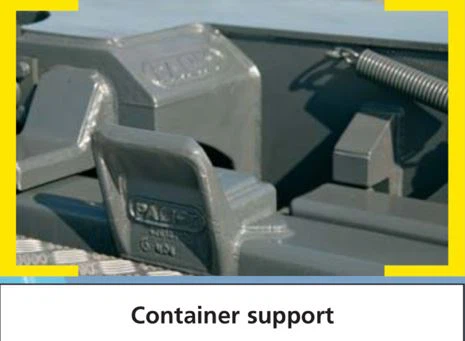

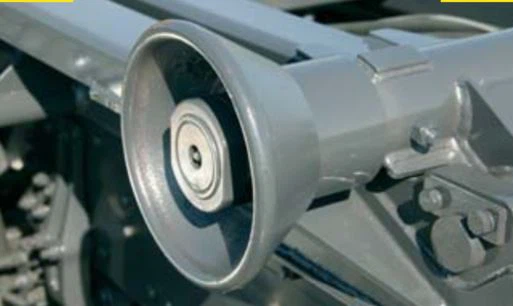

☆ Supporting Equipment: consist with container support, hydraulic cylinder and roller. When hook system lift and discharge the container, the system will automatically drop the rollers. The system could also keep the balance when the vehicle operated in the soft ground.
 |
 |
|

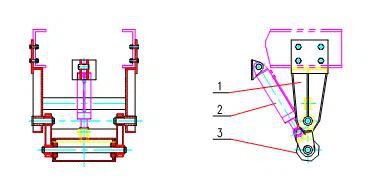

| 1. Container Support | 2. Cylinders | 3. Supporting Roller |
☆ Hydraulic System: including the filters, oil pump, solenoid directional control valve, interlocks, cylinders, Balance valves, return filters and oil tank. The oil pump drive through shaft by PTO from gearbox, power the hydraulic oil controlled by solenoid directional control valves into cylinders. The oil pump and hydraulic valves are qualitied import parts. There is a rotary type control switch in the cabin for control the hydraulic vales.

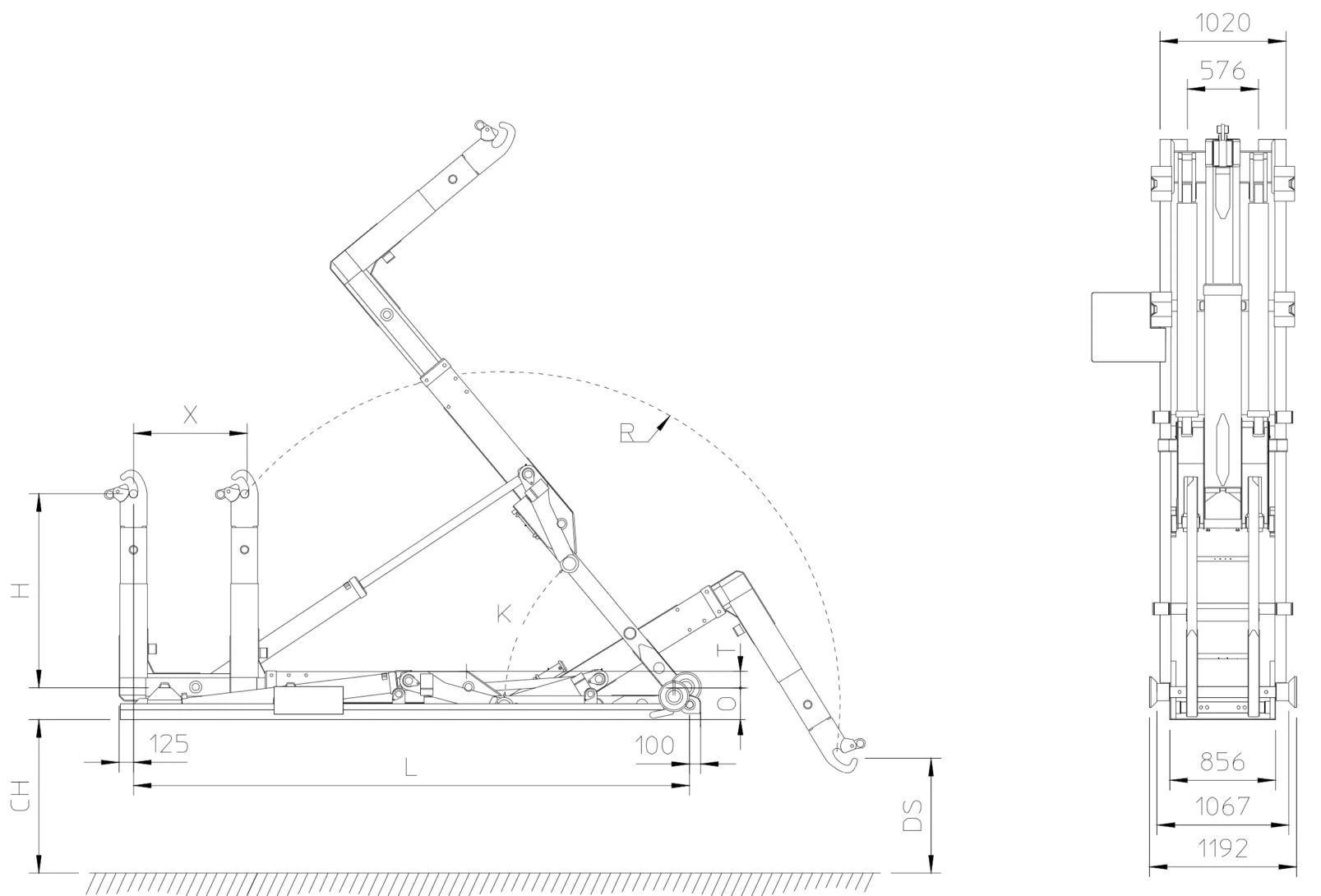

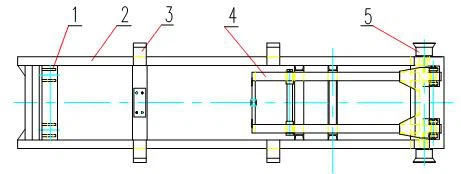

HOOK LOADER MECHANISM
|
DS(mm) |
951 |
L(mm) |
4000 |
K(O) |
50 |
|
R(mm) |
2725 |
O(mm) |
280 |
H(mm) |
920 |
|
X(mm) |
900 |
T(mm) |
130 |
CRANE MECHANISM
PARAMETERS
|
ITEM |
CSC5161ZXX |
CSC5160ZXW |
|
Garbage Container Size, mm |
4000*2300*700 |
5000*2300*700 |
|
Hook Height(H), mm |
920 |
920 |
|
Chassis Height(CH), mm |
1010 |
1010 |
|
Vehicle Full Loaded Weight, kg |
16000 |
16000 |
|
Vehicle Unload Weight, kg |
10120 |
7150 |
|
Pay Loading Weight, kg |
6035 |
9035 |
|
Overall Size, mm |
EQ1161LJ9BDE |
EQ1161LJ9BDE |
|
CHSSIS TRUCK |
DONGFENG |
DONGFENG |
|
Model |
EQ1167G4515C1R |
EQ1167G4515C1R |
|
Steering |
Right Hand Drive |
Right Hand Drive |
|
Suspension |
Leaf spring with shackle link |
Leaf spring with shackle link |
|
Axles |
2 pcs Die-casting |
2 pcs Die-casting |
|
Tires |
9.00R22.5 16ply 7pcs |
9.00R22.5 16ply 7pcs |
|
Brakes |
Air brake with dual circuit |
Air brake with dual circuit |
|
Cabin |
Sleeper/bunk tiltable |
Sleeper/bunk tiltable |
|
Clutch |
Single Dry diagram |
Single Dry diagram |
|
Battery, V |
12 |
12 |
|
Approaching Angle, o |
19 |
19 |
|
Departure Angle, o |
15 |
15 |
|
Max. Turning Radius, m |
≤17 |
≤17 |
|
Min. Ground Clearance, mm |
189 |
189 |
|
Max. Climbing, % |
30 |
30 |
|
Max. Speed, Km/hr |
80 |
80 |
|
Oil Consumption, L/100km |
30 |
30 |
|
Chassis Weight, kg |
4900 |
4900 |
|
ENGINE |
DONGFENG CUMMINS |
DONGFENG CUMMINS |
|
Model |
B190 33 |
B190 33 |
|
Type |
Diesel Turbocharged inter cooler |
Diesel Turbocharged inter cooler |
|
Cylinder Numbers |
6 |
6 |
|
Max Output Power, kw |
140 |
140 |
|
Flywheel Speed, rpm |
2500 |
2500 |
|
Horse Power, ps |
190 |
190 |
|
Max Torque N.m |
640 |
640 |
|
Max Torque Speed, rpm |
1500 |
1500 |
|
Weight , kg |
433 |
433 |
|
Bore*Stroke, mm |
110*112 |
110*112 |
|
TRANSMISSION |
DONGFENG |
DONGFENG |
|
Model |
DF5S300 |
DF5S300 |
|
Type |
Manual |
Manual |
|
Forward Speed |
5 |
5 |
|
Backward Speed |
1 |
1 |
|
Synchronizer |
Yes |
Yes |
|
Output Torque, N.m |
294 |
294 |
|
HOOK LOADER |
XR 5S-3650 |
XR 5S-3650 |
|
Hook Type |
L typed |
L typed |
|
Loading Cycle, s |
≤34 |
≤34 |
|
Unload Cycle, s |
≤42 |
≤42 |
|
Hoist Cycle, s |
≤37 |
≤37 |
|
Rapid Discharge Time, min |
≤17 |
≤17 |
|
Tilt Angle, o |
48 |
48 |
|
Hook Capacity, kg |
4500 |
5500 |
|
Hook Weight, kg |
750 |
750 |
|
Container Size, M3 |
8.5 |
8.5 |
|
Hydraulic Pressure, Mpa |
16 |
16 |
|
Oil Pump, l/min |
80 |
80 |
|
PTO Ratio |
I=1.0 |
I=1.0 |
|

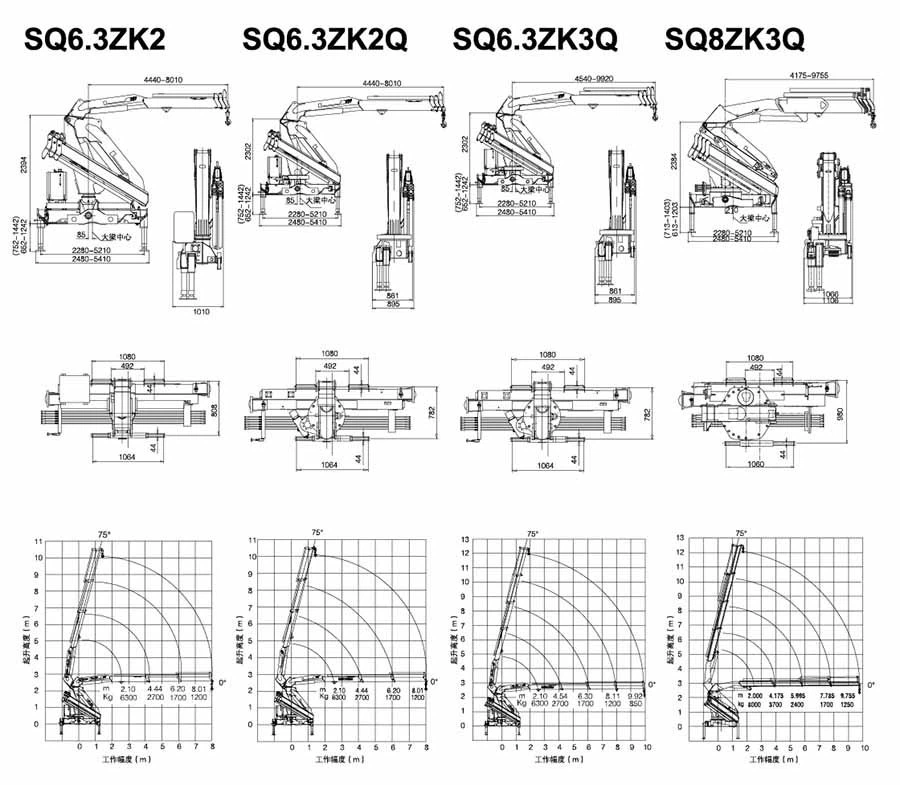

CRANE |
SQ8ZK3Q |
|
|
Crane Type |
KNUCKLW BOOM CRANE |
|
|
Max Lifting Capacity, kg |
8000 |
|
|
Max Lifting Moment, T.M |
16 |
|
|
Max Hydraulic Outreach, m |
9.755 |
|
|
Slewing Angle, o |
360 |
|
|
Slewing Torque, T.M |
3.56 |
|
|
Outrigger Space , mm |
5210 |
|
|
Install Space, mm |
1150 |
|
|
Width Folded, mm |
2500 |
|
|
Max. Operating Pressure, Mpa |
28 |
|
|
Recommended Capacity, l/min |
40 |
|
|
Weight, kg |
2970 |
