Max Deck Load Rating Up To 8-Ton
8-Ton Max Wheellift Rating
6-Ton Capacity Planetary Winch
DFAC Dollicar D9 4X2 Truck Chassis
DONGFENG CUMMINS 195hp Diesel Engine
FAST 8 Speed Manual Transmission
Description
BRIEF

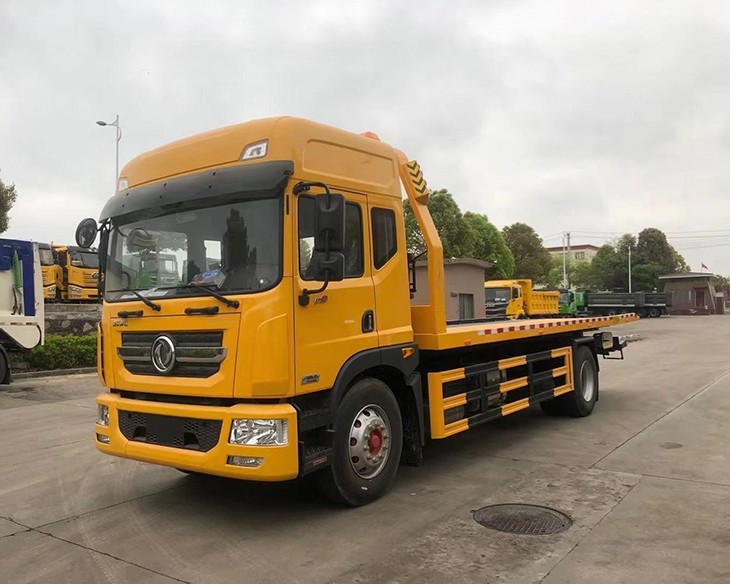

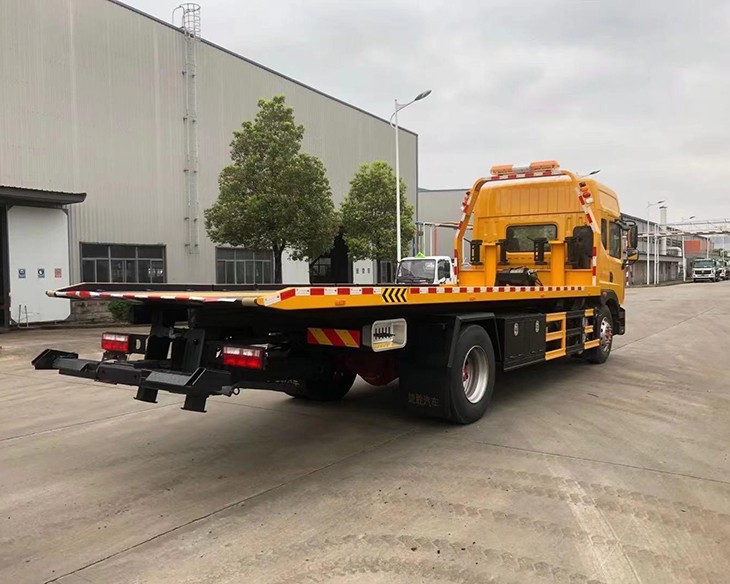

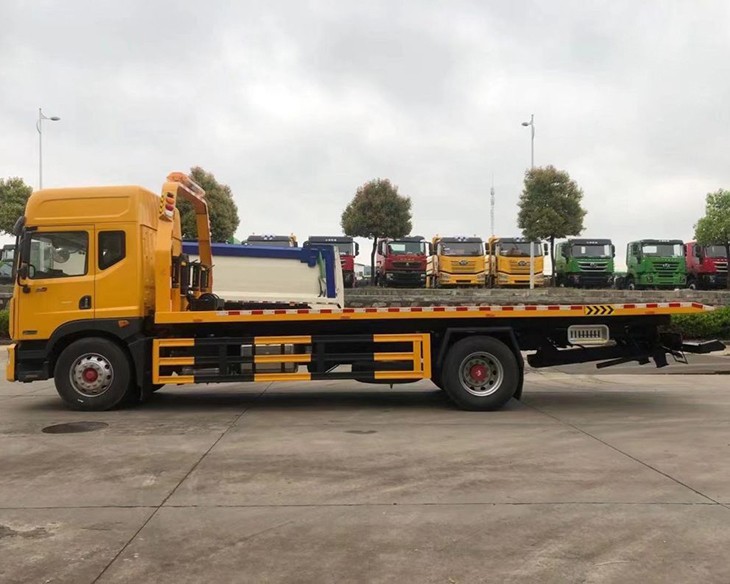

The wheel lift recovery truck is an essential piece of equipment for effectively handling vehicle road problems, such as breakdown cars and accidents. This 8-ton recovery truck is specifically designed to assist in the safe and efficient removal of wrecks that obstruct road traffic.
With its advanced features, this recovery truck is capable of performing quick and secure recovery operations, making it a valuable addition to any operation. The wheel lift recovery mechanism utilizes a hydraulic system to lift the disabled vehicle off the road surface, enabling it to be safely towed away.
The recovery truck is equipped with a winch that can handle weights of up to 8 tons, making it suitable for a wide range of vehicles, including large commercial trucks. This enables operators to easily recover even the most massive vehicles, minimizing the impact on the surrounding traffic.
The wheel lift recovery truck is also designed for ease of use, with user-friendly controls and simple maneuverability. This makes it an excellent choice for emergency services, tow truck operators, and other organizations that need to respond quickly and efficiently to vehicle-related incidents.
In conclusion, the 8-ton wheel lift recovery truck is a must-have equipment for any operation that involves managing vehicle-related incidents. Its advanced features, including its hydraulic lift system and winch capabilities, make it a reliable and efficient tool for removing wrecks and breakdown cars from the road. Additionally, its ease of use and maneuverability make it a practical choice for emergency responders and tow truck operators alike.
FEATURES
The standard features of the product include an 8mm tread deck, a hydraulic flip board, a Haizhanli oil cylinder, a Hefei Wany hydraulic pump, an Italy Hyde hydraulic valve, and a Suizhou Jiashan power take-off. These features are included in the base model and are essential to its functionality.
The optional features include a standard flat top cab, an 80KN winch, a counterweight, a Turkey Heller imported valve, a hard fifth wheel plate and hard drawbar, and a long row of engineering LED warning lights (strobe/normal). The optional features are not included in the base model but can be added based on the customer’s preferences and needs.
SPECIFICATION
Model |
FB08EQ195L6 |
Chassis |
DFAC Dollicar D9 4X2Drive LHD; DONGFENG CUMMINS D4.0NS6B195 diesel engine; FAST 8JS85C manual transmission |
Cabin |
Sleeper cab; Rated nr. of passengers: 2 |
Overall Size |
9360,9960,10360×2525×2910,3140,3225mm (L×W×H) |
Wheelbase |
5000,5300,5600 mm |
Front/Rear Wheel Tread |
1862,1933,1949/1806,1865mm |
Front/Rear Overhang |
1260/3100,1260/3400,1260/3500mm |
Gross Vehicle Weight |
18000kg |
Tare Weight |
9500kg |
Front/Rear Axle Rating |
6500kg/11500kg |
Approach/Departure Angle |
19°/8° |
Engine |
DONGFENG CUMMINS D4.0NS6B195, diesel engine; 4 cylinders in-line, 4L; Class level VI emission |
Engine Output Power/Speed |
143kW(195hp)/2400rpm |
Engine Output Torque/Speed |
730N·m/1300~1600rpm |
Max Speed |
105km/Hour |
Transmission |
FAST 8JS85C MT; Forward, 8 speed/Reverse, 2 speed |
Tires |
295/80R22.5 18PR,10.00R20 18PR,275/80R22.5 18PR; 6+1 spare tire |
Truck Accessories |
1nos of toolbox |
Deck: |
|
Deck Size (Inside) |
7950mmX2420mm (L×W) |
Max Load Rating |
8000kg |
Vehicle Towing |
Two cars |
Length of Flip Board |
800mm |
Deck Work Distance (Working Motion) |
4600mm |
Deck Height Above Ground (Ground Clearance) |
1400mm |
Deck Min Tilt Angle |
9.5° |
Wheel Lift: |
|
Rated Capacity Fully Retracted |
8000kg |
Rated Capacity Fully Extended |
3000kg |
Rear Towing Distance |
3450mm |
Effective Length of Arm |
2430mm |
Telescopic Travel |
2000mm |
Positive Tilt Angle |
7° |
Negative Tilt Angle |
-9.5° |
Winch: |
|
Winch Qty |
1pcs |
Winch Type: |
Planetary |
Winch Power Mode |
Hydraulic |
Winch Capacity Each |
60kN |
Winch Diameter |
φ110mm |
Winch Cable Diameter |
φ11mm |
Winch Cable Length |
25m |
Min Line Speed |
5m/min |
Hydraulic System |
Haizhanli oil cylinder, Hefei Wany hydraulic pump, Italy Hyde hydraulic valve, Suizhou Jiashan power take-off |
Towing Accessories: |
|
Strap |
8nos |
Slide-In L-Arms |
1set |
Frame Forks |
2set |
Fork Receiver |
1set |
Chain Hook |
1nos |
Auxiliary Wheel |
2nos |
