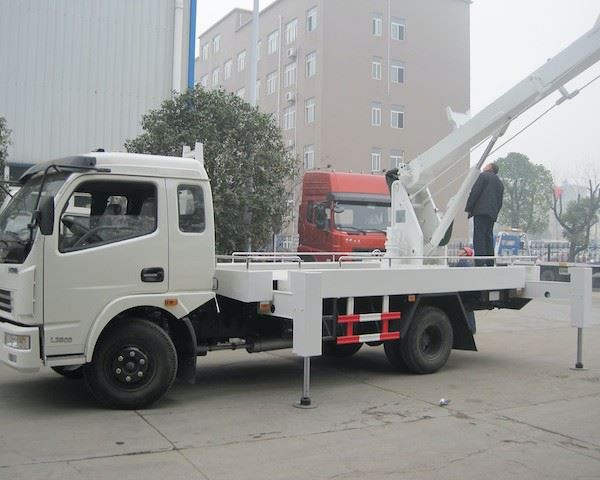

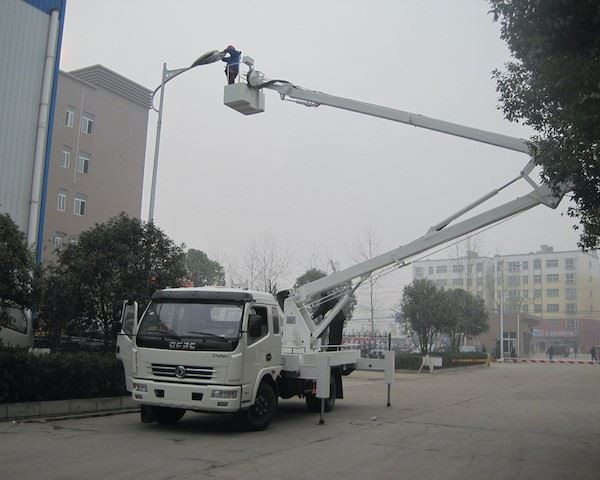

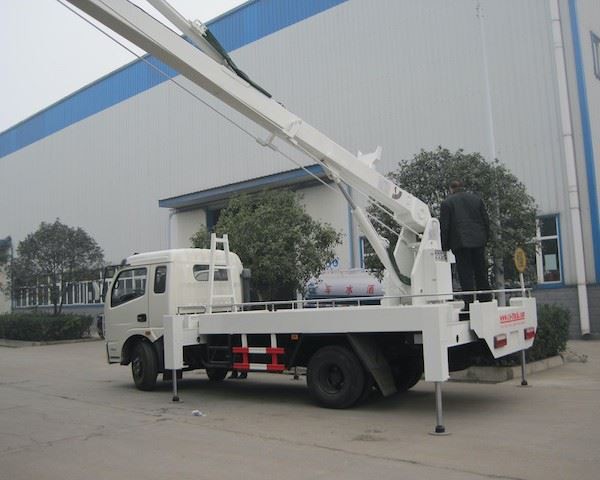

DONGFENG 4×2 Cab Truck
Cummins140hp Engine
Lifting Height 16m
Max. Outreach 9.6m
±360° continuous Rotator
Rear Mounted Articulated Boom
Description
FEATURES & OPTIONS
| Germany imported Hydraulic control valves. |
|
|
|
|
|
| Electro-hydraulic proportional control system. |
|
|
|
|
|
| Continuous speed regulation. |
|
|
|
|
|
|
| Superior operational performance. |
|
|
|
|
|
|
| Two Control Levers at the Turntable and Basket. |
|
|
|
|
|
| Engine Start/ Stop from Basket. |
|
|
|
|
|
|
| Holding Valves in each cylinder. |
|
|
|
|
|
|
| Pressure Relief Valve. |
|
|
|
|
|
|
| Built-in combined mechanism leveling ensures bucket safety. |
|
|
|
|
|
| Upper Boom Tie Down. |
| Interlocking leg protection ensures the safety of operation. |
|
|
|
|
|
| Out-trigger not extended, lock boom rotation only boom rise, ensuring safety and increasing efficiency. |
| Manual emergent pump. |
|
|
|
|
|
|
| Electronic timer sits to accumulate operating time for timely maintenance. |
|
|
|
| Working Height |
|
16 m |
|
| Max. Side Reach |
|
8.9 m |
|
| Basket Capacity |
|
200 kg |
| Boom Rotation |
|
±360° continuous |
| Side Reach at Max. Working Height |
|
2.7 m |
|
| Working Height at Max. Side Reach |
|
9.6 m |
|
| Lower Boom Lifting Capacity |
|
2000 kg |
| Upper boom travel |
|
9.3 m |
|
| Overall Size |
|
|
7660×2000×2920 mm |
| Chassis Recommend |
|
HOWO 4×2 |
| Chassis Engine |
|
CY4102-C3C |
| Engine Power |
|
120hp |
|
| Cabin Passenger |
|
3 |
|
|
|
|
|
|
