•Extra air supply system
•Hydraulically & pneumatically
•Efficient German centrifugal fan
•PLC control panel
•Cummins power engine
•Centrifugal automatic clutch
 |
 |
 |
Description
Specification and performance
HIGHLIGHTS
• Delivers excellent sweeping results
• Collects large quantities of water and de-ice from runways.
• Removes FOD hazards (foreign objects debris) avoid- ding possible damage to aircraft that may be caused by dislodged objects.
• Cleans more intensively to remove oil residue .
• More than 400 machines in operation around the world.
•All functions can be activated using the CAN-Bus control panel on the central pedestal.
•Removing dirt, grass and leaves and smaller quantities of snow with blast nozzles.
•Separate remote control with flexible cable for tipping the hopper.
•The hopper can be tilted without starting the auxiliary engine.
•Environmentally friendly thanks to compatibility with the latest emissions ratings.
FEATURES
Cleaning concept

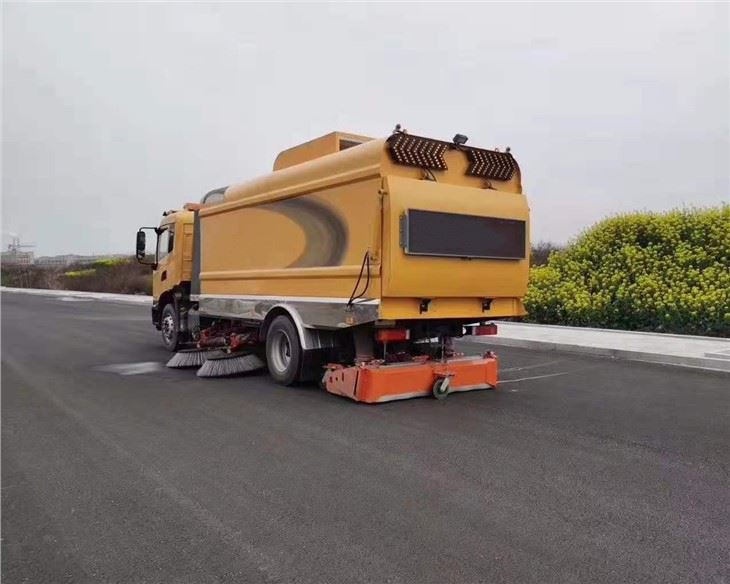

The CSC60 delivers perfect results when sweeping large areas, while moving safely through the entire airport. Equipped with two optional circular brushes, a rear-mounted sweeping unit and a high-power suction fan, the machine can cover large areas quickly and efficiently. The AS 990 offers a hygienic solution due to its blast nozzles, rear-mounted standard sweeping unit and optional quick-change liquid suction feature. It can be fitted to all truck models of any make with the relevant specifications – a unique concept that’s highly flexible and versatile.
Suction and sweeping system

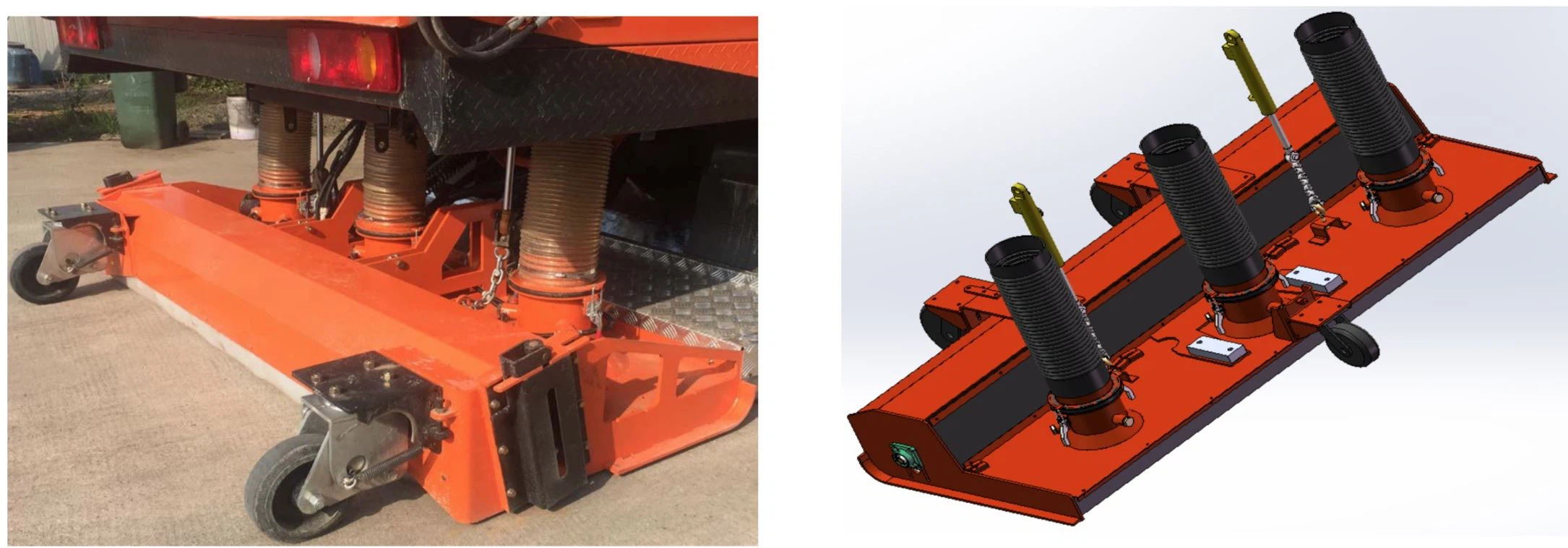

Rear suction vehicle
• Two suction nozzles (width: 2 x 1,250 mm/4.1 ft) – streamlined design with premium hot-vulcanized rubber coating
on the interior as standard for lower friction and less wear and tear.
• Symmetrical load distribution.
• Roller brushes that lift up when they encounter obstacles.
• Easily accessible cable duct.
• Smooth adjustment of sweeping pattern, accessible from the outside.
• One central sweeping pattern adjustment mechanism with color-coded scale to indicate level of wear.
Spin-type dust removal system to avoid water fall ; 2500mm wide suction port, wide working surface; Ground adaptive buffer system; large diameter three straws; Easy to adjust the pressure of the sweeping touchdown; universal rubber support wheel, easy to turn.

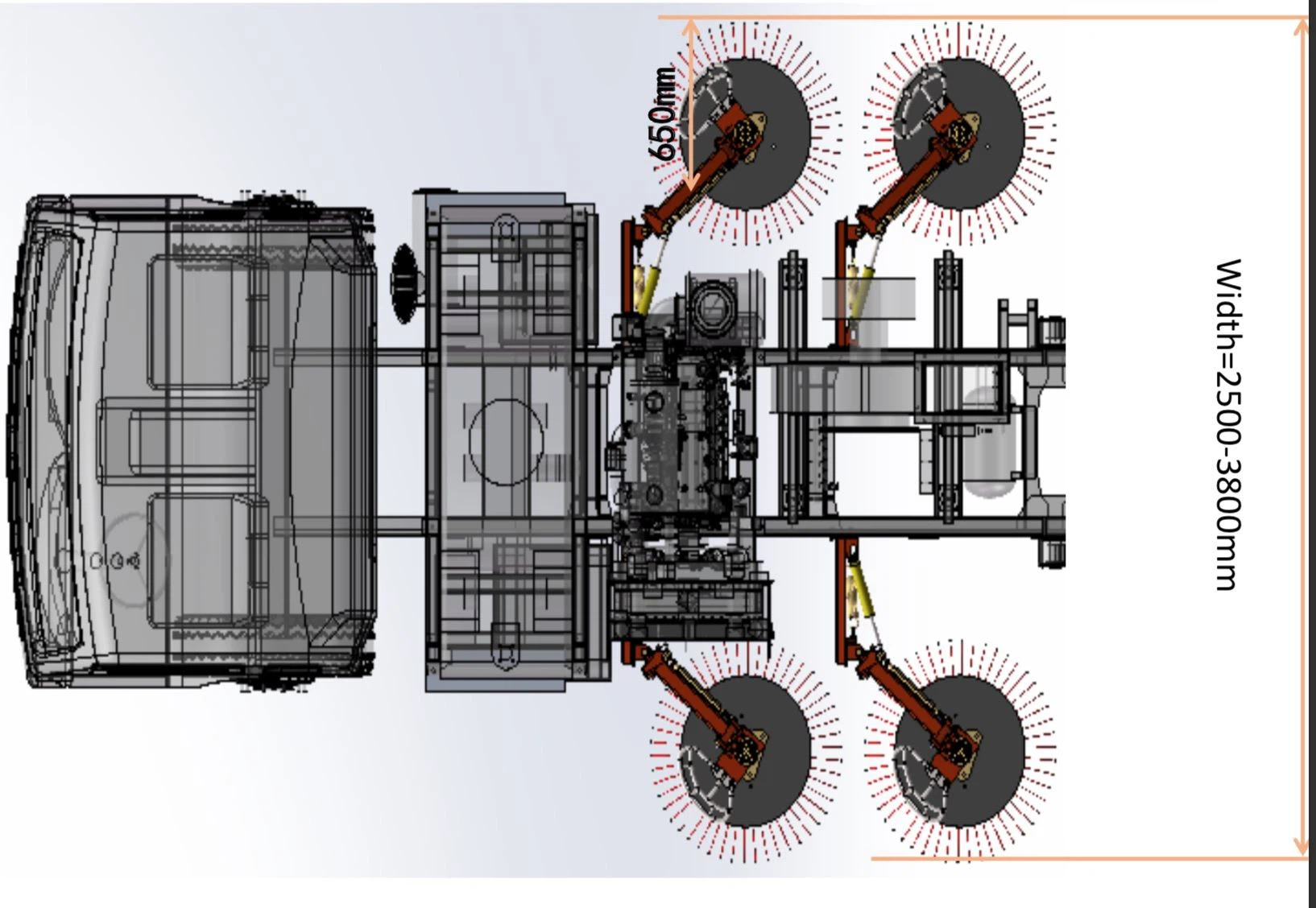

The cleaning width is adjusted freely; the maximum extend is 650 mm on the truck side; the automatic obstacle avoidance reset function ensures fast operation safety; the sweep speed is automatically matched with the vehicle speed.
Width=2500-3800mm

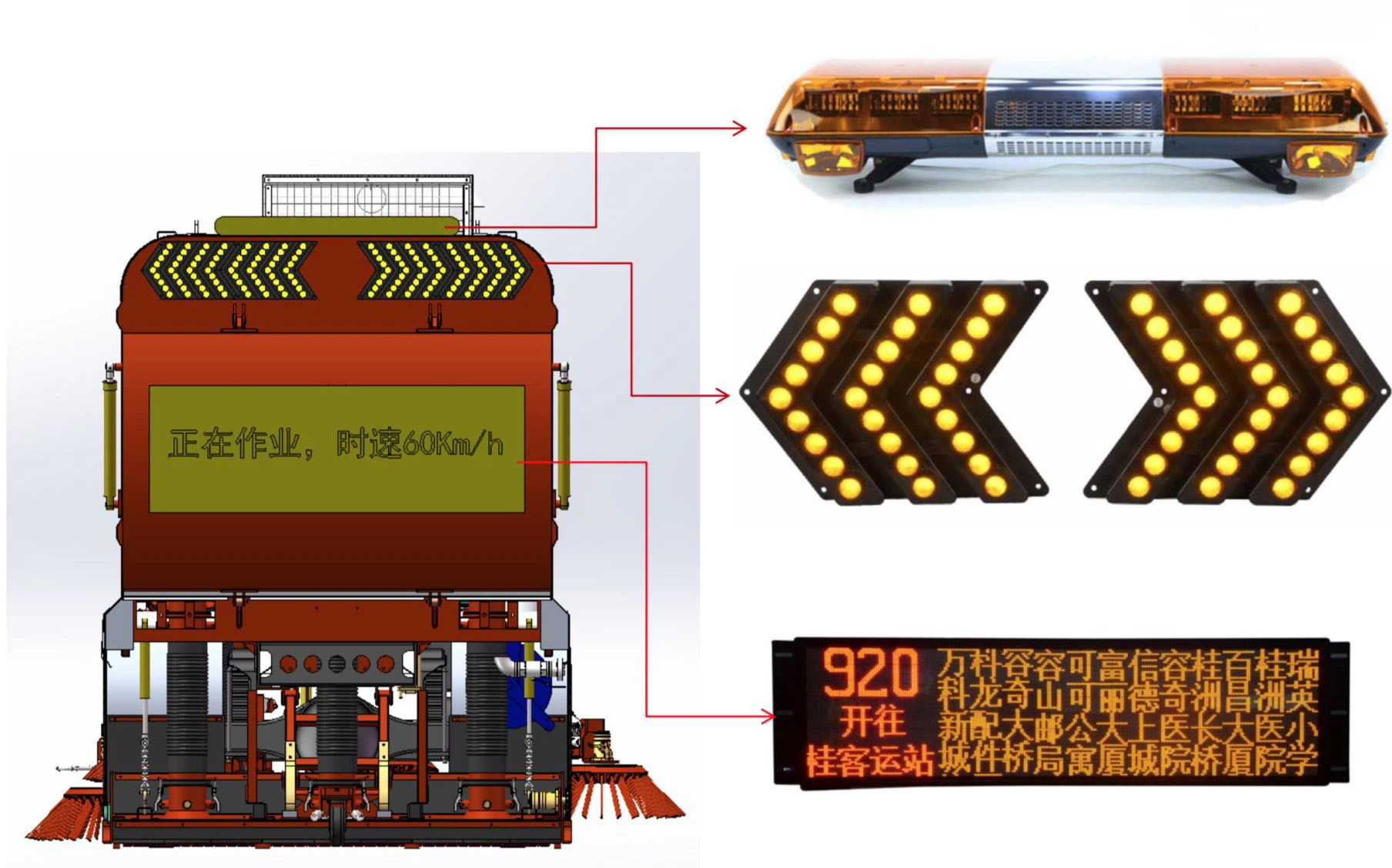

Painting and warning device
Special painting and warning device for airport working

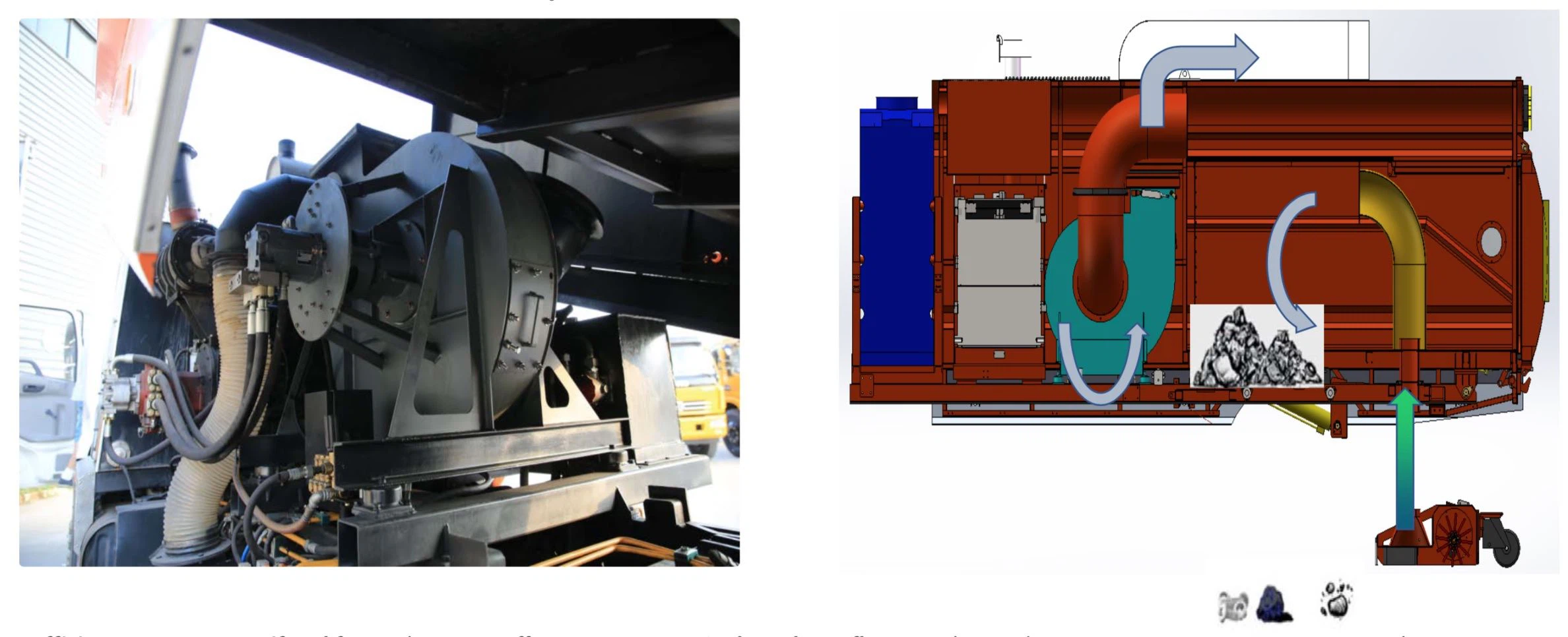

Suction fan drive
Storm suction and new flow circulation system
Efficient German centrifugal fan with energy efficiency up to 78%, Three-layer flow circulation design, minimum the dust, improve the suction.

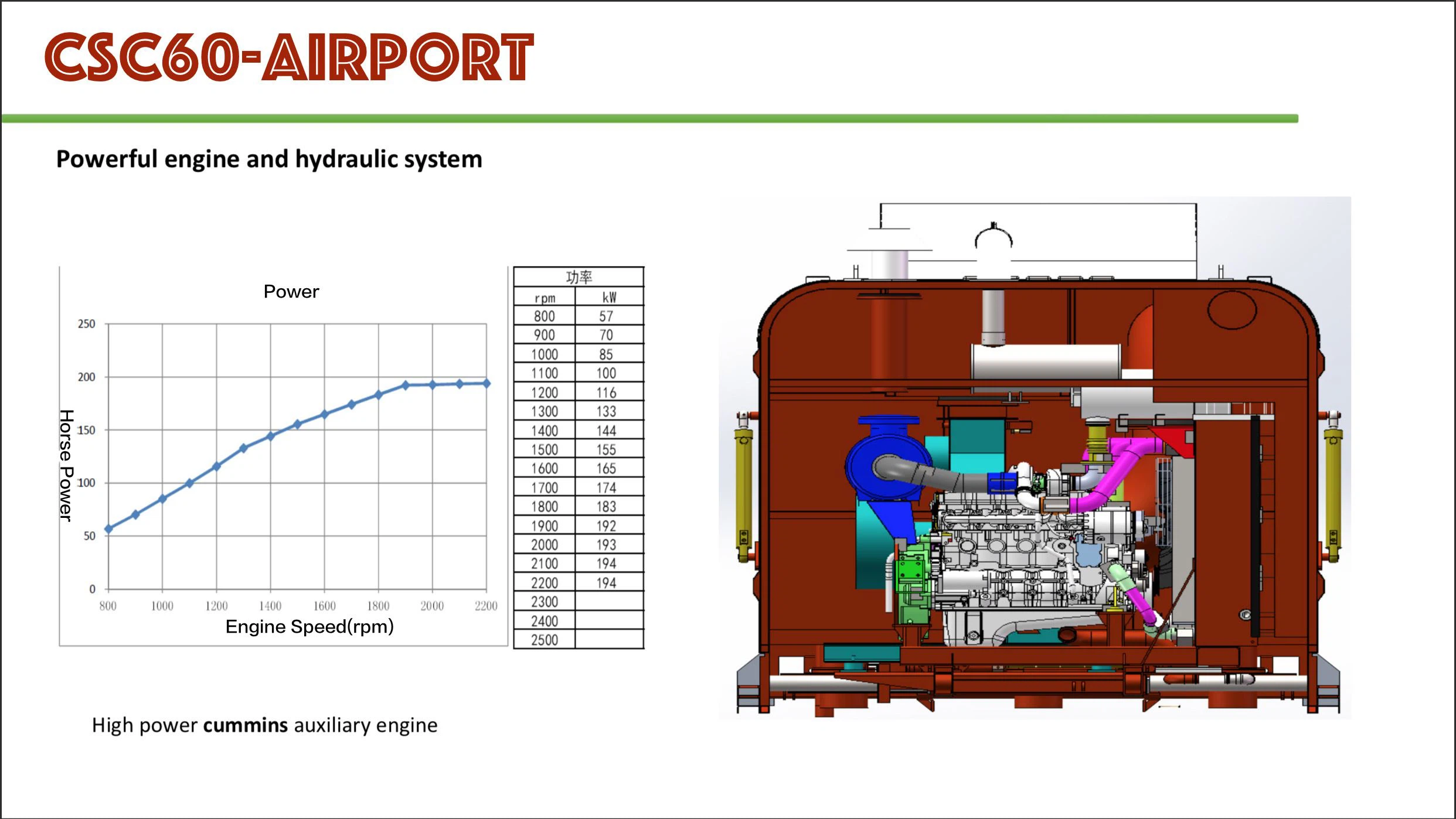

Powerful engine and hydraulic system
High power Cummins auxiliary engine

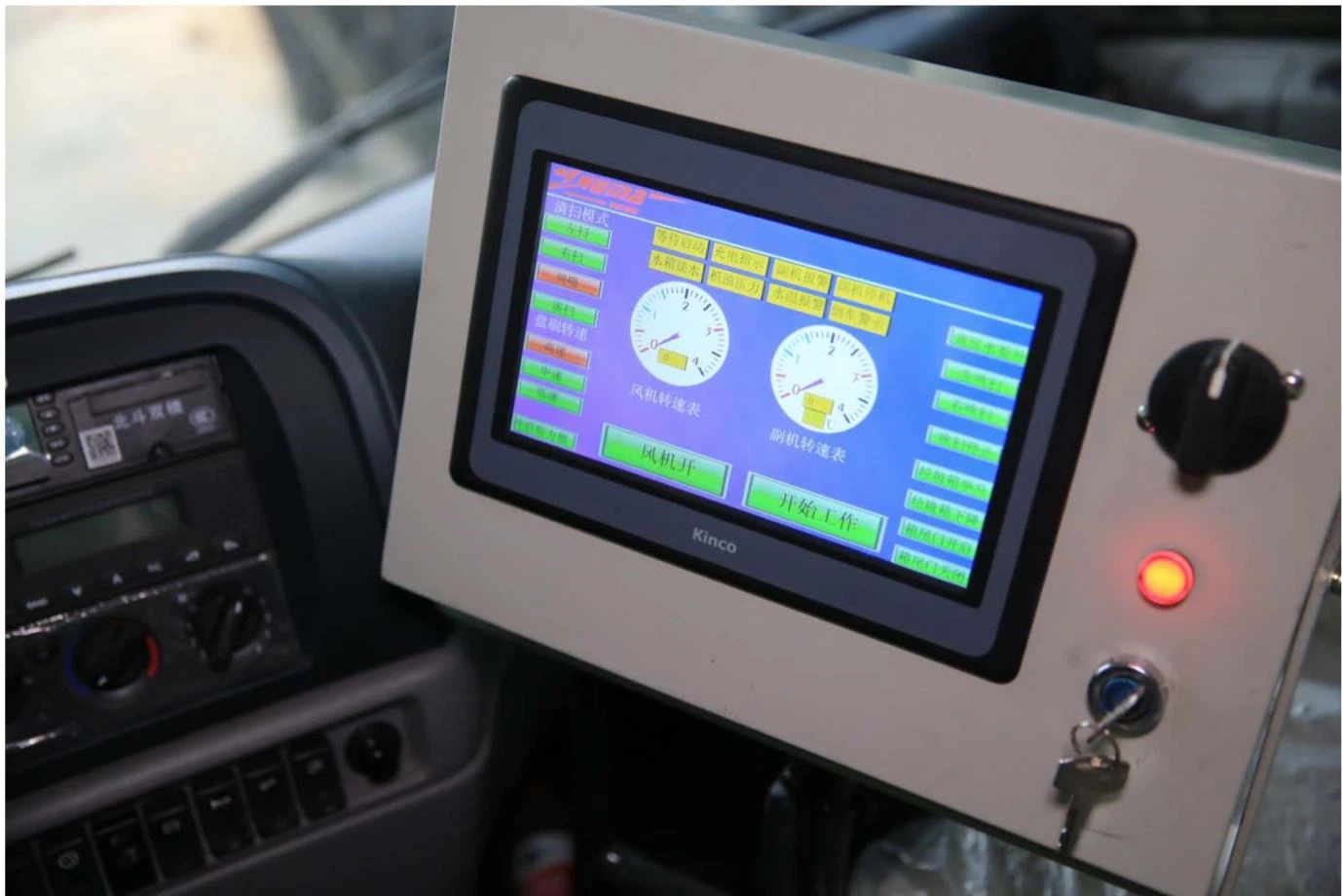

PLC control panel
Intelligent control system One-touch touch operation Multiple modes of operation Interface ergonomic design

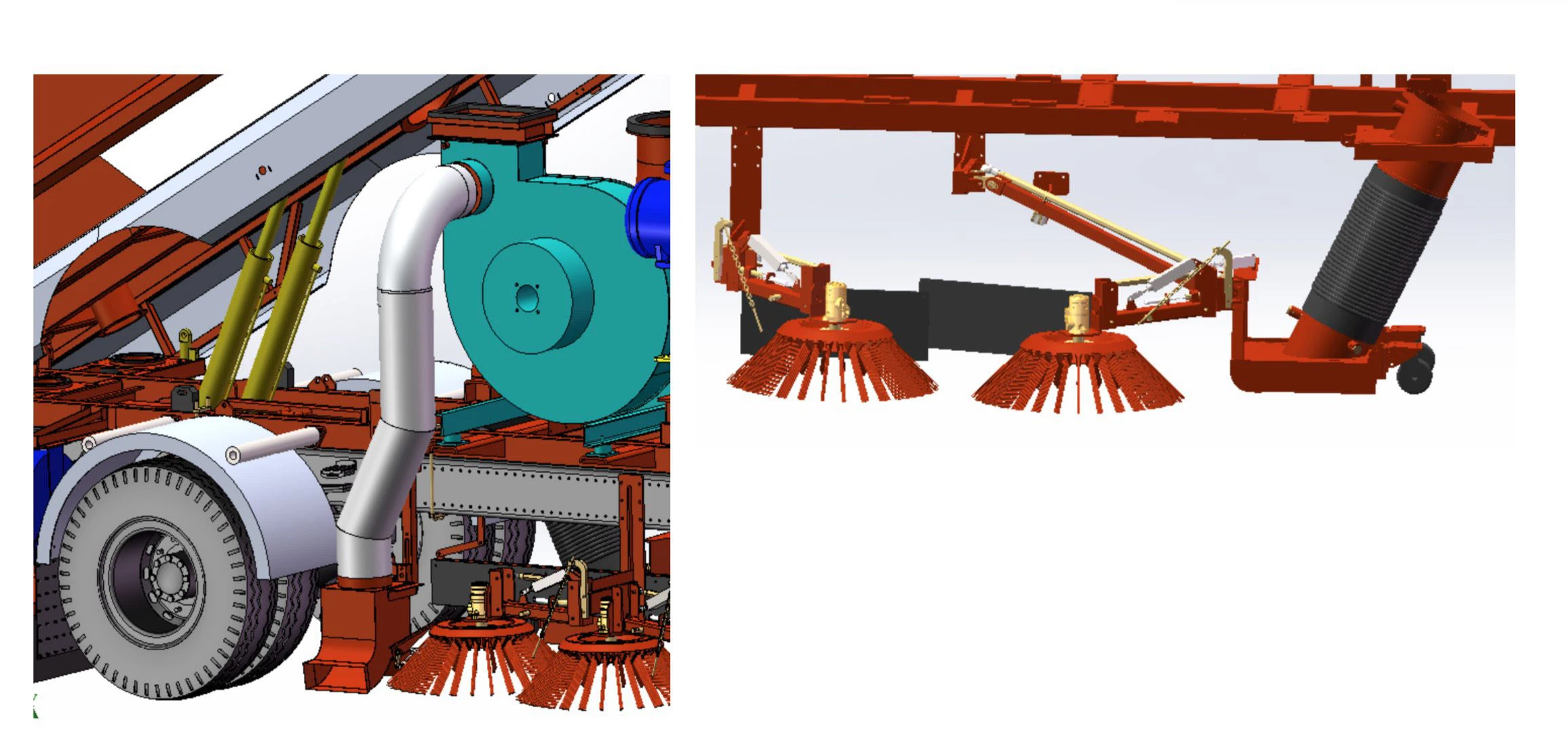

Air blowing and side suction port
The blow wind speed can reach 150m/s, Power side suction port, straw diameter 325mm
