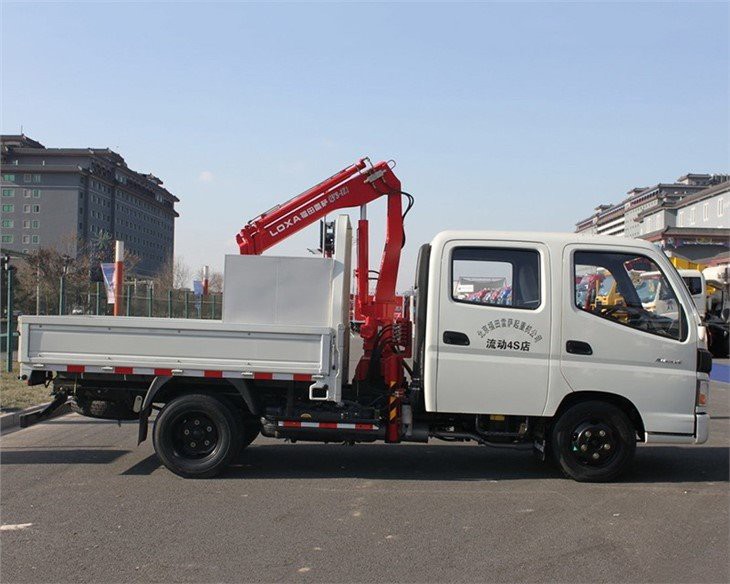

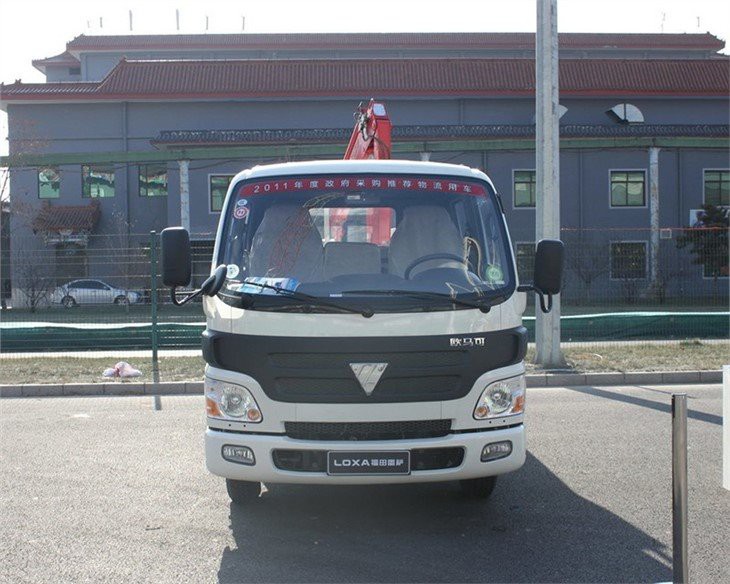

Model AUMARK-C38
Truck Size 6725×2100×2280mm
Wheelbase 3800mm
Cummins 141hp Engine
EURO III Emission norm
Box Size 4170 × 2100 ×2100 mm
 |
 |
 |
 |
Description
Crane requirements
Type/Position
Articulating Crane

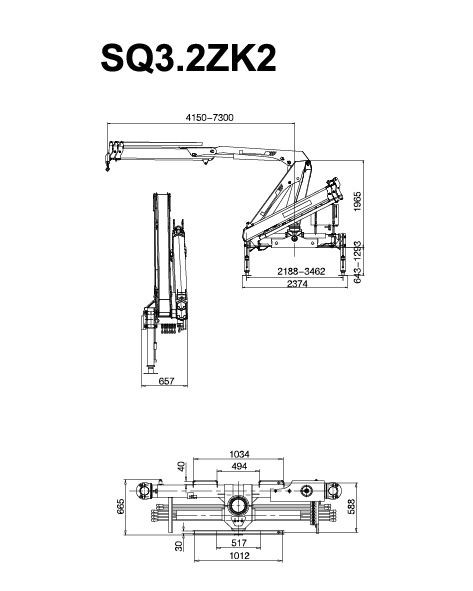

Crane Model
SQ3.2ZK2

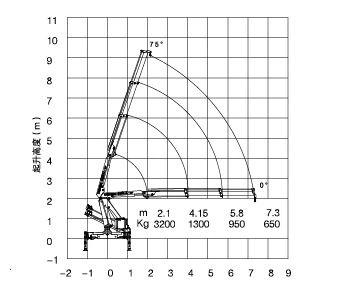

Lifting Capacity
3200kg@ 2.1m
Max Out Reach
7.3m (lifting 650kg)
Lifting Height
9.3m@75°
Rotation angle
360°Full rotation
Subframe
Material/plate thickness
Longitudinal beam :Q345/10mm Beam: Q345/8mm
Cargo box
size
4170*2100*400mm
|
|
|
