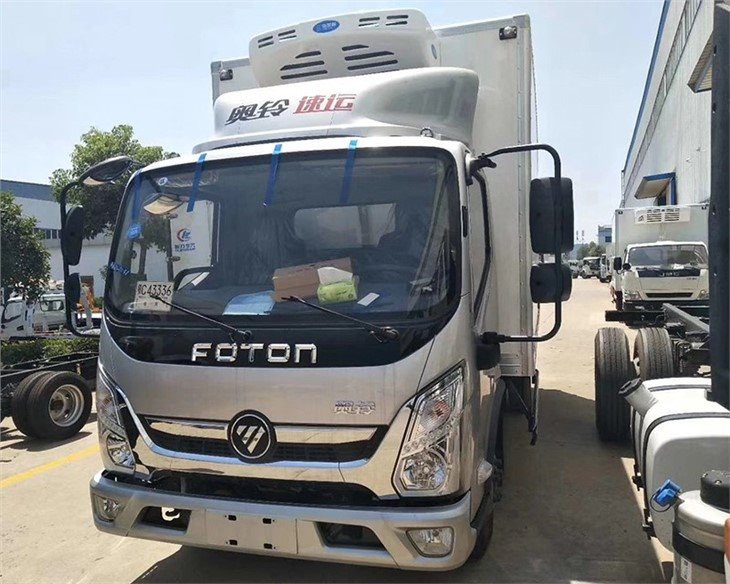

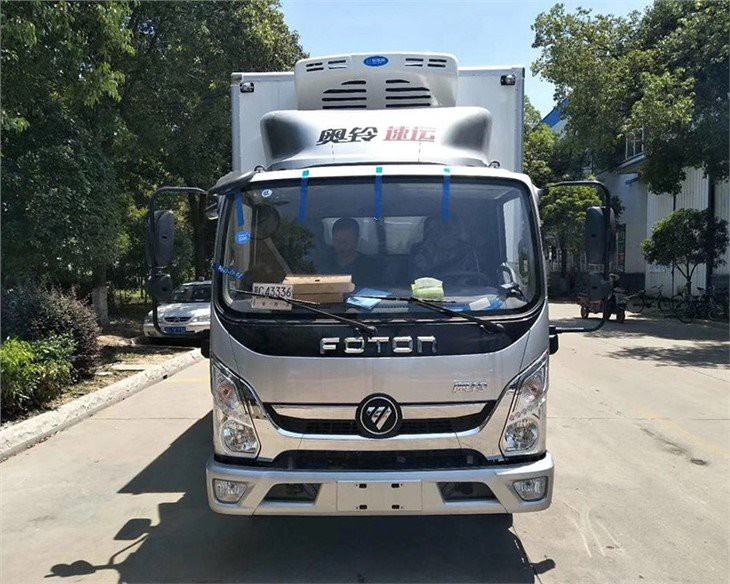

Model AUMARK- C38
Size 6725×2100×2280
Wheelbase 3800mm
Cold King Refrigeration Unit
 |
 |
 |
 |
Description
|
Vehicle model |
AUMARK-C38 |
|
|
Cabin |
Single row/W1995/right rudder |
|
|
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
6725×2100×2280 |
|
Wheel base(mm) |
3800 |
|
|
Weight data |
Curb weight(kg) |
3305 |
|
Gross vehicle weight（kg） |
6500 |
|
|
Persons in cab |
3 |
|
|
Whole vehicle main performance |
Max. speed（km/h） |
95 |
|
ENGINE |
Model |
F3.8s3141 |
|
Emissions standards |
EuroⅢ |
|
|
Displacement（L） |
3.76 |
|
|
Rated Power（kw/rpm） |
105 |
|
|
Max torque （N.m/rpm） |
450 |
|
|
Gearbox |
Model |
6TS55 |
|
Front axle |
Type/Mainreducetion ratio |
2.5T |
|
Rear axle |
Type/Mainreducetion ratio |
6.0T/4.875 |
|
Suspension |
Front suspension/Leaf spring number |
9 |
|
Rear suspension/Leaf spring number |
11+7 |
|
|
Brake system |
Service brake |
Drum pneumatic braking |
|
Parking brake |
Brake gas brake |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Wheels and tyre size |
6+1(8.25R16) |
|
|
Packing case |
Internal size |
4100*2000*2000 |
|
The material |
Inside and outside: glass steel plate, sandwich: polyurethane board (≥40kg/m3) |
|
|
thickness |
Front plate, back plate, left and right plate: more than 80mm, top plate, bottom plate: more than 100mm |
|
|
The framework |
The upper and lower frames and front columns are aluminum profiles or stainless steel |
|
|

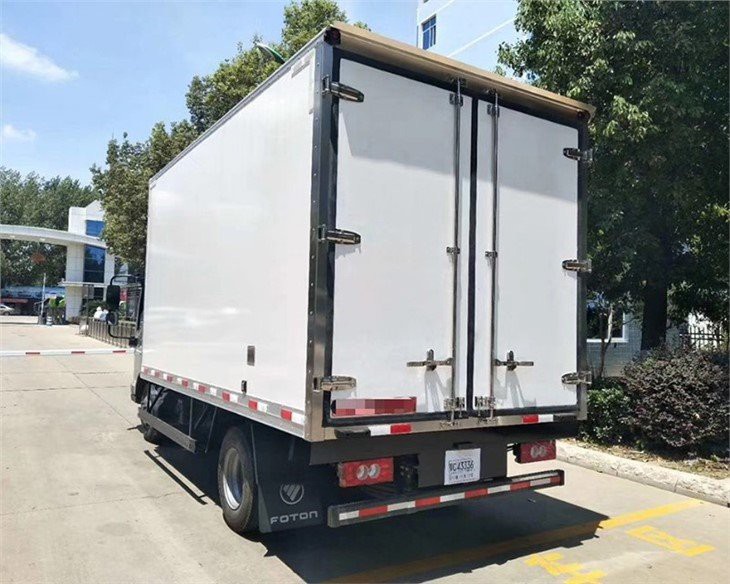

Open the door form |
Double rear door, passenger side single side door |
|
|
The |
Brand and Specifications |
American Cold King /SV400 |
|
Refrigeration requirements |
Minimum temperature: -18℃ |
|
|
The optional features |
No backup electricity, no heating |
|
|
attachment |
Protective device |
Side protection: comply with GB11567.1; Rear protection: according to GB11567.2 |
|
Door lock and folding |
Choose stainless steel material |
|
|
Lamps and lanterns |
Adopt LED seal lamp, lampshade need to glue seal |
|
|
Rear pedal |
Aluminum alloy pedal |
|
|
interior |
1. Install T-shaped aluminum guide rail and patterned anti-collision plate (300mm height) / 2. All around are equipped with ventilation grooves, and both sides of the side plates are equipped with two stainless steel grooves for goods 3. Temperature recorder 4. Install side curtain and rear curtain |
|
|
special performance |
Corrosion protection |
Cargo box should meet 504 hours of salt spray test (including connecting bolts, welding points, paint surface corrosion resistance). |
|
In the rain |
The rainfall intensity is 5mm ~ 7mm/min, and there is no water inflow and leakage after 30min test. |
|
|
airtight |
Under the condition that the pressure difference between inside and outside the compartment is 100± 10Pa, the air leakage ratio is less than or equal to 6.3L /h |
|
|
Heat insulation |
The average wall temperature of the carriage is 293K ~ 298K, and the total heat transfer coefficient K is less than or equal to 0.5 |
