Model No.: CSCWTFT025.
3,000L Water Tank & 2,000L Foam Tank.
Max. working height: 25m.
Overall Dimensions(LxWxH): 10,640×2,500×4,000mm
Chassis Brand: Mercedes-Benz.
Drive Type: 6×4.
Engine Power: 450HP.
Full Load Weight: 30,900kgs.
Max. Speed: 90km/h.
Centrifugal Water Pump Flow Rate: 100L/s@10bar.
Suction Height: 7m.
Roof Fire Monitor on Boom Flow Rate: 80L/s.
Shoot Range: 75m for Water. 70m for Mixed liquor.
Tank Material: PP composite material.
 |
 |
 |
 |
Description
BRIEF

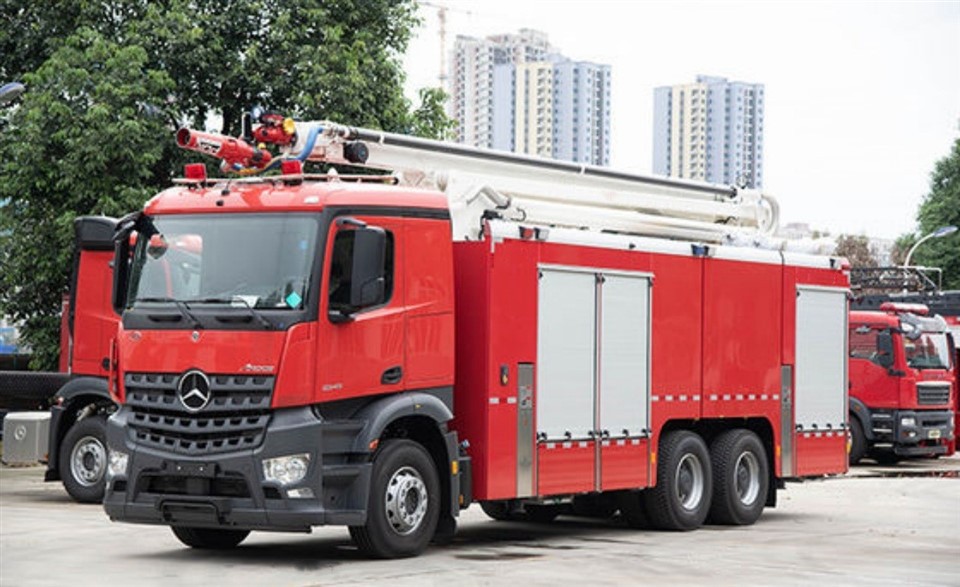

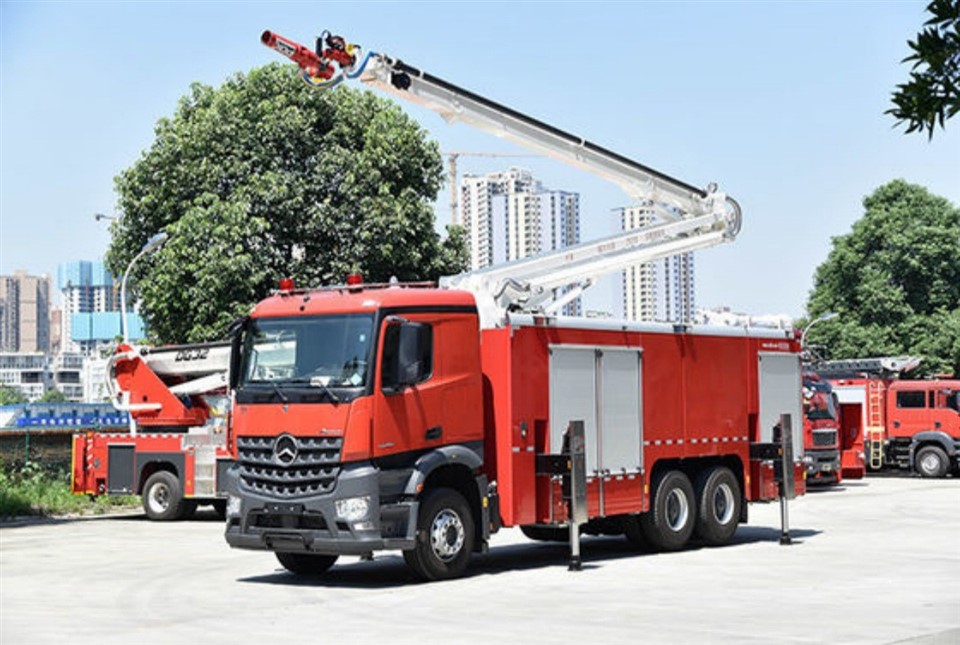

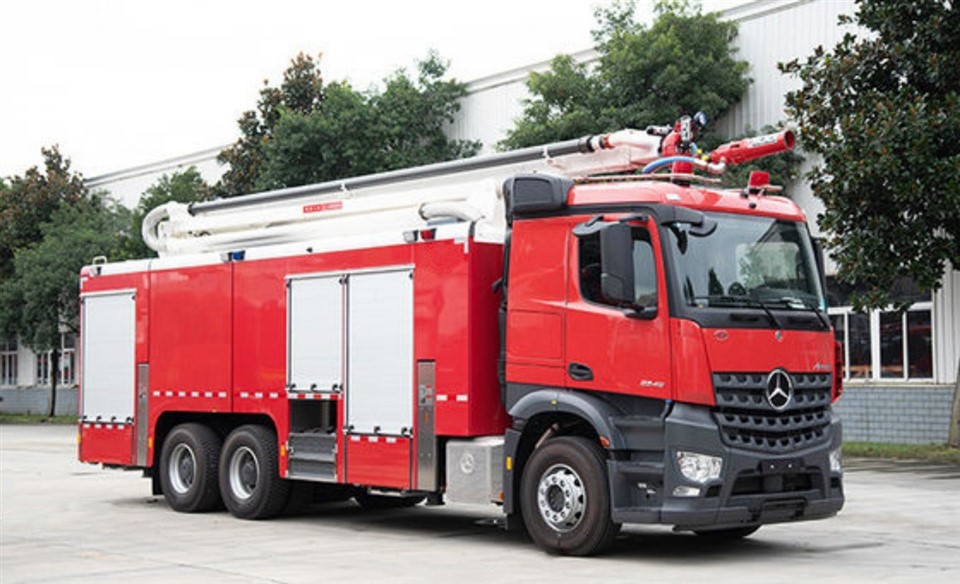

The Benz 25M water tower fire truck, produced by CSCTRUCK, is a robust firefighting vehicle designed for high-rise firefighting and rescue operations. Built on a Mercedes-Benz chassis, this truck offers a 6×4 drive type and is powered by a 450-horsepower engine, ensuring strong performance even in demanding environments. The vehicle has a full loading weight of 30,900kg, making it a heavy-duty machine capable of handling large amounts of water and foam for firefighting operations.
Equipped with a 3,000-liter water tank and a 2,000-liter foam tank, the Benz 25M water tower can combat fires effectively in both structural and industrial settings. Its high-performance centrifugal water pump delivers an impressive flow rate of 100L/s at 10 bar, with a suction height of up to 7 meters, ensuring excellent water intake in various conditions. Additionally, the fire truck features a roof-mounted fire monitor on the boom, providing a flow rate of 80L/s and a shooting range of 75 meters for water and 70 meters for mixed liquor, allowing for precise fire suppression from a distance.
The truck’s main feature is its 25-meter maximum working height, which enables access to high-rise fires and rescues, while its advanced boom system provides versatile operation, including 360-degree rotation. The PP composite material tank ensures durability and resistance to corrosion, adding to the truck’s long-term reliability.
The Benz 25M water tower fire truck is also capable of a top speed of 90km/h, enabling quick response times in emergency situations. This makes it a versatile and efficient solution for urban firefighting, industrial fire response, and high-rise rescue operations.
FEATURES
1. High Reach and Versatility: The fire truck is equipped with a 25-meter maximum working height, providing exceptional reach for tackling fires at high elevations, making it ideal for high-rise buildings or industrial complexes.
2. Advanced Water and Foam System: The vehicle is fitted with a 3,000-liter water tank and a 2,000-liter foam tank, ensuring both water and foam resources for effective fire suppression, with a roof fire monitor on the boom capable of delivering 80 liters per second at a 75-meter water range.
3. Powerful Performance: Powered by a 450-horsepower engine on a Mercedes-Benz 6×4 chassis, the fire truck has a full loading weight of 30,900 kg and a maximum driving speed of 90 km/h, enabling rapid response in emergencies.
4. Efficient Water Pumping: The truck is equipped with a 100 liters per second (L/s) centrifugal water pump that operates at 10 bar, along with a 7-meter suction height, providing excellent water flow for firefighting in remote locations.
5. Durable and Lightweight Construction: The PP composite material tank offers a balance of strength and reduced weight, contributing to the overall efficiency and durability of the fire truck while maintaining robust capacity for both water and foam storage.
SPECIFICATION
Main Technical Parameters
| No. | Main Items | Technical Parameters |
| 1. | Model | CSCWTFT025 |
| 2. | Overall Dimensions(LxWxH) | 10,640×2,500×4,000mm |
| 3. | Full Load Weight | 30,900kgs |
| 4. | Number of the Crew | 1+1 (Including Driver) |
| 5. | Max. Speed | 90km/h |
| 6. | Capacity | 2,000 Liters Water & 2,000 Liters Foam & 1,000kgs Superfine Dry Powder |
| 7. | Fire pump flow rate | 100L/s@10bar |
| 8. | Fire monitor | 80L/s Flow Rate. 75m shoot range for Water. 70m shoot distance for Mixed liquor. |
| 9. | Max. working height | 25 Meters |
C. Alumium Superstructure
| No. | Main Items | Technical Parameters |
| 1. | Compartment | |
| 1.1 | Material | High-strength aluminum alloy profiles (Never Rust). |
| 1.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear. |
| 2. | Roller Shutter Door | |
| 2.1 | Material | Aluminum alloy profiles with anodized surface. |
| 2.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, an LED light, and sensors. |
| 3. | Foot Pedals | |
| 3.1 | Material | High-quality aluminum alloy. |
| 3.2 | Structure | 50cm width, bears more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment. |
D. Fire Extinguishing System
1. Centrifugal Water Pump
Rated Flow Rate: 100L/s@10bar
Vacuum Pump: Electric vacuum pump
Priming Manner: Automatic
Suction Height: 7m
Priming Time: ≤80s
Location: Rear-mounted
2. Roof Fire Monitor on Boom
Flow Rate: 80L/s
Shoot Range: 75m for Water. 70m for Mixed liquor
Location: On the top of the boom
Control Manner: Remote control
Horizontal Rotation Angle: 0°~340°
Pitch Rotation Angle: -22°~75°
3. Water and Foam Tank
Capacity: Water 3,000 Liters and Foam 2,000 Liters
Material: PP composite material and Never Rust
Structure: 2 Tank Manholes; 1 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 Foam tank Drain Outlets with Valves; 1 Water tank Drain Outlets with Valves.
