Model No.: CSCWTFT060.
6,000 Liters Water Tank and 2,000 Liters Foam Tank.
Max. Working Height: 60m.
Overall Dimensions(LxWxH): 12,700×2,500×3,950mm.
Chassis Brand: Benz.
Drive Type: 8×4.
Total Weight: 42,600kgs with Full Load.
Engine Power: 375kW.
Max. Speed: 90km/h.
Fire Pump Rated Flow Rate: 170L/s@10bar.
Suction Height: 7 meters.
Water/Foam Monitor on Boom Flow Rate: 80L/s.
Shoot Range: 70 meters.
Tank Material: PP composite material.
 |
 |
 |
 |
Description
BRIEF

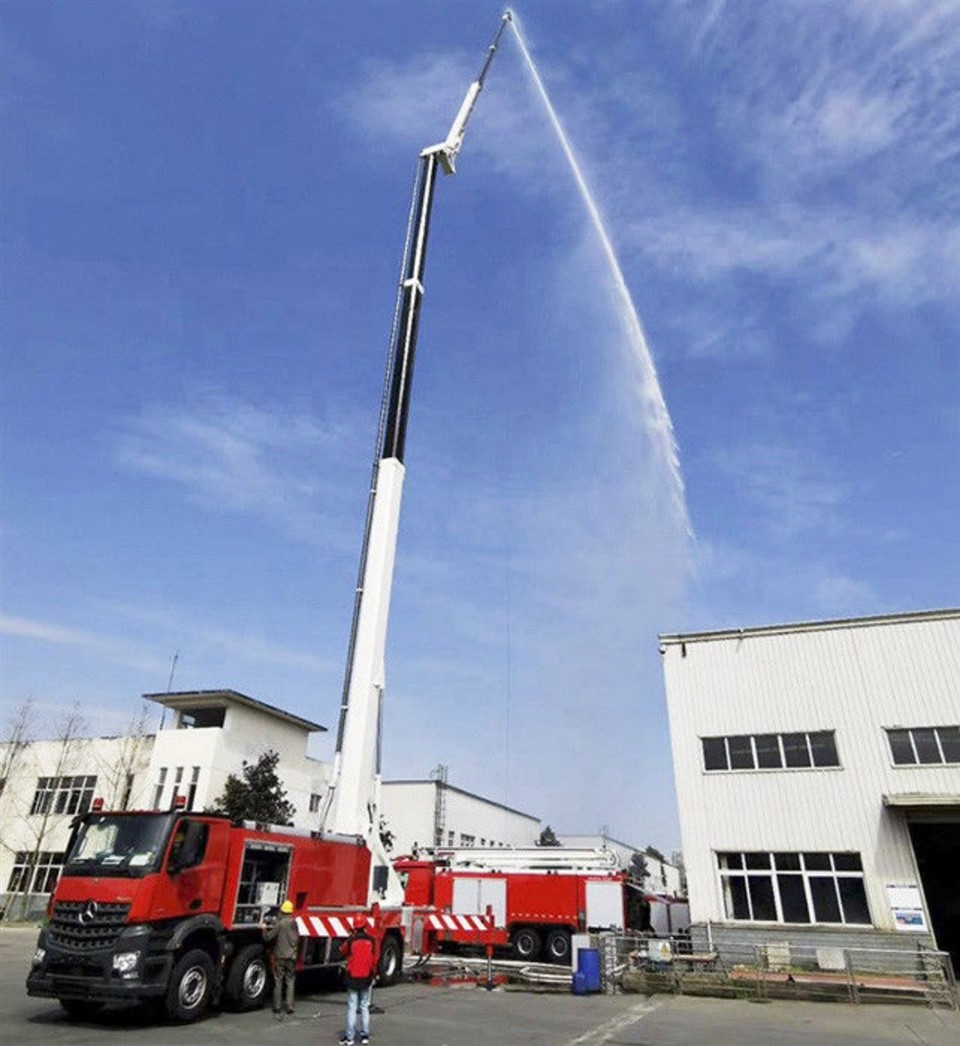

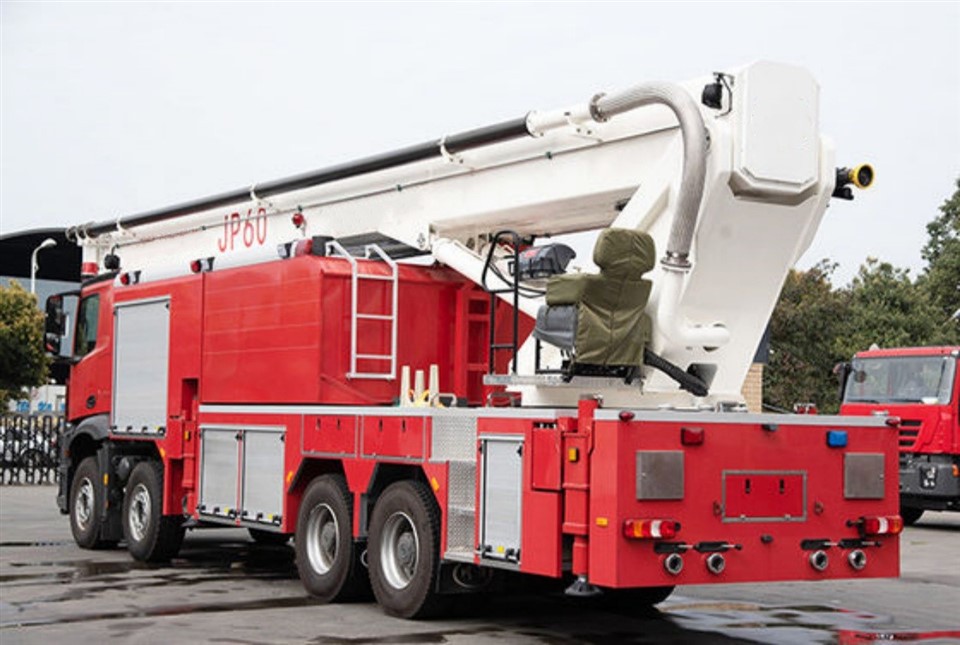

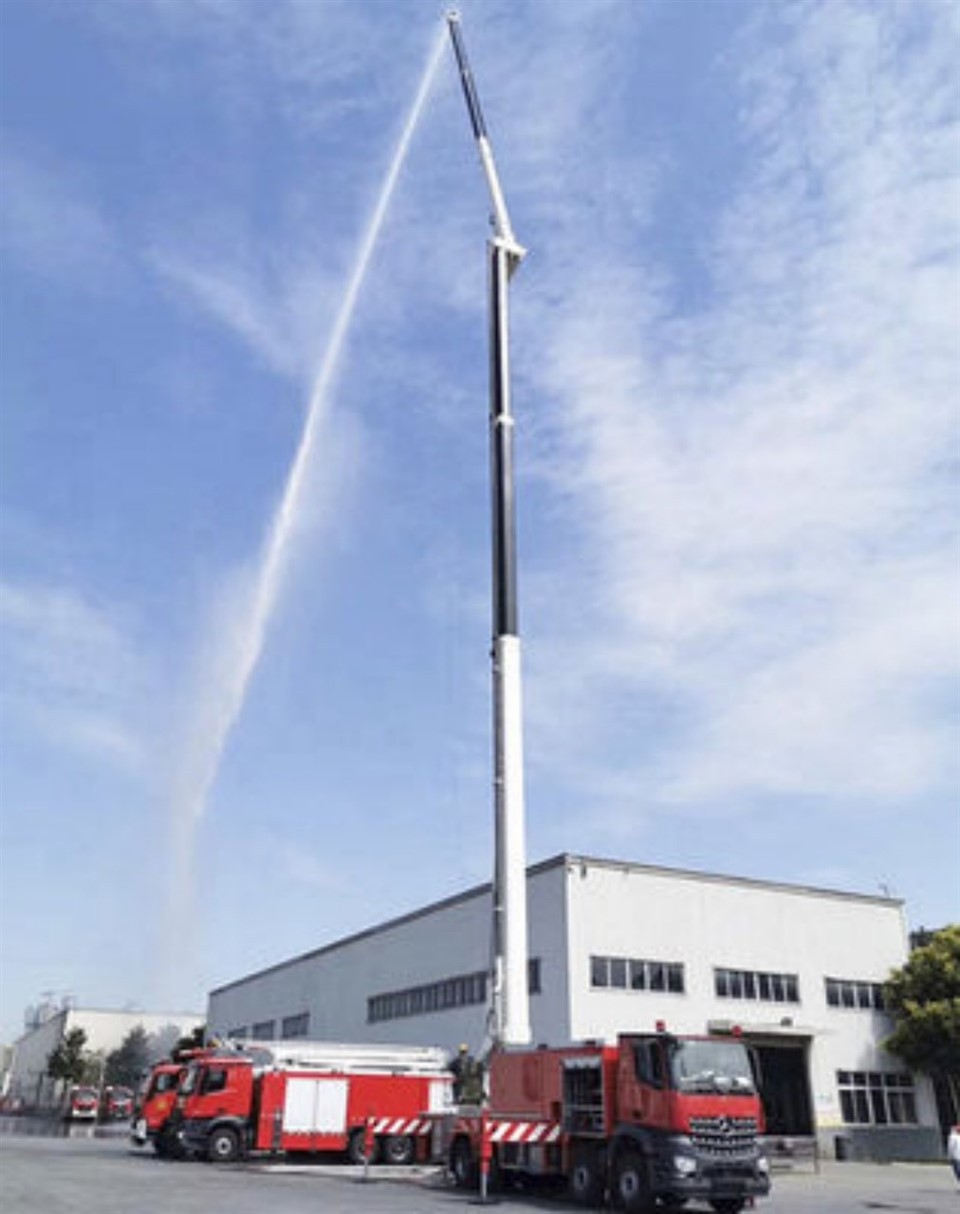

The Benz 60M water tower fire truck, produced by CSCTRUCK, is a high-performance, specialized firefighting vehicle designed for efficient and powerful fire suppression. This fire truck is equipped with advanced firefighting systems, including a 6,000-liter water tank and a 2,000-liter foam tank, allowing for rapid deployment of water and foam to extinguish fires effectively in various environments.
With a maximum working height of 60 meters, the vehicle features an impressive aerial platform that offers extended reach for tackling fires at significant heights, such as high-rise buildings or large structures. The fire truck is built on a robust Benz chassis with an 8×4 drive type, ensuring superior stability and handling, even under challenging conditions. The vehicle has a total weight of 42,600kg when fully loaded, making it a heavy-duty unit capable of carrying its substantial firefighting equipment.
Powered by a 375 kW engine, the fire truck has a maximum driving speed of 90km/h, allowing it to quickly reach emergency sites. The fire pump is capable of delivering a rated flow rate of 170L/s at 10 bar pressure, providing powerful water jets to combat fires. The suction height is 7 meters, enhancing the truck’s ability to draw water from nearby sources.
Equipped with an 80 L/s water/foam monitor on the boom, the fire truck can achieve a shooting range of up to 70 meters, enabling it to target fires at considerable distances. The tank is made from durable PP composite materials, ensuring longevity and resistance to the elements. Overall, the Benz 60M water tower fire truck is a cutting-edge firefighting solution designed for demanding rescue operations and fire suppression tasks.
FEATURES
1. High Reach and Powerful Firefighting Capabilities: The fire truck is equipped with a 60-meter max working height and a 170L/s @ 10 bar fire pump, offering a powerful firefighting solution for high-rise buildings and large-scale fire incidents. The water/foam monitor on the boom delivers a flow rate of 80L/s with a shooting range of 70 meters, ensuring effective fire suppression from a distance.
2. Large Water and Foam Capacity: It features a 6,000-liter water tank and a 2,000-liter foam tank, providing ample supply for long-duration firefighting operations, especially in large-scale fires requiring water and foam mixtures for efficient suppression.
3. Heavy-Duty Chassis and Engine: Built on a Benz 8×4 chassis, the truck is powered by a robust 375 kW engine, allowing it to carry a full loading weight of 42,600 kg and reach a maximum driving speed of 90 km/h, making it suitable for rapid response to emergencies.
4. Advanced Materials and Durability: The truck’s PP composite material tank enhances durability, reducing weight while maintaining strength and resistance to corrosion, providing long-term reliability in harsh firefighting environments.
5. Impressive Suction and Water Delivery: The truck features a 7-meter suction height, ensuring a strong water intake from various sources. This is complemented by the 80L/s water/foam monitor on the boom, which offers precise and efficient delivery of water or foam directly to the fire.
SPECIFICATION
Main Technical Parameters
| No. | Main Items | Technical Parameters |
| 1.1 | Model | CSCWTFT060 |
| 1.2 | Overall Dimensions(LxWxH) | 12,700×2,500×3,950mm |
| 1.3 | Total Weight | 42,600kgs with Full Load |
| 1.4 | Number of the Crew | 1+1 (Including Driver) |
| 1.5 | Max. Speed | 90km/h |
| 1.6 | Capacity | 6,000 Liters of Water and 2,000 Liters of Foam. |
| 1.7 | Fire Pump Flow Rate | 170L/[email protected] |
| 1.8 | Fire Monitor on Boom | 80L/s Flow Rate. 70m shoot range. |
| 1.9 | Max. Working Height | 60.5 Meters |
C. Superstructure
| No. | Main Items | Technical Parameters |
| 1 | Aluminum Compartment | |
| 1.1 | Material | High-strength aluminum alloy profiles (Never Rust) |
| 1.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear. |
| 2 | Aluminum Roller Shutter Door | |
| 2.1 | Material | Aluminum alloy profiles with anodized surface |
| 2.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, an LED light, and sensors. |
| 3 | Foot Pedals | |
| 3.1 | Material | High-quality aluminum alloy |
| 3.2 | Structure | 50cm width, bears more than 300kg, anti-slip design, with double lock function. Mounted on both sides of the compartment. |
D. Fire Fighting System
1. Fire Pump
Rated Flow Rate: 170L/s@10bar
Vacuum Pump: Electric vacuum pump
Priming Manner: Automatic
Suction Height: 7 meters
Priming Time: ≤80 seconds
Location: Rear-mounted
2. Water/Foam Monitor on Boom
Flow Rate: 80L/s
Shoot Range: 70 meters
Location: On the top of the boom
Control Manner: Remote control
Horizontal Rotation Angle: 0°~340°
Pitch Rotation Angle: -22°~75°
3. Liquid Tank
Capacity: Water 6,000 Liters and Foam 2,000 Liters
Material: PP composite material and Never Rust
Structure: 2 Tank Manholes; 1 Overflow Device/Pressure Relief Device; 2 Liquid Level Indicators; 1 Foam tank Drain Outlet with Valves; 1 Water tank Drain Outlet with Valves.
