Model No.: CSCFA011.
10,000L Water Tank & 1,000L Foam Tank.
Overall Dimensions(LxWxH): 9,800×2,600×4,050mm.
Chassis Brand: Benz Arocs 3358E6.
Drive Type: 6×6.
Wheelbase: 4,450+1,450mm.
Engine Model: OM473.
Rated Power: 426/1,600(kW/rpm).
Emission standards: Euro VI.
Full Load Weight: 28,100kg.
Max. Speed: 100km/h.
Fire Pump Flow Rate: 100L/s@10bar.
Suction Height: 7m.
Fire Monitor Flow Rate: 80L/s@10bar.
Shoot Range: Water≥85m, Foam≥85m.
Tank Material: PP composite material.
 |
 |
 |
 |
Description
BRIEF

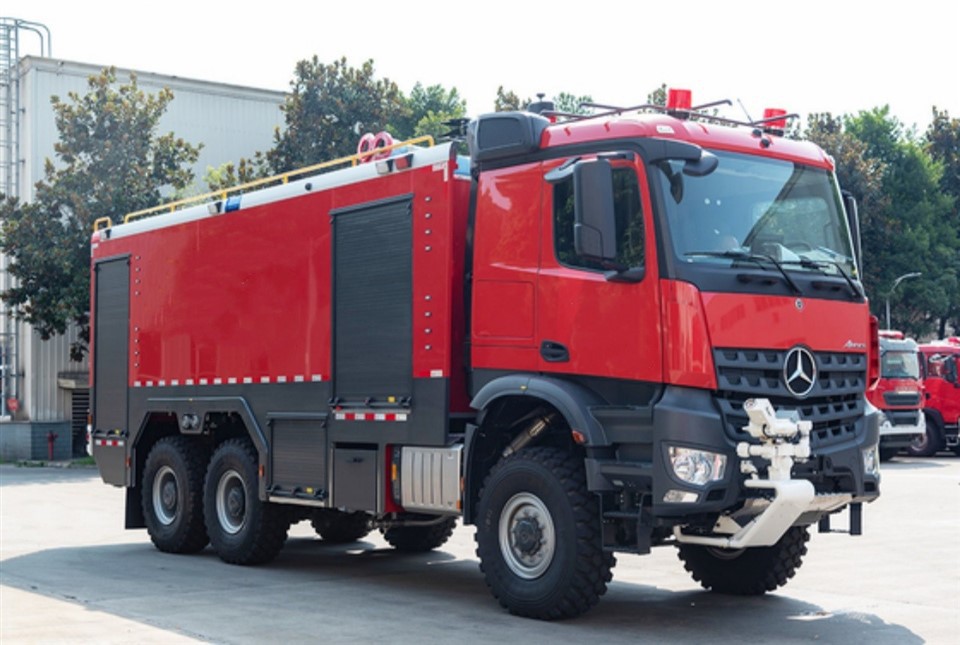

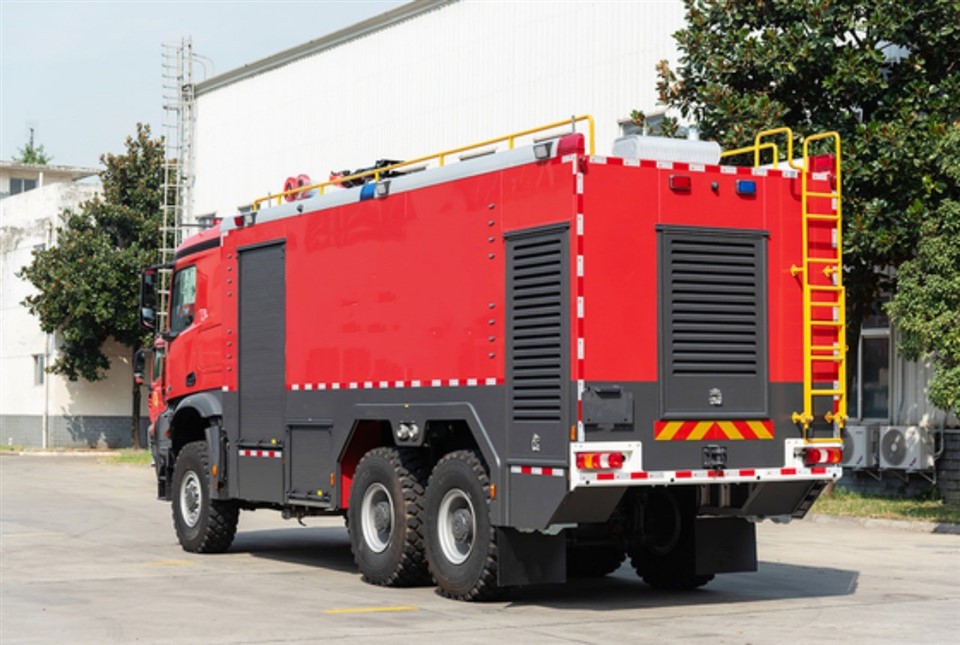

The Benz 6×6 ARFF fire apparatus, produced by CSCTRUCK, is a high-performance firefighting vehicle designed for airport and industrial applications. It combines cutting-edge technology with robust engineering to tackle emergency response with efficiency and power.
Built on the Benz Arocs 3358E6 chassis, the vehicle features a 6×6 drive system, ensuring maximum stability and traction across difficult terrains. The OM473 engine model provides a rated power of 426 kW at 1,600 rpm, meeting the Euro VI emission standards for reduced environmental impact. This powerful engine allows the vehicle to reach a maximum speed of 100 km/h, enabling rapid deployment during emergencies. The 28,100 kg full loading weight ensures that the vehicle is stable even when fully equipped.
Equipped with a 10,000L water tank and a 1,000L foam tank, the fire apparatus is well-prepared for large-scale fire suppression. It features a 100L/s@10 bar fire pump flow rate, capable of delivering a powerful water stream for firefighting. The 7m suction height allows for efficient water intake from nearby sources, while the fire monitor can discharge 80L/s@10 bar, with a shooting range of 85m for water and 85m for foam, providing substantial coverage in emergency scenarios.
The tank is made of PP composite material, which ensures durability and resistance to harsh chemicals. With these features, the Benz 6×6 ARFF fire apparatus offers exceptional firefighting capability, making it an indispensable tool in emergency fire response, particularly at airports and other large-scale facilities where rapid intervention is crucial.
FEATURES
1. High-Capacity Water and Foam Tanks: The vehicle is equipped with a 10,000L water tank and a 1,000L foam tank, providing substantial firefighting resources for handling large fires, especially in airport rescue and firefighting (ARFF) operations.
2. Powerful Engine and Drive System: Powered by the OM473 engine model, it offers 426 kW of rated power at 1,600 rpm, coupled with a 6×6 drive type to ensure excellent traction and performance in challenging terrains, making it ideal for emergency response in difficult environments.
3. Efficient Firefighting Systems: The 100L/s fire pump provides a high flow rate at 10 bar, enabling rapid deployment of water. Additionally, the 80L/s fire monitor at 10 bar allows for precise, long-range firefighting with a water range of 85m and a foam range of 85m.
4. Advanced Chassis and Emission Standards: Built on the Benz Arocs 3358E6 chassis, the apparatus meets the stringent Euro VI emission standards, ensuring a balance between powerful performance and environmental compliance.
5. Durable Construction and Heavy Load Capacity: The vehicle’s PP composite material tank ensures durability and resistance to corrosion, while the total full-loading weight of 28,100 kg ensures stability and robust handling when fully loaded, supporting a maximum driving speed of 100 km/h.
SPECIFICATION
The Whole Fire Truck’s Parameters
| No. | Main Items | Technical Parameters |
| 1.1 | Model No. | CSCFA011 |
| 1.2 | Overall Dimensions(LxWxH) | 9,800×2,600×4,050mm |
| 1.3 | Full Load Weight | 28,100kgs |
| 1.4 | Number of the Crew | 2 (include driver) |
| 1.5 | Max. Speed | 100km/h |
| 1.6 | Capacity | 10,000L Water & 1,000L Foam. PP composite material liquid tank. |
| 1.7 | Fire pump flow rate | 100L/s@10bar |
| 1.8 | Fire monitor | Front-mounted monitor 20L/s, roof-mounted monitor 80L/s. |
| 1.9 | Painting | Fire Red |
2. Chassis
Manufacturer: Benz
Model: Arocs 3358E6 6×6
Drive Type: 6×6
Wheelbase: 4,450mm+1,450mm
Engine model: OM473
Engine type: In-line 6-cylinder turbocharged inter-cooled diesel engine
Rated power: 426/1,600(kW/rpm)
Gearbox form: 16 forward gears + 4 reverse gears, mechanical automatic transmission
Fuel tank capacity: 290L aluminum fuel tank
Emission standards: Euro VI.
3. Superstructure / Upper Body
| No. | Main Items | Technical Parameters |
| 3.1 | Cabin | |
| 3.1.1 | Structure | Single row cabin with 2 doors |
| 3.1.2 | Seats | 2 seats with 3-point safety belt |
| 3.2 | Standardized Sub-frame | |
| 3.2.1 | Material | High-strength rectangular tube made of special steel |
| 3.2.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats |
| 4.3 | Compartment | |
| 4.3.1 | Material | High-strength aluminum alloy profiles |
| 4.3.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear |
| 4.4 | Roller Shutter Door | |
| 4.4.1 | Material | Aluminum alloy profiles with anodized surface |
| 4.4.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, LED light, and sensors. |
| 4.4 | Superstructure Electric Appliance | |
| 4.4.1 | Warning Light and Siren | Long-row warning lights and sirens are mounted above the cabin. The controller is installed in the driver’s cabin. |
| 4.4.2 | Strobe Light | Mounted on both sides of the compartment |
| 4.4.3 | External Lighting | LED lights are mounted on both sides of the compartment |
| 4.4.4 | Roof Lighting | LED lights are mounted on the inside of the roof |
| 4.4.5 | Side Indicator Light | The inline yellow warning light is mounted on the side of the compartment and the pedals. |
5. Fire Extinguishing System
5.1 Fire Pump
Flow Rate: 100L/s @ 10bar
Vacuum Pump: Electric vacuum pump
Priming Manner: Automatic
Suction Height: 7m
Priming Time: ≤100s
Location: Rear-mounted
5.2 Fire Monitor
Flow Rate: 80L/s@10bar
Shoot Range: Water≥85m, Foam≥85m
Location: On the top of the tank
Control Manner: Electric remote control
Horizontal Rotation Angle 0°~340°
Pitch Rotation Angle: -15°~70°
5.3 Liquid Tank
Capacity: Water 10,000L, Foam 1,000L.
Material: PP composite material and Never Rust.
Structure: Two Tank Manholes; 2 Overflow Devices/Pressure Relief Devices; 2 Liquid Level Indicators; 1 Foam tank Drain Outlets with Valves; 1 Water tank Drain Outlets with Valves.
5.4 Control Panel
It adopts advanced CANBUS 2.0 bus control technology and is equipped with a pump room operation control panel and a handheld wireless operation terminal, which can realize functions such as one-click water dispensing, stable flow and pressure, and automatic adjustment of foam ratio.
