Model No.: CSCAFE011.
10,000L Water Tank & 1,000L Foam Tank.
Overall Dimensions(LxWxH): 9,800×2,600×4,050mm.
Chassis Brand: Benz Arocs 3358E6.
Drive Type: 6×6.
Wheelbase: 4,450+1,450mm.
Full Load Weight: 28,100kg.
Max. Speed: 100km/h.
Engine Model: OM473.
Rated power: 426/1600(kW/rpm).
Emission standards: Euro VI.
Fire Pump Flow Rate: 100L/s@10bar.
Suction Height: 7m.
Fire Monitor Flow Rate: 80L/s@10bar.
Shoot Range: Water≥85m, Foam≥85m.
Material: PP composite material.
 |
 |
 |
 |
Description
BRIEF

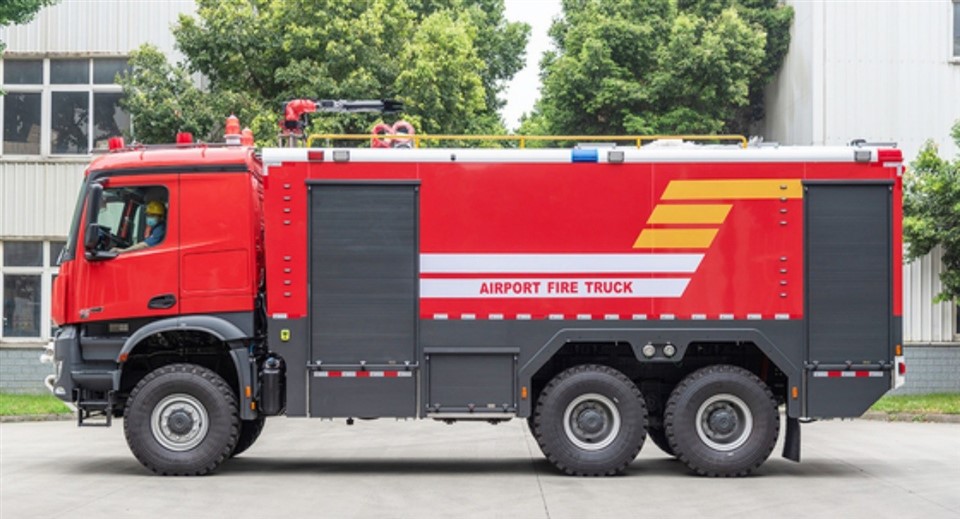

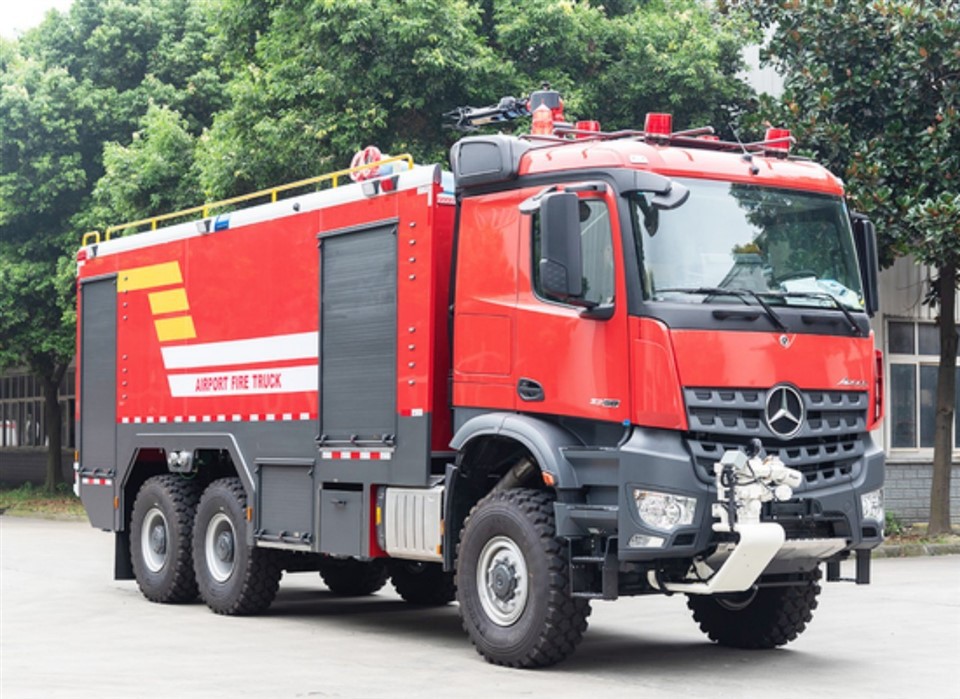

The Benz 6×6 ARFF (Aircraft Rescue and Fire Fighting) fire engine, produced by CSCTRUCK, is a high-performance emergency vehicle tailored for airport fire and rescue operations. Built on the robust Benz Arocs 3358E6 chassis with a 6×6 drive configuration, it offers superior off-road capabilities and stability under demanding conditions. The vehicle’s full loading weight is 28,100 kg, and it can reach a maximum driving speed of 100 km/h, ensuring swift response times.
Powered by the Mercedes-Benz OM473 engine, this ARFF fire engine delivers an impressive output of 426 kW at 1,600 rpm, compliant with the Euro VI emission standard. It is equipped with a PP composite material tank capable of carrying 10,000 liters of water and 1,000 liters of foam, ensuring sufficient firefighting resources for critical situations.
The vehicle’s firefighting system is designed for exceptional performance, featuring a fire pump with a flow rate of 100 liters per second at 10 bar and a suction height of 7 meters. Its fire monitor achieves a flow rate of 80 liters per second at 10 bar, with a shooting range of 85 meters for both water and foam, providing efficient and far-reaching fire suppression capabilities.
This ARFF fire engine combines advanced engineering and practical functionality, making it a reliable choice for tackling complex airport emergencies. With its cutting-edge design and powerful specifications, the Benz 6×6 ARFF by CSCTRUCK sets a benchmark in modern firefighting technology.
FEATURES
1. Large-Capacity Tanks: Equipped with a 10,000L water tank and a 1,000L foam tank, both made of durable PP composite material to ensure reliability during high-demand firefighting operations.
2. High-Performance Engine: Powered by the OM473 engine with a power output of 426kW@1,600rpm, compliant with Euro VI emission standards for environmental efficiency.
3. Robust Chassis and Drive: Built on the Benz Arocs 3358E6 chassis with a 6×6 drive type, providing excellent off-road capabilities and stability for extreme terrains.
4. Efficient Firefighting Systems: Features a 100L/s@10bar fire pump and a fire monitor flow rate of 80L/s@10bar, with an impressive shooting range of 85 meters for both water and foam.
5. Heavy-Duty Specifications: Designed for a full loading weight of 28,100 kg, capable of achieving a maximum driving speed of 100 km/h for rapid deployment, and offering a 7-meter suction height for versatile water sourcing.
SPECIFICATION
The Whole Fire Truck’s Parameters
| No. | Main Items | Technical Parameters |
| 1.1 | Model | CSCAFE011 |
| 1.2 | Overall Dimensions(LxWxH) | 9,800×2,600×4,050mm |
| 1.3 | Full Load Weight | 28,100kgs |
| 1.4 | Number of the Crew | 2 (include driver) |
| 1.5 | Max. Speed | 100km/h |
| 1.6 | Capacity | 10,000L Water & 1,000L Foam. PP composite material liquid tank. |
| 1.7 | Fire pump flow rate | 100L/s@10bar |
| 1.8 | Fire monitor | Front-mounted monitor 20L/s, roof-mounted monitor 80L/s. |
| 1.9 | Painting | Fire Red |
2. Chassis
Manufacturer: Benz
Model: Arocs 3358E6 6×6
Drive Type: 6*6
Wheelbase: 4,450mm+1,450mm
Engine model: OM473
Engine type: In-line 6-cylinder turbocharged inter-cooled diesel engine.
Rated power: 426/1,600(kW/rpm)
Gearbox form: 16 forward gears + 4 reverse gears, mechanical automatic transmission.
Fuel tank capacity: 290L aluminum fuel tank
Emission standards: Euro VI.
3. Superstructure / Upper Body
| No. | Main Items | Technical Parameters |
| 3.1 | Cabin | |
| 3.1.1 | Structure | Single row cabin with 2 doors. |
| 3.1.2 | Seats | 2 seats with 3-point safety belt. |
| 3.2 | Standardized Sub-frame | |
| 3.2.1 | Material | High-strength rectangular tube made of special steel. |
| 3.2.2 | Performance | The liquid tank and the sub-frame are connected by elastic connecting seats. |
| 3.3 | Compartment | |
| 3.3.1 | Material | High-strength aluminum alloy profiles. |
| 3.3.2 | Structure | Aluminum alloy welded structure. Roof railing with LED light. With an aluminum alloy ladder in the rear. |
| 3.4 | Roller Shutter Door | |
| 3.4.1 | Material | Aluminum alloy profiles with anodized surface. |
| 3.4.2 | Structure | With a rain-proof groove on the top, a lever-type bar, a lock handle, a pull strap, a two-point fixed seat, an LED light, and sensors. |
| 4.4 | Superstructure Electric Appliance | |
| 4.4.1 | Warning Light and Siren | Long-row warning lights and sirens are mounted above the cabin. The controller is installed in the driver’s cabin. |
| 4.4.2 | Strobe Light | Mounted on both sides of the compartment. |
| 4.4.3 | External Lighting | LED lights are mounted on both sides of the compartment. |
| 4.4.4 | Roof Lighting | LED lights are mounted on the inside of the roof. |
| 4.4.5 | Side Indicator Light | Inline yellow warning light is mounted on the side of the compartment and pedals. |
5. Fire Extinguishing System
5.1 Fire Pump
Flow Rate: 100L/s@10bar
Vacuum Pump: Electric vacuum pump
Priming Manner: Automatic
Suction Height: 7m
Priming Time: ≤100s
Location: Rear-mounted
5.2 Fire Monitor
Flow Rate: 80L/s@10bar
Shoot Range: Water≥85m, Foam≥85m
Location: On the top of the tank
Control Manner: Electric remote control
Horizontal Rotation Angle 0°~340°
Pitch Rotation Angle: -15°~70°
5.3 Liquid Tank
Capacity: Water 10,000L, Foam 1,000L.
Material: PP composite material and Never Rust.
Structure: 2 Tank Manholes; 2 Overflow Devices/Pressure Relief Devices; 2 Liquid Level Indicators; 1 Foam tank Drain Outlets with Valves; 1 Water tank Drain Outlets with Valves.
5.4 Control Panel
It adopts advanced CANBUS 2.0 bus control technology and is equipped with a pump room operation control panel and a handheld wireless operation terminal, which can realize functions such as 1-click water dispensing, stable flow and pressure, and automatic adjustment of foam ratio.
