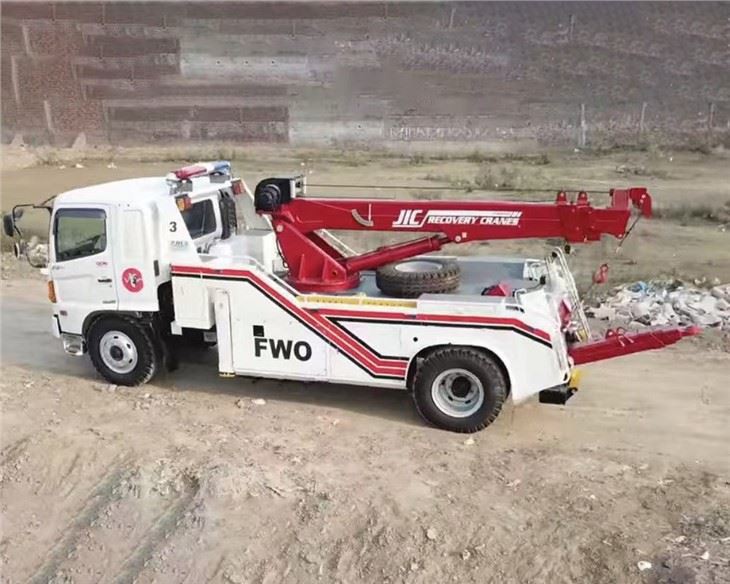

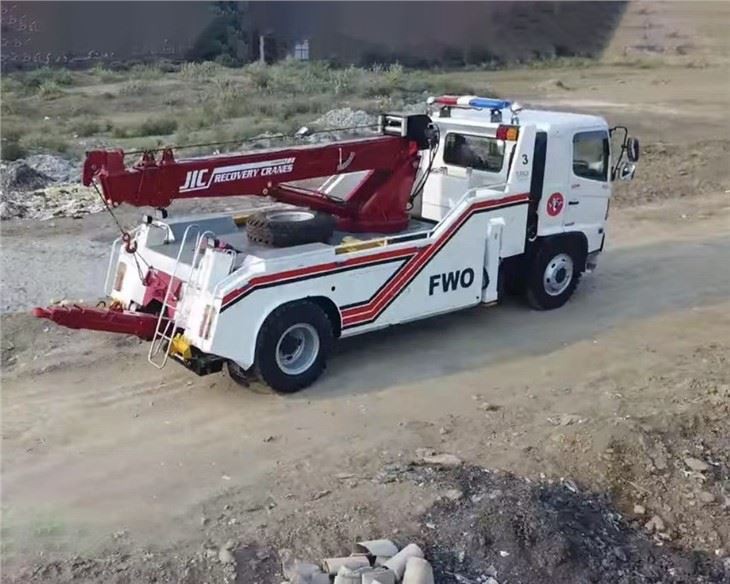

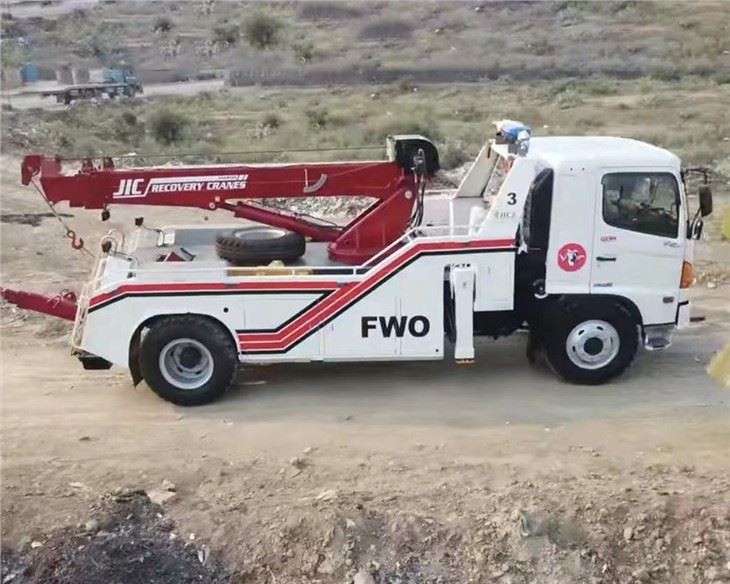

Custom Built 20 Ton Rotator Truck

Lifting Capacity: Rated for 20 Tons
Winches: Equipped with 2 Standard 10-ton Winches
Underlift Rating (Retracted): 20,000kg
Underlift Rating (Extended): 10,000kg

Description

BRIEF



The 20-ton Rotator Truck produced by CSCTRUCK is a compact powerhouse, designed to excel in conquering new markets. Despite its lightweight, this rotator truck packs a punch with its slider system, enabling unmatched payloads. Its small stature grants remarkable maneuverability and versatility, making it an ideal choice for urban environments.

Navigating through tight city streets is a breeze for the 20-ton Rotator Truck, showcasing its ease of handling and resilience in challenging conditions. It offers maximum performance, outstanding versatility, and reduced maintenance costs, all housed within a sleek composite body. Consider this truck your newest business ally, ready to tackle any task with efficiency and style.



FEATURES



1. Individual wheelbase frame
2. Sleek monocoque storage cabinets made from durable, corrosion-resistant composite materials
3. Air-powered sliding locking mechanisms
4. Safety locks and valves installed on elevation and extension cylinders
5. Dual hydraulic control systems equipped with lighting features
6. Rear control electric switches
7. Wireless remote control with six buttons
8. Six-button CAN BUS keypad located in the cabin for controlling lighting
9. Detachable spades
10. Recovery anchors mounted at the rear
11. Protective mud flaps
12. LED lighting fixtures
13. Fork and accessory holders designed for modular use
14. Emergency stop switches for added safety measures
15. Application of epoxy primer for enhanced durability

See also  8 Ton Wheel Lift Recovery Truck



Optional Features

1. Anodized aluminum roll-up doors
2. Proportional joysticks at the main control station
3. Fully proportional remote control with 2 batteries and charger
4. 10/14-button wireless remote control
5. 5″ color touch screen
6. Scale system
7. “L” shaped mounting plates 3/8″
8. 3-stage HD Underlift
9. Composite winch covers
10. Large tunnel toolbox (28″ to 72″)
11. Composite battery box on top of the tunnel
12. Composite light pylon
13. Work lights under the boom (1)
14. Stainless docking lights
15. Configurable toolbox organizers
16. Stainless dress-up kit
17. Installation
18. Custom paint



Truck Requirements:

– Front Axle: Must have a capacity of at least 10,000 lbs.
– Rear Axle: Must have a capacity of at least 20,000 lbs.
– Minimum Frame RBM (Resisting Bending Moment): 2,150,000 in.lbs per rail.
– Minimum CLA (Cab Length Aft): 140″ (from the cab to the center of the rear axle).





SPECIFICATION



Category Specification
Wrecker Capacity
Rated Lifting Capacity 20-Ton
Sliding Recovery Boom 73”
Working Hydraulic Pressure 3,000 PSI
Composite Body Width 100” wide (including fenders)
Boom Specification
Recovery Boom Type 2-Stage
Structural Rating (Retracted) 40,000 lbs
Structural Rating (Extended) 15,000 lbs
Reach Past Tailgate 147″
Maximum Working Height 256″
Range of Elevation 0° – 55°
Sheave Head 360°
Winches
Type Dual Planetary
Capacity (each) 20,000 lbs
Wire Rope Size 5/8″ x 200′
Tensioners Air
Free Spools Air
Optional 2-Speed Winches
