10,000L Sewer Tank Capacity
WEILONG Vacuum Pump
Advanced Anti-flow system
Dongfeng KR 4×24 Truck Chassis
Cummins™ 190ps Diesel Engine
FAST™ 8F+2R Speed Manual Transmission
 |
 |
 |
 |
Description
BRIEF

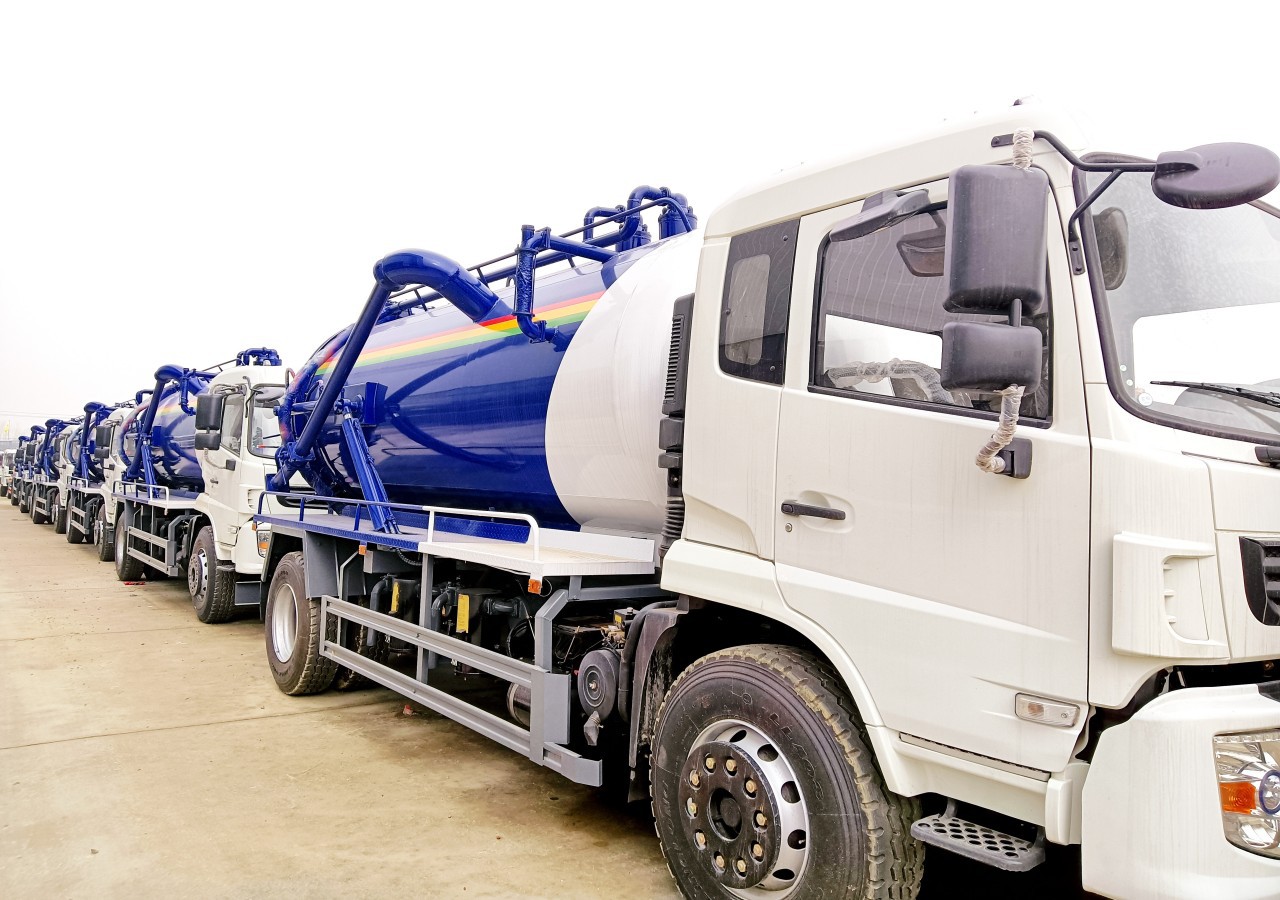

The DongFeng vacuum sewer truck has been ingeniously engineered to efficiently collect, suction, and transport sewage and sludge. Specifically designed to meet the demanding requirements of this task, it boasts a robust sewer tank body that is skillfully mounted on the reliable Dongfeng KR chassis. Underneath its hood, a powerful CUMMINS engine and a FAST transmission work in perfect harmony, ensuring optimal performance and seamless operation.
This exceptional vacuum sewer truck is equipped with cutting-edge technology, including an advanced hydraulic system, a highly efficient vacuum system, and a reliable anti-flow system. These innovative features work together seamlessly to guarantee the utmost safety during operation, allowing for the effective removal and transportation of waste materials without any compromise.
Renowned as a leading expert in the liquid cleaning field, CSCTRUK has meticulously crafted this vacuum sewer truck to meet the highest standards of excellence. With an unwavering commitment to delivering superior solutions, they have harnessed their expertise to create a vehicle that excels in its functionality, durability, and performance.
The Dongfeng vacuum sewer truck, with its remarkable capabilities and precision-engineered components, exemplifies CSCTRUK‘s dedication to innovation and customer satisfaction. Whether deployed for industrial or municipal purposes, this exceptional vehicle stands as a testament to the brand’s unwavering commitment to providing reliable and efficient liquid cleaning solutions.
FEATURES
- This particular model is highly suitable for long-distance suction of human waste and sewage.
- A state-of-the-art anti-flow system has been implemented to ensure the vacuum sewer truck is equipped with a comprehensive vacuum pump system.
- The vacuum sewer truck will be equipped with a durable vacuum pump that provides optimal vacuum efficiency, even in the most challenging operational environments.
- The round shape of the sewer tanker offers superior pressure resistance compared to its oval counterpart.
SPECIFICATION
|
Chassis |
|
|
Size |
7,630×2,500×3,415 (mm) |
|
GVW/Curb Weight |
16,000/7390kg |
|
Wheelbase |
4,500mm |
|
Front/Rear Axle |
6T/10T |
|
Tire |
10.00R20, 6+1 tires |
|
Engine |
|
|
Type |
Diesel |
|
Make/Model |
CUMMINS / B190 33/ 190hp/ Euro 3 |
|
Transmission |
|
|
Model |
FAST/8JS75 |
|
Gears |
8F+2R |
|
Operation |
Manual |
|
Cabin |
|
|
Driving |
Dongfeng KR 4X2, Left/Left Hand Drive |
|
Type |
Steel construction, Single Row, Flat |
|
Passenger No. |
3 |
|

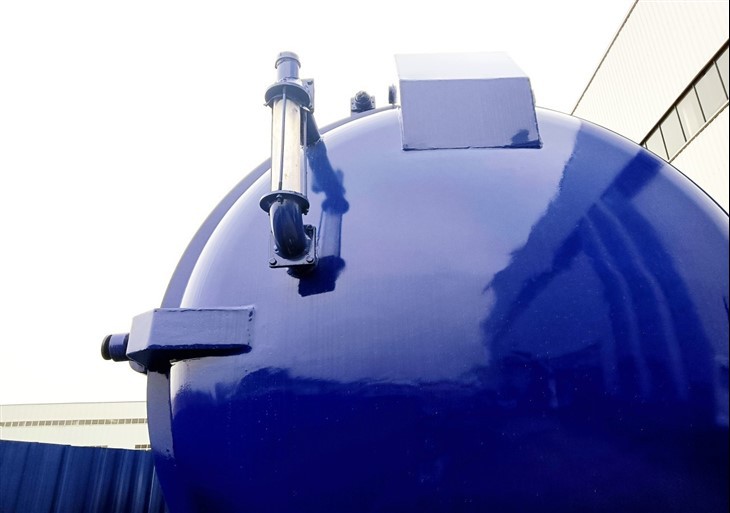

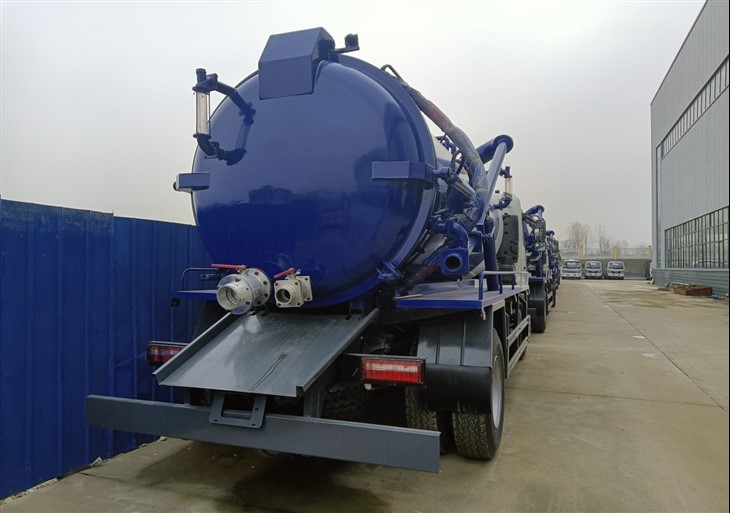

Sewer Tanker |
|
|
Capacity |
10,000L |
|
Material |
High quality mild steel model Q235 |
|
Thickness |
6mm |
|
Equipment |
Ladder, level indicator, rear door, baffles, sight glass, valve, manhole. |
|
Anti-flow system |
Primary & Secondary Shut-off; Vacuum & Pressure Relief Valve; Silencer etc. |
|
Vacuum Pump |
|
|
Make/Model |
VERYONG/68-7000 |
|
Qty |
2pcs |
|
Flow Capacity |
800m3/h |
|
Suction Hose |
Provided with heavy Duty spiral suction hoses, 4″ diameter. The hose is 3 meters in length with aluminum or galvanized steel light and easy to handle PVC hose along with quick-connect fittings |
|
Controls |
Manual control valves are mounted in a safe and easily accessible place for ease of maintenance. |
