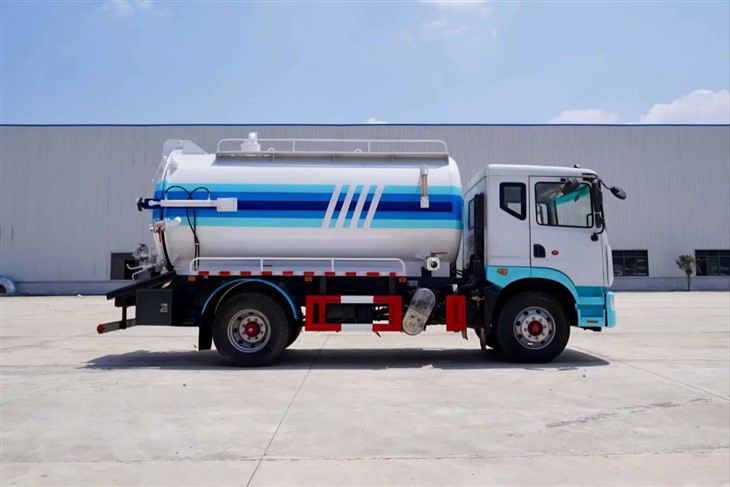

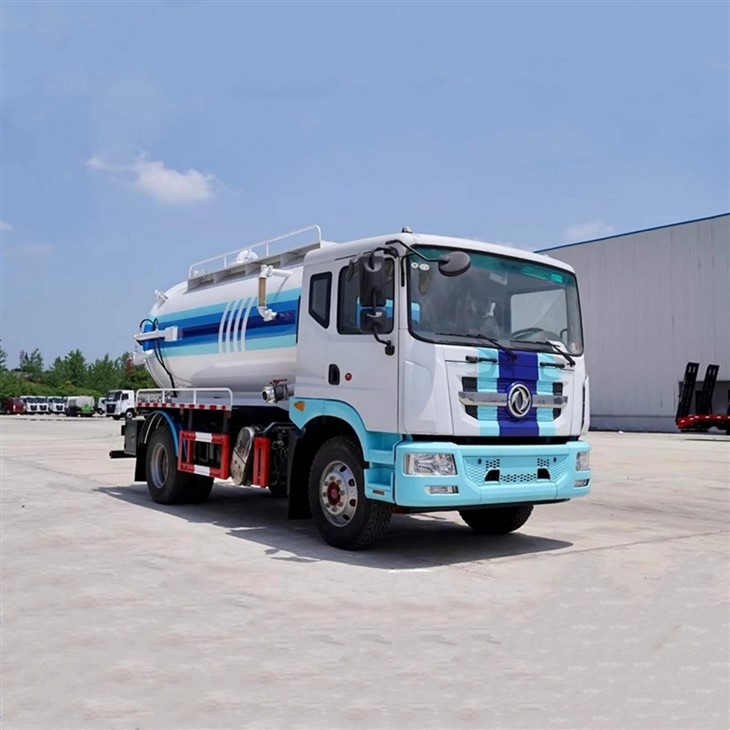

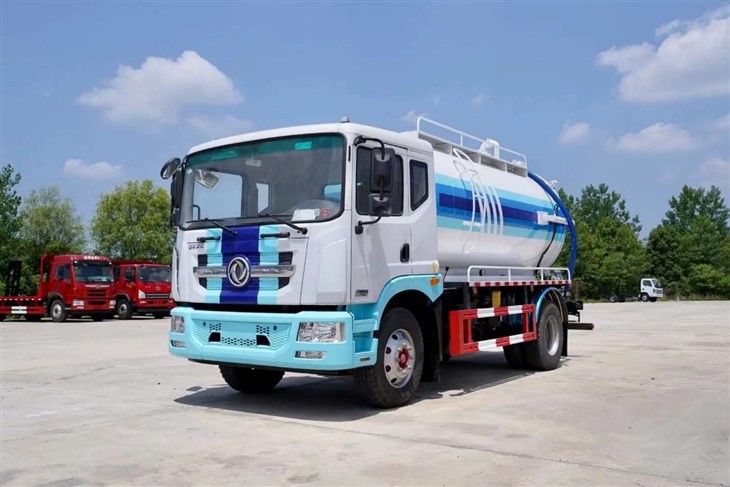

Dongfeng 12 CBM Combination Jetting Truck

Model NO.: Dongfeng 12 CBM Combination Jetting Truck.
Dimension(LxWxH): 7,480*2,500*3,450mm
Curb Weight: 7,880kg
Chassis Model: EQ1165LJ9CDE
Wheelbase: 3,950mm
Engine Model: YCY30165-60
Emission Standard: Euro3

BRIEF

A versatile vehicle known by various names such as the vacuum sewage suction truck, truck-mounted sewage cleaner, vacuum cleaner truck, and several others, serves a pivotal role in the transportation and disposal of a wide range of liquids and solids. This multifaceted machine is designed to collect and transport substances including dirty water, sludge, septic waste, crude oil, and solid materials like small stones and bricks. Furthermore, it’s indispensable for maintaining and cleaning vital infrastructure like sewers, cesspits, and gullies. As a result, it plays a crucial role in environmental and sanitation efforts.

To accomplish its diverse functions, this vehicle is equipped with a range of essential components. These include a Power Take-Off (PTO) mechanism, a transmission shaft, a vacuum suction sewage pump, a high-pressure molding tank, a moisture separator, a gas-oil separation unit, a multifunctional directional control valve, a hanger rod, a self-discharging valve, a fecal suction gun, and an intricate pipe network system. These components work in unison to facilitate the seamless operation of the vacuum sewage suction truck, ensuring efficient collection and disposal of a variety of waste materials.

One crucial feature of these trucks is their variable vacuum tank capacities, ranging from 3,000 liters to 20,000 liters. This flexibility allows them to adapt to the specific needs of different tasks, whether it’s a routine cleaning operation or a more substantial waste disposal project. This adaptability is a testament to the utility and versatility of these vehicles, making them an invaluable asset in maintaining the cleanliness and functionality of our urban environments.

FEATURES

a. The hydraulic system can raise the cylinder vacuum tank to an angle of 40-45 degrees, and the rear door can be hydraulically opened and closed.

b. We use either an EU vacuum pump from an Italian brand or a double vacuum pump from a top Chinese brand, offering exceptional power and efficiency.

c. The pump can be operated using either a hydraulic motor or an auxiliary engine.

d. Our system is equipped with an overfill protection mechanism featuring a musical horn to prevent sewage water from entering the vacuum pump when the tank is full, safeguarding the pump from damage.

e. Our product boasts an attractive design, and a well-considered structure, and is built to last with exceptional durability and a long service life.

SPECIFICATION
