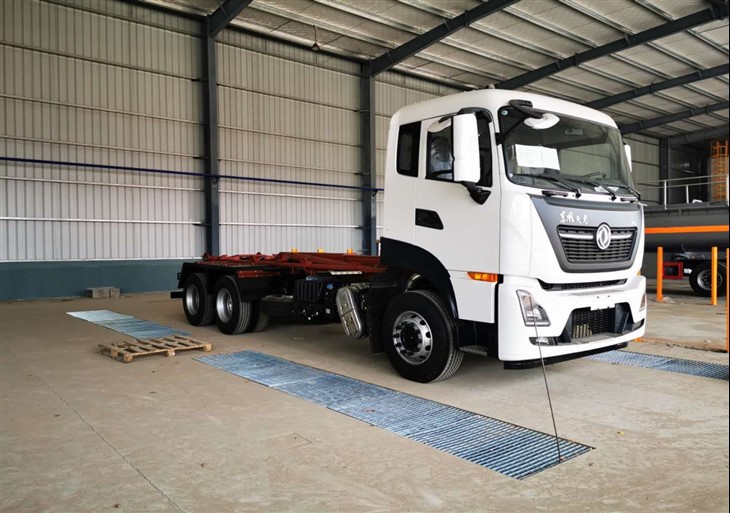

Dongfeng 20T Hook Loader Truck

20T Hook Loading Capacity

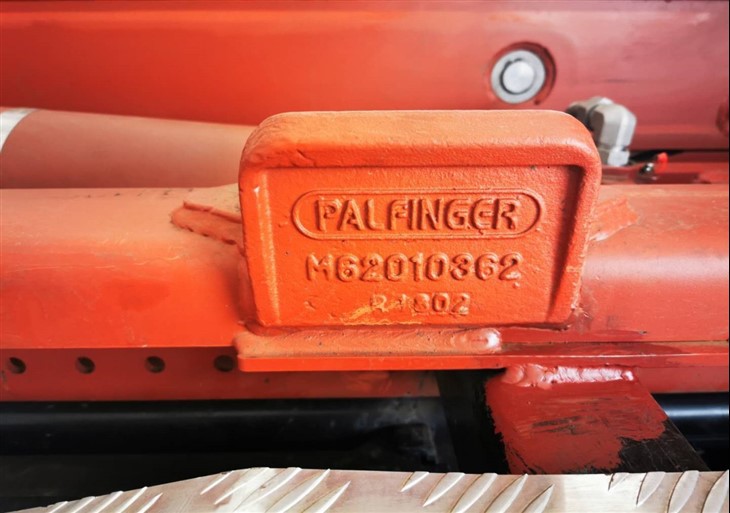

Palfinger Hook Arm
LEDUC Hydraulic Plunger Pump

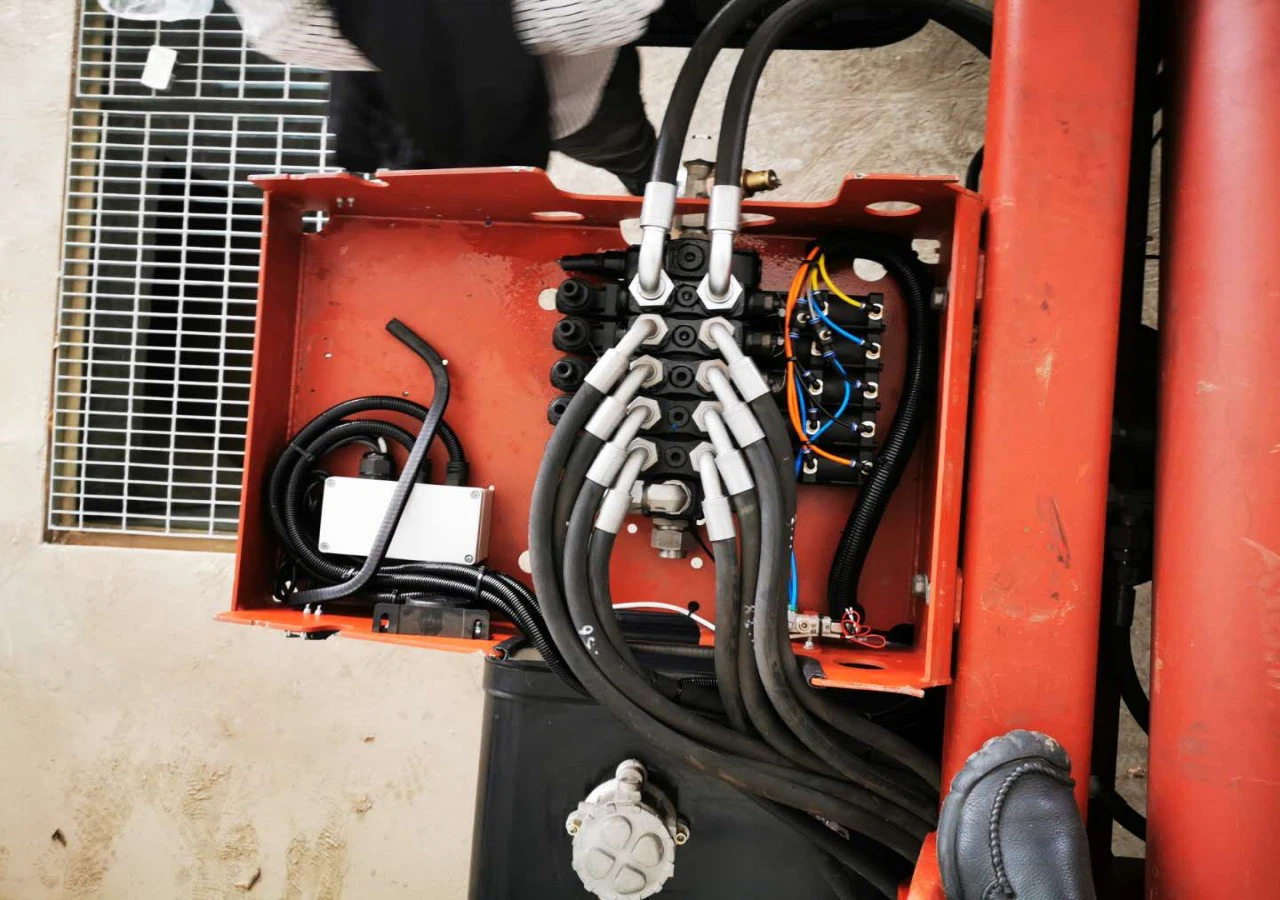

Walvoil Control Valve
Dongfeng™ KL Chassis Truck
Cummins™ 375ps Diesel Engine
FAST™ 12F+2R Speed Manual Transmission

Description

BRIEF



The CSCTRUCK hook loader garbage truck is an innovative vehicle that incorporates cutting-edge European PALFINGER technology. Drawing upon the design concept as a foundation, the hook loader garbage truck leverages the strengths of both Chinese domestic and PALFINGER products to enhance its functionality and performance. Through the utilization of finite element computer design, the hook loader garbage truck boasts a flawless geometric structure and outstanding mechanical properties.

Dongfeng 20T Hook Loader Truck 7

One of the standout features of the CSCTRUCK hook loader garbage truck is its remarkable lightweight construction. By prioritizing weight reduction, the hook loader garbage truck achieves a low self-weight, resulting in maximum payload capacity. This optimization not only enhances efficiency but also ensures ideal geometric and mechanical properties.

Dongfeng 20T Hook Loader Truck 8

When it comes to design, the CSCTRUCK team has prioritized safety, reliability, and ease of operation. Every aspect of the hook loader garbage truck has been meticulously considered, including the support and locking mechanisms of the upper structure, the hook locking system, the operational sequence, and comprehensive safety considerations. Each element has undergone careful and thoughtful design to ensure optimal performance and user security.

See also  PALFINGER Swap Loader Truck Garbage Truck

Dongfeng 20T Hook Loader Truck 9

The CSCTRUCK hook loader garbage truck sets a new standard in the industry, combining the best of Chinese and PALFINGER technologies. With its advanced design, lightweight construction, and meticulous attention to safety and functionality, this hook loader garbage truck offers a superior solution for various transportation and loading needs. Whether it’s efficiency, reliability, or ease of use, the CSCTRUCK hook loader garbage truck surpasses expectations and stands as a testament to the harmonious fusion of Chinese innovation and European excellence.



FEATURES



  • The main components are manufactured using standardized steel castings, produced after design, and we manufacture various parts for the PALFINGER factory in China as their OEM supplier.
  • Constructed by welding high-strength steel (specifically German steel grades S355MC and S460MC), the design emphasizes lightweight and optimized structures, utilizing materials with high strength to achieve a superior load-to-weight ratio. The key components exhibit exceptional material strength (yield strength ≥ 460MPa) while maintaining reliability.

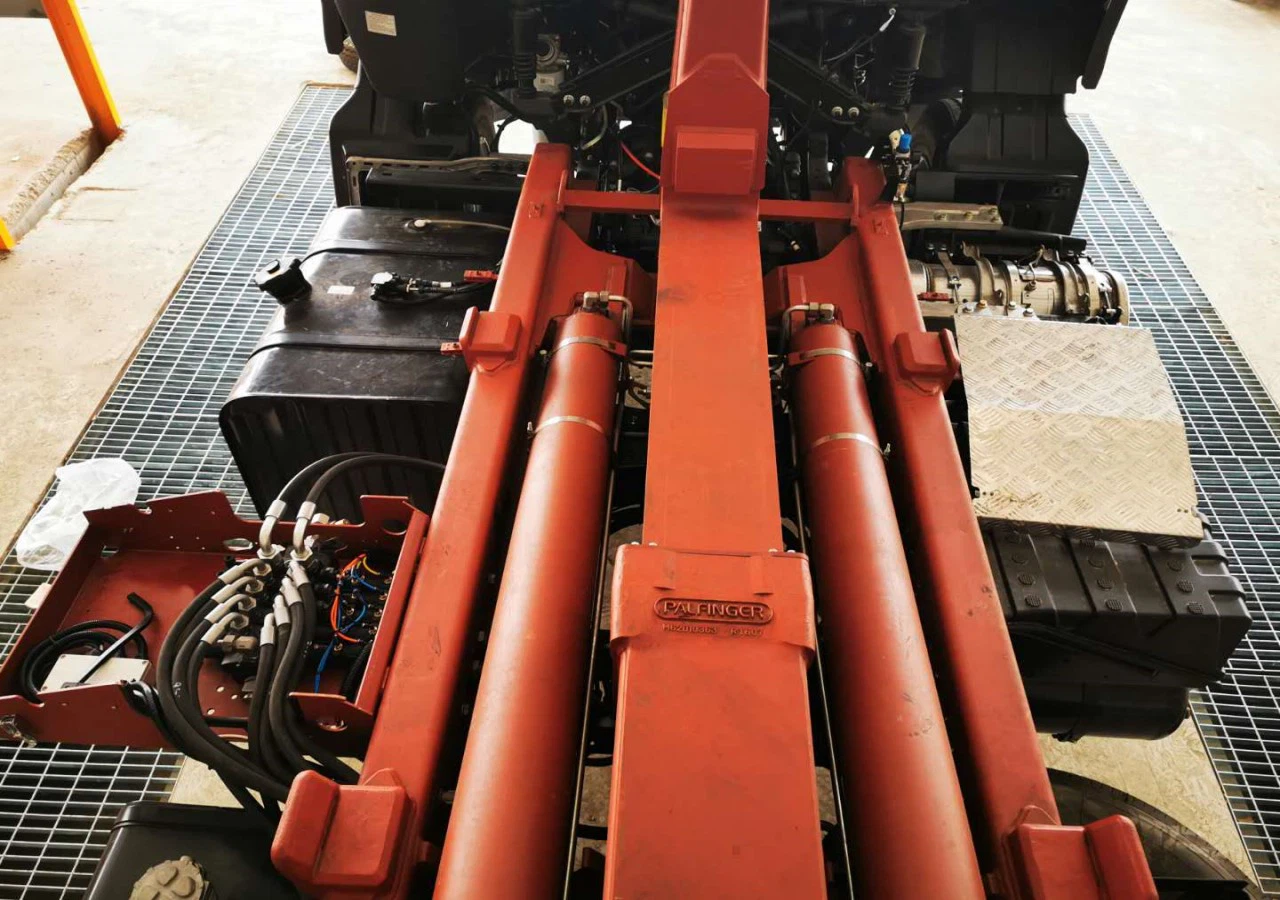

  • PALFINGER employs advanced cylinder technology, ensuring smooth motion, high load-bearing capacity, and reliable sealing. All cylinders are equipped with load-holding valves to enhance safety.
  • To prevent undesired elevation when not in a horizontal position, the hook boom is equipped with a limit switch valve. Additionally, an alarm system is installed to notify in case of incomplete retraction.
See also  5 CBM 6 Wheelers RORO Hook Lift



SPECIFICATION



Chassis



Size

8,400 x2,500x 3,180 (mm)

GVW/Curb Weight

25,000/12,800kg

Wheelbase

4,325+1,350mm

Front/Rear Axle

7T/18Tx2

Tire

12.00R20, 10+1 tires

Engine



Type

Diesel

Make/Model

CUMMINS / ISLe375 30/ 375hp/ Euro 3

Transmission



Model

FAST/12JSD180T

Gears

12F+2R

Operation

Manual

Cabin



Driving

Dongfeng KL 6X4, Left/Left Hand Drive

Type

Steel construction, Single Row, Flat

Passenger No.

3

Hook Loader Upper Body



Capacity of Lifting

20T

Form of Hook Boom

Telescopic Hook Boom

Height of Hook

1,570mm

Tilt Angle

48°

Kurb Weight of Upper Body

2,350kg

The Pressure of the System (Max.)

32MPa

Fuel Tanker Capacity

140Liters

Control Voltage

24v

Painting

Anti-corrosion treatment for all structural parts;

steel components are sprayed with high-quality paint;

metal parts (shaft connectors, hard oil pipes, hose fittings, bolt joints, etc.) are anti-corrosion treated and galvanized.
