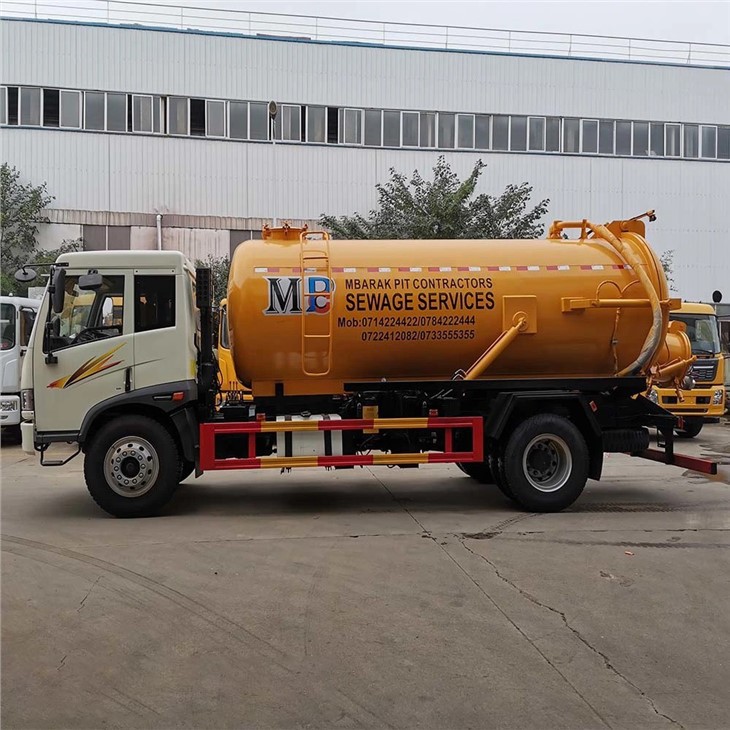

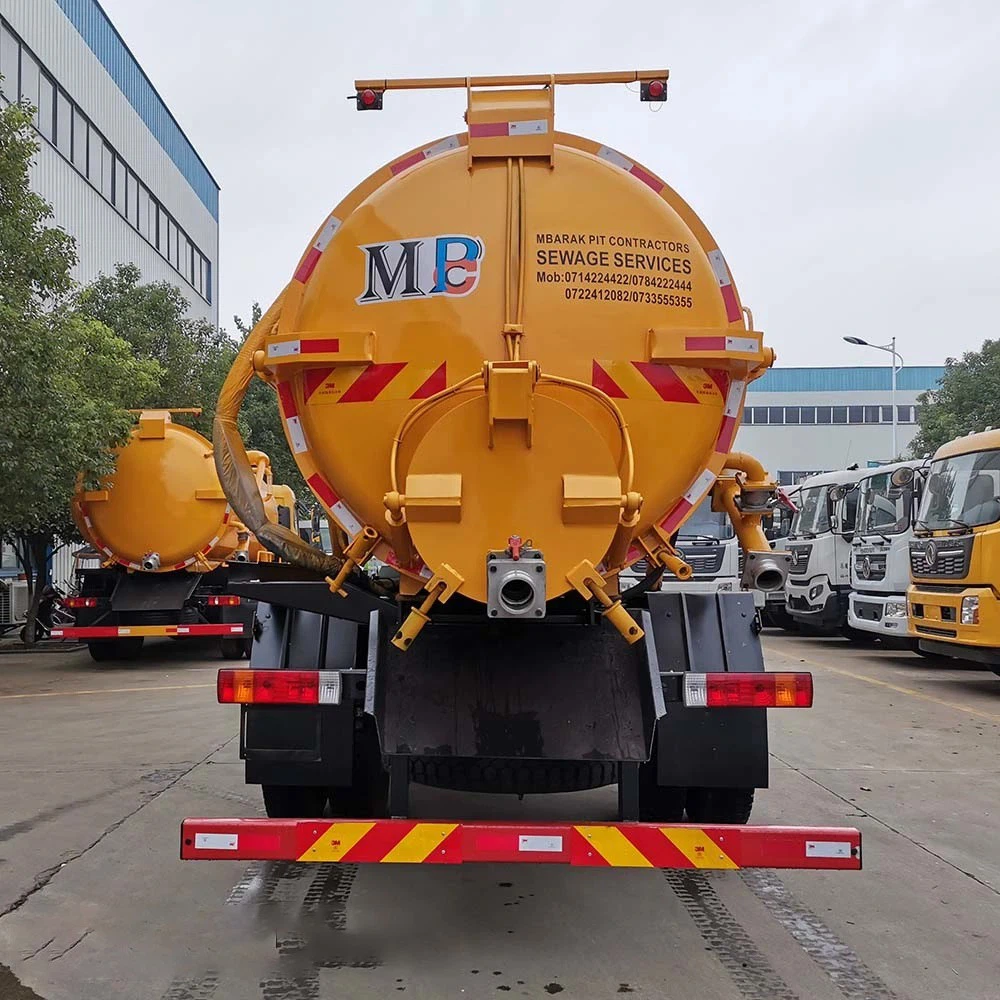

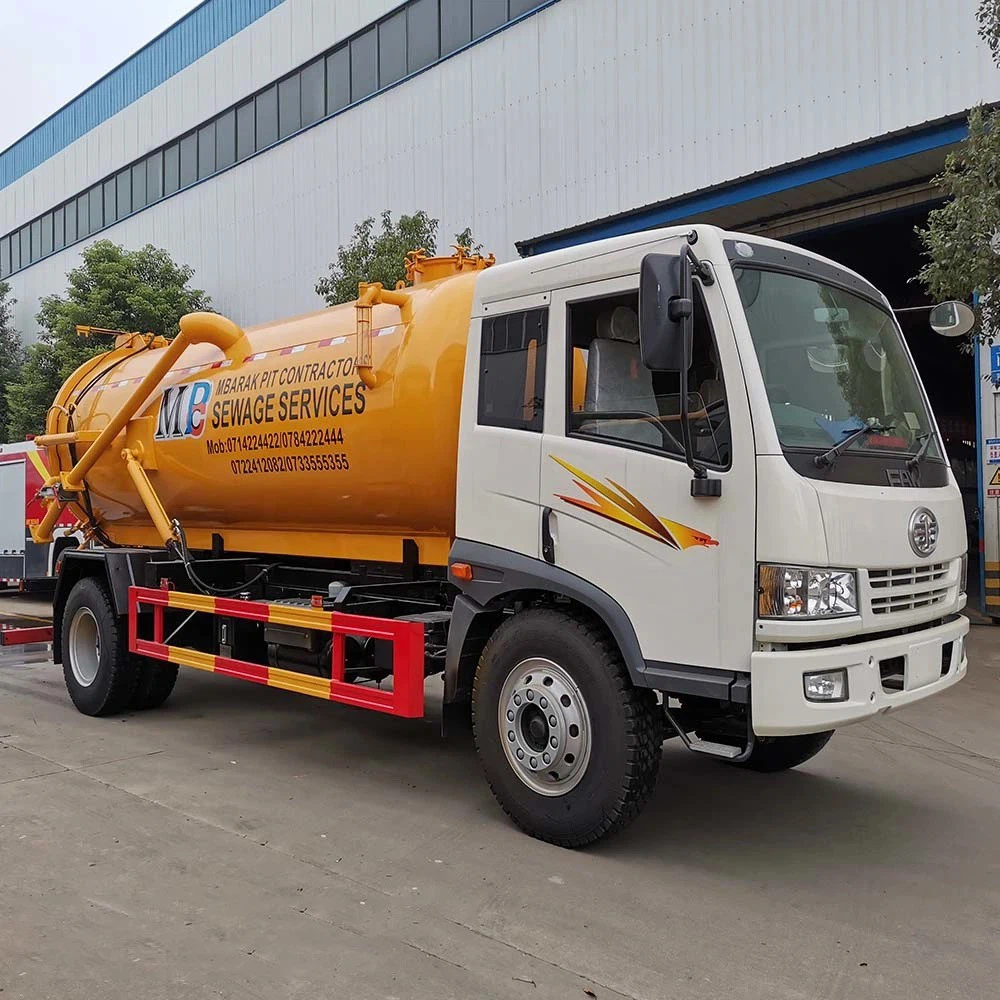

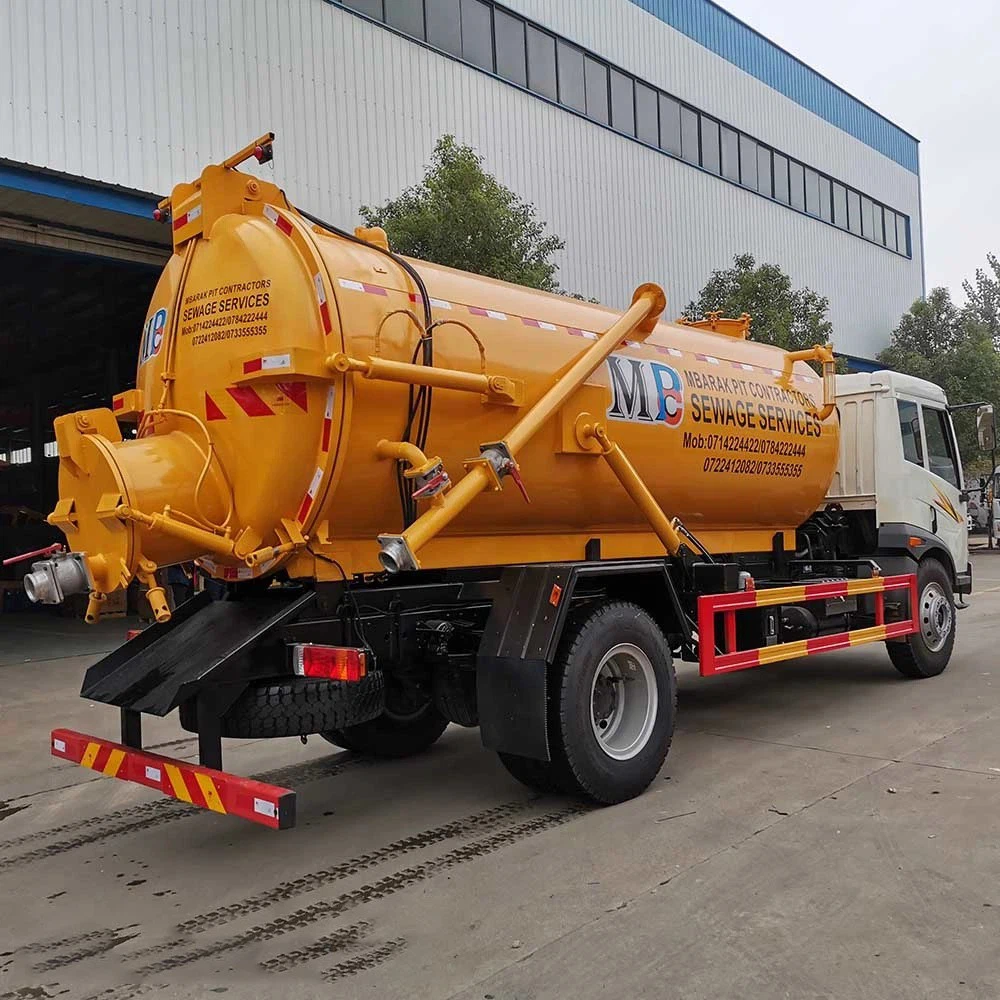

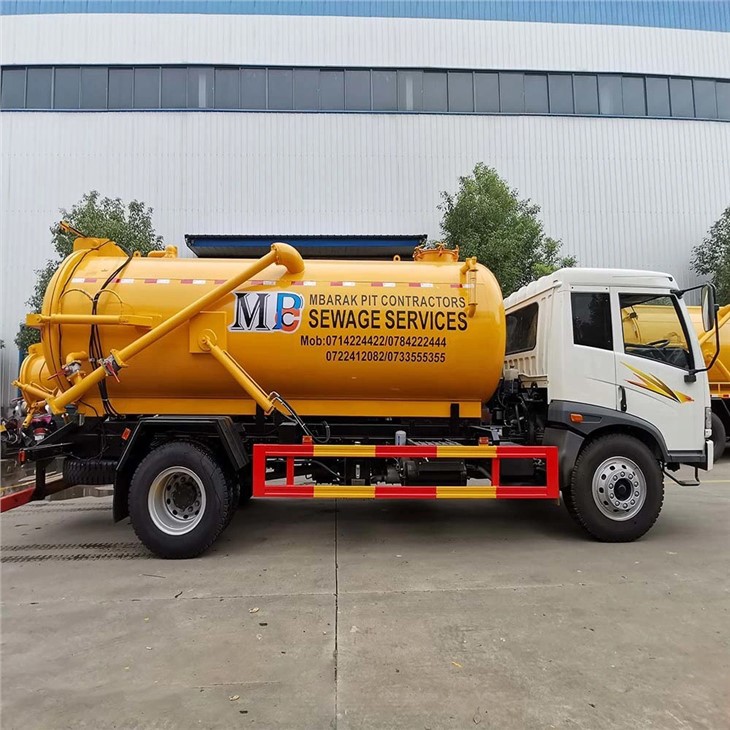

FAW 12,000L Vacuum Sewer Truck

Chassis Truck: FAW 4X2
Vacuum Tank: 12,000 Liters volume
Engine: CUMMINS/B170 33/170HP/Euro 3
Transmission: WLY651/6+1 Gears Manual
Size: 7,705*2,500*3,350mm
Shipping Weight: 7,550kg
Wheelbase: 4200mm

The FAW 12,000L Vacuum Sewer Truck is designed to collect, by suction, and transport sewage and sludge. The vacuum Sewage Tank System Body mounted based on the FAW truck chassis with a top vacuum pump consists of a subframe connected to the truck chassis, a cylindrical tank, a hydraulically opening full-diameter tailgate, and the vacuum system powered by the PTO. The Sewer Vacuum Tankers Mounted on the truck are intended for vacuum cleaning of cesspools and transportation of fecal liquids to the disposal area. The upper part of the tank structure is designed to suck various liquid wastes, mud, and dirt from the earth or septic tank; the Upper part of the tank structure is stable /resistant to frequent cleansing and disinfection.

Capacity: 12,000 liters

Shape: Round Cylindrical

Material: Q235 mild steel

Thickness: 6mm tank, 8mm head, 4mm partition

Tank Testing: The tank is hydrostatically tested.

Automatic Sensing Device

Hydraulic Connections: All hydraulic connections are a combination of high-pressure pipes and flexible hoses, to facilitate easy replacements/repairs.

                                                              SPECIFICATION
